| Scanning module2D image | operating systemAndroid 13 | Flash memory64 GB |
| RAM memory4 GB | Scanner resolution1280(h)х800(v)px | Scanning coverage angle42º(h)x27º(v) |
| Barcode SensitivityTilt ±60° / Rotate 360° / Pivot ±60° | Sensor typeIndustrial | SlotsMicro SD Card, 256GB SDHC compatible, 2*nanoSIM |

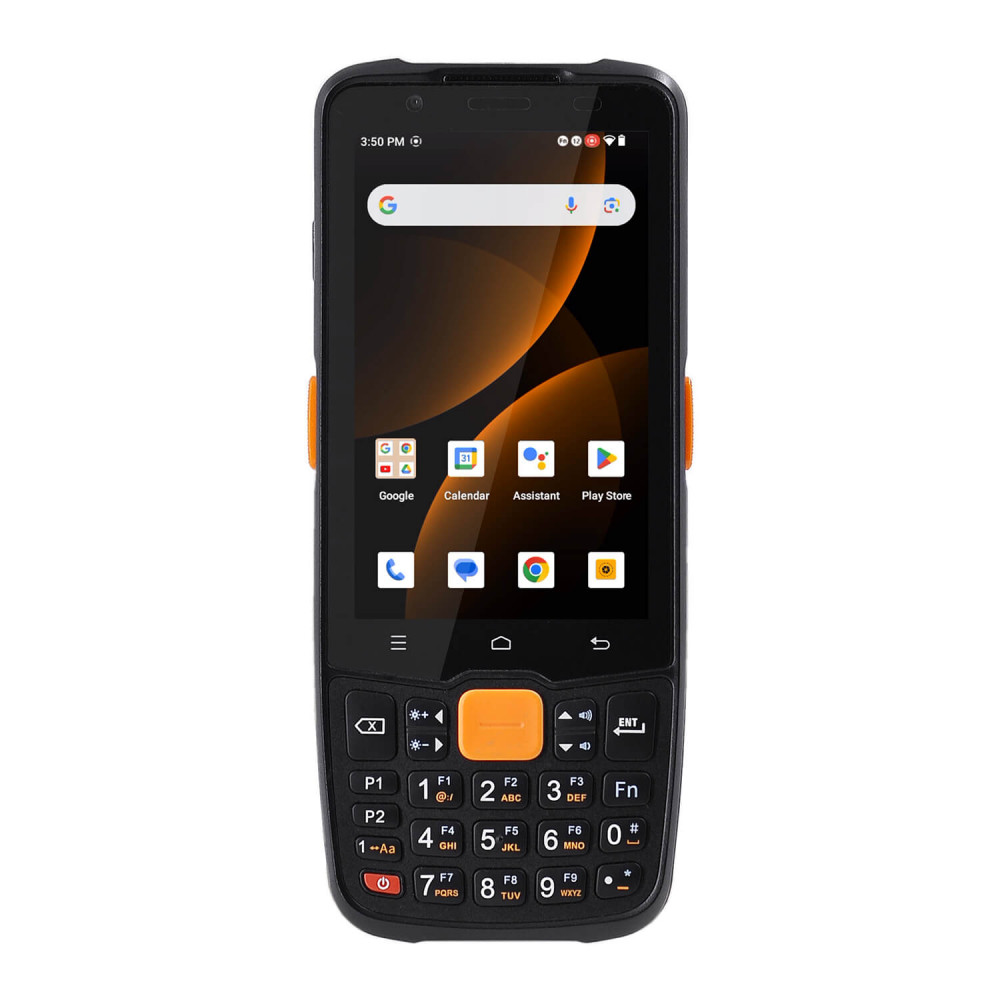

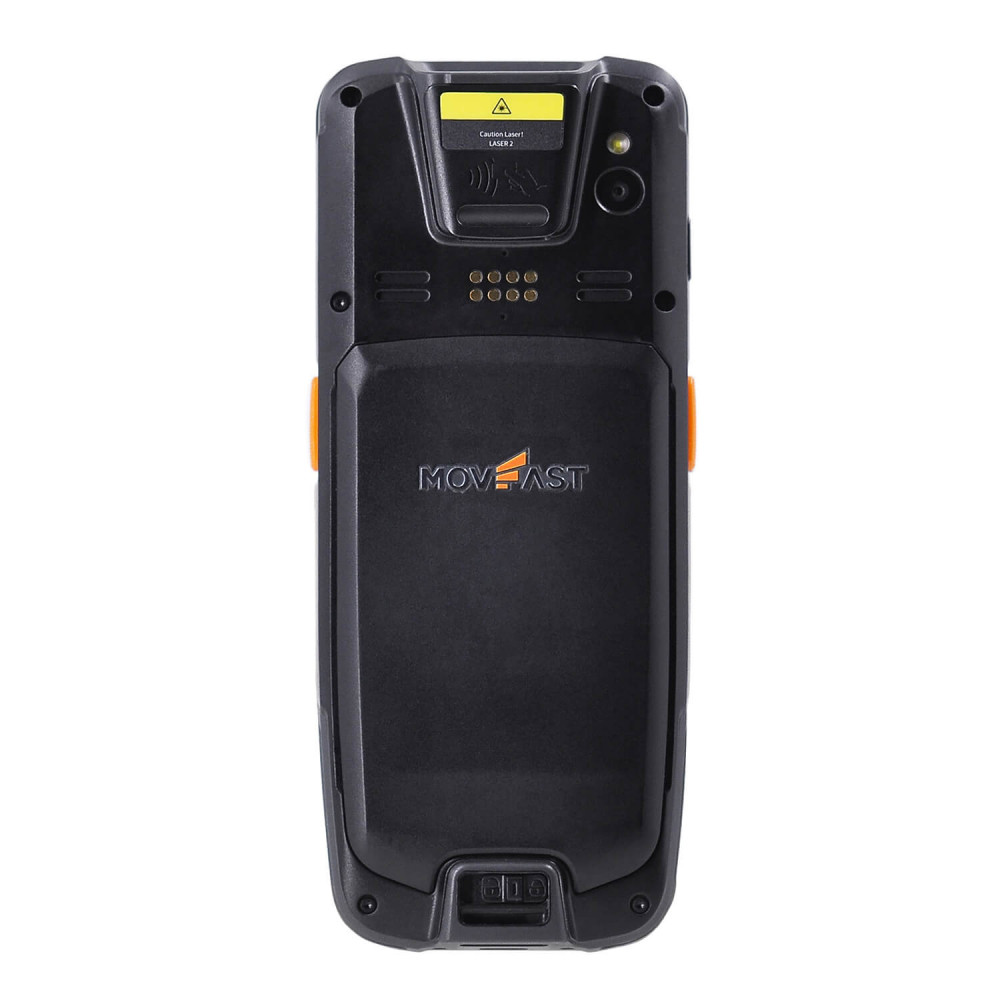

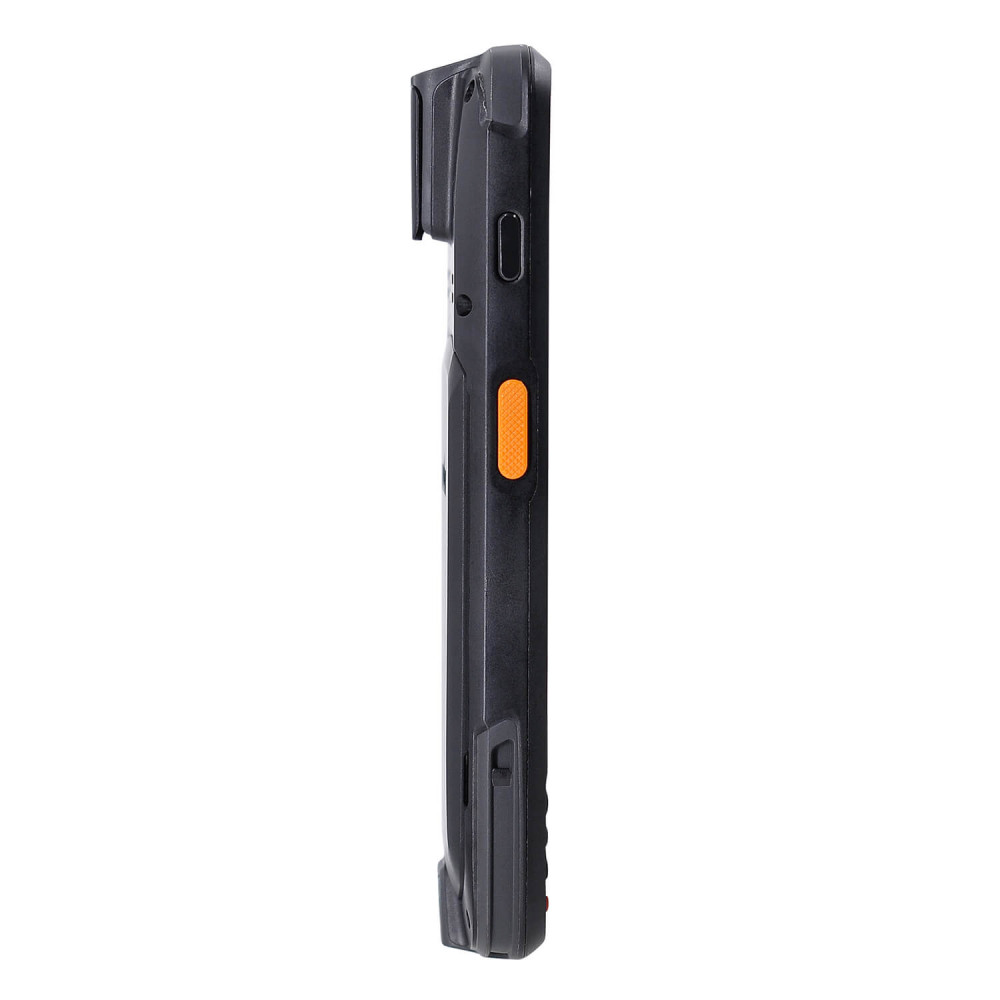

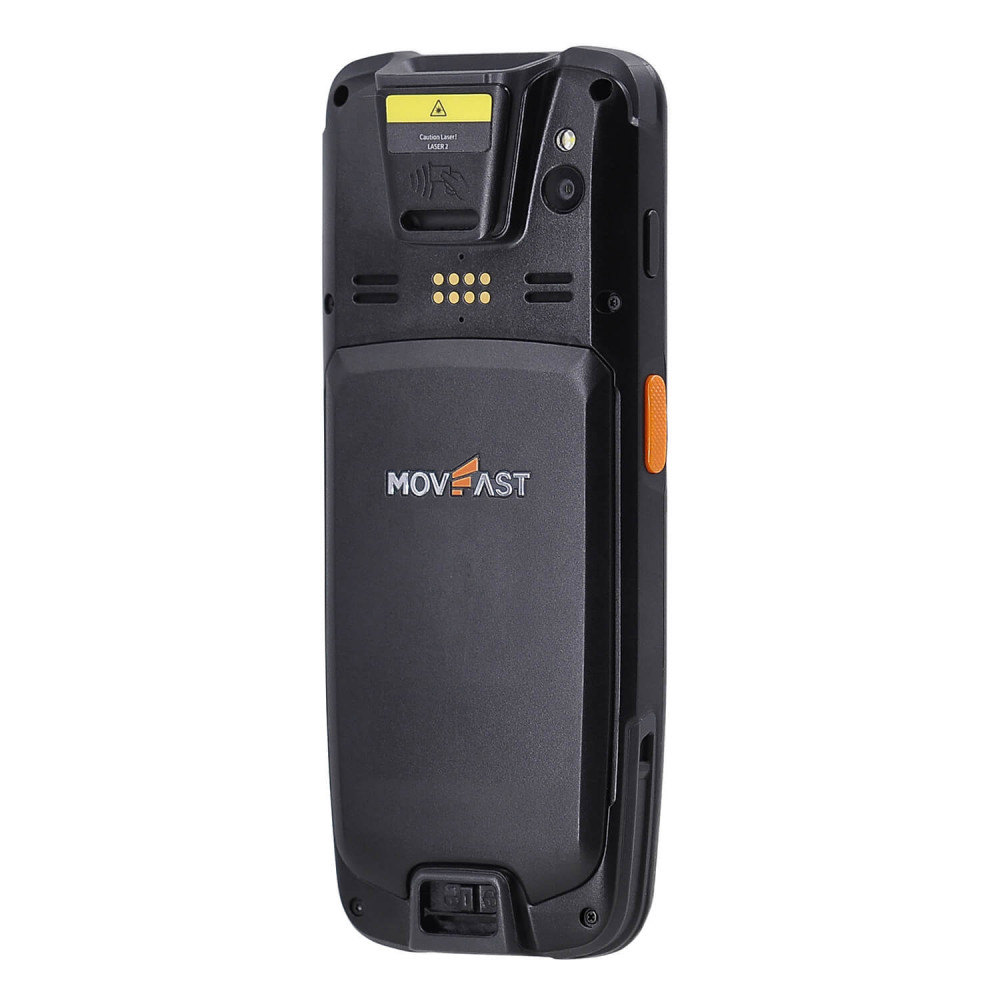

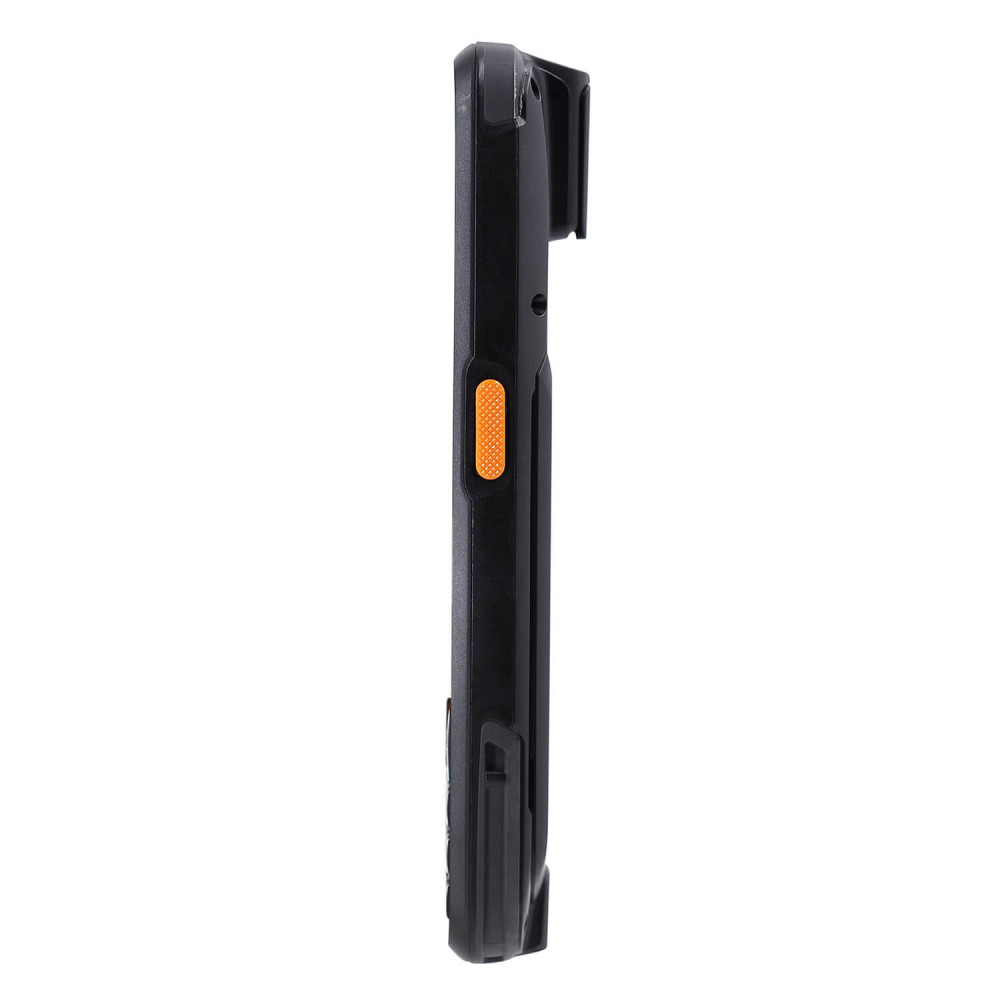

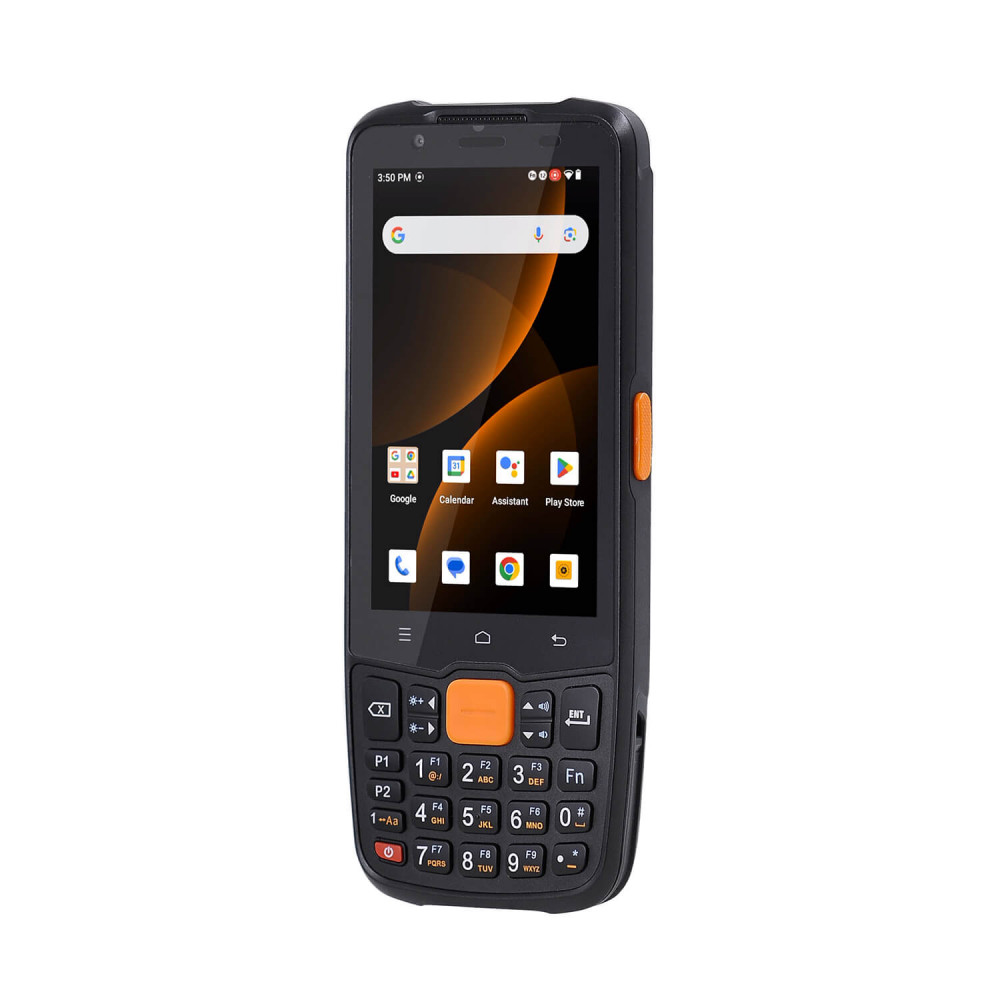

The MERTECH MovFast S40 data collection terminal is a simple solution for business automation. It is suitable for inventory management in warehouses or stores, as well as for customer service in restaurants, cafes, or hotels.
Each MERTECH MovFast S40 comes pre-installed with software that includes a free three-month trial period: Warehouse 15 and Store 15 from Cleverence. After the trial period, the current license can be renewed or upgraded.
Specifications
The main specifications of the MovFast S40 model:
- MTK 8-core processor 4*2.0GHz + 4*1.5 GHz.
- Built-in memory: 64 GB.
- RAM: 4 GB.
- Rear camera: 13 MP.
- Front camera: 2 MP.
- NFC module.
- Fingerprint scanner (optional).
- Operating system: Android 13.
Data entry is done via a physical keypad and a touchscreen. The industrial 4-inch diagonal touch sensor is shock-resistant. The touch display is protected by glass. The keyboard features 23 data entry buttons, 3 scanning buttons, and a lock button. The device withstands drops from 1.5 meters.
There are slots on the case for installing 2 nanoSIM cards, as well as a Micro SD Card and a 256GB SDHC card. The terminal can be connected to a computer via USB Type-C. The device connects to Bluetooth 5.0 (BLE) and Wi-Fi mobile networks 2G-4G.
Barcode Scanner

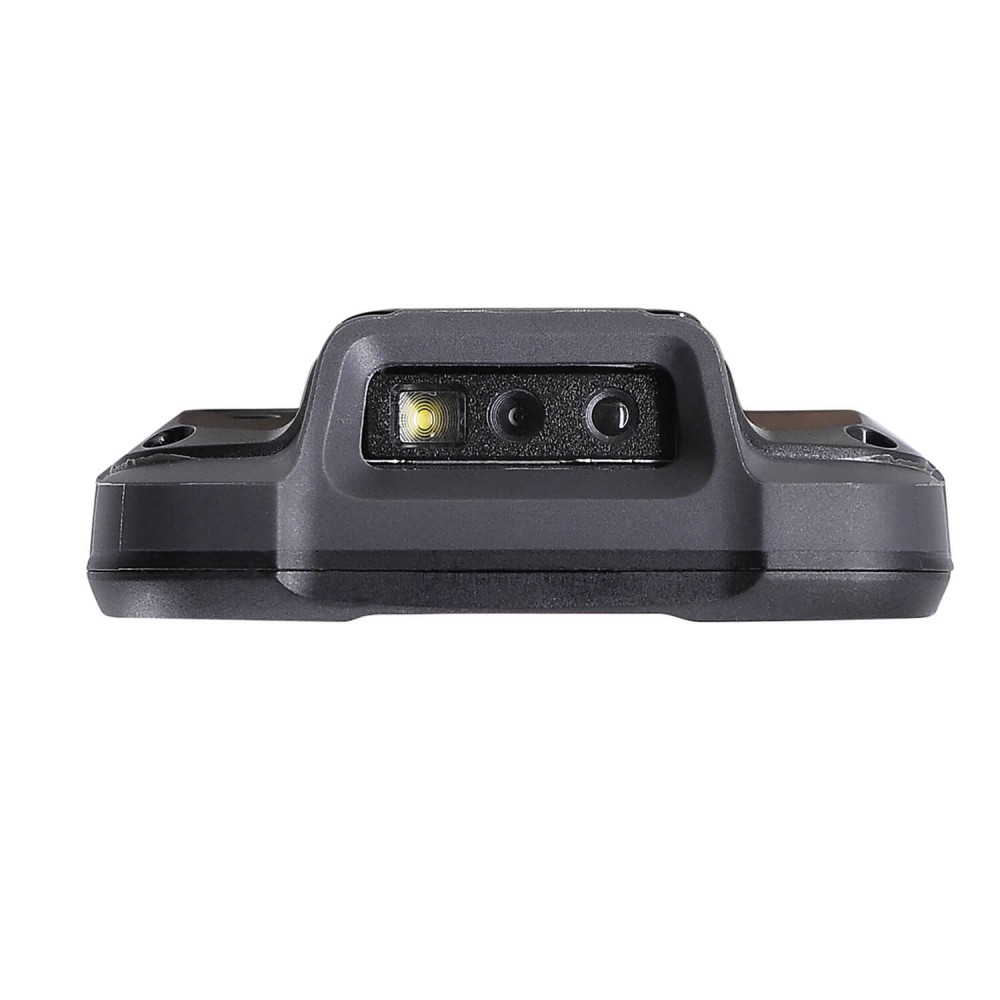

A 2D scanner model E4 is installed in the case. It quickly recognizes barcodes in popular formats. The terminal can work with DataMatrix, PDF417, QR Code, and MicroQR codes.
The wide scanning angle increases the operator's productivity. The camera responds to images with a contrast of 20% or more. After successfully recognizing a code, an audio and visual signal is activated.
Battery
The terminal is equipped with a 5,100 mAh battery. The terminal supports hot-swappable battery replacement. After removing the battery, the screen will not turn off, and no data will be lost. It can operate on a single charge for up to 14 hours. A full charge takes up to 3 hours.
The warranty for the terminal is valid for 2 years. You can buy terminals at the lowest price on the MERTECH website. Fill out the application to discuss the order conditions.
| Scanning module | 2D image |
|---|---|
| operating system | Android 13 |
| Flash memory | 64 GB |
| RAM memory | 4 GB |
| Scanner resolution | 1280(h)х800(v)px |
| Scanning coverage angle | 42º(h)x27º(v) |
| Barcode Sensitivity | Tilt ±60° / Rotate 360° / Pivot ±60° |
| Sensor type | Industrial |
| Slots | Micro SD Card, 256GB SDHC compatible, 2*nanoSIM |
| Minimum barcode contrast | 20% |
| Keyboard | Physical |
| PC connection interface | USB Type-C, OTG support |
| Sensors | G-sensor, proximity sensor, gyroscope, electronic compass, light sensor |
| CPU | MTK 8-core 4*2.0GHz+4*1.5GHz |
| Touch panel glass | Panda MN 228 (equivalent to Corning Gorilla 3) |
| Touch panel | Capacitive |
| Pixel density | 233 ppi |
| Поддержка СЭУАП | Yes |
|---|---|
| Supported 1D barcodes | UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar,MSI Plessey, GS1 DataBar, China Postal, Korean Postal |
| Supported 2D barcodes | PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin |
| Sound and visual indication during scanning | Yes |
| Recognizing barcodes from complex surfaces | Yes |
| Support Honest SIGN | Yes |
| NFC | Yes |
| GMS support | Eat |
| Scanner model | E4 |
|---|---|
| Backlight | White, 2700K |
| Guarantee | 2 years |
|---|---|
| Resistance to external influences | IP67 |
| Storage temperature | -40°С ~ +70°С |
| Battery charging time | from 3 hours |
| Battery life on one charge | until 2:00 p.m. |
| Application areas of TSD | For SEUAP, For warehouse, For 1C, For inventory, For marking |
| Nutrition | DC 5V 2A |
| Permissible humidity | 5% - 95% |
| Hot swap battery | Yes |
| Operating temperature | -20°С ~ +50°С |
| Drop test | Withstands multiple drops from a height of 1.5 m |
| GPS | GPS, Beidou, GLONASS, Galileo |
|---|---|
| Cellular (WWAN) | LTE 2G/3G/4G |
| RFID | No |
| Display type | Sensory |
|---|---|
| Diagonal | 4.0'' |
| Matrix type | IPS |
| Permission | WVGA, 800×480 |
| Brightness | Typical 450cd/m²；minimum: 400cd/m² |
| Battery capacity | 5100 mA |
|---|
| Buttons | Keyboard 23 buttons on the front side, Power button (screen lock button), Scan button *3 |
|---|---|
| Color | Black |
| Overall dimensions (WxDxH), mm | 160*68*17 |
| Body material | ABC + PC (plastic + polycarbonate) |
| Weight | 240 gr |
| Fingerprint scanner | Optional |
| Equipment | TSD, 5V/2A adapter, USB type C cable, Palm strap, Manual, Warranty card, Packaging |
|---|
| Wi-Fi (WLAN) | 2.4GHz&5GHz, supported standards IEEE 802.11 a/b/g/n/ac, supported protocols 802.11d/e/h/i/j/k/r/v/w |
|---|---|
| Bluetooth (WPAN) | Bluetooth 5.0 (BLE support) |
| Camera | Rear: '13 MP, with autofocus and flash Front: 2 MP with fixed focus |
|---|
-
