Data transfer rate2400 – 115200 bps | Guarantee1 year | Permissible humidity85% |
Operating temperature5 ~ 45°C | Number of lines2 | Number of characters per line20 |
Color of symbolsgreen | Display typeVacuum fluorescent | Character size9.03mm * 5.25mm |

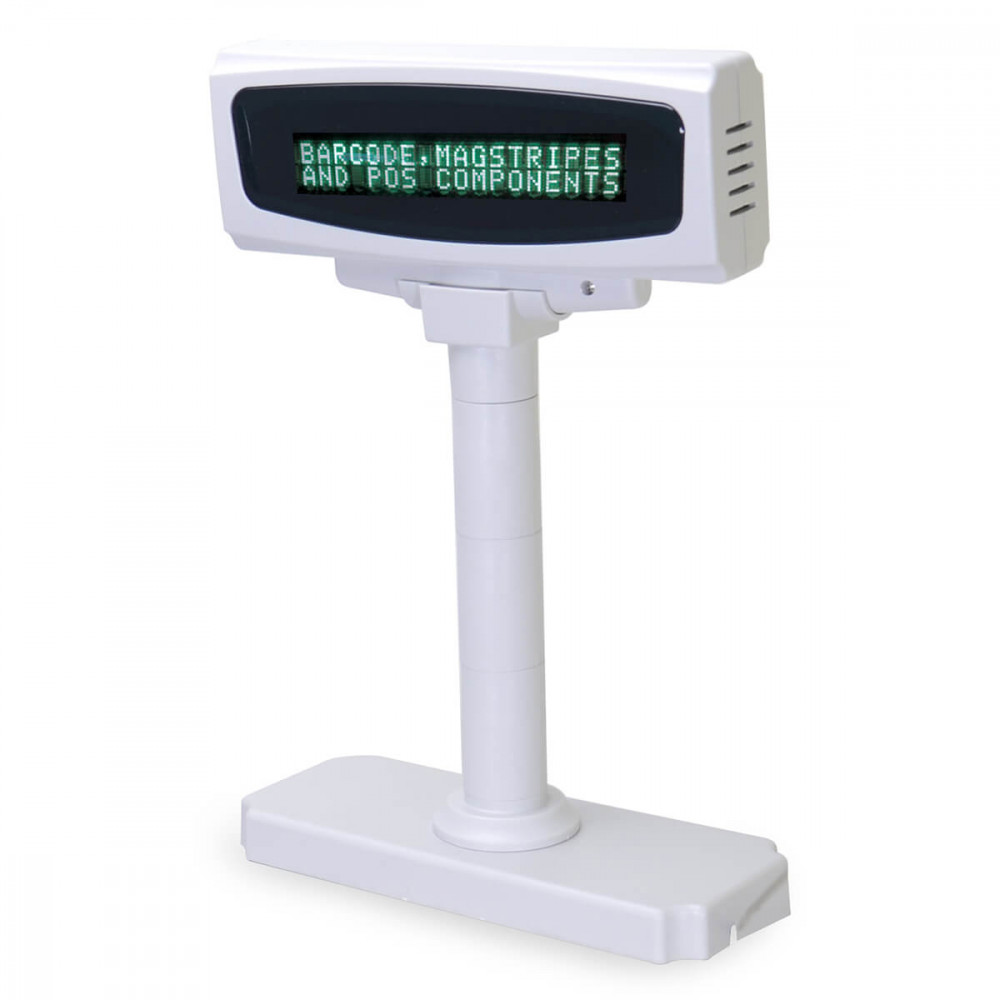

The customer display PD-1200VFD is a classic two-line vacuum fluorescent display with a bright screen and features two lines for output information, each designed for 20 characters.
The customer display is an essential element, as it allows the customer to monitor the actions of the operator at the cash register. Therefore, it is necessary to equip the cashier's area with the most convenient and high-quality equipment. This display features a classic yet ergonomic design, as well as compact dimensions.
The MERTECH PD-1200VFD model easily integrates into any POS system. The monitor has two connection options: a standard USB interface or a RS-232 COM port.
The main advantages of the MERTECH PD-1200VFD customer display
- Availability of a USB interface. This provides easier device connection and significantly simplifies the driver installation process, which many face issues with.
- High data transfer speed (up to 115200 bps). Stability and high productivity are the best way to characterize this model.
- Adjustable tilt angle of the display. This allows the display to be positioned according to any needs. The adjustment is made through a smooth mechanism, so there are no issues with it. The display can also be rotated up to 270 degrees.
- Two-line display, with up to 20 characters per line. This is usually sufficient for the customer to receive complete information about the cash operations.
- Height adjustment capability. The height adjustment is done by adding or removing a spacer.
- Ergonomic design. The display is finished in black with a green backlight. Thanks to this universal design, the display easily fits into any interior.
- Compatibility with all cash register software products.
- Affordability. Despite the wide list of positive qualities, the PD-1200VFD belongs to the budget segment of products.
In general, it can be said that the MERTECH PD-1200VFD is a practical solution for any business. This customer display is particularly popular among supermarkets, as it has all the necessary functionality and a low cost.
Data transfer rate | 2400 – 115200 bps |
---|
Guarantee | 1 year |
---|---|
Permissible humidity | 85% |
Operating temperature | 5 ~ 45°C |
Number of lines | 2 |
---|---|
Number of characters per line | 20 |
Color of symbols | green |
Display type | Vacuum fluorescent |
Character size | 9.03mm * 5.25mm |
Pixel size | 0.83 mm |
Brightness | 400 cd/m2 |
Interfaces | USB (virtual COM port) |
---|
Angle of inclination | 0°– 30° |
---|---|
Angle of rotation | 270° |
Color | white |
Overall dimensions (WxDxH), mm | 228*208*508 |
Equipment | Customer Display, Warranty Card, Packaging |
---|
-
