| Scanner typeEmbedded | Scanning element2D image | Scanning speed100 scans/sec |
| Scanner resolution640(H)x480(V)Px | Scanning coverage angle40º(h)x32º(v) | Barcode SensitivityTilt ± 65° / 360° Rotation / Deviation ± 60 ° |
| Minimum barcode contrast20% | Reading barcodes1D, 2D | Scanning rangeUp to 370 mm |

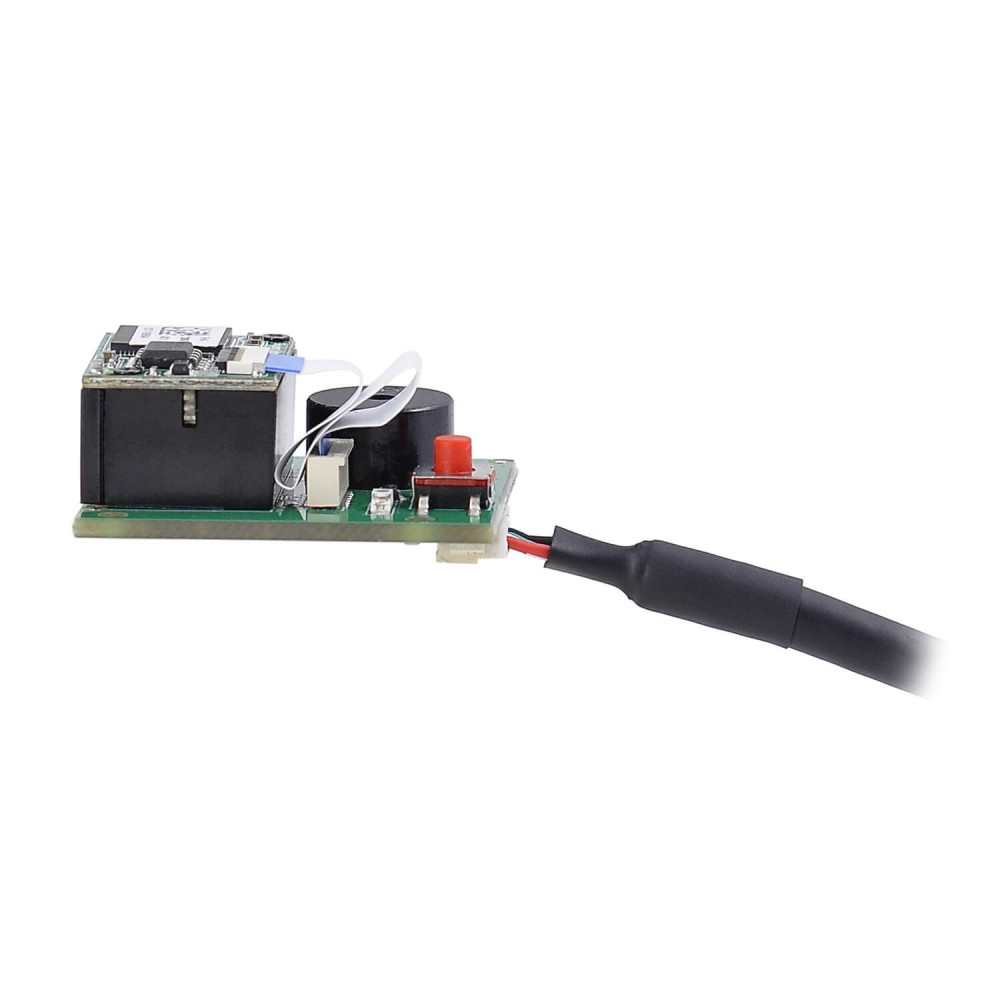

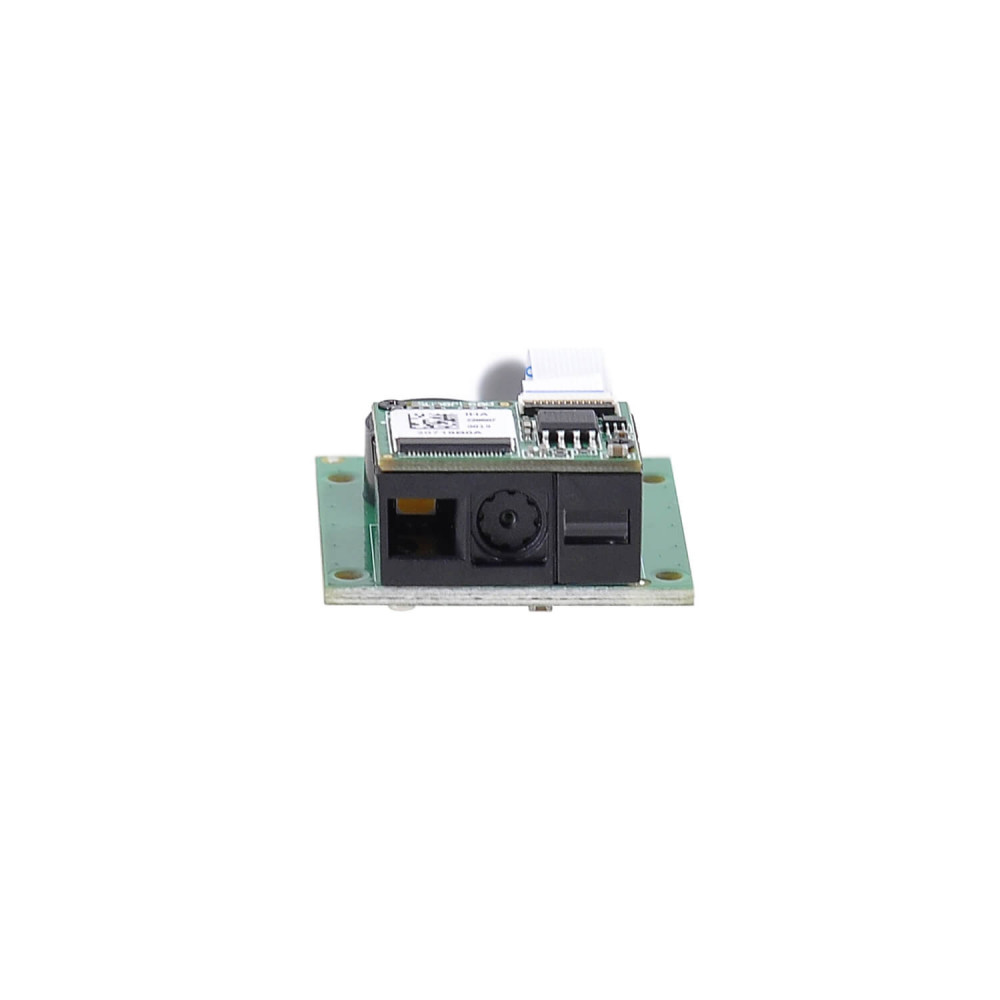

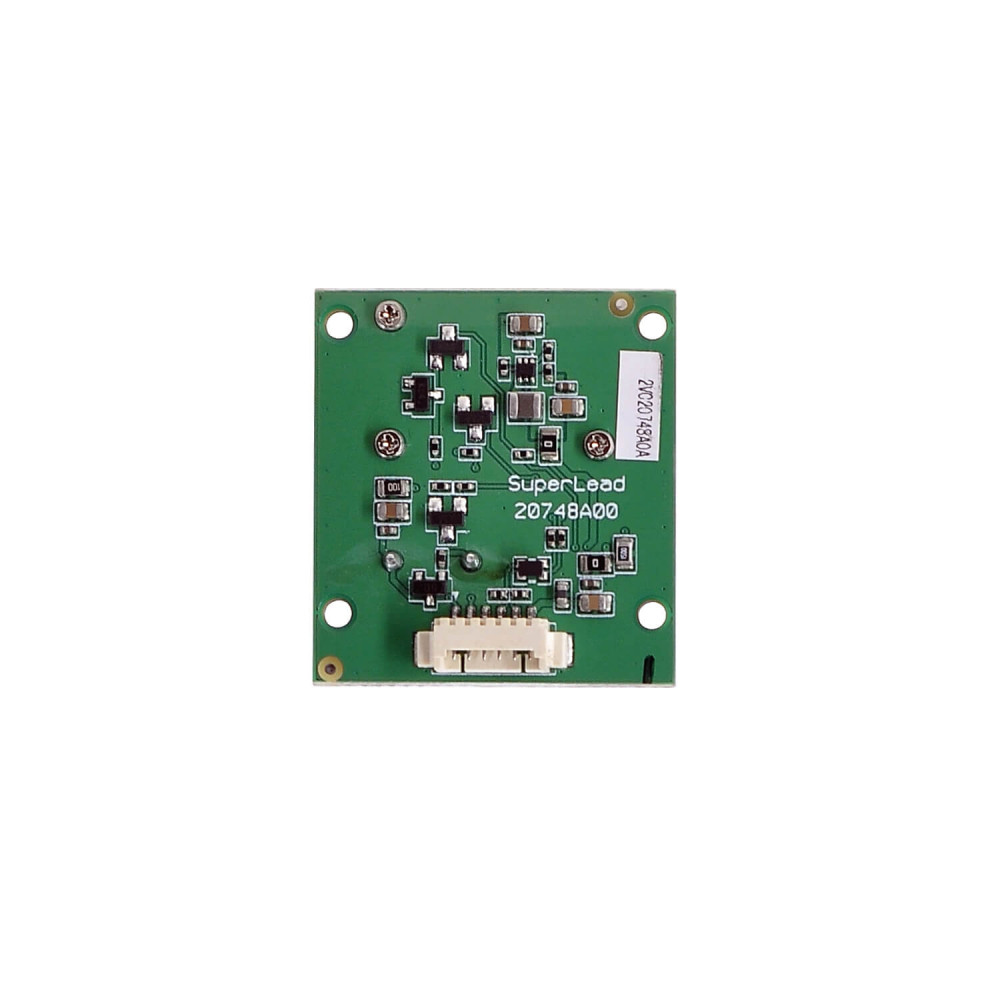

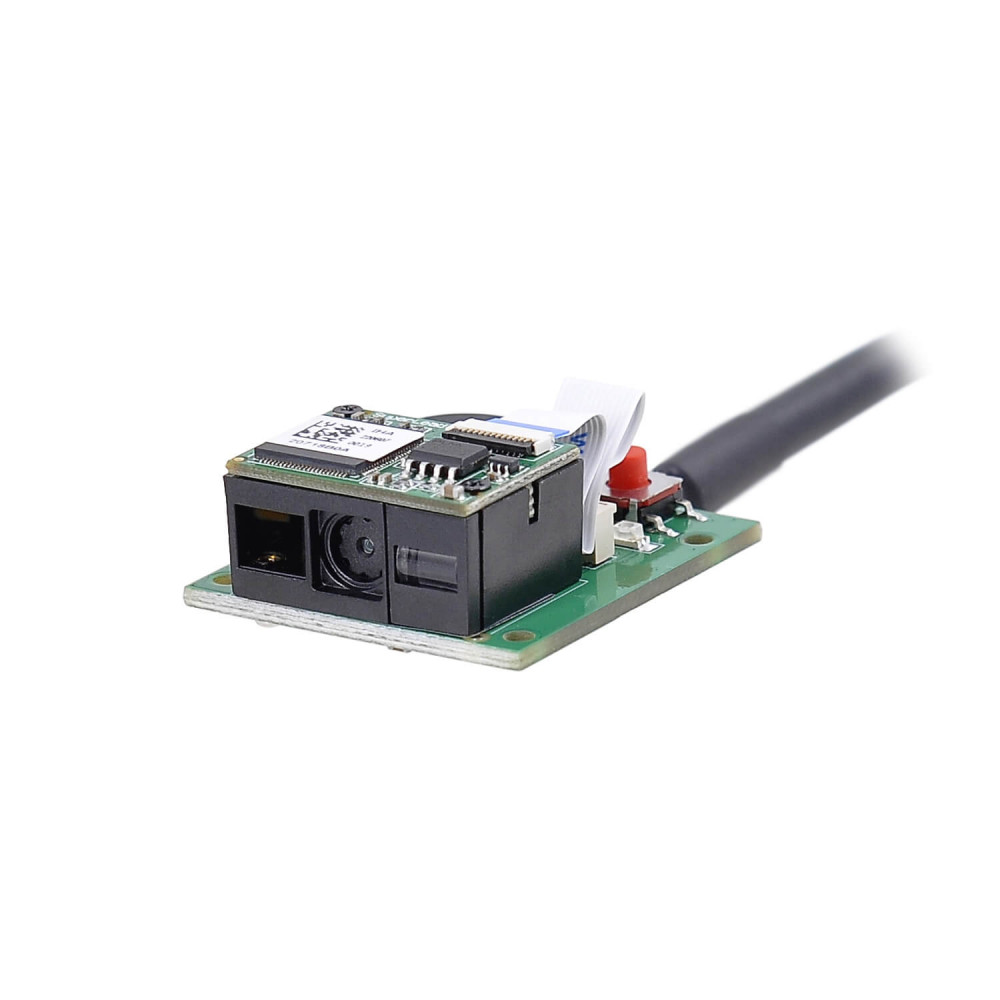

The MERTECH T5930 P2D barcode scanner can be integrated into the operator's work area. Using the embedded model allows you to free up a useful workspace and speed up queue movement. The cashier can bring barcodes to the scanning module and transfer purchases with two hands, so the service time for one customer will decrease.
Advantages
The embedded MERTECH T5930 P2D scanner can be used in retail stores, banks or offices. The scanning module recognizes all popular 1D and 2D barcodes, including Data Matrix and QR Code. The scanner is suitable for the retail sale of alcohol and labeled products.
Advantages of the MERTECH T5930 P2D model:
- miniature case size;
- SUPERLEAD scanning technology;
- The working speed is 100 scans/sec;
- code recognition range up to 370 mm;
- Antiferlected® glare suppression technology;
- Multi-plane scanning support;
- 1 million trigger triggers without breakdowns.
The device quickly recognizes any barcodes, including small images. The minimum image contrast is 20%. Antiferlected® technology provides accurate scanning from glare surfaces, including transparent film. It is convenient to work with the stationary model in automatic mode.
Technical specifications
The MERTECH T5930 P2D model has a miniature size. Dimensions of the device: 30*30*17 mm. All the necessary components for scanning barcodes and transmitting information are located in a small area. The absence of external body panels makes it easier to embed the device and reduce the cost.

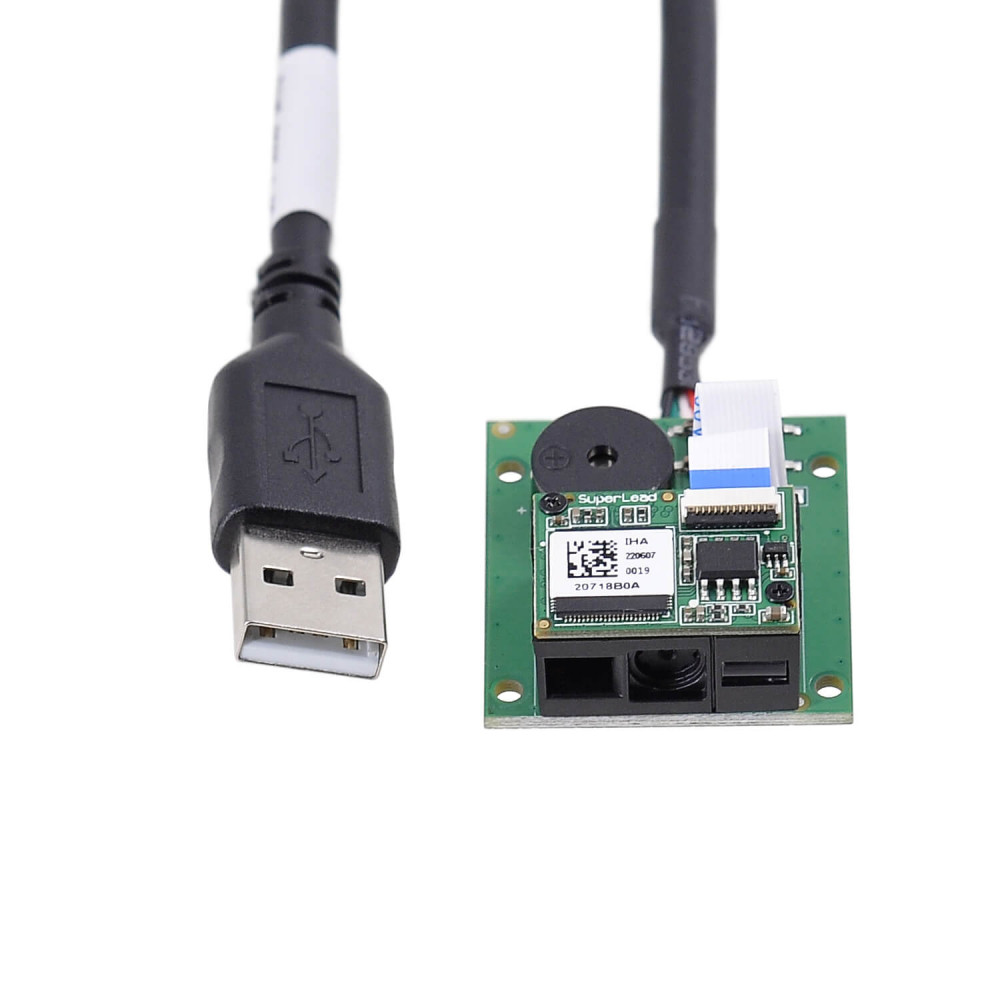

A USB-HID cable is included in the basic package. USB-COM and RS232 interfaces are optionally available. You can select the interface during the checkout process. To order an embedded scanner at a low price from the manufacturer, leave a request on the website.
| Scanner type | Embedded |
|---|---|
| Scanning element | 2D image |
| Scanning speed | 100 scans/sec |
| Scanner resolution | 640(H)x480(V)Px |
| Scanning coverage angle | 40º(h)x32º(v) |
| Barcode Sensitivity | Tilt ± 65° / 360° Rotation / Deviation ± 60 ° |
| Minimum barcode contrast | 20% |
| Reading barcodes | 1D, 2D |
| Scanning range | Up to 370 mm |
| Number of triggers without failures | 1 million |
| Поддержка СЭУАП | Yes |
|---|---|
| Supported 1D barcodes | UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar,MSI Plessey, GS1 DataBar, China Postal, Korean Postal |
| Supported 2D barcodes | PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin |
| EGAIS support | Yes |
| Automatic scanning | Yes |
| Sound and visual indication during scanning | Yes |
| Recognizing barcodes from complex surfaces | Yes |
| Support Honest SIGN | Yes |
| Backlight | Antireflected, 3500K LED |
|---|
| 5 MIL | 30-90 mm |
|---|---|
| 13 MIL | 40-200 mm |
| Minimum scanning resolution | 3,9 MIL |
| Guarantee | 3 years old |
|---|---|
| Resistance to external influences | IP54 |
| Storage temperature | -40°C ~ +70°C |
| Nutrition | 5V/300mA |
| Permissible humidity | 0% ~ 95% |
| Operating temperature | -20°C ~ +50°C |
| Overall dimensions (WxDxH), mm | 30mm*30mm*17mm |
|---|---|
| Weight | 15 grams |
| Equipment | Scanner; USB type A cable (15 cm); Instructions; Warranty card; Packaging |
|---|
-
