| Scanner typeEmbedded | 6.8 MIL10 - 50 mm | Scanning module2D image |
| Scanning speed100 scans/sec | Connection typeWired | Scanner resolution640(H)x480(V)Px |
| Scanning coverage angle72º(h)x57º(v) | Barcode SensitivityTilt ± 65° / 360° Rotation / Deviation ± 60 ° | Minimum barcode contrast20% |

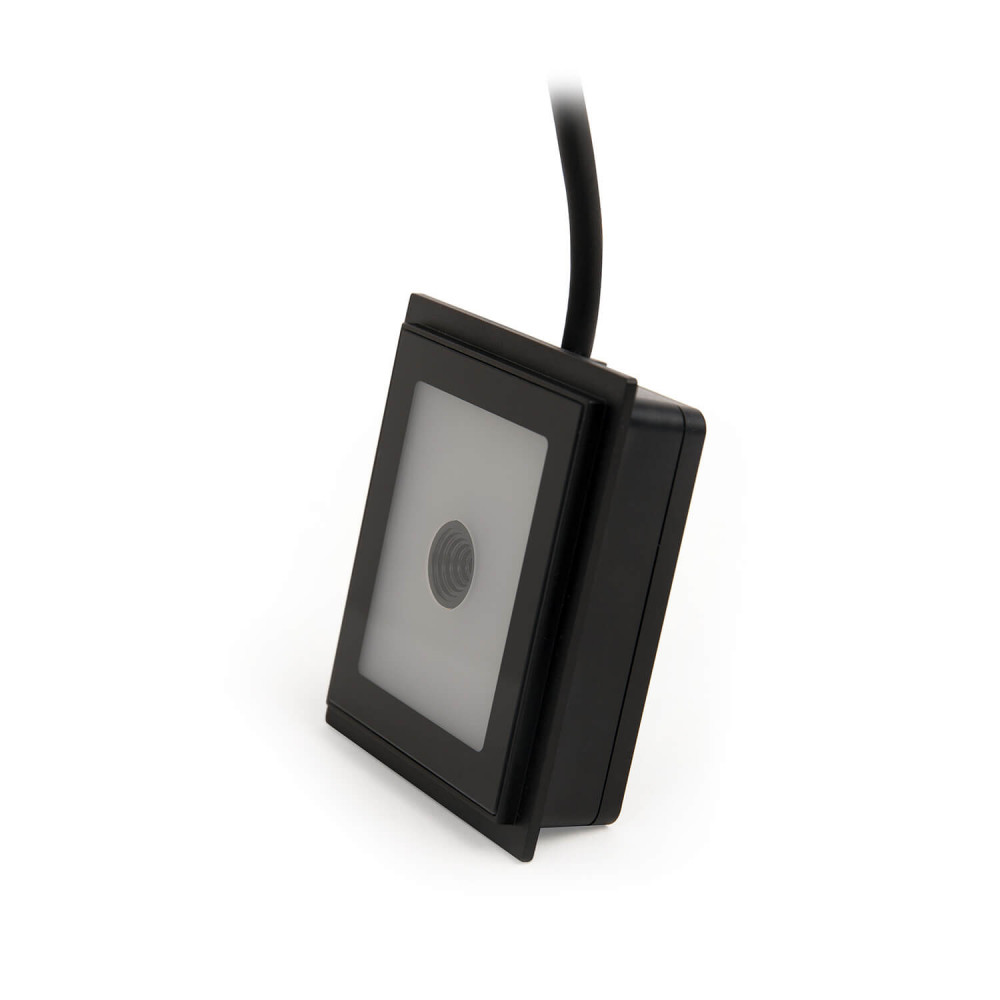

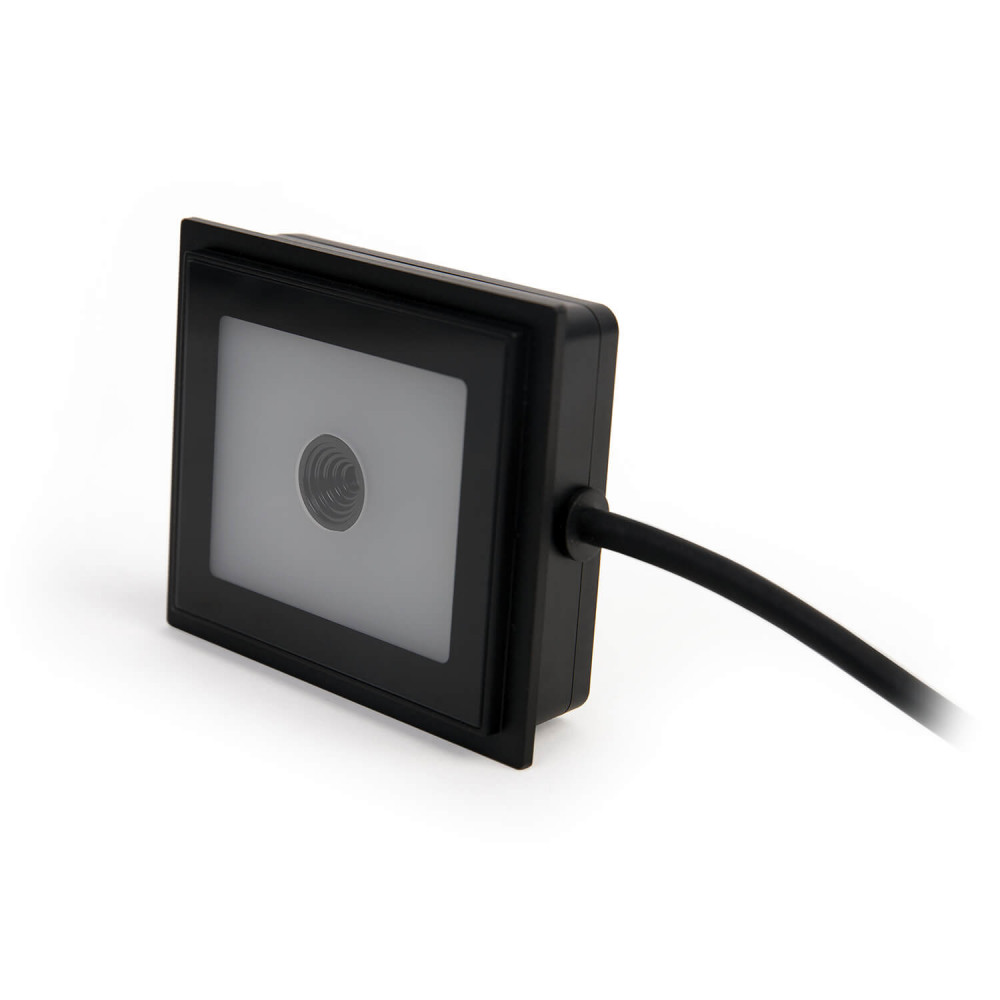

The embedded MERTECH SF50 scanner (IC, Mifare, Phone) P2D USB reads any 1D and 2D codes. It recognizes the Data Matrix encoding and is suitable for working with labeled products. You can integrate it into the operator's desktop or use it as a separate device.
Device Characteristics
The main characteristics of the presented model:
- Barcode reading speed: 100 scans/sec.
- The angle of capture during scanning: 72° x 57°.
- The resolution of the photo scanner is 640x480.
- Range of operation: up to 170 mm.
- Bright 5000K LED backlight in white.
- Encoding recognition with 20% contrast.
- Working with labels pasted on complex surfaces.
- Sound and light indication of scanning.
USB-HID is used to connect to the system. Optionally, USB-COM or RS232 emulation is available.
Housing Characteristics

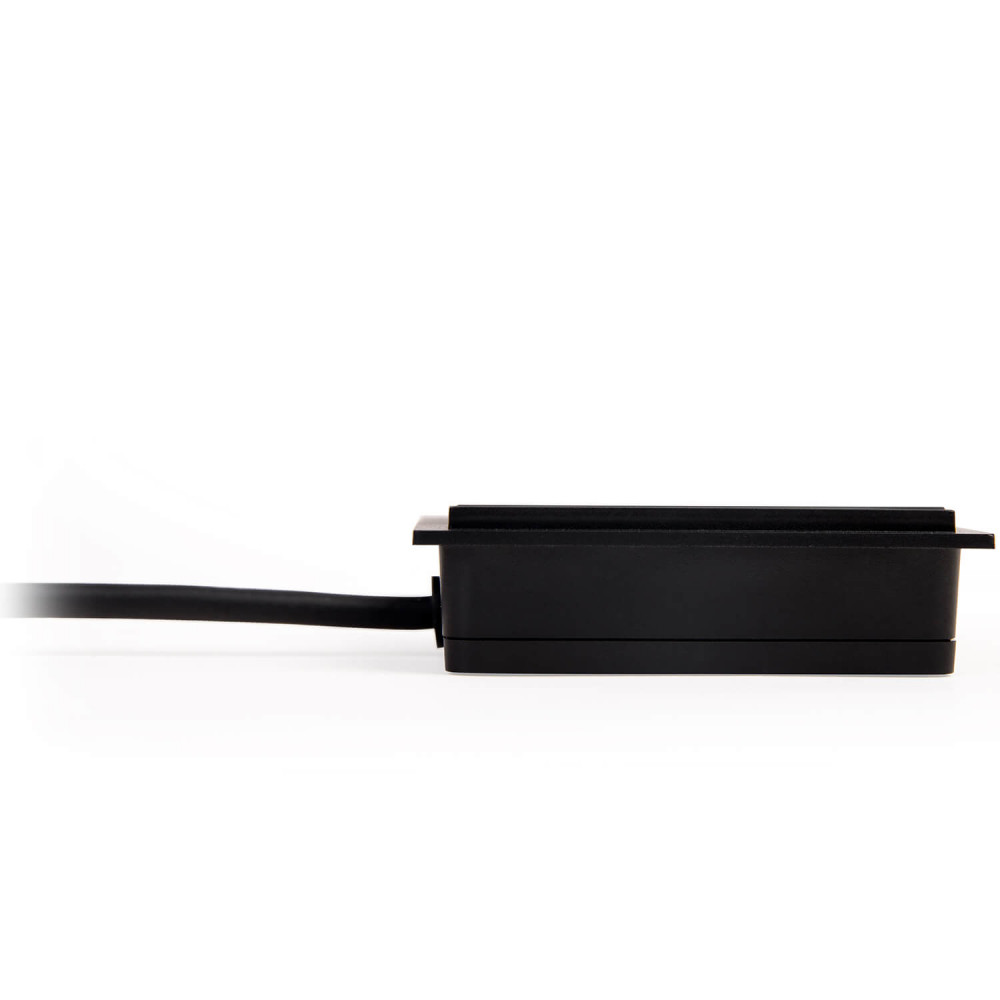

The small device can be easily integrated into any workplace structure. Its dimensions are 78*67*23 mm. The barcode reader weighs only 91 grams.

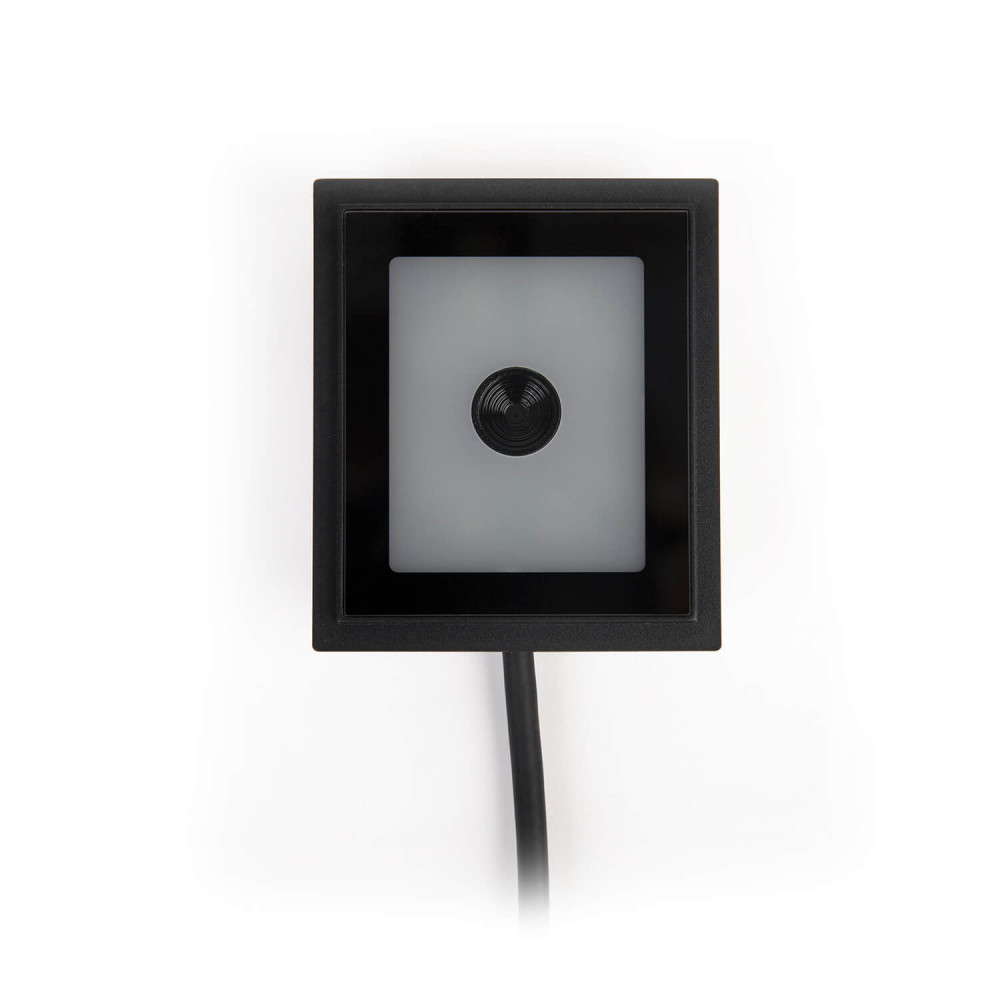

The case is made of reliable materials: plastic and polycarbonate. The scanning window is covered with scratch-resistant glass. This technical solution increases the impact resistance of the housing.
Protection class of the device: IP54. The device is suitable for long-term operation in difficult conditions. It operates at temperatures from -30 °C to +70 °C and humidity up to 95%.
Order embedded scanners
You can buy barcode scanners from the manufacturer in the MERTECH online store. Low prices from the manufacturer are available when ordering through the website. The warranty for embedded scanners is valid for 3 years.
The equipment is delivered throughout Russia. Make a request or call us by phone to place an order.
| Scanner type | Embedded |
|---|---|
| 6.8 MIL | 10 - 50 mm |
| Scanning module | 2D image |
| Scanning speed | 100 scans/sec |
| Connection type | Wired |
| Scanner resolution | 640(H)x480(V)Px |
| Scanning coverage angle | 72º(h)x57º(v) |
| Barcode Sensitivity | Tilt ± 65° / 360° Rotation / Deviation ± 60 ° |
| Minimum barcode contrast | 20% |
| Reading barcodes | 1D, 2D |
| Scanning range | Up to 170 mm |
| Поддержка СЭУАП | No |
|---|---|
| Supported 1D barcodes | UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar,MSI Plessey, GS1 DataBar, China Postal, Korean Postal |
| Supported 2D barcodes | PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin |
| EGAIS support | No |
| Automatic scanning | Yes |
| Sound and visual indication during scanning | Yes |
| Recognizing barcodes from complex surfaces | Yes |
| Support Honest SIGN | No |
| Backlight | White 5000K LED |
|---|
| 13 MIL | 20 - 150 mm |
|---|---|
| Minimum scanning resolution | 5 MIL |
| Guarantee | 3 years old |
|---|---|
| Resistance to external influences | IP54 |
| Storage temperature | -40°C ~ +150°C |
| Nutrition | 3.3-5V/300mA |
| Permissible humidity | 0% ~ 95% |
| Operating temperature | -30°C ~ +70°C |
| Interface | USB-HID; USB-COM emulation; RS232 optional |
|---|
| Scanning module protection | Scratch-resistant glass |
|---|---|
| Color | Black |
| Overall dimensions (WxDxH), mm | 78mm*67mm*23mm |
| Body material | ABC + PC (plastic + polycarbonate) |
| Weight | 91 grams |
| Gross weight, g | 230 |
|---|---|
| Equipment | Scanner, USB type A cable (205 cm), Instructions, Warranty card, Packaging |
-
