| Scanner typeBuilt-in | Scanning element2D image | Scanning speed100 scans/sec |
| Connection typeWired | Scanner resolution640(h)х480(v)Px | Scanning coverage angle45º(h)x35º(v) |
| Barcode SensitivityTilt ±65° / Rotate 360° / Roll ±60° | Minimum barcode contrast25% | Reading barcodes1D, 2D |

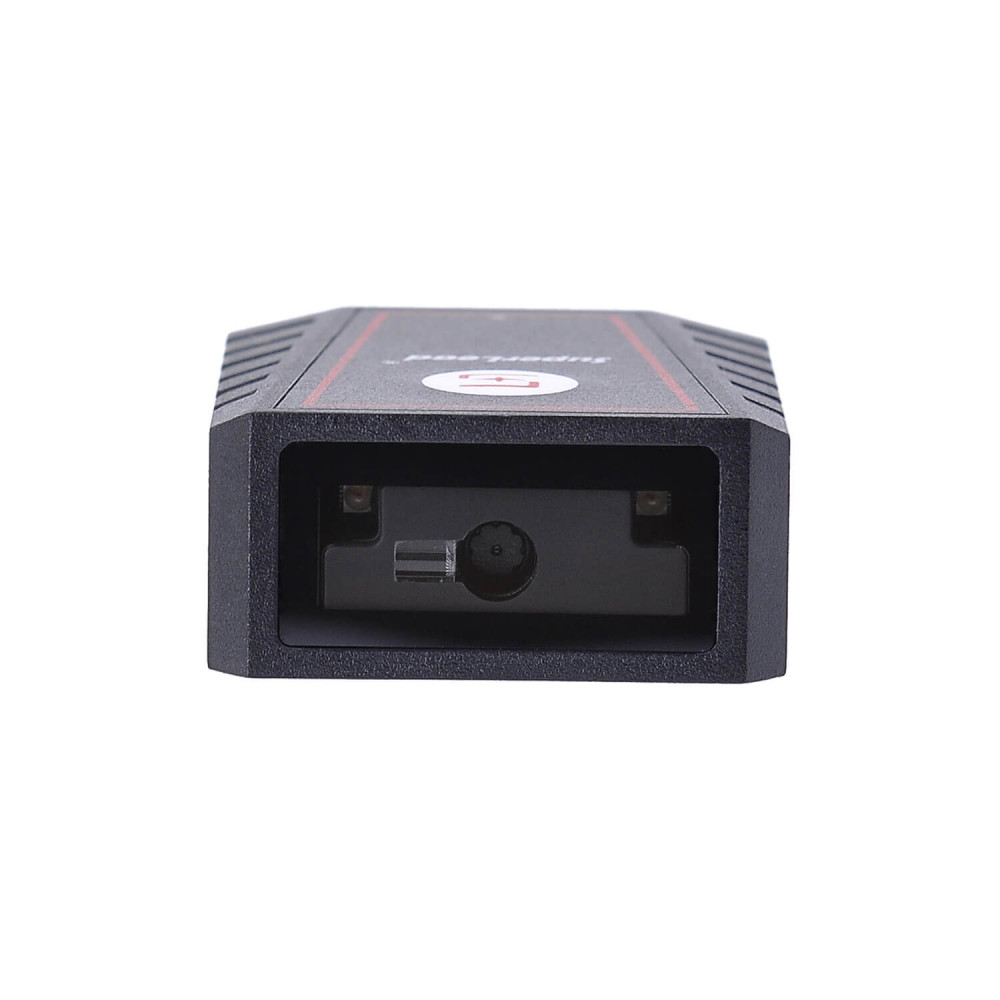

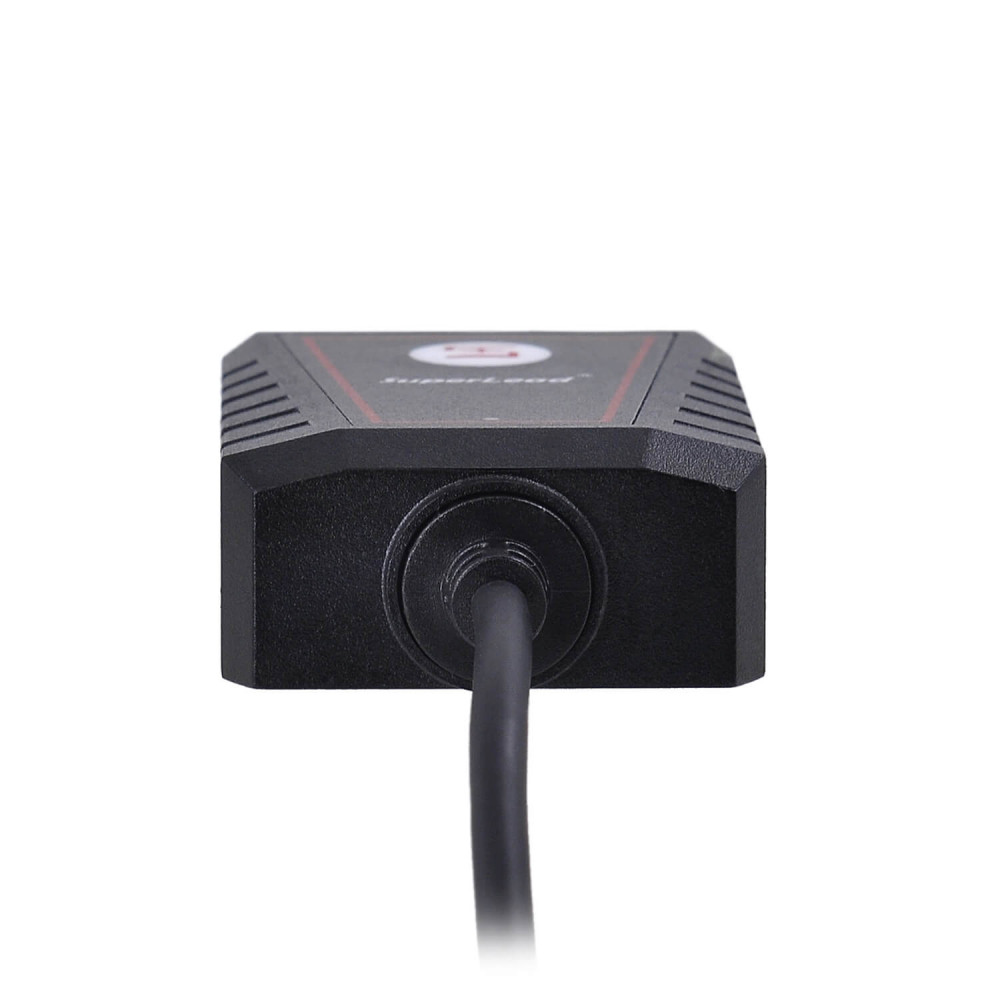

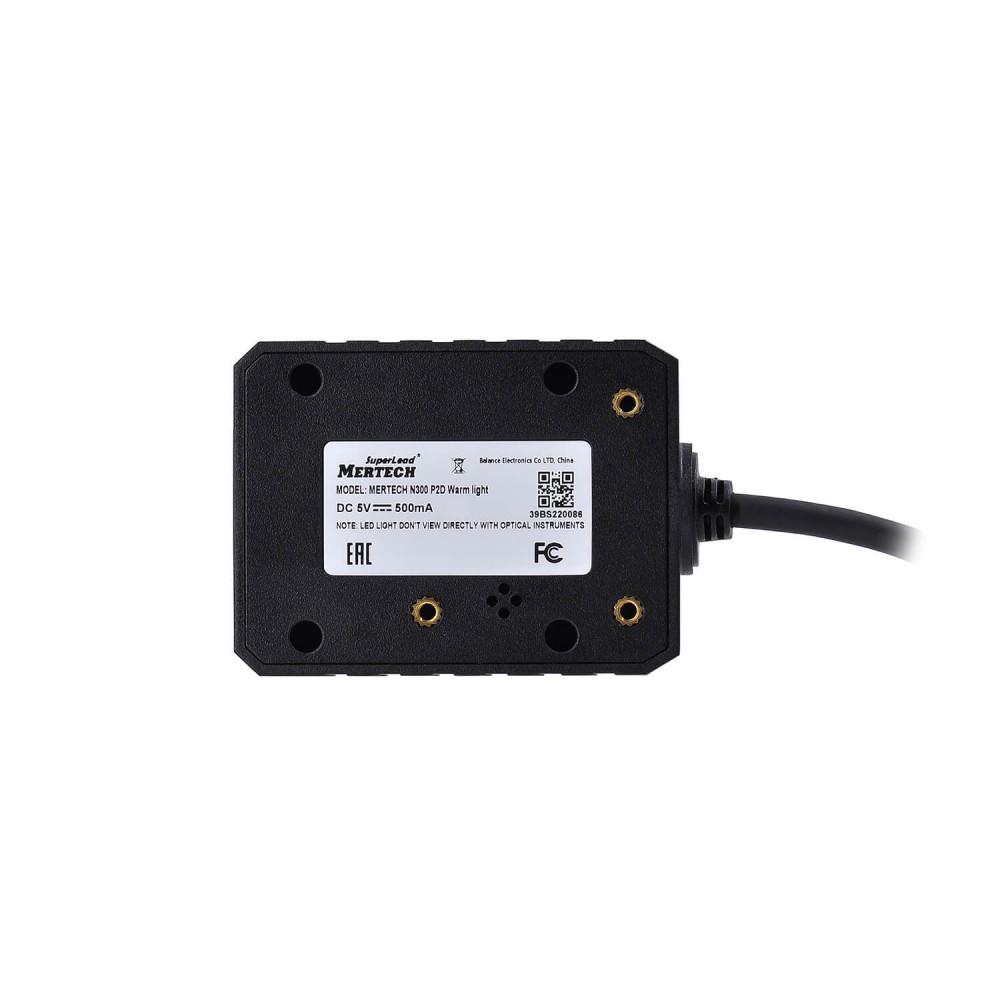

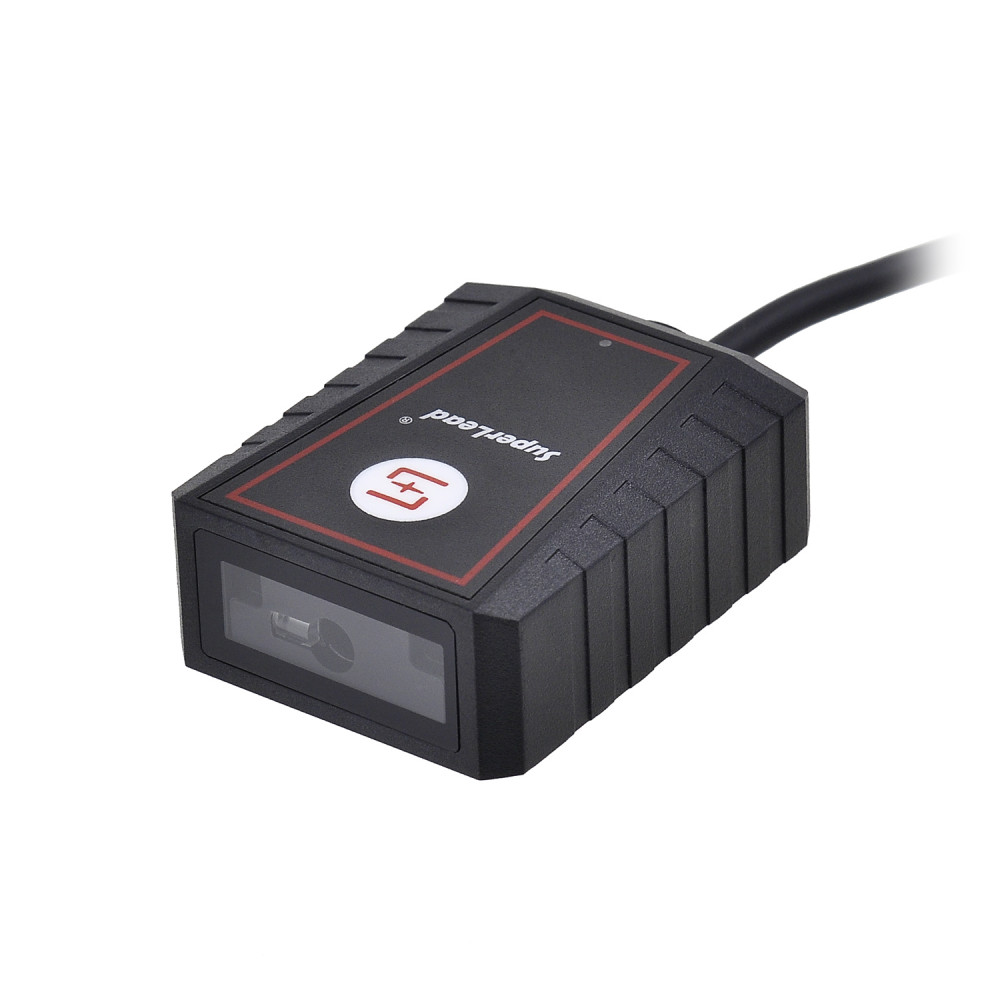

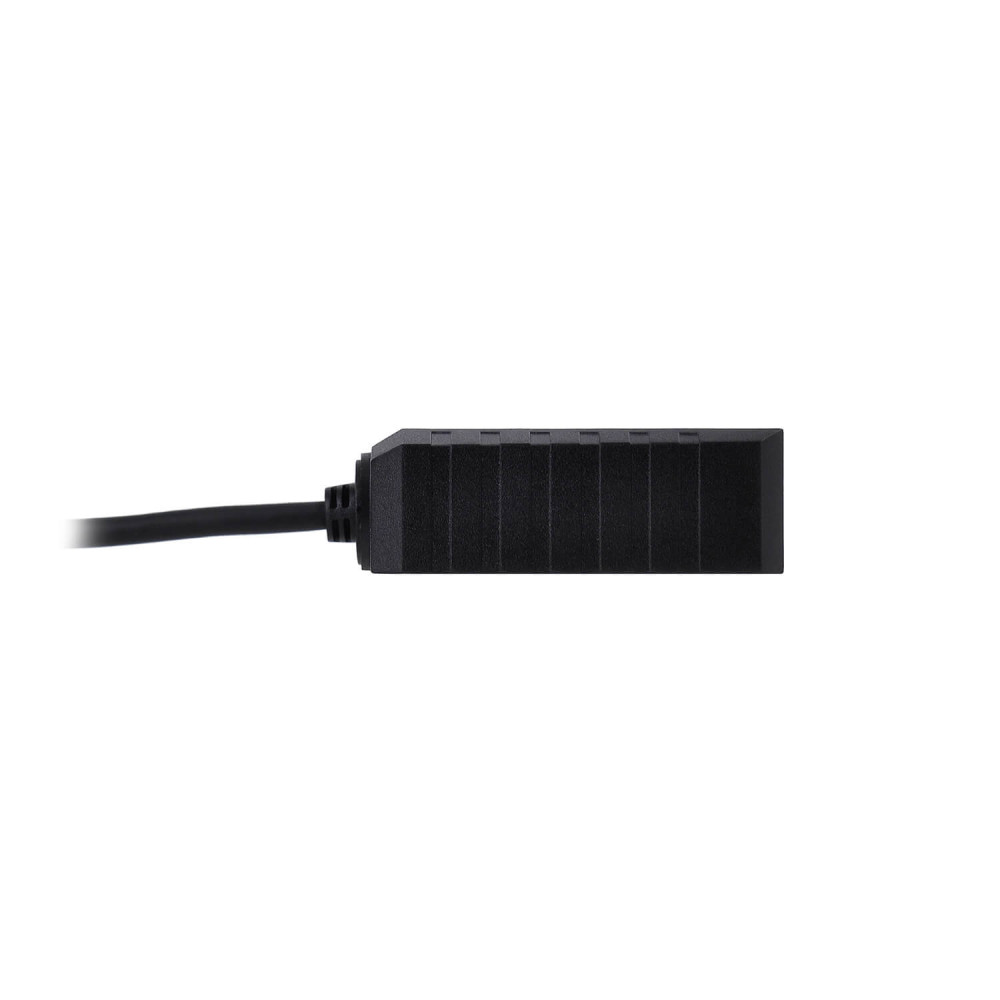

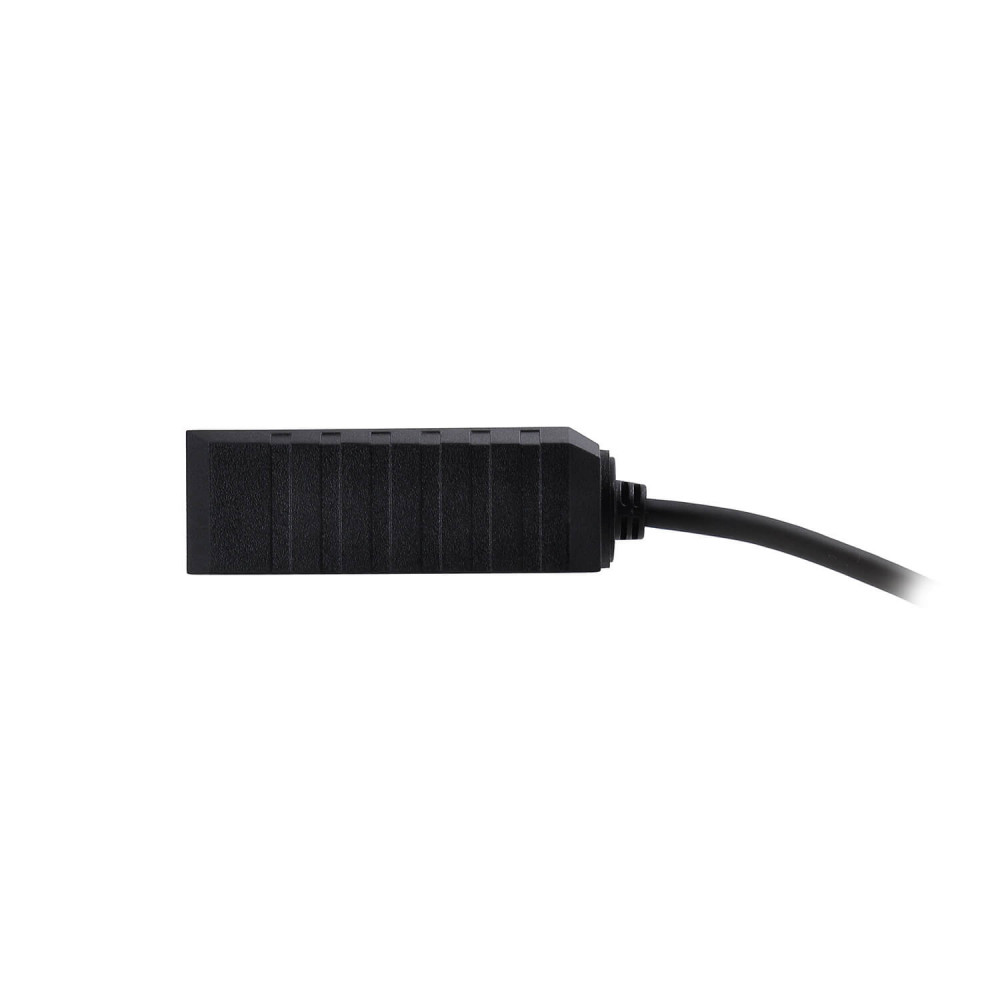

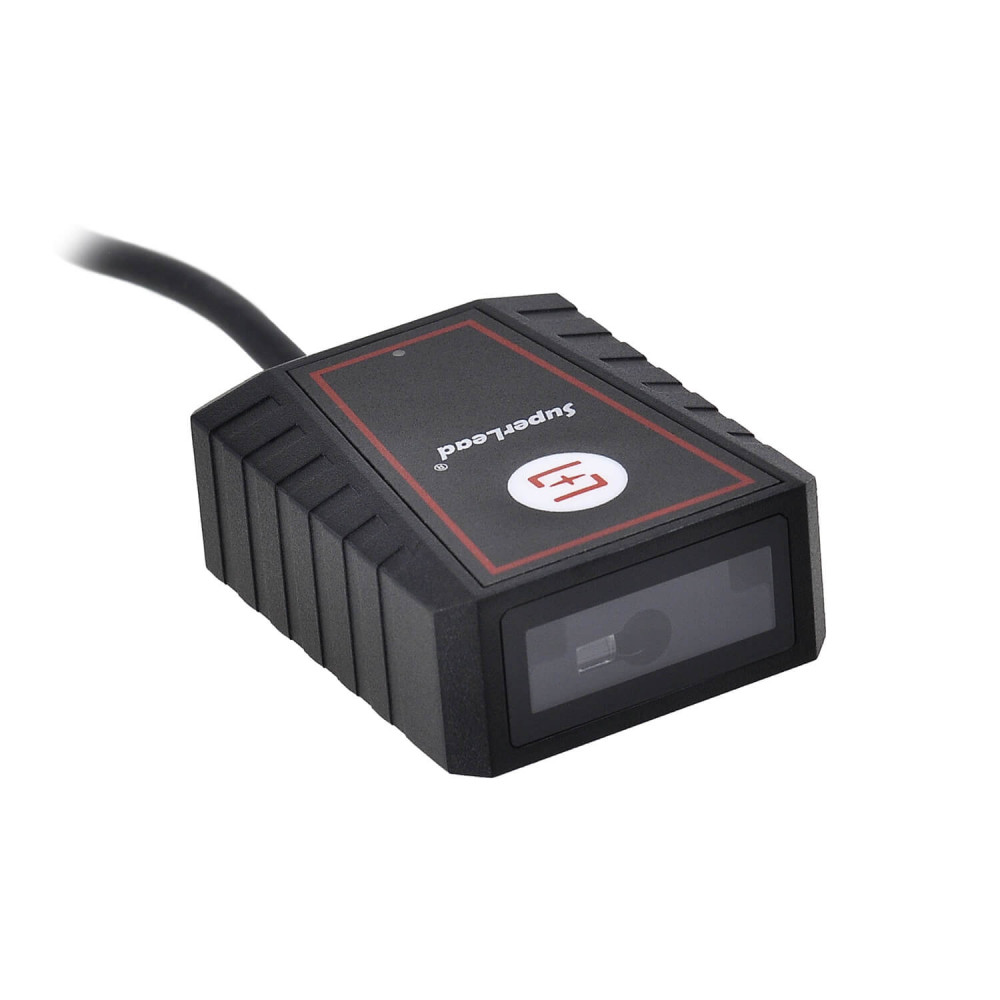

The MERTECH N300 warm light 2D embedded scanner is designed for installation within the cashier's workspace. Its closed casing allows it to be used as a stationary barcode scanner. The compact device requires minimal space on the countertop, making it suitable for high-traffic retail locations.
Technical Specifications
The size of the embedded scanner is 67*50*27 mm. The small device has a robust casing made of polycarbonate and aluminum. It withstands drops from table height (up to 150 cm).
Main features of the model include:
- Scanning speed of 100 scans/sec.
- Recognition distance of up to 500 mm.
- Warm red backlight of 617 nm.
- Automatic scanning mode.
- High degree of protection IP 65.
The connection to the online cash register is achieved through a USB-HID interface. USB-COM and RS-232 emulation is available upon customer request.
Model Advantages
The main feature of the MERTECH N300 warm light 2D model is the red backlight of 617 nm. The warm illumination reduces strain on the cashier's eyes without sacrificing scanning efficiency. In automatic mode, scanning occurs automatically when the label is presented.
The barcode reading is conducted using SUPERLEAD technology. The 2D Image scanning module is suitable for recognizing barcodes from complex surfaces, including mobile device screens. It can recognize damaged and unclear labels with a contrast of 25%.
The embedded scanner can recognize any barcodes, including excise labels PDF417 and labels with Data Matrix.
To order the equipment, submit a request on the website. Low prices are available when placing an order on the MERTECH website or through one of the official dealers.
| Scanner type | Built-in |
|---|---|
| Scanning element | 2D image |
| Scanning speed | 100 scans/sec |
| Connection type | Wired |
| Scanner resolution | 640(h)х480(v)Px |
| Scanning coverage angle | 45º(h)x35º(v) |
| Barcode Sensitivity | Tilt ±65° / Rotate 360° / Roll ±60° |
| Minimum barcode contrast | 25% |
| Reading barcodes | 1D, 2D |
| Scanning range | Up to 500 mm |
| Поддержка СЭУАП | Yes |
|---|---|
| Sound and visual indication | Yes |
| Supported 1D barcodes | UPC; EAN; Code128; Code 39; Code 93; Code11; Matrix 2 of 5; Interleaved 2 of 5; Codabar;MSI Plessey; GS1 DataBar; China Postal; Korean Postal |
| Supported 2D barcodes | PDF417; MicroPDF417; Data Matrix; Maxicode; QR Code; MicroQR; Aztec; Hanxin |
| Automatic scanning | Yes |
| Recognizing barcodes from complex surfaces | Yes |
| Support Honest SIGN | Yes |
| Backlight | Red 617nm |
|---|
| 5 MIL | 50-110 mm |
|---|---|
| 13 MIL | 40-300 mm |
| Minimum scanning resolution | 4 MIL |
| Guarantee | 3 years |
|---|---|
| Resistance to external influences | IP65 |
| Storage temperature | -40°С ~ +70°С |
| Nutrition | 5V/400mA |
| Permissible humidity | 0% ~ 95% |
| Operating temperature | 0°С ~ +50°С |
| Drop test | Withstands a fall from a height of 1.5 m |
| Interface | USB-HID; USB-COM - emulation |
|---|
| Color | Black |
|---|---|
| Overall dimensions (WxDxH), mm | 67*50*27 |
| Body material | ABS+PC |
| Weight | 50 gr |
| Box dimensions, mm | 100*80*105 |
|---|---|
| Equipment | Scanner, USB type A cable (205 cm), Manual, Warranty card, Packaging |
-
