236 ₼
| Scanner typeEmbedded | Scanning element2D image | Scanning speed100 scans/sec |
| Connection typeWired | Scanner resolution640(H)x480(V)Px | Scanning coverage angle72º(h)x64º(v) |
| Barcode SensitivityTilt ± 65° / 360° Rotation / Deviation ± 60 ° | Minimum barcode contrast20% | Reading barcodes1D, 2D |

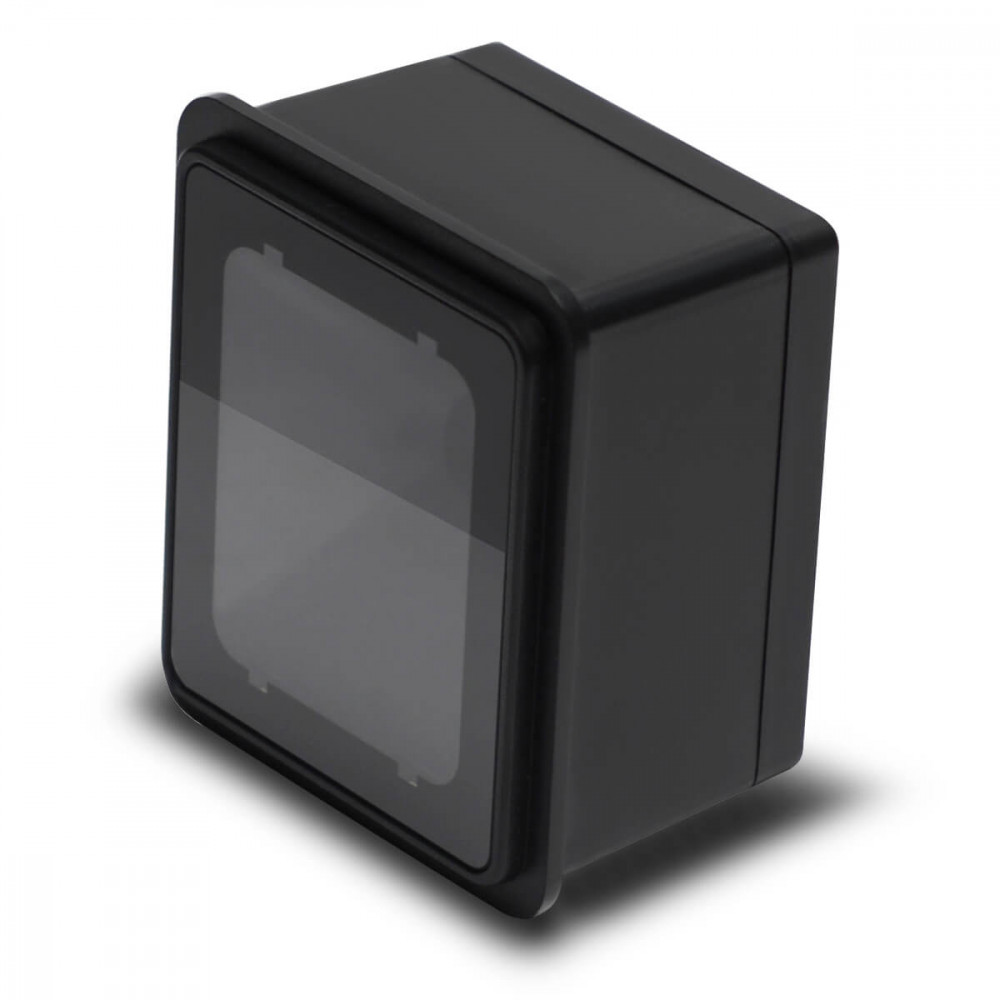

The embedded MERTECH N160 scanner perfectly recognizes 1D and 2D barcodes. It recognizes all known encoding formats. This model is suitable for embedding in vending machines. The device can work as a mobile handheld reader (with a wired connection). Case color: Black.
Technical specifications
The small scanner can be easily integrated into any mechanism. Total device size 77,5*66*45 mm. The reader weighs 75 grams. The device body is made of durable materials (ABC + PC). It can withstand multiple falls from a 1.5-meter height. The structure is protected from moisture and dust (protection class IP54).
2D Scanner Performance Characteristics:
- Speed: up to 100 scans/sec.
- Scanning distance: up to 100 mm.
- Coverage angle: 72°(H)x64 °(V).
- Sensitivity: 65*360*60 degrees.
- Minimum contrast ratio: 20%.
- Backlight: 6500K LED (white).
- Screen: 640*480 Px.
USB-HID is used for connection, USB-HID emulation. An optional RS-232 port is available. The scanner is compatible with most trading applications and operating systems.
Advantages of the model
The MERTECH N160 embedded 2D scanner uses SuperLead technology. This is an innovative technology patented by MERTECH. It provides high speed and accuracy of barcode scanning (linear and two-dimensional).
This reader recognizes damaged and indistinct barcodes. It scans information from mirrored surfaces, from mobile device screens. The system quickly reads the encoding applied to complex surfaces. Built-in backlight speeds up scanning.
A “Sleep mode” is provided to reduce energy consumption. After bringing the product with the label to the sensor, the system will automatically exit it. Activation of the device does not take much time.
Place an order
You can order embedded 2D scanners for business on our website. The equipment is delivered in Moscow, the Moscow region or other regions of Russia. When ordering equipment from our dealers, low prices from the manufacturer are maintained.
| Scanner type | Embedded |
|---|---|
| Scanning element | 2D image |
| Scanning speed | 100 scans/sec |
| Connection type | Wired |
| Scanner resolution | 640(H)x480(V)Px |
| Scanning coverage angle | 72º(h)x64º(v) |
| Barcode Sensitivity | Tilt ± 65° / 360° Rotation / Deviation ± 60 ° |
| Minimum barcode contrast | 20% |
| Reading barcodes | 1D, 2D |
| Scanning range | Up to 100 mm |
| Поддержка СЭУАП | No |
|---|---|
| Sound and visual indication | Yes |
| Supported 1D barcodes | UPC; EAN; Code128; Code 39; Code 93; Code11; Matrix 2 of 5; Interleaved 2 of 5; Codabar;MSI Plessey; GS1 DataBar; China Postal; Korean Postal |
| Supported 2D barcodes | PDF417; MicroPDF417; Data Matrix; Maxicode; QR Code; MicroQR; Aztec; Hanxin |
| EGAIS support | No |
| Automatic scanning | Yes |
| Recognizing barcodes from complex surfaces | Yes |
| Support Honest SIGN | Yes |
| Backlight | White 6500K LED |
|---|
| 5 MIL | 0-20 mm |
|---|---|
| 13 MIL | 5-100 mm |
| Minimum scanning resolution | 3,9 MIL |
| Guarantee | 3 years old |
|---|---|
| Resistance to external influences | IP54 |
| Storage temperature | -40°C ~ +70°C |
| Permissible humidity | 0% ~ 95% |
| Operating temperature | 0°C ~ +50°C |
| Drop test | It can withstand multiple falls from a height of 1.5 m. |
| Interface | USB-HID; USB-COM emulation; RS232 - optional |
|---|
| Color | Black |
|---|---|
| Overall dimensions (WxDxH), mm | 77,5*66*45 |
| Body material | ABC + PC (plastic + polycarbonate) |
| Weight | 75 g |
| Quantity in masterbox, pcs | 100 pieces |
|---|---|
| Gross weight, g | 220 |
| Box dimensions, mm | 100*80*105 |
| Equipment | Scanner, USB type A cable (205 cm), Instructions, Warranty card, Packaging |
-
