| Type of scalesPackaging | Discreteness1 gr | Minimum weight20 gr |
| Weighing limit6 kg | Platform size280*235 mm | ExecutionTabletop |
| VerificationYes | Accuracy classAverage (III) | Load cells, pcs.1 |

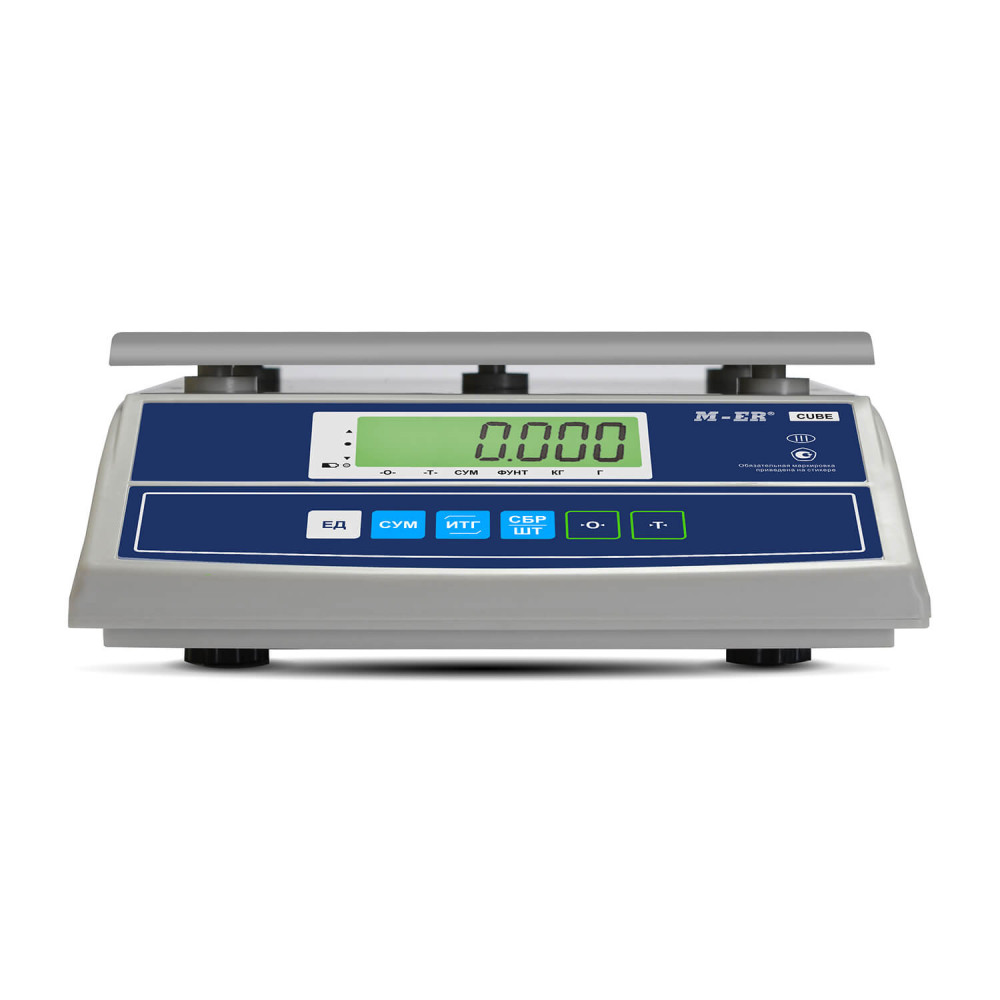

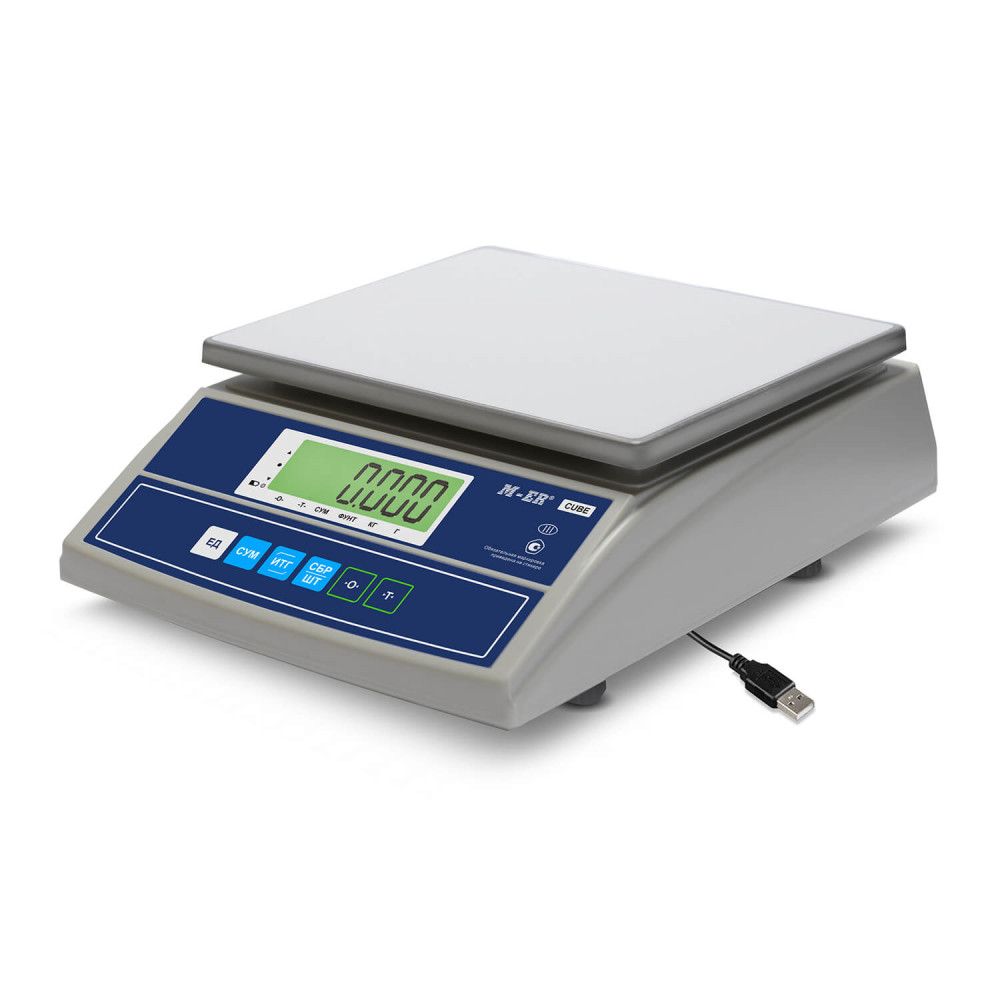

The MERTECH 326 AF series features classic scales for weighing goods. They have a reliable design and practical interface. The M-ER 326 AFL-6.1 "Cube" with USB-COM LCD has a wide platform. The maximum weighing limit of the scales is 6 kg, the minimum is 20 g, with a readability of 1 g. Results are displayed on a six-digit LCD screen. A USB port is provided for data transmission to the POS system.
Design Features

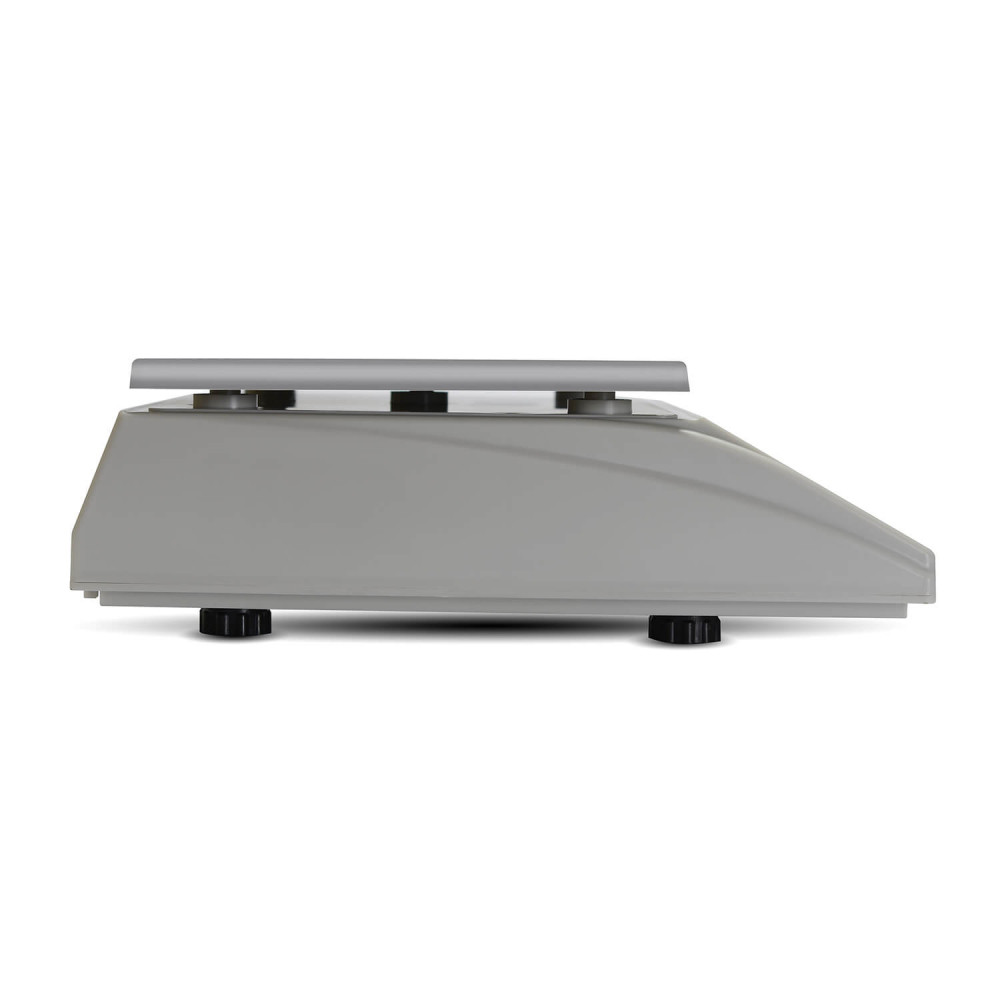

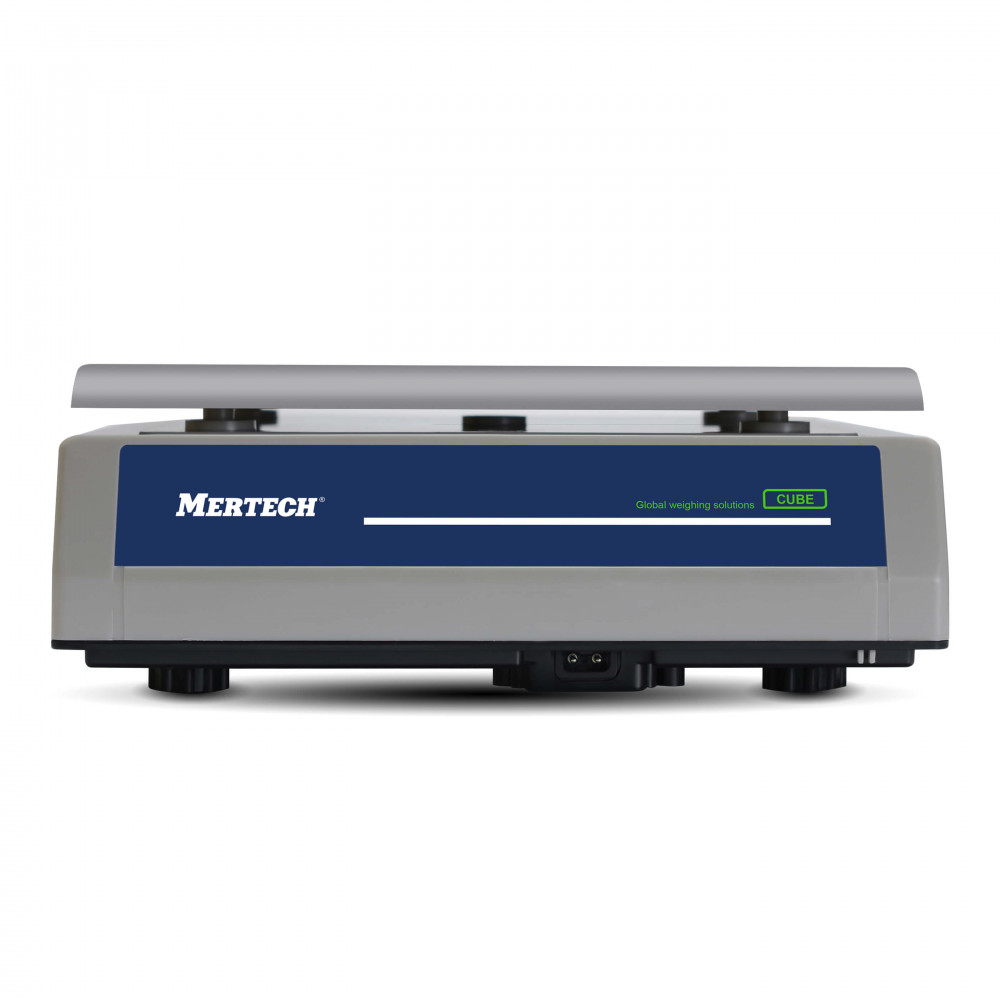

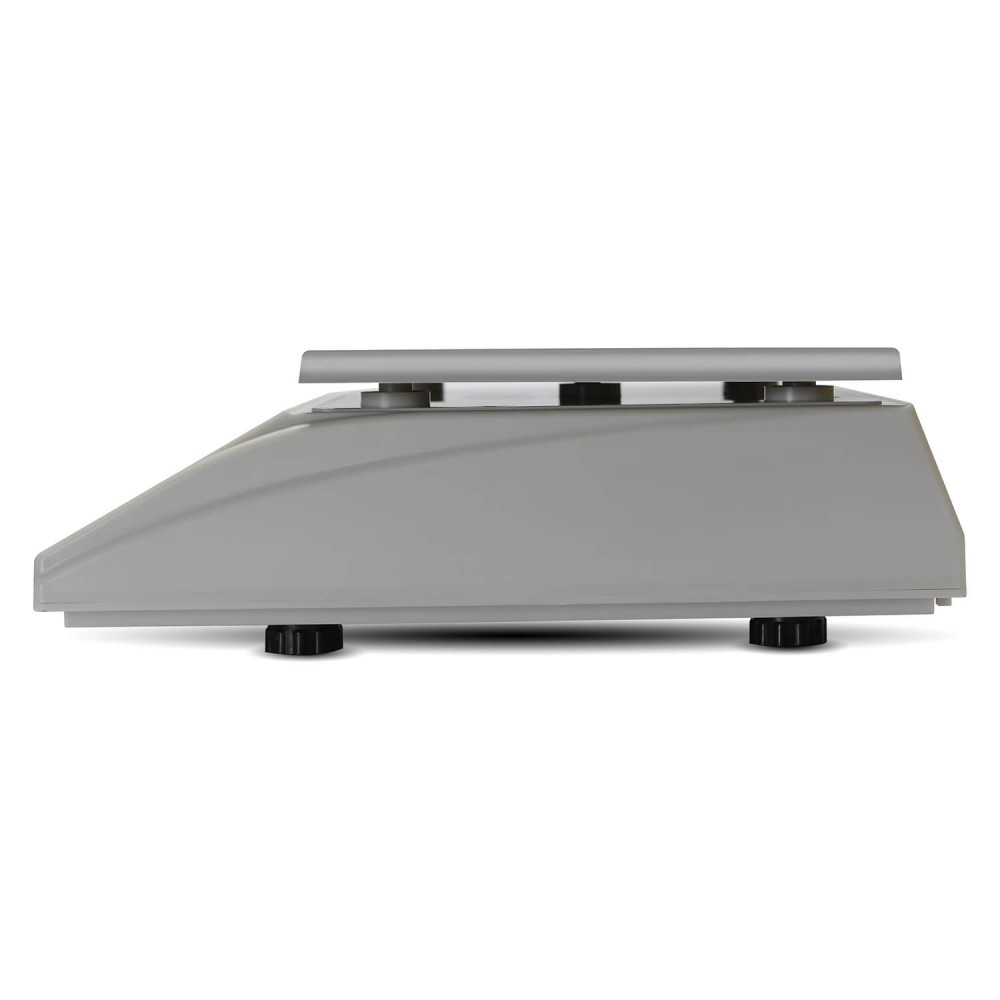

The M-ER 326 AFL scales have a wide platform that accommodates large batches of products. Device dimensions: 325*260*120 mm. Weighing platform size: 280*235 mm. For comparison, standard dimensions are 260*325*120 mm, and platform size is 255*210 mm.
There are several modifications of the M-ER 326 AFL-6.1 "Cube" with USB-COM LCD in the MERTECH catalog. They differ in maximum weighing limits, which can be 6, 15, or 32 kg. All models have the same functionality.
Available operating modes:
- Simple weighing;
- Comparator mode;
- Summation mode;
- Counting mode;
- Tare weight accounting;
Results are transmitted to the POS system and added to the receipt. The device can operate at a point without a POS system.
Model Advantages
The M-ER 326 AFL scales belong to Class III accuracy. This is a medium accuracy class suitable for weighing goods. Models from the 326 AFL series undergo state verification. Test results confirm the declared characteristics.
Let’s list the advantages of the model:
- Three units of measurement are available: kilograms, pounds, grams.
- Increased character sizes on the LCD display (8*21 mm).
- The scales' platform is made of stainless steel.
- Metal elements of the body are covered with double galvanization.
- The underside has supports with adjustable height.
The device is suitable for outdoor trading. Temperature fluctuations from -10°C to +40°C will not affect measurement results. A dust cover protects the body from moisture and dust infiltration.
Place an Order
You can buy the M-ER 326 AF (L) scales at a low price directly from the manufacturer. Models from this line are always in stock. We sell equipment without a markup. We deliver orders within Baku or ship to regions of Azerbaijan. Delivery times and costs depend on the recipient's address. To place an order, call us or leave a request on the website.
| Type of scales | Packaging |
|---|---|
| Discreteness | 1 gr |
| Minimum weight | 20 gr |
| Weighing limit | 6 kg |
| Platform size | 280*235 mm |
| Execution | Tabletop |
| Verification | Yes |
| Accuracy class | Average (III) |
| Load cells, pcs. | 1 |
| Operating modes | Simple weighing; Comparator mode; Summation mode; Weighing result; Tare weight accounting; Counting mode; Data transfer mode |
|---|---|
| Tare sampling range | The whole range |
| Units of measurement | Gr; kg; ft |
| Self-diagnosis mode | Yes |
| Visual indication | Yes |
| Level | Yes |
| Guarantee | 2 years |
|---|---|
| Applications of scales | For connection to 1C, For a store, For hardware, For EVOTOR, For connection to a POS computer, For food production, For meat, For confectionery, For bulk materials, For food products |
| Verification | Yes |
| Nutrition | 5.8V - 0.5A |
| Permissible humidity | 85% |
| Atmospheric pressure | 630...800 mm Hg |
| Operating temperature | -10°C ~ +40°C |
| Display type | LCD |
|---|---|
| Number of indication digits | 6 |
| Character size, mm | 8*21 |
| Interfaces | USB |
|---|
| Overall dimensions (WxDxH), mm | 325*260*120 |
|---|---|
| Platform material | Stainless steel |
| Body material | Plastic |
| Weight | 3.2 kg |
| Keyboard type | Membrane |
| Overload protection | Sound and visual notification |
| Corrosion protection | Galvanization |
| Moisture protection | Dust and moisture proof cover |
| Adjustable supports | Yes |
-
