| Type of scalesPackaging | Discreteness2 gr | Minimum weight40 gr |
| Weighing limit15 kg | Platform size280*235 mm | ExecutionTabletop |
| VerificationYes | Accuracy classAverage (III) | Load cells, pcs.1 |

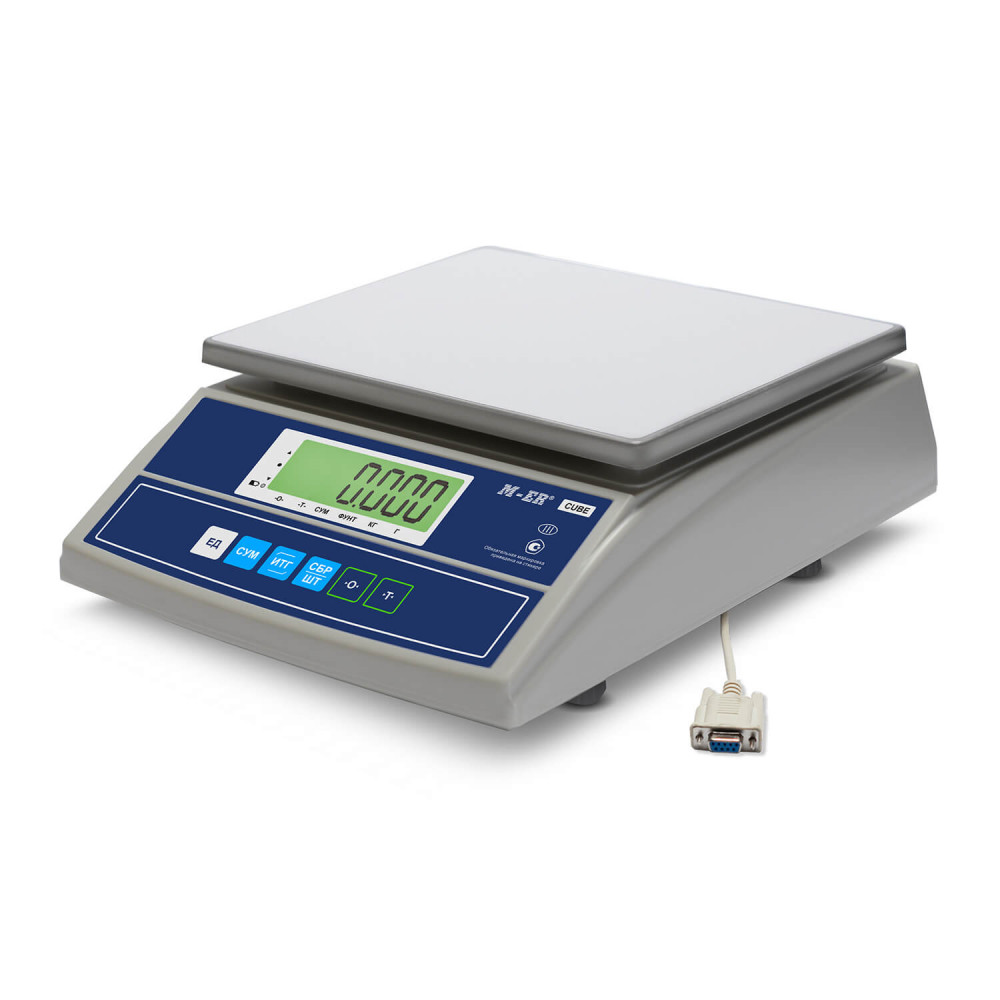

M-ER 326 AFL-15.2 "Cube" with RS-232 – classic weighing scales. They are designed for weighing and portioning. They have a practical design and a reliable case. M-ER 326 AF has several modifications. This page is dedicated to the scales with an extended platform (L), LCD display, and RS-232 interface. The maximum weighing limit of the scales is 15 kg, the minimum is 40 g, and the resolution is 2 g.
Design Features

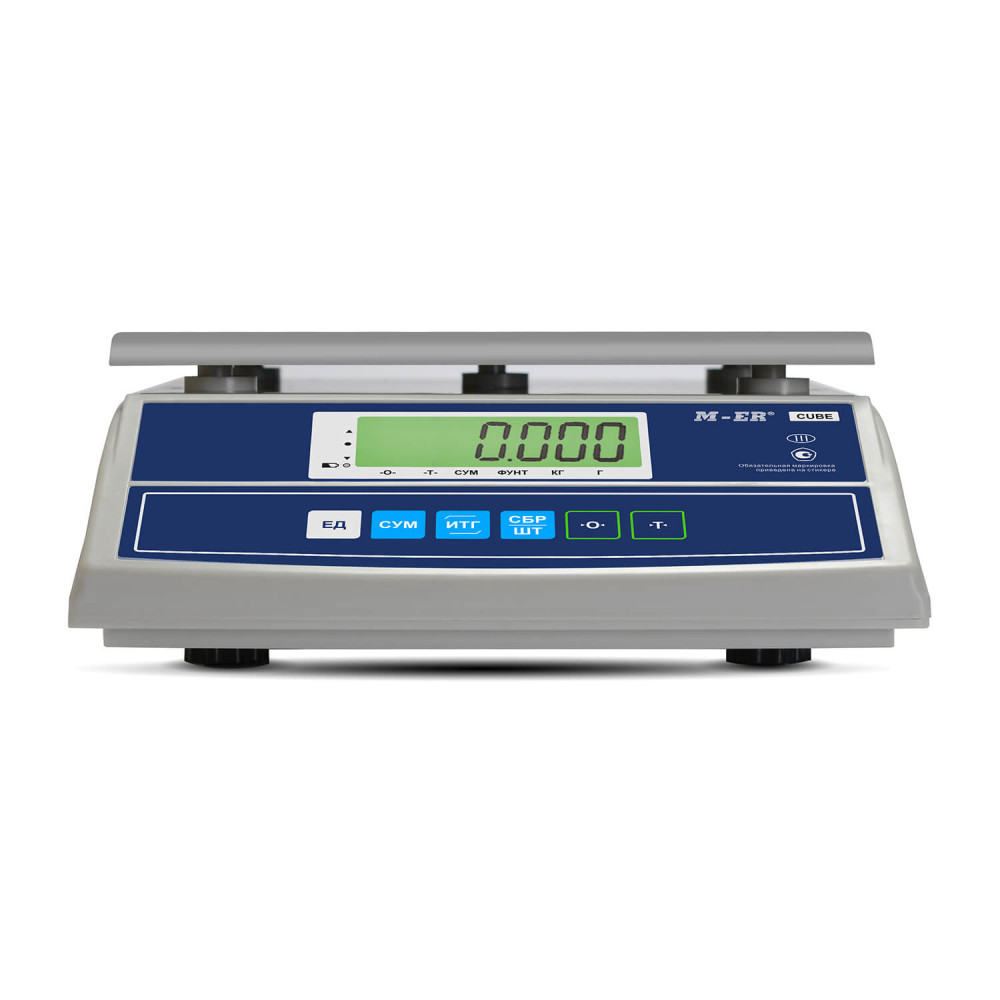

The compact scales do not take up much space on the table. Dimensions of the case: 325*260*120 mm. Size of the platform: 280*235 mm. The wide platform is suitable for weighing large items. The control panel is located under the LCD display.
Additional functions:
- Simple weighing;
- Comparator mode;
- Summation mode;
- Counting mode;
- Tare weight accounting;
Weighing is conducted 1.5 times faster than with similar models. The control panel speeds up the cashier's work. This effect is achieved through the optimal placement of buttons. The panel is intuitive. A person with any level of training can start using the scales.
Model Advantages
The main advantages of M-ER 326 AFL-15.2 "Cube" with RS-232 are the simple interface and high measurement accuracy. This scale is of III accuracy class (designed for trade). Other advantages of the model include:
- Wide platform for large goods.
- The platform is covered with stainless steel.
- Three units of measurement: kilograms, grams, pounds.
- Increased character size on the display: 8*21 mm.
- Double galvanization for protecting metal elements of the case.
The model is suitable for portioning goods and as a check scale in stores. It is used in catering establishments and food production. The M-ER 326 AFL-15.2 "Cube" with RS-232 is suitable for outdoor use. Measurement results are not affected by temperature fluctuations from -10 to +40 degrees. The case is protected from dust and moisture. No automation of the sales point is required for operation.
Place an Order
You can buy the M-ER 326 AFL-15.2 "Cube" with RS-232 at a low price. The MERTECH website offers equipment from the manufacturer. Models from the catalog are always in stock. Delivery is conducted in Baku and to any city in Azerbaijan. To place an order, leave a request on the website. A consultant will respond to you shortly.
| Type of scales | Packaging |
|---|---|
| Discreteness | 2 gr |
| Minimum weight | 40 gr |
| Weighing limit | 15 kg |
| Platform size | 280*235 mm |
| Execution | Tabletop |
| Verification | Yes |
| Accuracy class | Average (III) |
| Load cells, pcs. | 1 |
| Operating modes | Simple weighing; Comparator mode; Summation mode; Weighing result; Tare weight accounting; Counting mode; Data transfer mode |
|---|---|
| Tare sampling range | The whole range |
| Units of measurement | Gr; kg; ft |
| Self-diagnosis mode | Yes |
| Visual indication | Yes |
| Level | Yes |
| Guarantee | 2 years |
|---|---|
| Applications of scales | For connection to 1C, For a store, For hardware, For connection to a POS computer, For food production, For meat, For confectionery, For bulk materials, For food products |
| Verification | Yes |
| Nutrition | 5.8V - 0.5A |
| Permissible humidity | 85% |
| Atmospheric pressure | 630...800 mm Hg |
| Operating temperature | +5…+35 |
| Display type | LCD |
|---|---|
| Number of indication digits | 6 |
| Character size, mm | 8*21 |
| Interfaces | RS-232 |
|---|
| Overall dimensions (WxDxH), mm | 260*325*120 |
|---|---|
| Platform material | Stainless steel |
| Body material | Plastic |
| Weight | 2.9 kg |
| Keyboard type | Membrane |
| Overload protection | Sound and visual notification |
| Corrosion protection | Galvanization |
| Moisture protection | Dust and moisture proof cover |
| Adjustable supports | Yes |
-
