| Type of scalesPackaging | Discreteness1 gr | Minimum weight20 gr |
| Weighing limit6 kg | Platform size255*210 mm | ExecutionTabletop |
| VerificationYes | Accuracy classAverage (III) | Load cells, pcs.1 |

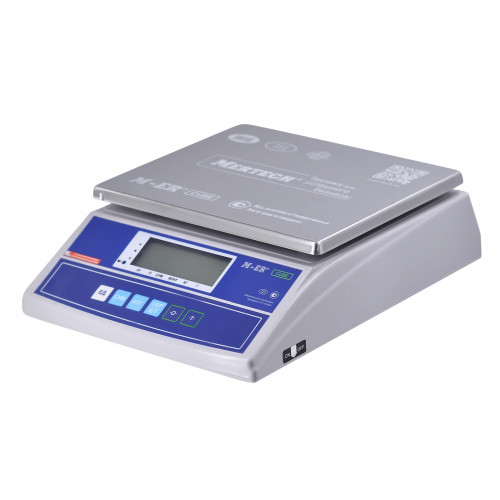

We updated the M-ER 326 AF series weighing scales and added a second display to the design. This solution simplifies the operations of retail stores: now customers can see the weight of bulk products on the platform. The new model is suitable for weighing small batches with a maximum weight of up to 6 kg. The design includes a USB port, allowing the device to be connected to the online cash register and the store’s POS system.
Model Advantages
The M-ER 326 AF-6.1 "Cube" electronic scales have become popular among entrepreneurs. This line is in demand due to its high measurement accuracy. The desktop model is often used for packaging bulk products, such as tea, nuts, dried fruits, confectioneries, etc.
At the request of store owners, we launched a line with two displays. Now the weight of the product on the platform is visible not only to sellers but also to buyers.
Available modes include:
- simple weighing;
- tare weight adjustment;
- summation of values;
- comparison mode;
- counting items;
- data transfer via USB.
The model is listed in the state register of measuring instruments. Measurement results can be expressed in grams, kilograms, or pounds. Each unit undergoes factory calibration before being delivered to its new owner.
Specifications

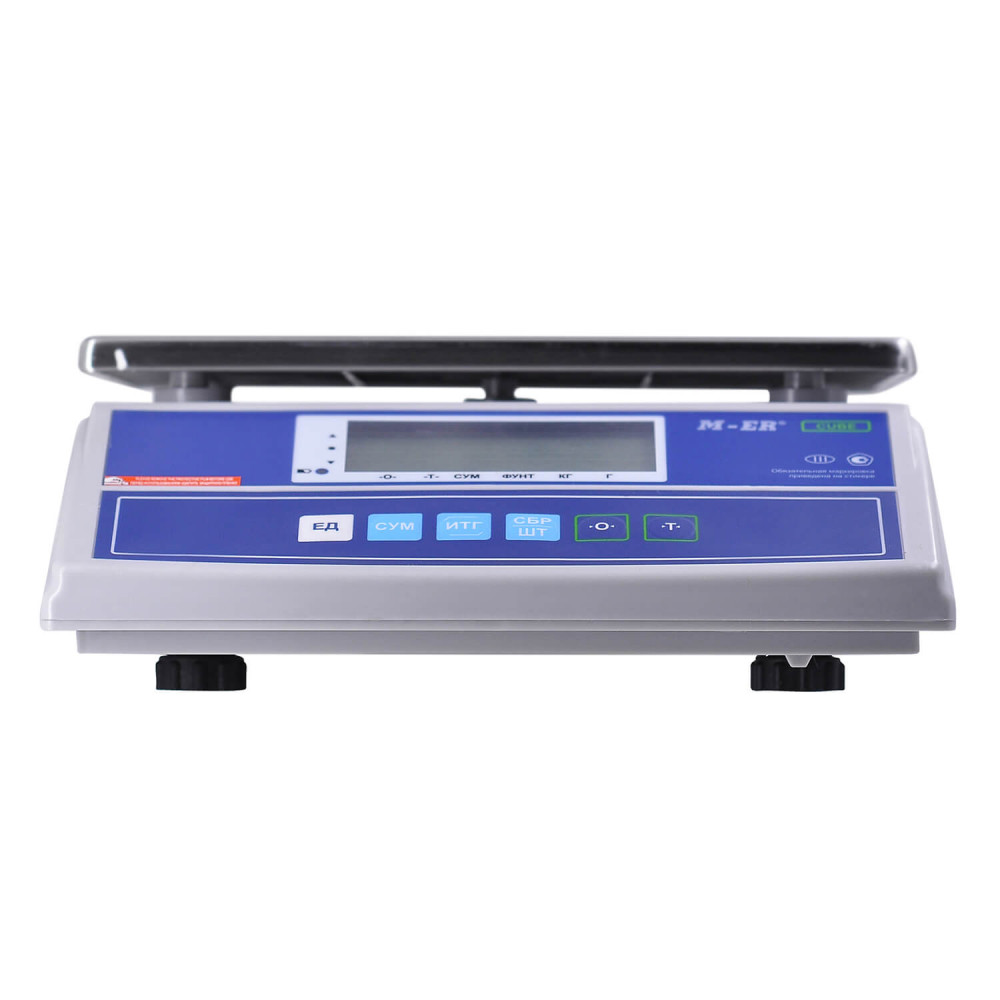

The weighing equipment features a sturdy casing. The outer panels are made from high-quality plastic, while the platform is constructed from stainless steel. Metal parts undergo double galvanization for corrosion protection. The platform size of 255 x 210 mm makes it convenient to work with. Control is provided through a membrane keyboard.
Operational characteristics:
- maximum load: 6 kg;
- measurement increment: 1 g;
- minimum load: 20 g.

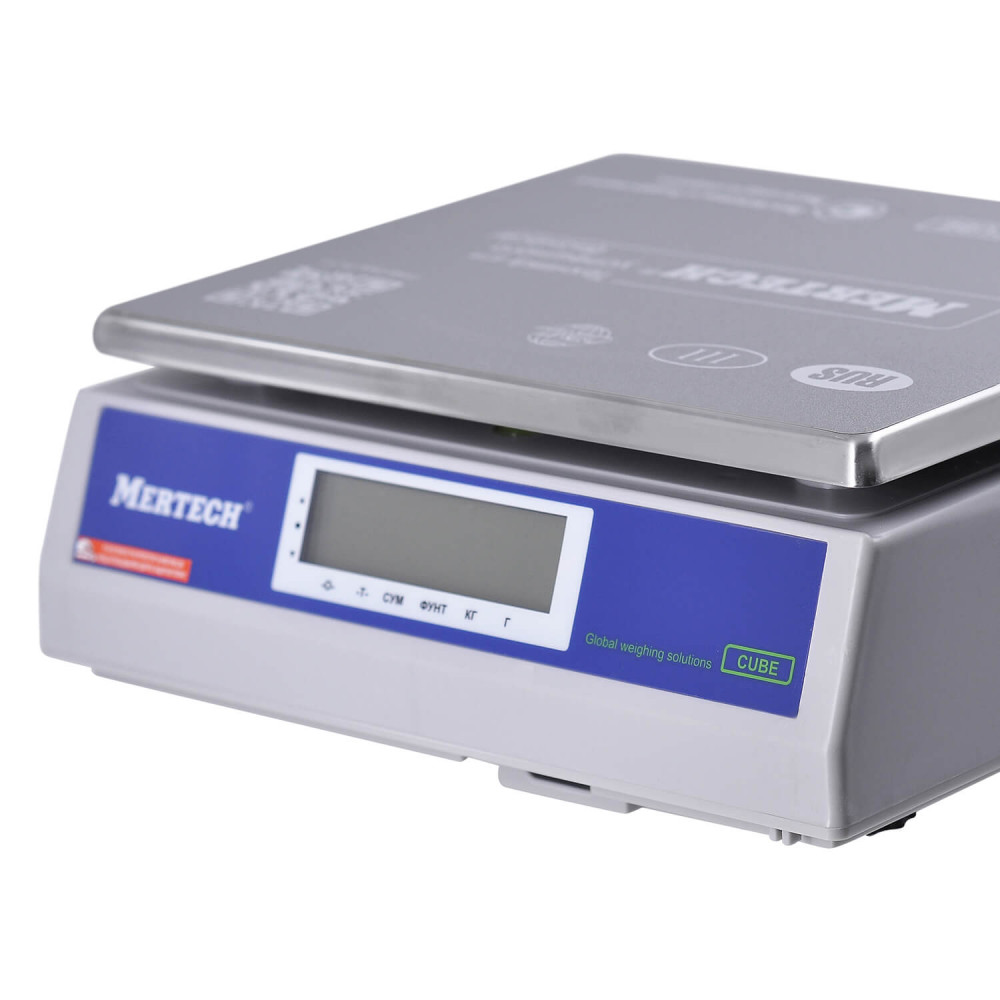

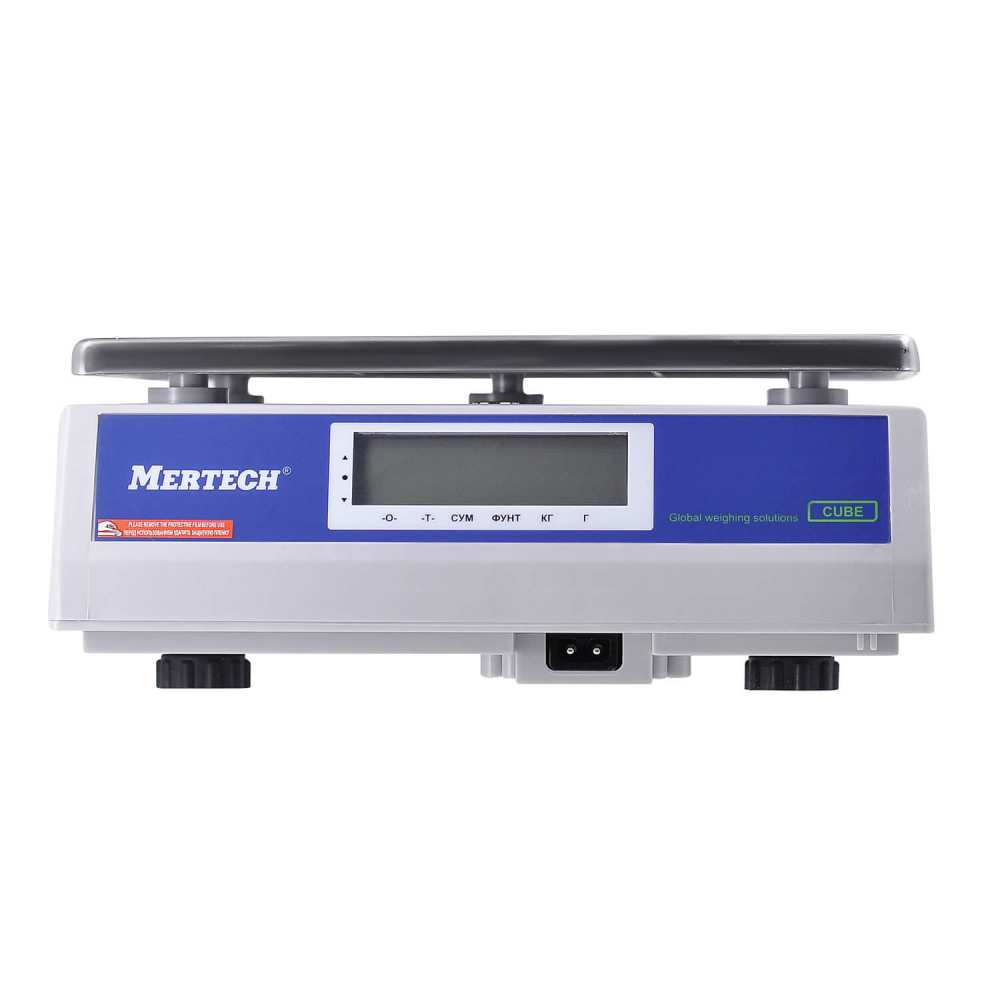

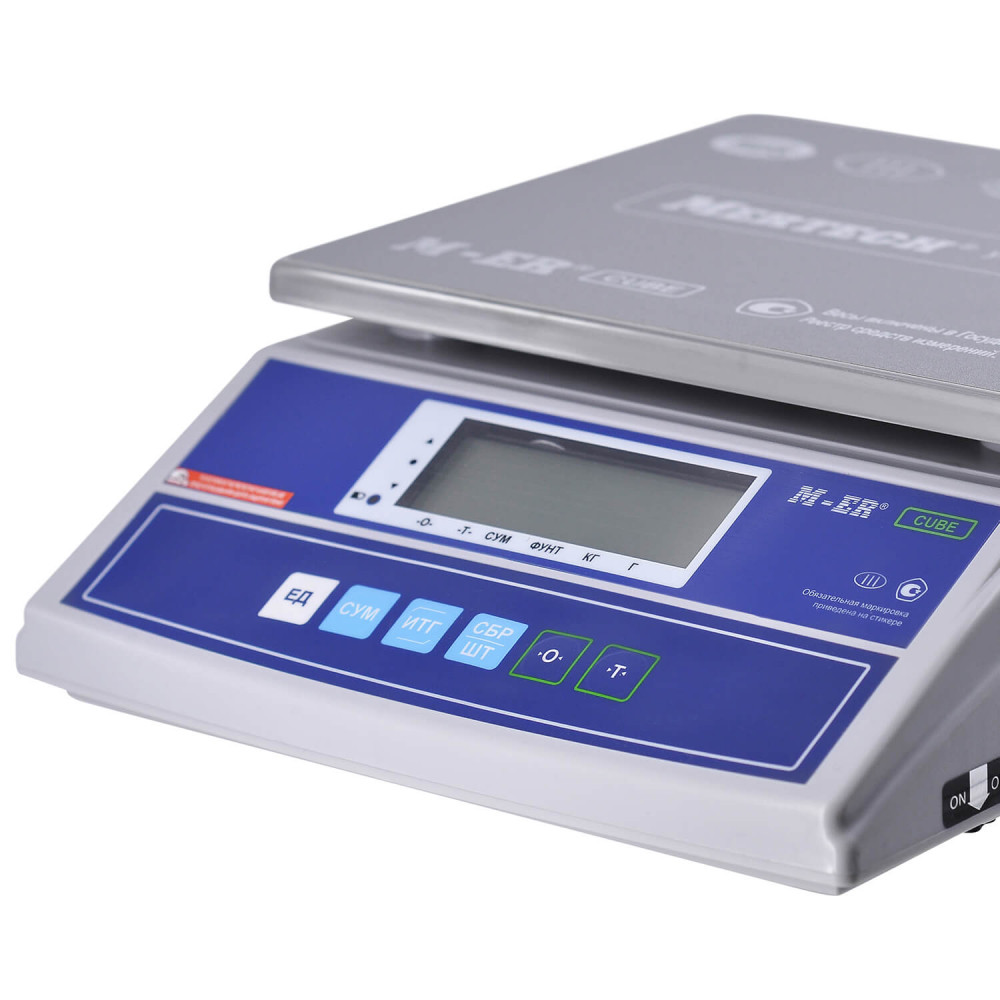

Accuracy is ensured by a load cell with an increased number of divisions. The reliable mechanism is designed to withstand short-term overloads of up to three times the maximum allowed value. The design includes a dual LCD display. Each of the two screens has 6 digits of indication. The size of the digits on the screens is 8 by 21 mm.

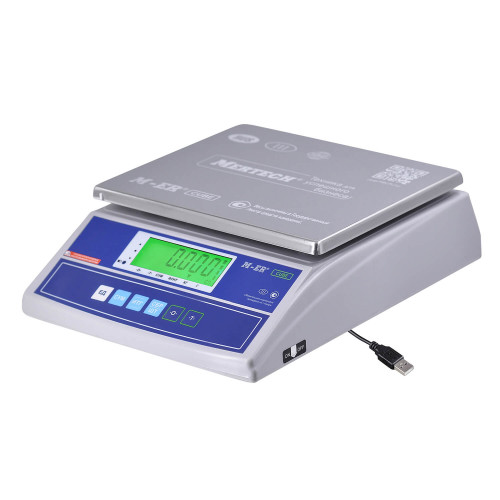

The casing features a USB port, which allows the equipment to transmit data to the cash register. The desktop scales can operate at temperatures down to -10°C, for instance, in unheated areas.
| Type of scales | Packaging |
|---|---|
| Discreteness | 1 gr |
| Minimum weight | 20 gr |
| Weighing limit | 6 kg |
| Platform size | 255*210 mm |
| Execution | Tabletop |
| Verification | Yes |
| Accuracy class | Average (III) |
| Load cells, pcs. | 1 |
| Operating modes | Simple weighing; Comparator mode; Summation mode; Weighing result; Tare weight accounting; Counting mode; Data transfer mode |
|---|---|
| Printing labels | No |
| Energy saving mode | No |
| Tare sampling range | The whole range |
| Units of measurement | Gr; kg; ft |
| Self-diagnosis mode | Yes |
| Visual indication | Yes |
| Level | Yes |
| Guarantee | 2 years |
|---|---|
| Applications of scales | For connection to 1C, For a store, For hardware, For EVOTOR, For connection to a POS computer, For food production, For meat, For confectionery, For bulk materials, For food products |
| Nutrition | 5.8V - 0.5A |
| Permissible humidity | 85% |
| Atmospheric pressure | 630...800 mm Hg |
| Operating temperature | -10°C ~ +40°C |
| Display type | LCD |
|---|---|
| Number of displays | 2 |
| Number of indication digits | 6 |
| Character size, mm | 8*21 |
| Interfaces | USB |
|---|
| Overall dimensions (WxDxH), mm | 260*325*120 |
|---|---|
| Platform material | Stainless steel |
| Body material | Plastic |
| Weight | 2.9 kg |
| Keyboard type | Membrane |
| Overload protection | Sound and visual notification |
| Corrosion protection | Galvanization |
| Moisture protection | Dust and moisture-proof cover |
| Adjustable supports | Yes |
-
