166 ₼
| Type of scalesPacking rooms | Discreteness1 gram | Minimum weight20 grams |
| Weighing limit6 kg | Platform size255*210 mm | ExecutionDesktop |
| VerificationYes | Accuracy classAverage (III) | Load cells, pcs.1 |

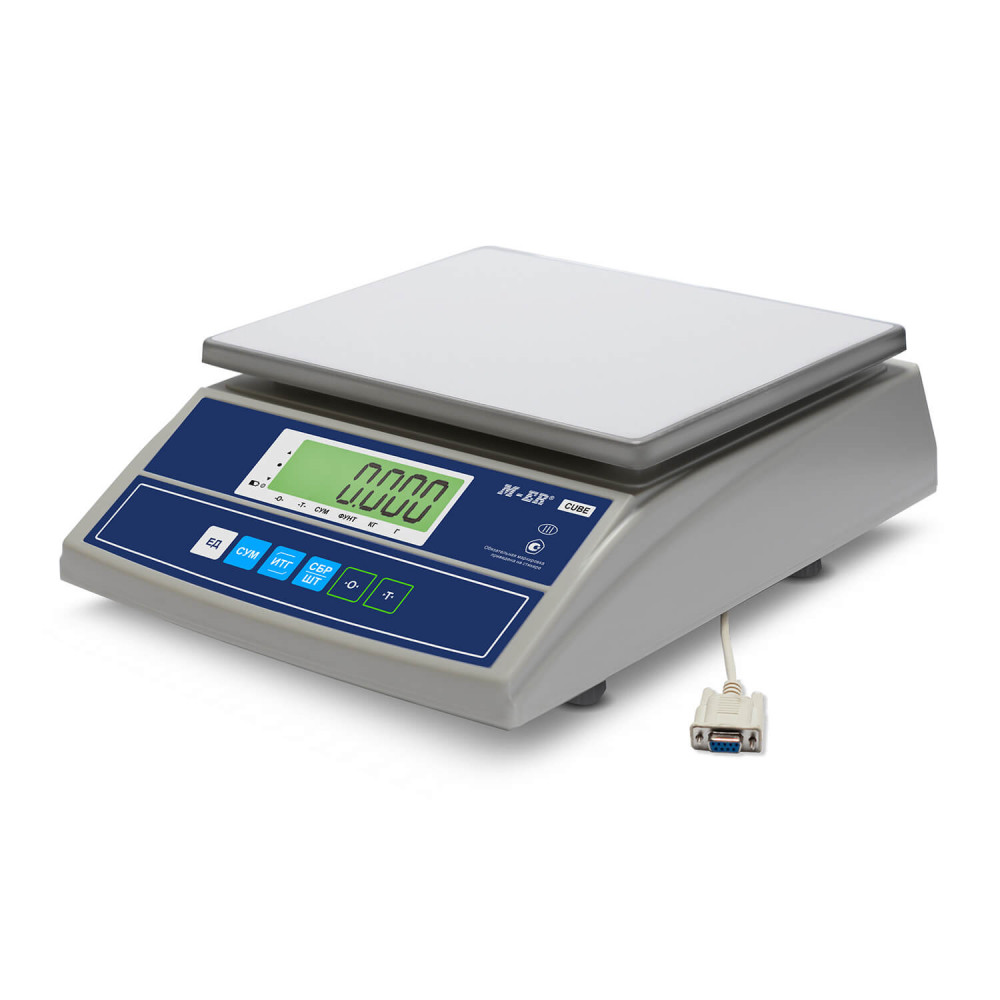

The M-ER 326 AF-6.1 "Cube" LCD RS232 packing scale is a universal model for a retail store. The classic case is characterized by reliability and practicality. Accuracy class – III. The device is powered by a built-in battery. No network connection is required for operation. The scale runs on a battery for 4 months without recharging. The M-ER 326AF scales are available in several versions. This page is dedicated to a model with a standard platform, an LCD display, and an RS-232 port. The maximum weighing limit is 6 kg, the minimum is 20 grams, and the discreteness is 1 gram.
Design features
This model is characterized by its compact size. Body dimensions: 260*325*120 mm. Platform size: 210*235 mm. Scales don't take up much space. They are suitable for retail stores, tables at markets and fairs as control scales. The device can be connected to a POS system via an RS-232 port.
List of built-in functions:
- Simple weighing;
- Comparator mode;
- Summation mode;
- Counting mode;
- Tare weight accounting;

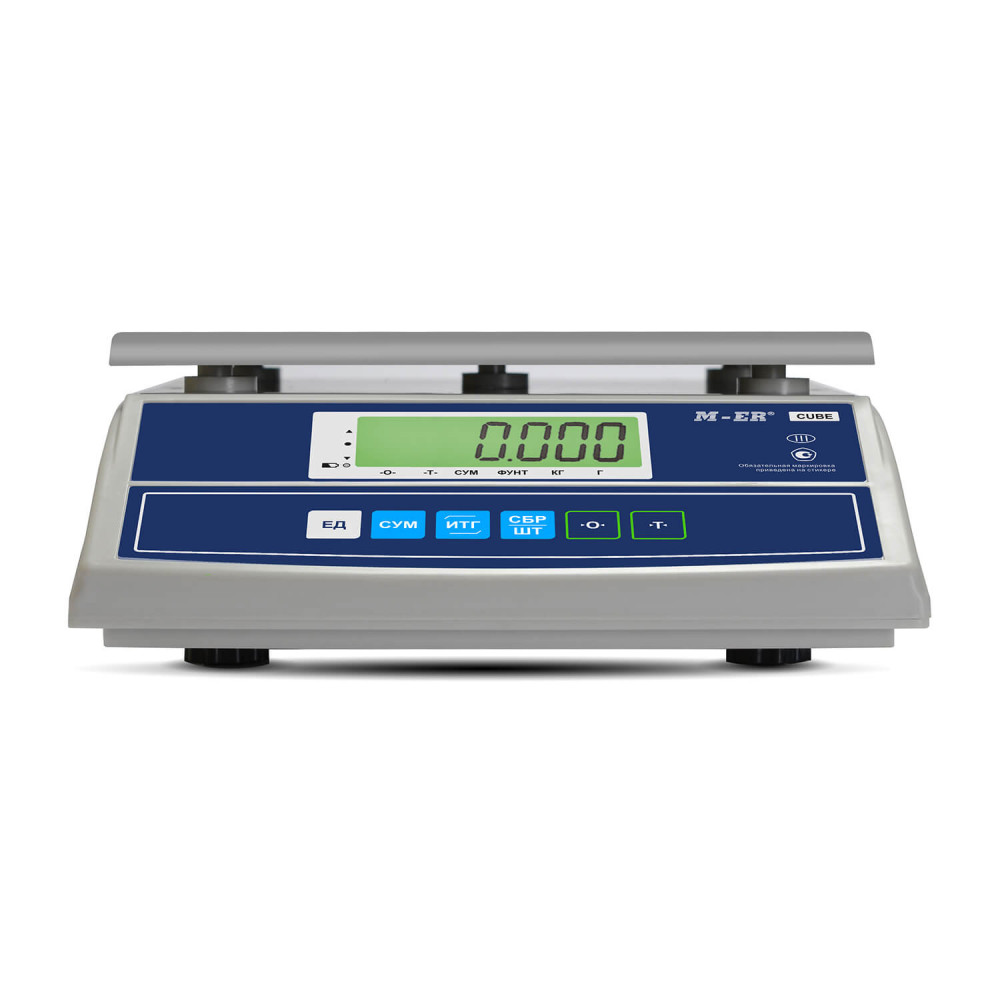

The measurement and calculation results are displayed on the LCD display. There is a convenient control panel under the screen. The optimal button arrangement speeds up the cashier's work. The purpose of the buttons is intuitive. Weighing goods on the M-ER 326AF scales can be 1.5 times faster than on analogues of other brands.
Advantages of the model
The two main advantages of the M-ER 326 AF-6.1 "Cube" LCD RS232 are a simplified interface and high measurement accuracy. The scales are subject to state verification before they go on sale. This procedure confirms the declared characteristics of the device.
- The small platform saves space on the table.
- The frame is coated with double galvanization to protect the metal.
- The weighing platform is made of stainless steel.
- There are 3 units of measurement available: grams, kilograms, and pounds.
- Increased size of characters on the screen (8*21 mm).
The device is suitable for open-air trading. The metal elements of the housing are reliably protected from corrosion. Operating temperature range: from -10 to +40 degrees. At these limits, the temperature does not affect the measurement accuracy. The device can be connected to the POS system via an RS-232 port or work independently.
Place an order
In the MERTECH online store you can buy scales M-ER 326 AF-6.1 "Cube" LCD RS232 at a low price. We are the official representative office of the supplier. Therefore, commercial equipment is sold at no extra charge. Orders are delivered in Moscow and throughout Russia. To make a purchase, call us or leave a request on the website.
| Type of scales | Packing rooms |
|---|---|
| Discreteness | 1 gram |
| Minimum weight | 20 grams |
| Weighing limit | 6 kg |
| Platform size | 255*210 mm |
| Execution | Desktop |
| Verification | Yes |
| Accuracy class | Average (III) |
| Load cells, pcs. | 1 |
| Summation by mass | Yes |
| Operating modes | Simple weighing; Comparator mode; Summation mode; Weighing result; Tare weight accounting; Counting mode; Data transmission mode |
|---|---|
| Printing labels | No |
| Tare sampling range | The whole range |
| Units of measurement | g, Kg, Lb, Oz (optional) |
| Self-diagnosis mode | Yes |
| Visual indication | Yes |
| Level | Yes |
| Guarantee | 2 years old |
|---|---|
| Applications of scales | For connecting to 1C, For a store, For hardware, For connecting to a POS computer, For food production, For meat, For confectionery, For bulk materials, For food, For catering |
| Battery | 4V-4.5A |
| Verification | Yes |
| Nutrition | 5.8V - 0.5A |
| Permissible humidity | 85% at 40 °C without condensation of moisture |
| Atmospheric pressure | 630...800 mmHg. |
| Operating temperature | +5… +40 |
| Display type | LCD |
|---|---|
| Number of indication digits | 6 |
| Character size, mm | 8*21 |
| CAS-M (Active) | Yes |
|---|---|
| CAS-M (Passive) | Yes |
| POS2-M | Yes |
| Interfaces | RS-232 |
|---|
| Overall dimensions (WxDxH), mm | 260*325*120 |
|---|---|
| Platform material | Metal, plastic |
| Body material | Plastic |
| Weight | 2.9 kg |
| Keyboard type | Membrane |
| Overload protection | Audio and visual alerts |
| Corrosion protection | Galvanization |
| Moisture protection | Dust film |
| Adjustable supports | Yes |
| Quantity in masterbox, pcs | 5 |
|---|
-
