| Type of scalesPackaging | Discreteness1 gr | Minimum weight20 gr |
| Weighing limit6 kg | Platform size255*210 mm | ExecutionTabletop |
| VerificationYes | Accuracy classAverage (III) | Load cells, pcs.1 |

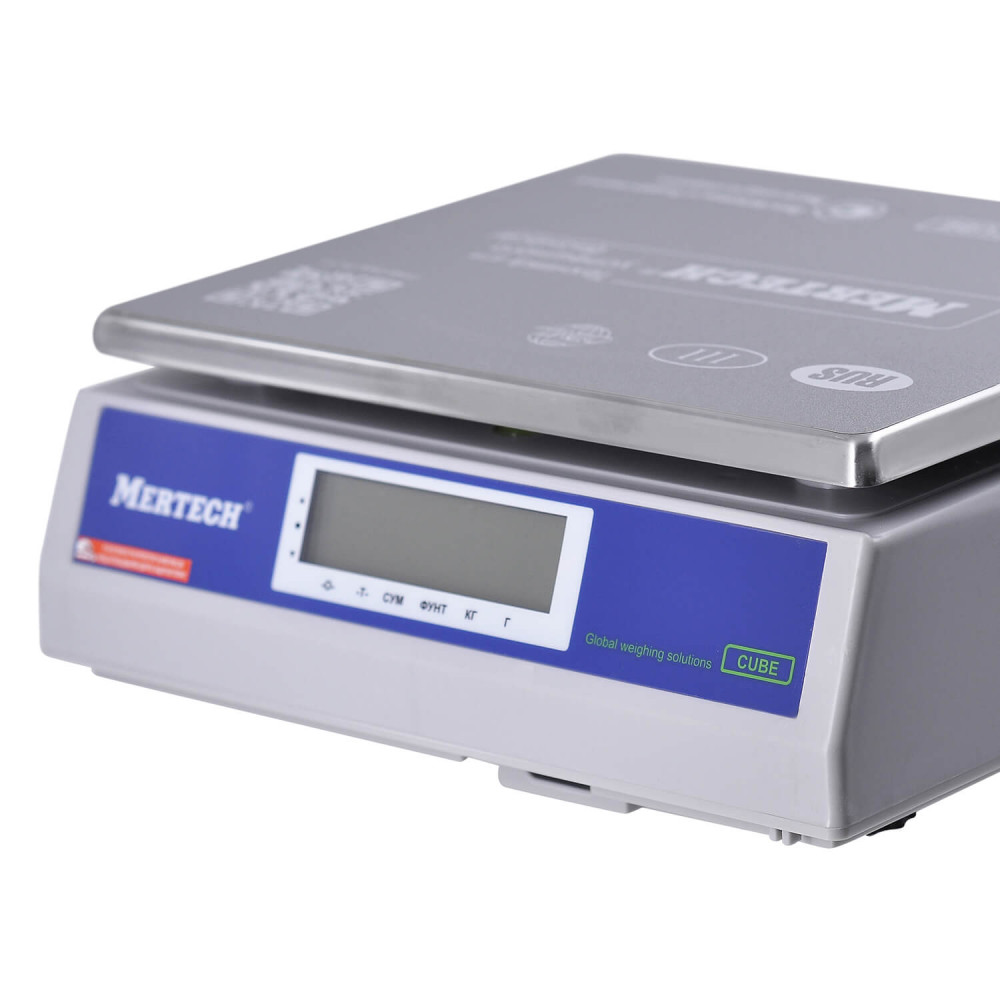

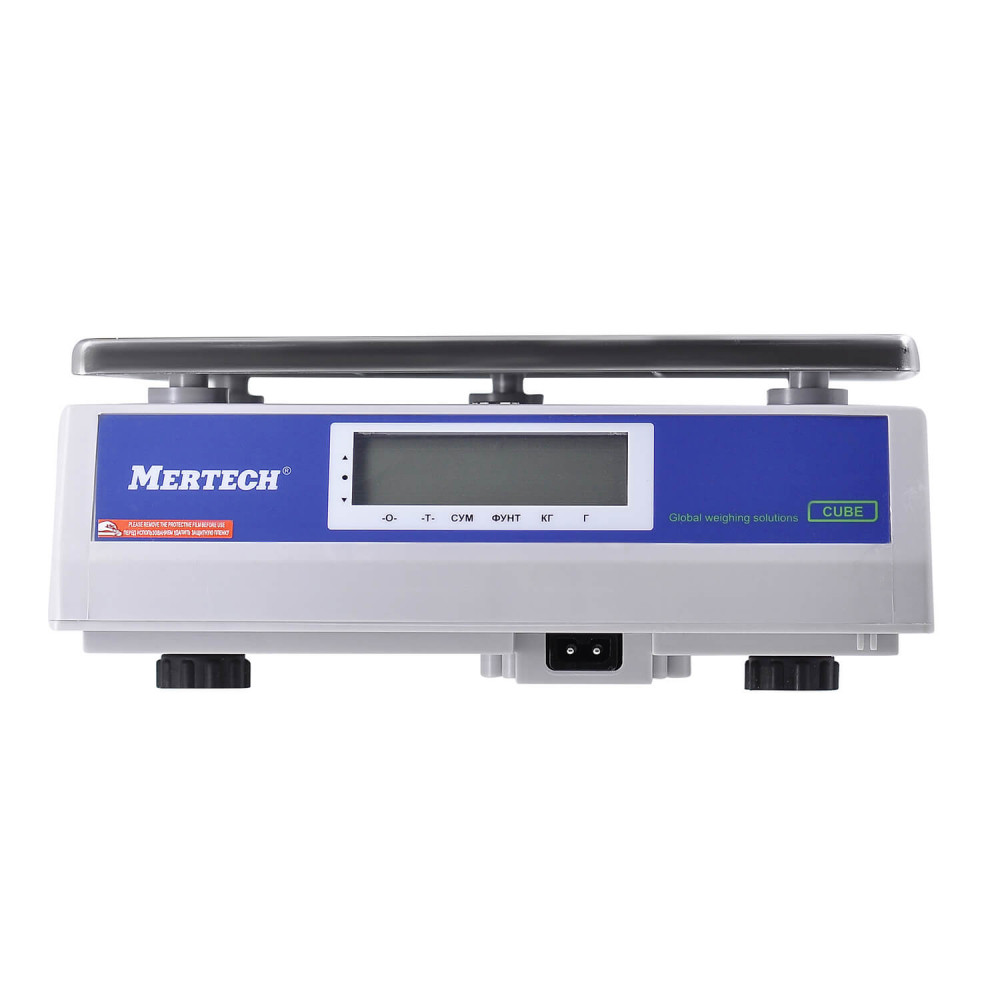

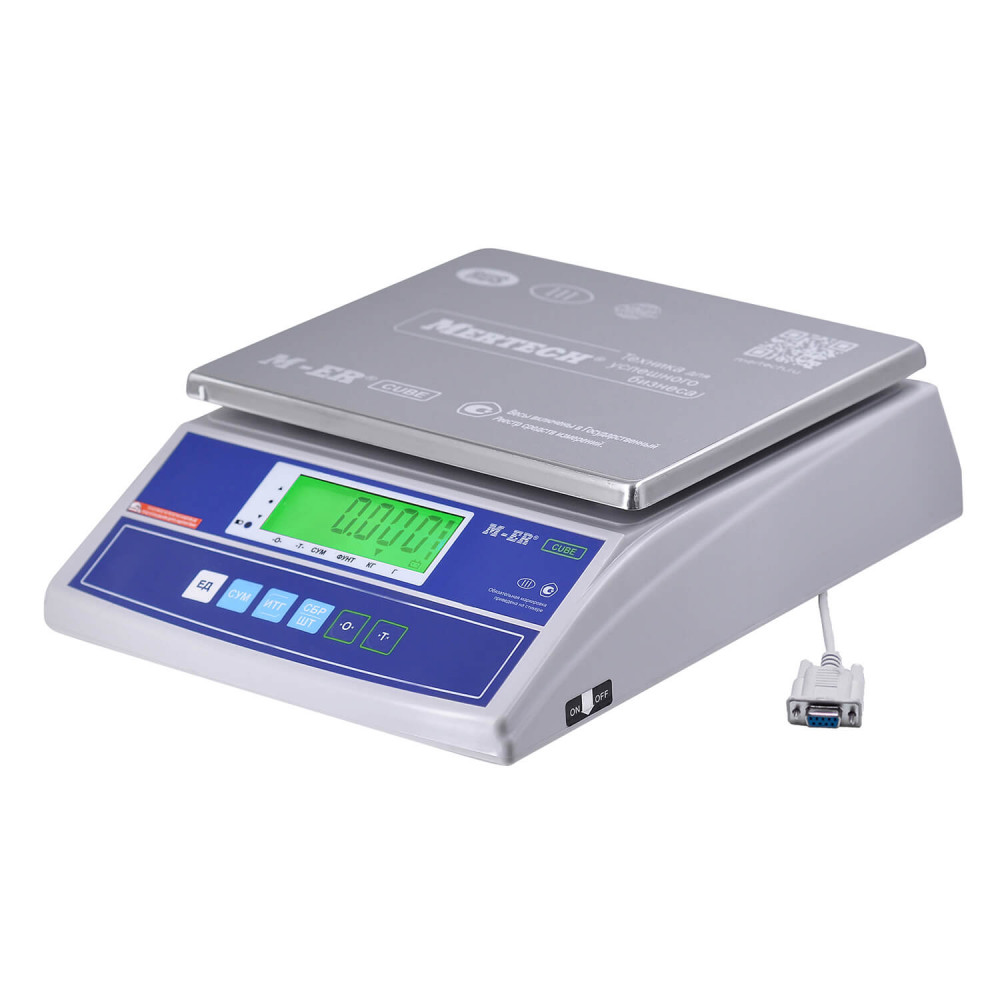

The new M-ER 326 AF "Cube" series weighing scales are equipped with a dual LCD display. The second screen has been added so that customers can see the weight results. This solution makes the weighing process transparent for customers and increases trust in the business. The model is suitable for working with portions weighing up to 6 kg. Results are transmitted using the RS232 interface.
Advantages of the Model
The M-ER 326 AF-6.1 "Cube" weighing scales are designed for weighing small retail batches. Entrepreneurs often use them to package bulk goods, such as tea, coffee, nuts, and many other products. The "Cube" line has become popular due to its convenient design and high measurement accuracy.
Available modes for users include:
- standard weighing;
- sum of multiple values;
- tare weight subtraction;
- comparison mode;
- counting the number of items;
- data transmission via RS232.
The menu allows you to select units of measurement: grams, kilograms, or pounds. The measurement accuracy is confirmed by certificates. The new model is included in the state register of measuring instruments. Each device undergoes mandatory verification before sale.
Specifications

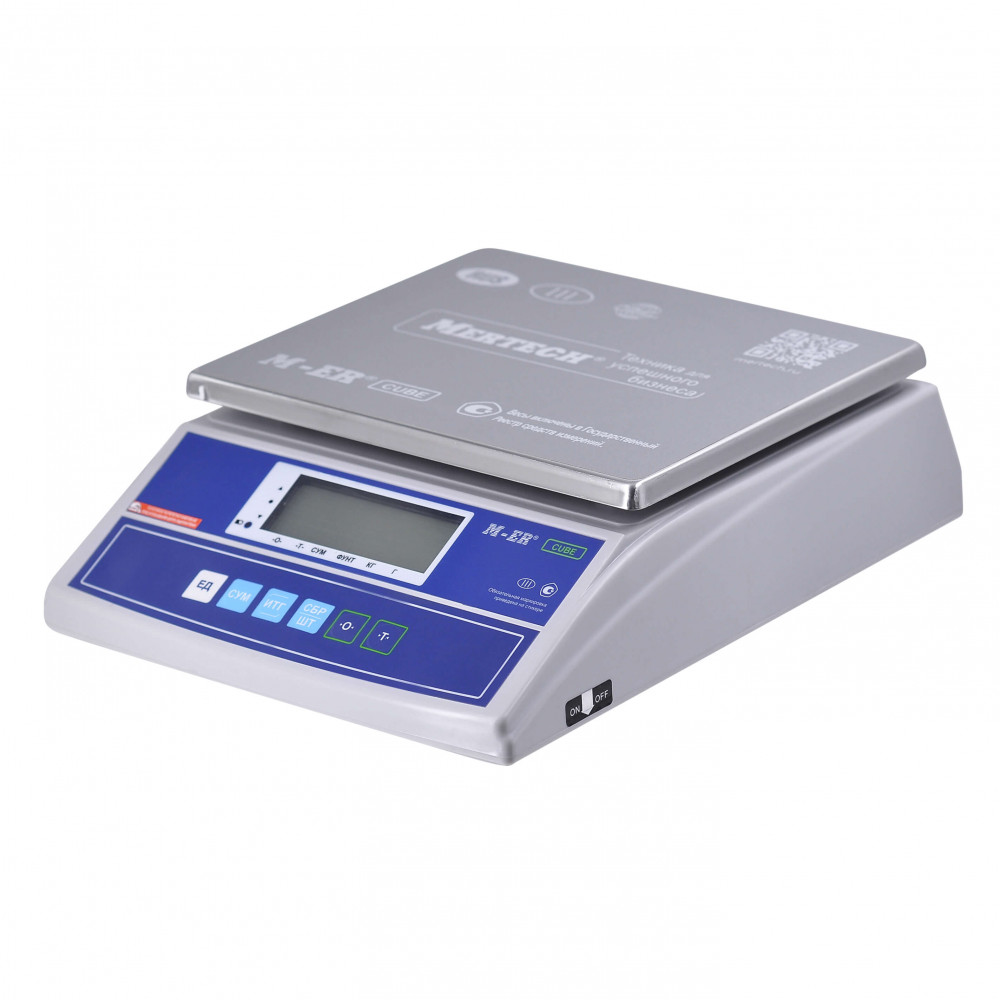

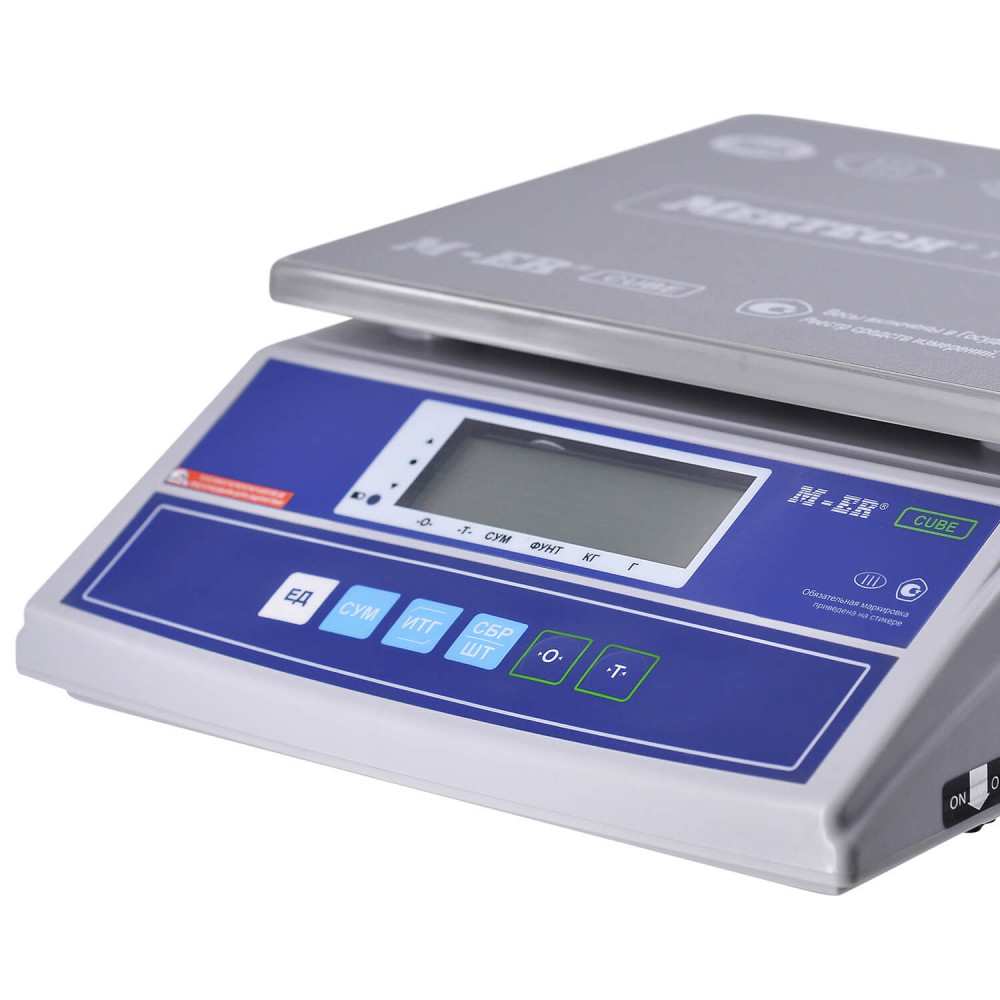

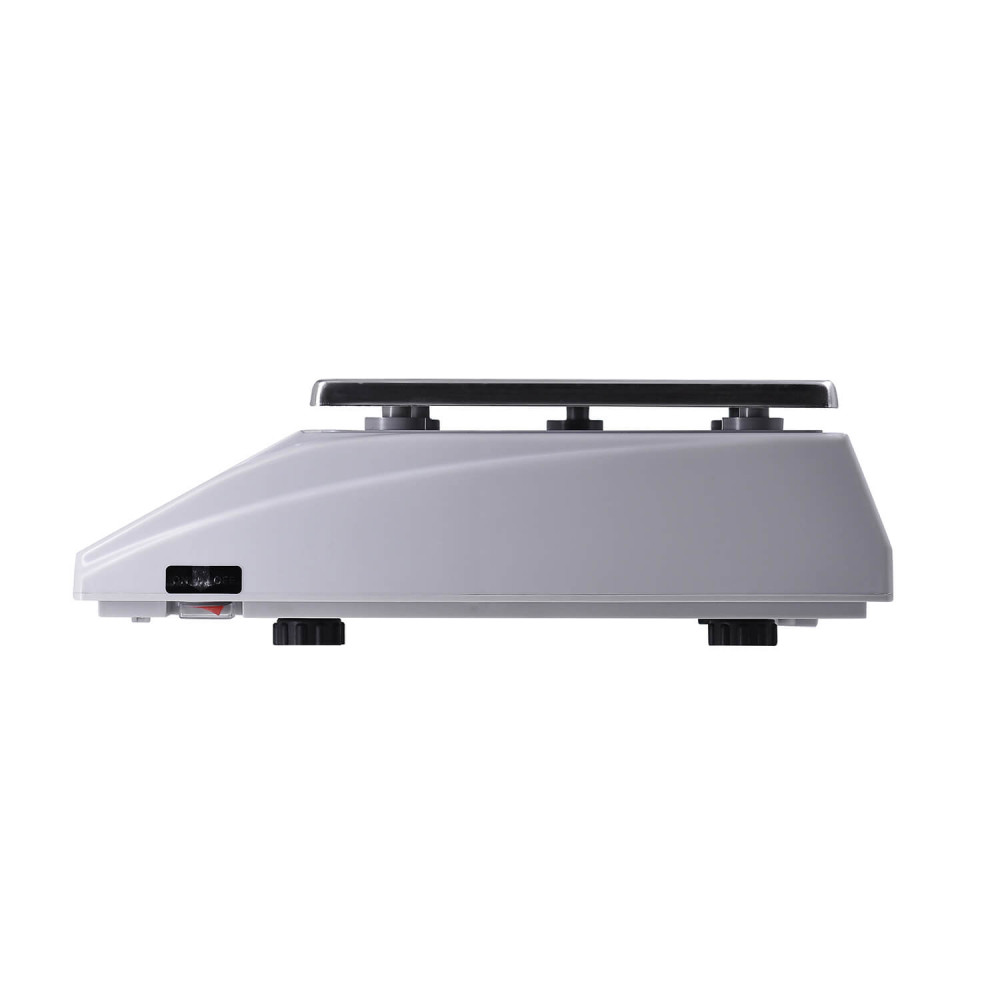

The frame and panels are made of strong plastic. The platform is made of stainless steel. A convenient membrane keyboard is installed on the body. To protect the scales from corrosion, we subject the metal elements to dual galvanization. The weighing platform, measuring 210 by 255 mm, is suitable for working with any bulk goods.
Metrological characteristics:
- maximum weight: 6 kg;
- discreteness (division price): 1 g;
- minimum weight: 20 g.

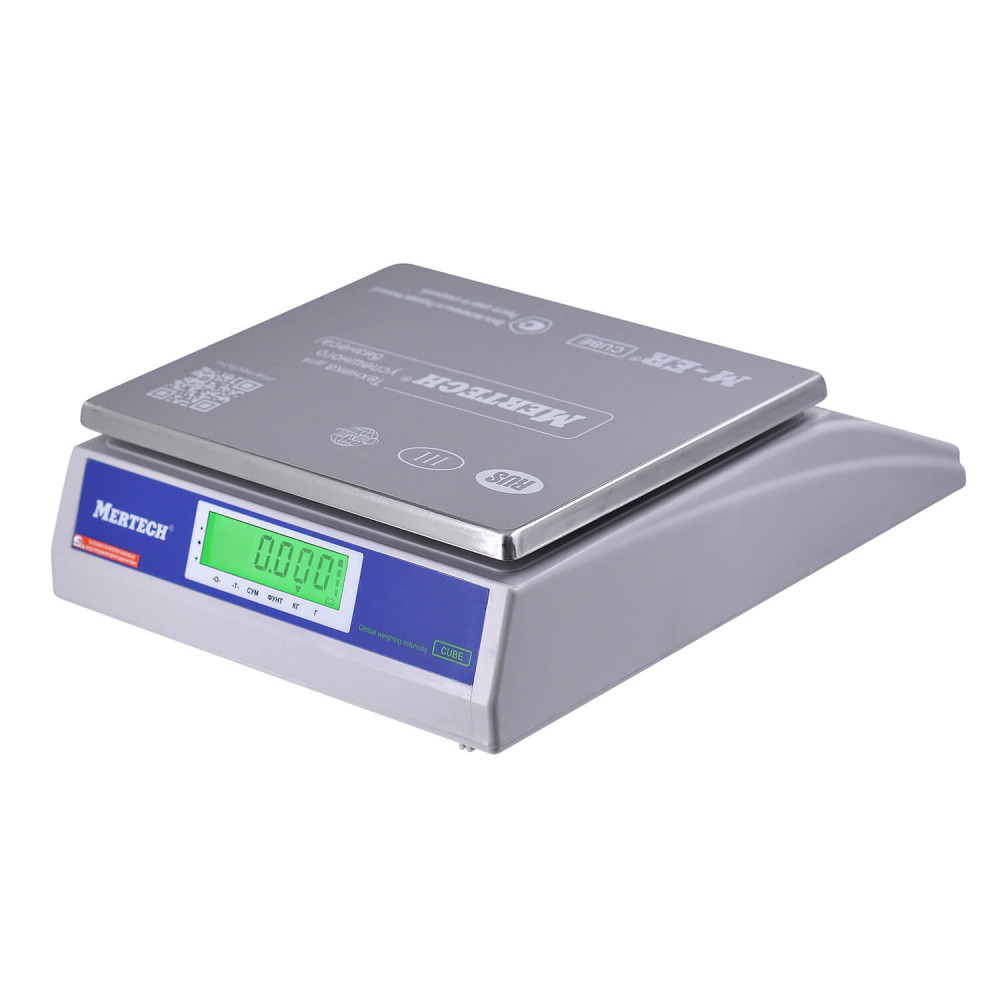

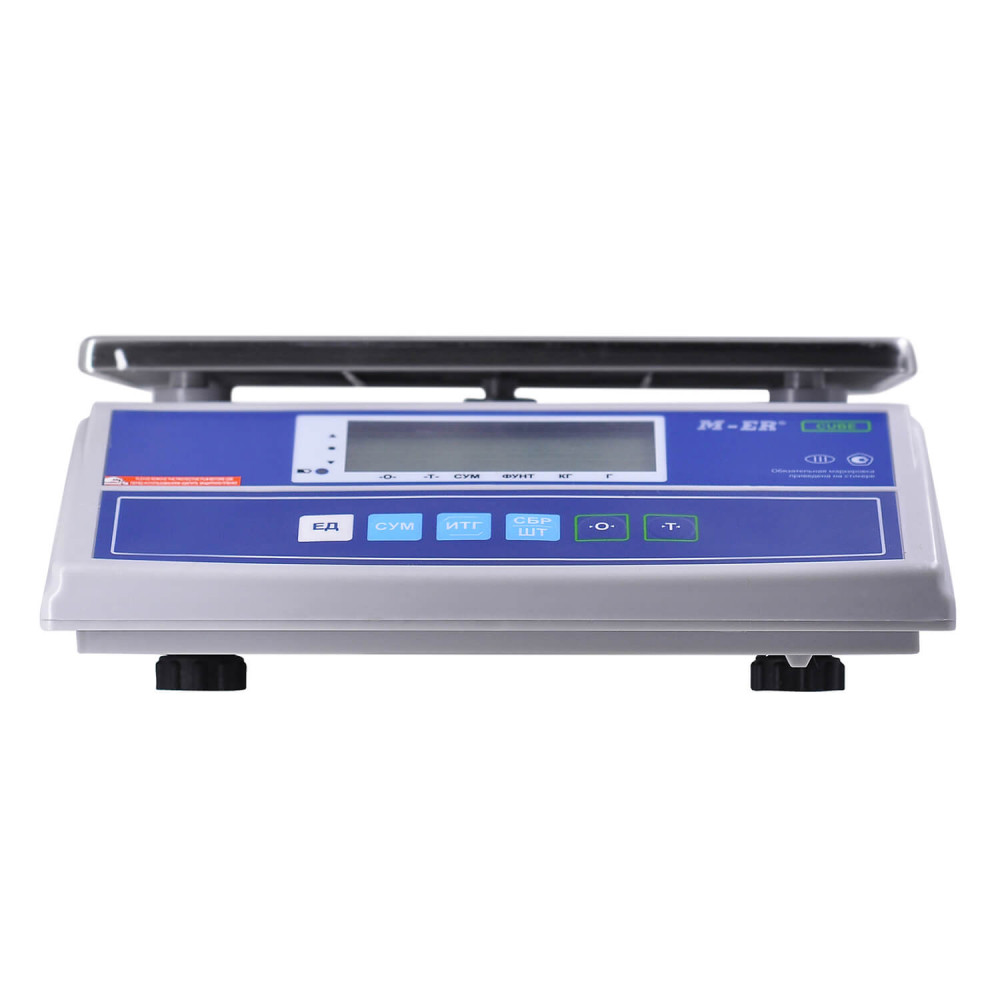

Each of the two LCD screens can display up to 6 digits. The character size on the display is 8 by 21 mm. Accurate weighing is ensured by a load cell with an increased number of divisions. Its mechanism is protected from short overloads that exceed the maximum weighing limit by three times. Data exchange with external devices is performed via RS232.
The equipment operates reliably at temperatures no lower than -10°C. It comes with a cover for additional protection against dust and moisture. The factory warranty is valid for 2 years (subject to operating conditions). To purchase the desktop scales at the manufacturer's price, please submit a request on the website.
| Type of scales | Packaging |
|---|---|
| Discreteness | 1 gr |
| Minimum weight | 20 gr |
| Weighing limit | 6 kg |
| Platform size | 255*210 mm |
| Execution | Tabletop |
| Verification | Yes |
| Accuracy class | Average (III) |
| Load cells, pcs. | 1 |
| Operating modes | Simple weighing; Comparator mode; Summation mode; Weighing result; Tare weight accounting; Counting mode; Data transfer mode |
|---|---|
| Printing labels | No |
| Tare sampling range | The whole range |
| Units of measurement | Gr; kg; ft |
| Self-diagnosis mode | Yes |
| Visual indication | Yes |
| Level | Yes |
| Guarantee | 2 years |
|---|---|
| Applications of scales | For connection to 1C, For a store, For hardware, For connection to a POS computer, For food production, For meat, For confectionery, For bulk materials, For food products |
| Nutrition | 5.8V - 0.5A |
| Permissible humidity | 85% |
| Atmospheric pressure | 630...800 mm Hg |
| Operating temperature | -10°C ~ +40°C |
| Display type | LCD |
|---|---|
| Number of displays | 2 |
| Number of indication digits | 6 |
| Character size, mm | 8*21 |
| Interfaces | RS-232 |
|---|
| Overall dimensions (WxDxH), mm | 260*325*120 |
|---|---|
| Platform material | Stainless steel |
| Body material | Plastic |
| Weight | 2.9 kg |
| Keyboard type | Membrane |
| Overload protection | Sound and visual notification |
| Corrosion protection | Galvanization |
| Moisture protection | Dust and moisture proof cover |
| Adjustable supports | Yes |
-
