| Type of scalesPackaging | Discreteness2 gr | Minimum weight40 gr |
| Weighing limit15 kg | Platform size255*210 mm | ExecutionTabletop |
| VerificationYes | Accuracy classAverage (III) | Load cells, pcs.1 |

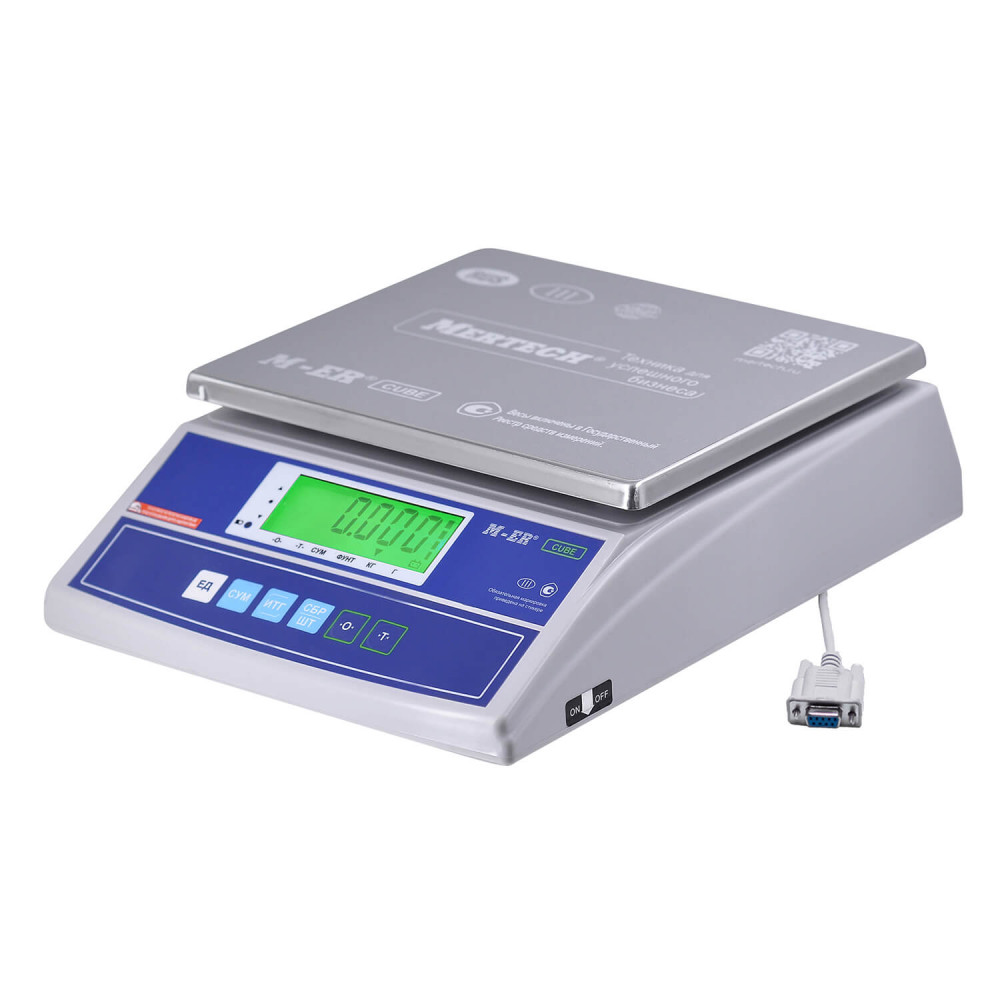

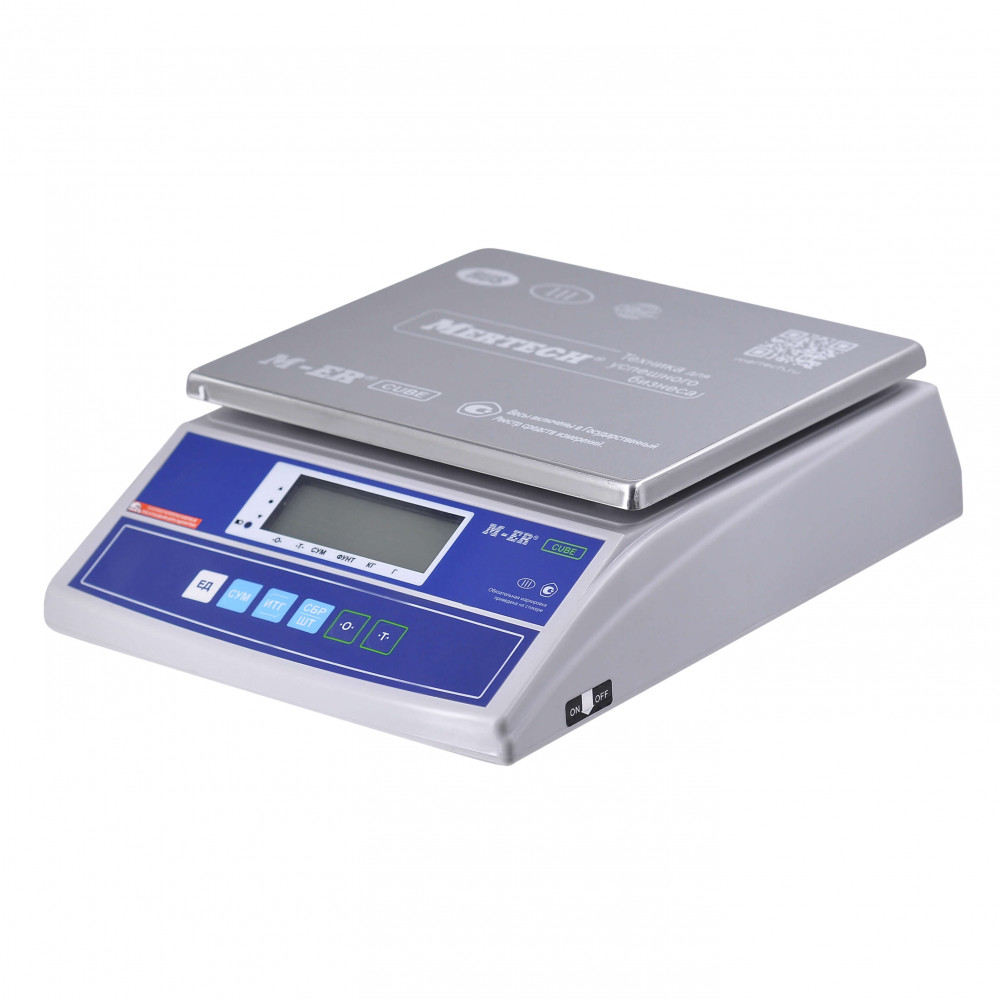

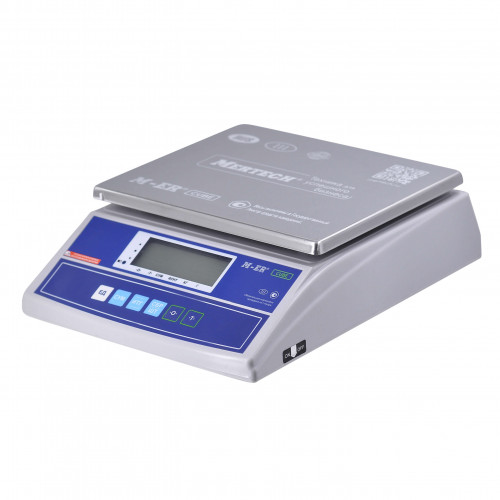

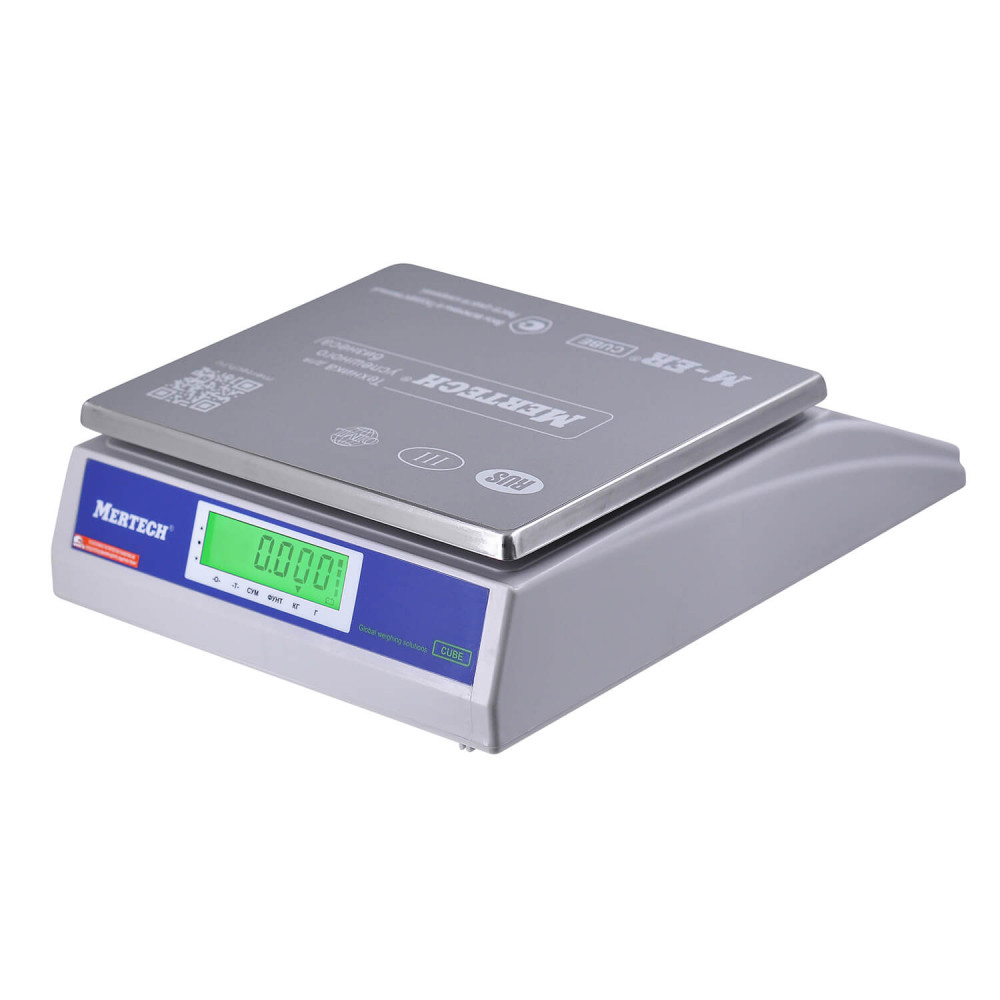

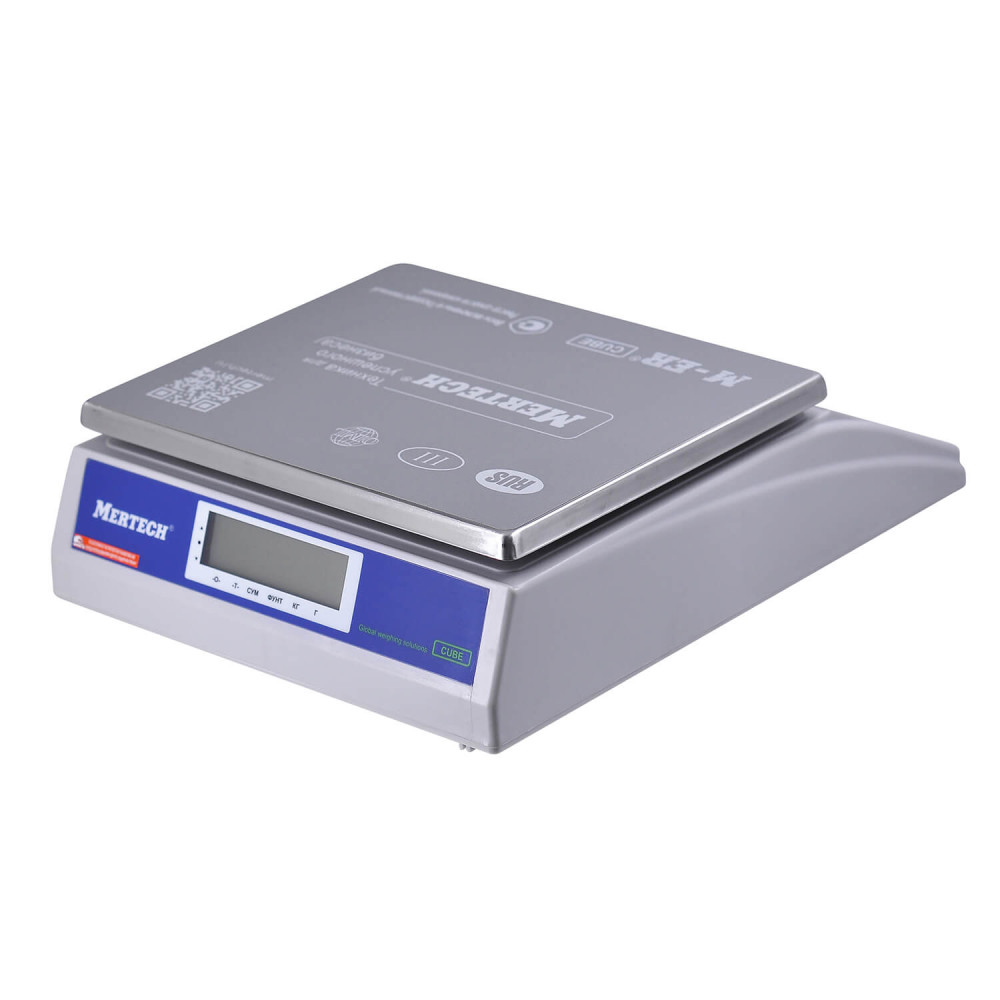

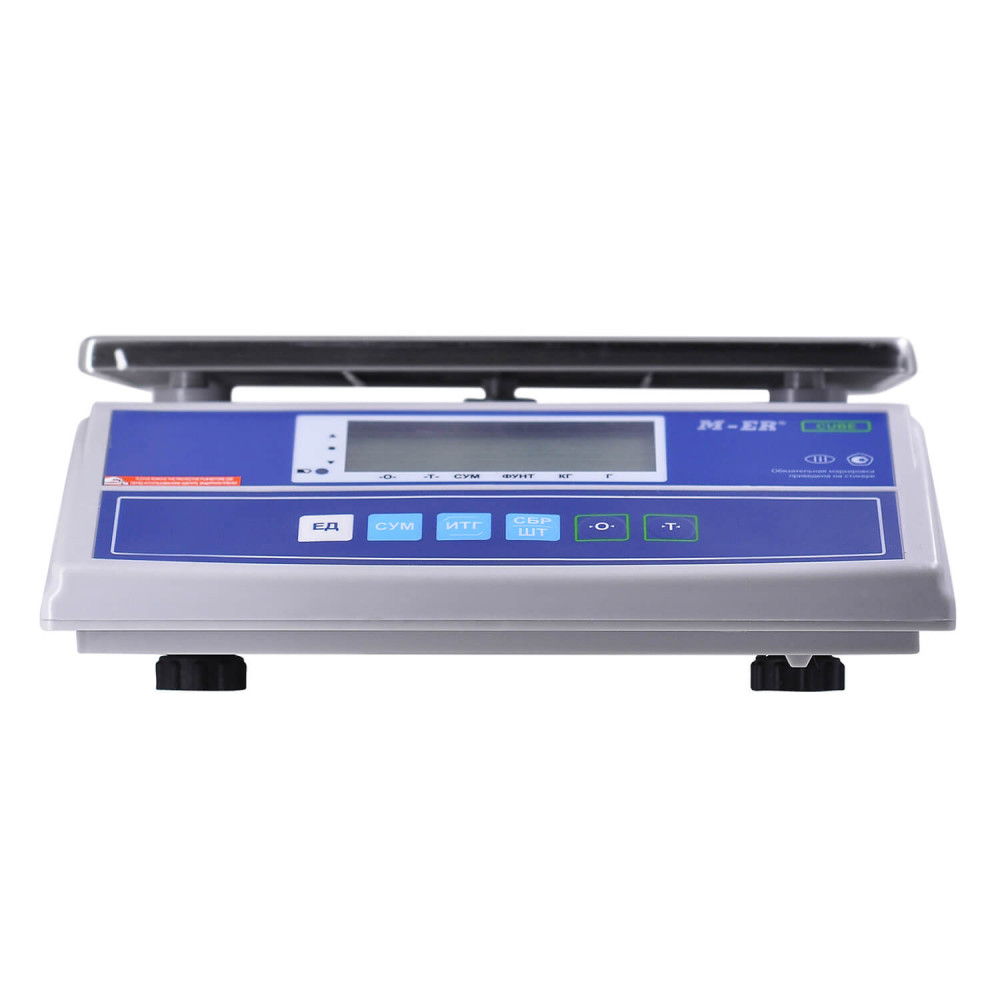

The new M-ER 326 AF "Cube" series packing scales are equipped with a dual LCD display. We added a second screen on the housing so the results can be seen not only by the operator but also by the buyer. The maximum weighing limit for the presented model is 15 kg. The device features an RS232 interface for data exchange.
Advantages of the Model
The M-ER 326 AF-15.2 "Cube" desktop scales are suitable for weighing medium-sized retail batches. Devices from the "Cube" range are often chosen for packaging bulk products (nuts, tea, coffee, etc.). They are popular due to their high measurement accuracy.
Several modes are available in the menu:
- standard weighing;
- tare weight correction;
- result summation;
- comparator program;
- counting items on the platform;
- data exchange via RS232.
The model is included in the state register of measuring instruments. The device supports three types of measurement units: grams, kilograms, and pounds. Each device undergoes mandatory calibration before sale.
Specifications

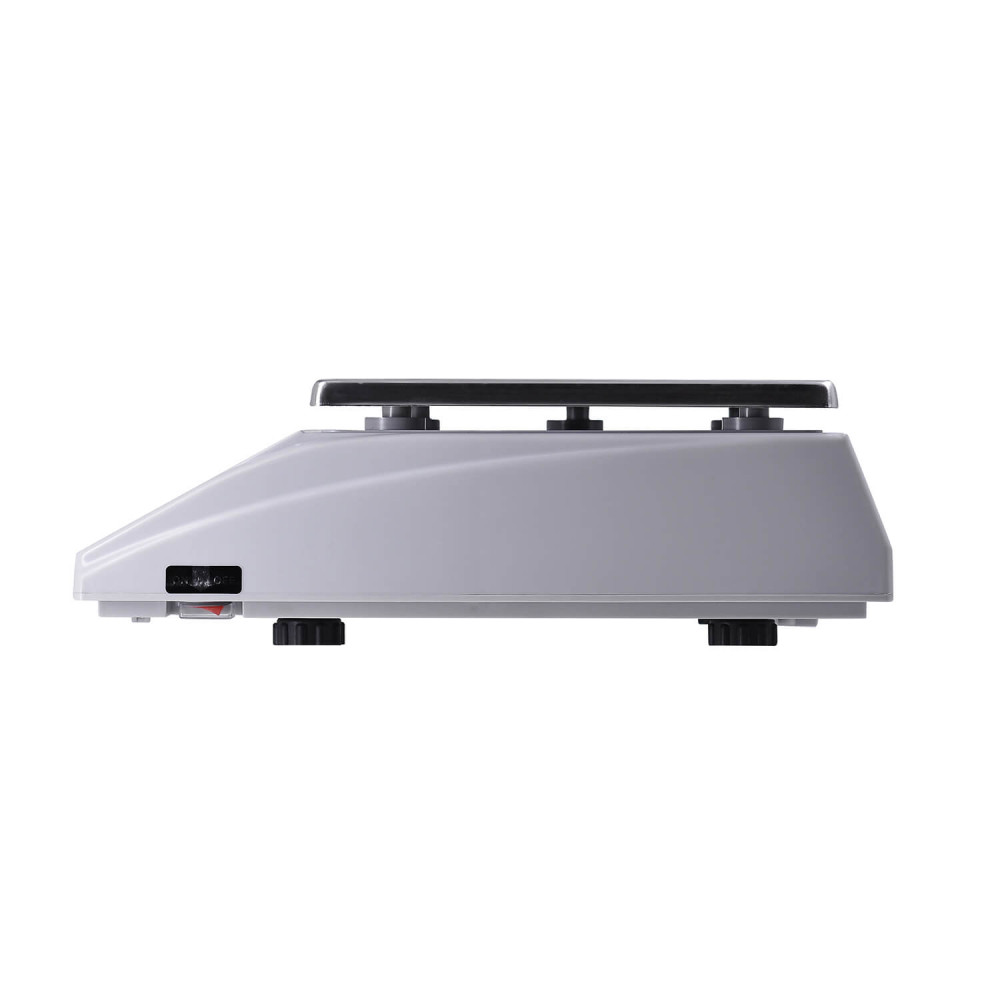

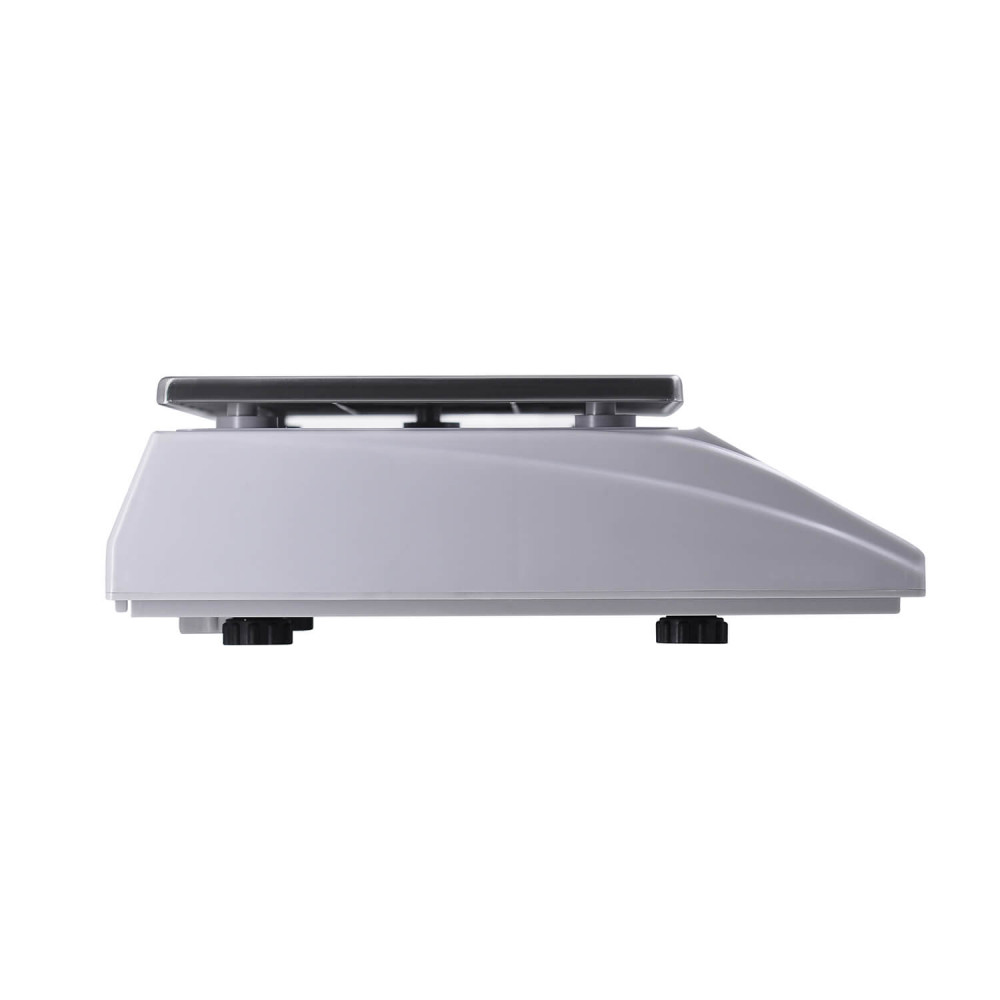

We produce packing scales from high-quality materials. The frame and housing panels are made of durable plastic. The structure is mounted on adjustable feet. The platform is made of stainless steel. The metallic elements of the housing undergo double galvanization for maximum corrosion protection. With a platform size of 210 by 255 mm, it is convenient to weigh any goods.
Metrological characteristics:
- maximum value: 15 kg;
- division value: 2 g;
- minimum value: 40 g.

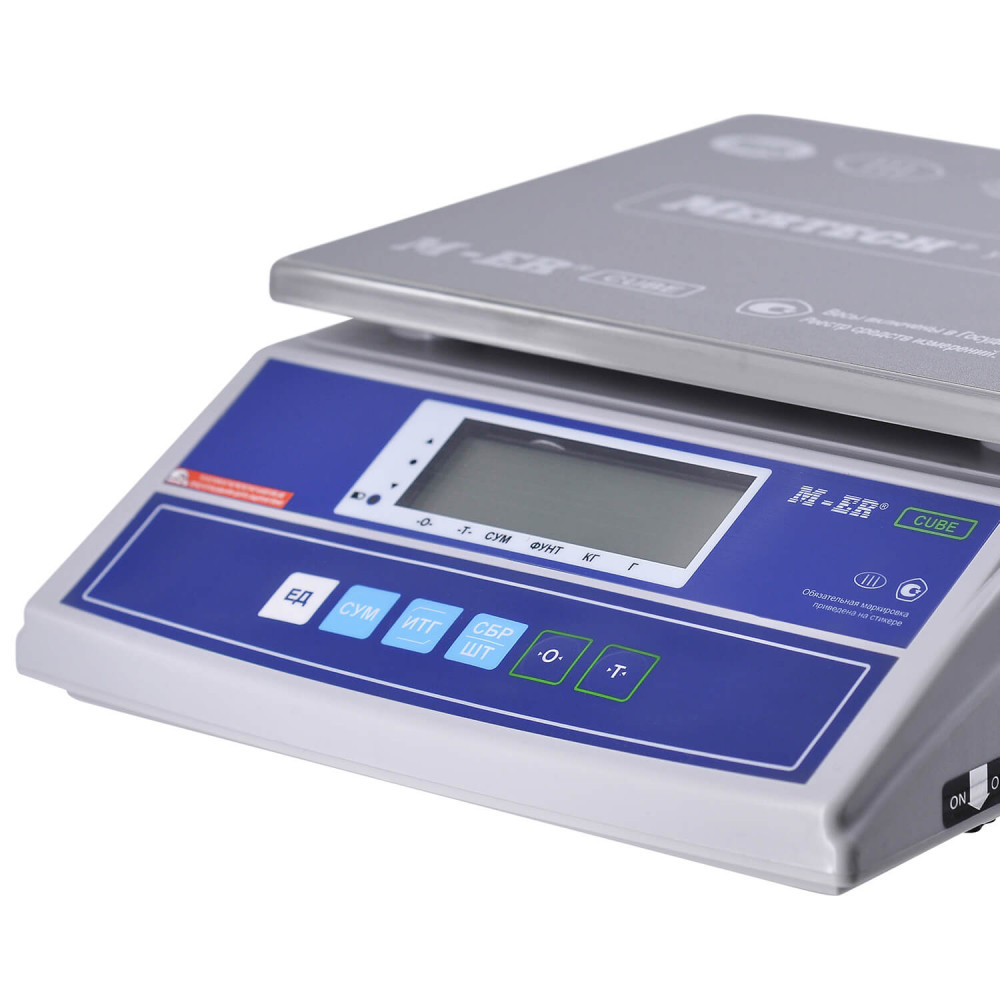

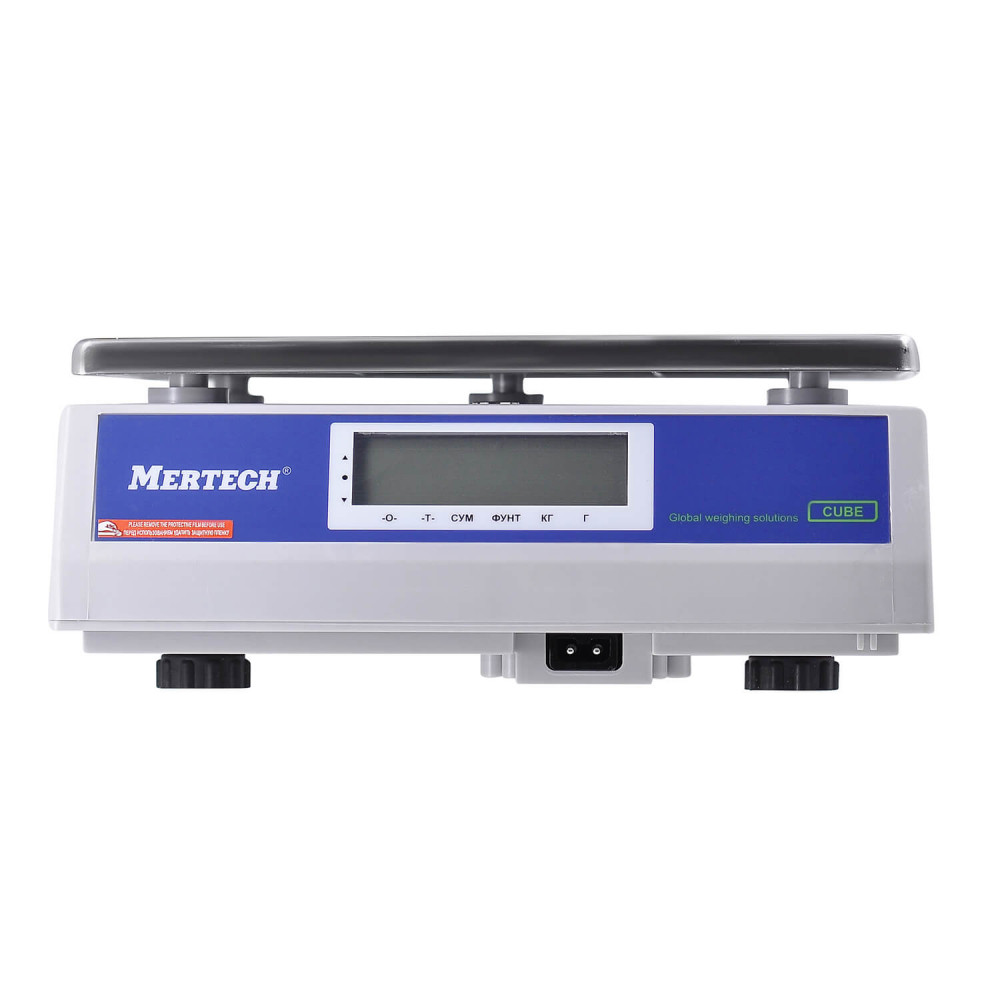

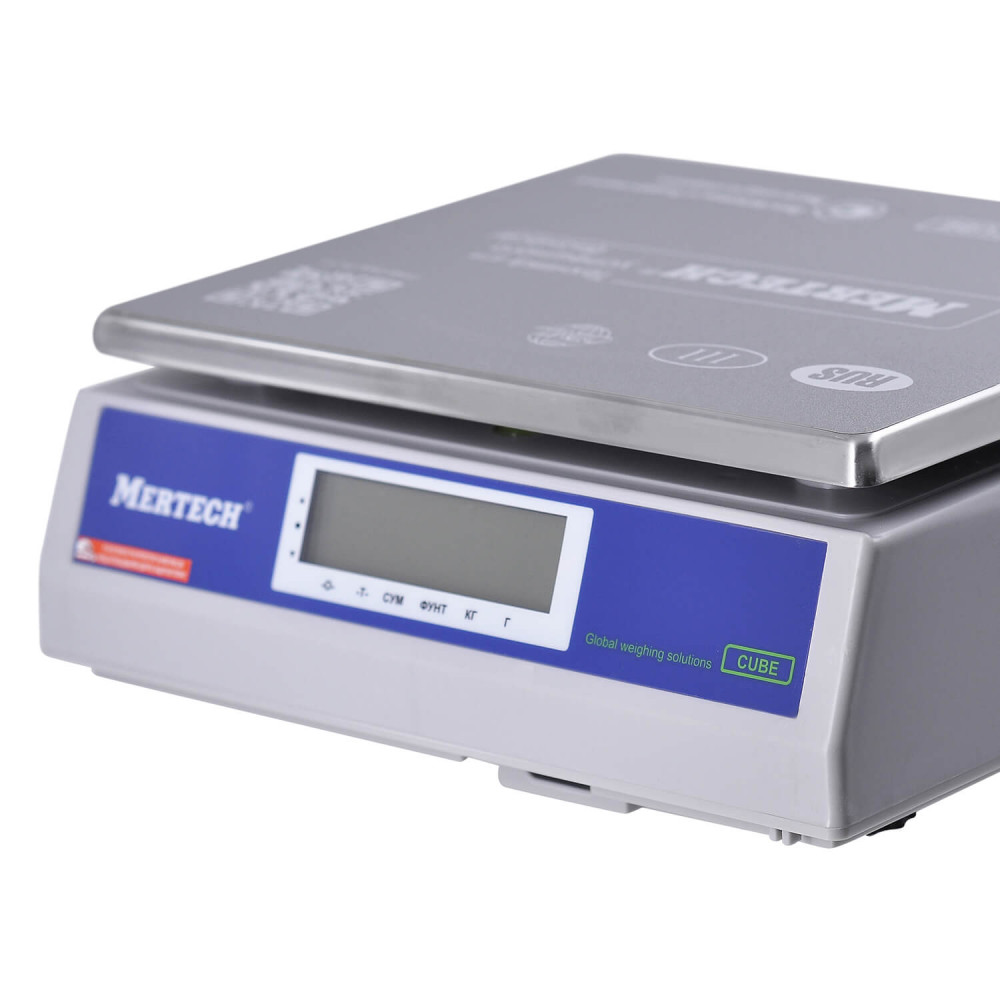

A membrane keyboard and a dual LCD screen are installed on the housing. Each display has 6 digits, and the figures 8 in 21 mm are easy to read. A high-quality load cell ensures weighing accuracy. Its mechanism can withstand short-term overloads of up to three times the maximum measurement limit. Data exchange occurs through the RS232 interface.
The scales can be used at temperatures of no less than -10°C. A protective cover for harsh operating conditions is included. The warranty on the weighing equipment is valid for 2 years. Submit a request to purchase the electronic scales at the manufacturer's price.
| Type of scales | Packaging |
|---|---|
| Discreteness | 2 gr |
| Minimum weight | 40 gr |
| Weighing limit | 15 kg |
| Platform size | 255*210 mm |
| Execution | Tabletop |
| Verification | Yes |
| Accuracy class | Average (III) |
| Load cells, pcs. | 1 |
| Operating modes | Simple weighing; Comparator mode; Summation mode; Weighing result; Tare weight accounting; Counting mode; Data transfer mode |
|---|---|
| Printing labels | No |
| Tare sampling range | The whole range |
| Units of measurement | Gr; kg; ft |
| Self-diagnosis mode | Yes |
| Visual indication | Yes |
| Level | Yes |
| Guarantee | 2 years |
|---|---|
| Applications of scales | For connection to 1C, For a store, For hardware, For connection to a POS computer, For food production, For meat, For confectionery, For bulk materials, For food products |
| Nutrition | 5.8V - 0.5A |
| Permissible humidity | 85% |
| Atmospheric pressure | 630...800 mm Hg |
| Operating temperature | -10°C ~ +40°C |
| Display type | LCD |
|---|---|
| Number of displays | 2 |
| Number of indication digits | 6 |
| Character size, mm | 8*21 |
| Interfaces | RS-232 |
|---|
| Overall dimensions (WxDxH), mm | 260*325*120 |
|---|---|
| Platform material | Stainless steel |
| Body material | Plastic |
| Weight | 2.9 kg |
| Keyboard type | Membrane |
| Overload protection | Sound and visual notification |
| Corrosion protection | Galvanization |
| Moisture protection | Dust and moisture-proof cover |
| Adjustable supports | Yes |
-
