| Type of scalesPackaging | Discreteness5 gr | Minimum weight100 gr |
| Number of keys4 | Weighing limit32 kg | Platform size300*200 |
| ExecutionTabletop | VerificationYes | Accuracy classAverage (III) |

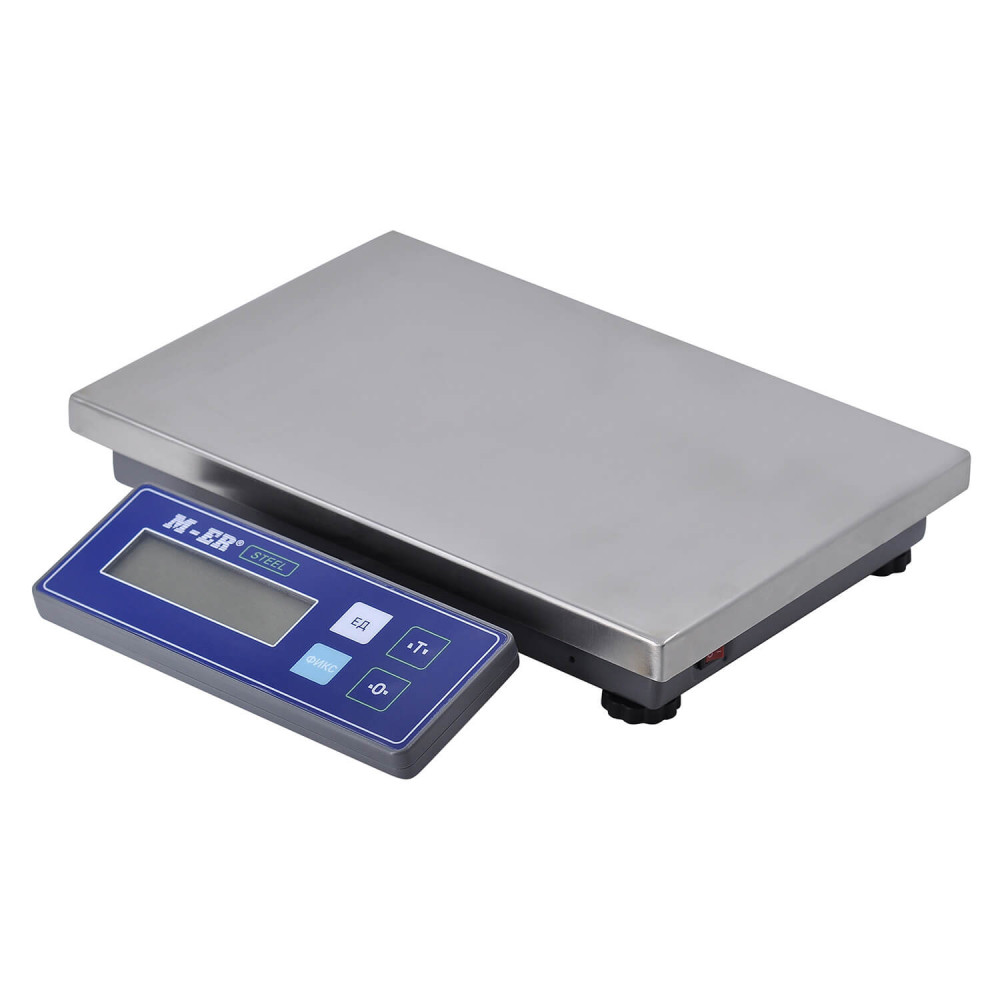

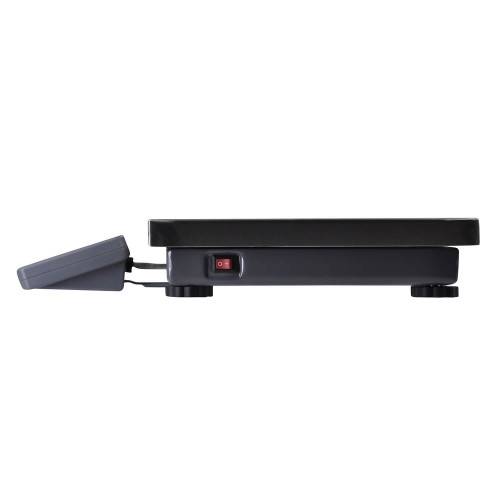

The M-ER 224 FU-32.5 STEEL LCD USB weighing scales model does not come with a battery. This solution reduces the weight of the tabletop model and makes it cheaper. The equipment operates when powered via a USB cable. The device can be used in buildings with a stable power supply. The electronic scales feature a reduced-size platform.
Advantages of the Model
The device can be used for weighing batches of goods weighing up to 32 kg. The price per division is 5 grams. The weighing equipment belongs to class III precision according to GOST. The instruments undergo factory calibration. The stated specifications are confirmed by a certificate.
The main advantages of the model include:
- working protocols CAS-M (Passive) and POS2-M;
- measurements are conducted in kilograms or pounds;
- sensitive load cell with a capacity of 7,000 units;
- protection against strong short-term overloads.
Products can be weighed in normal mode or with tare weight fixation. The operator's work is made easier by visual and auditory indication. The device can perform self-diagnosis.
Design Characteristics

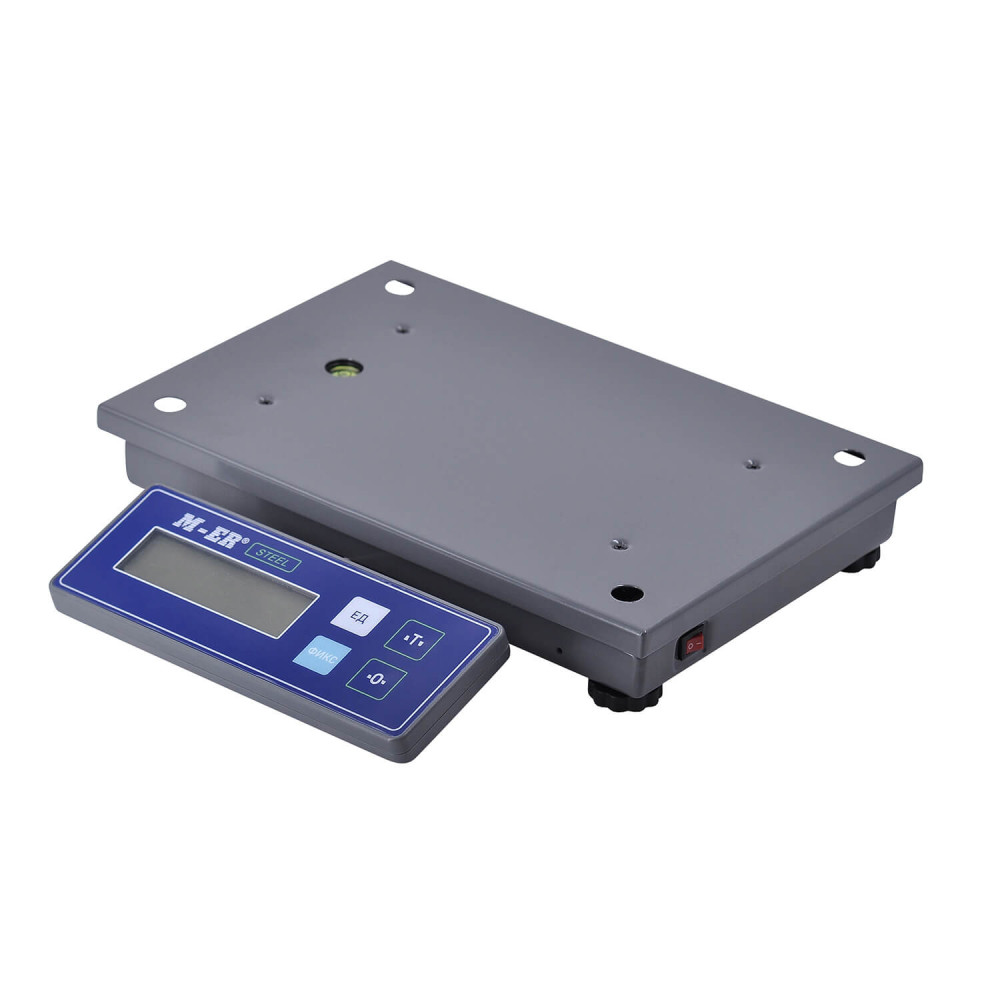

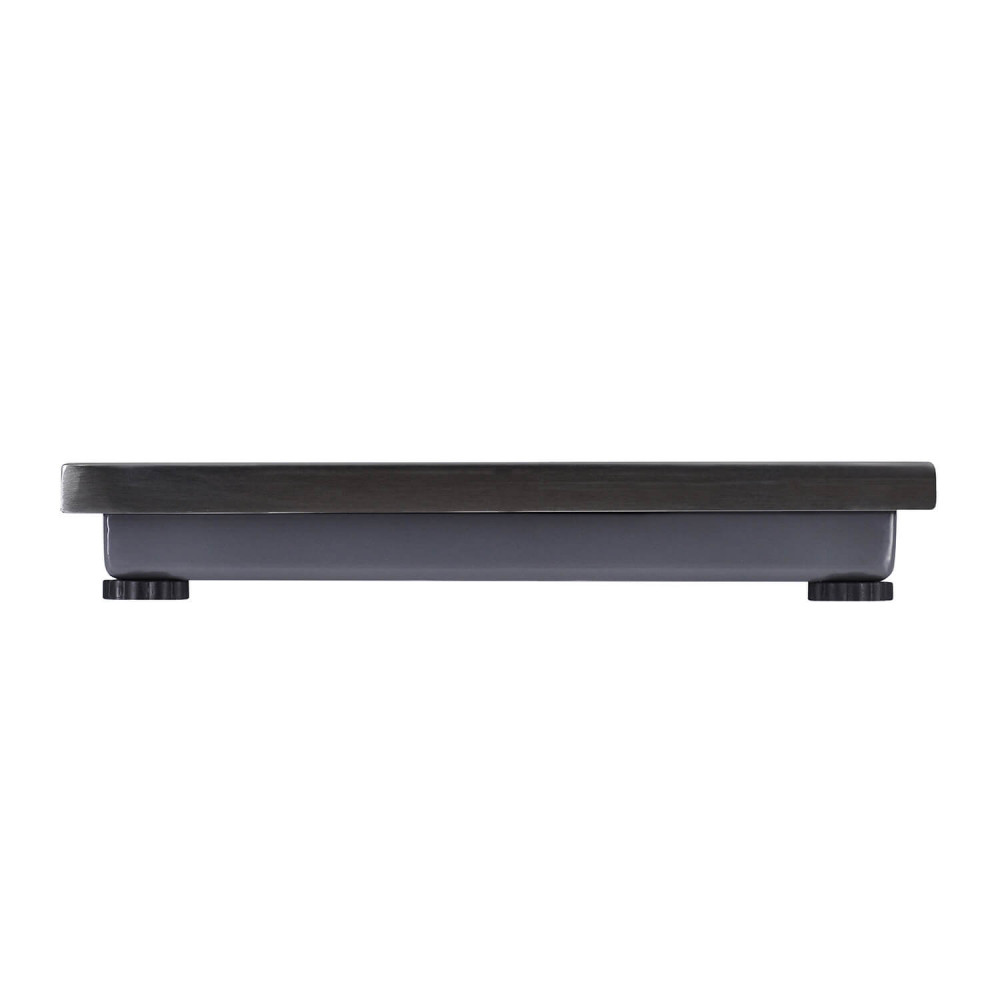

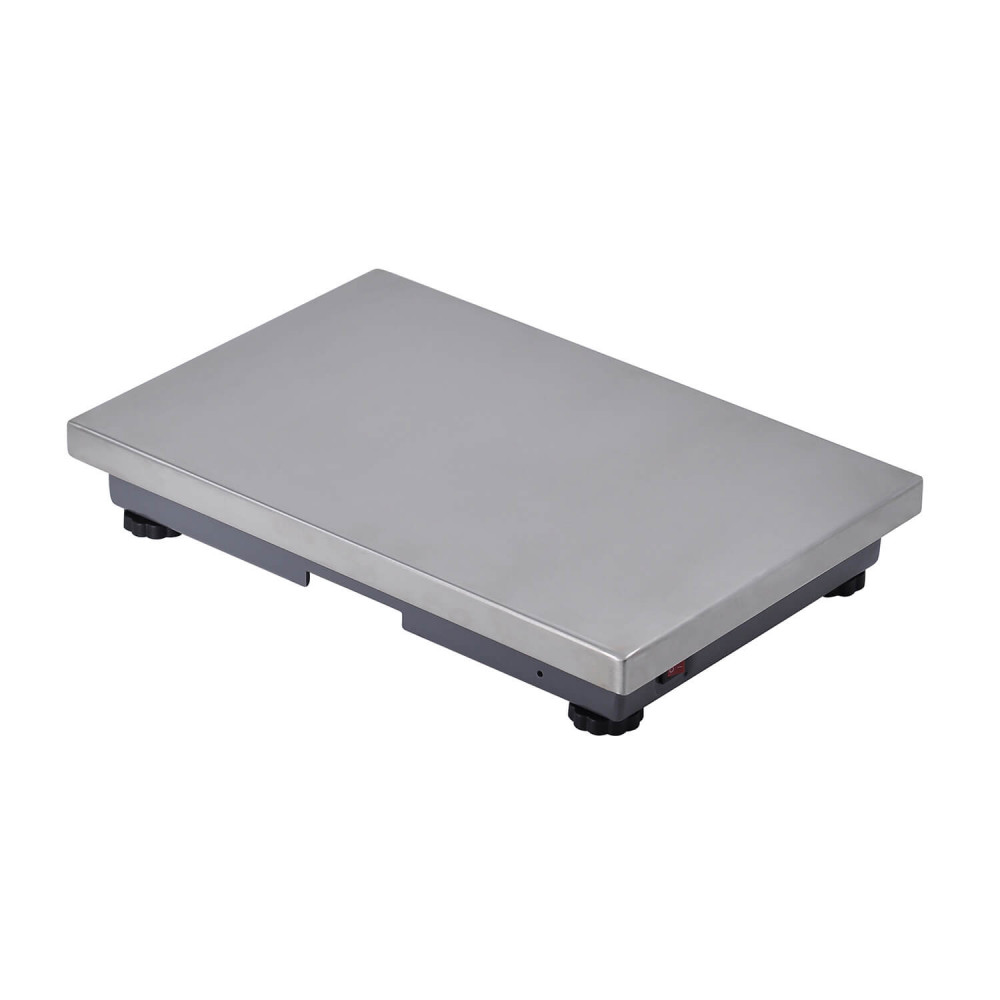

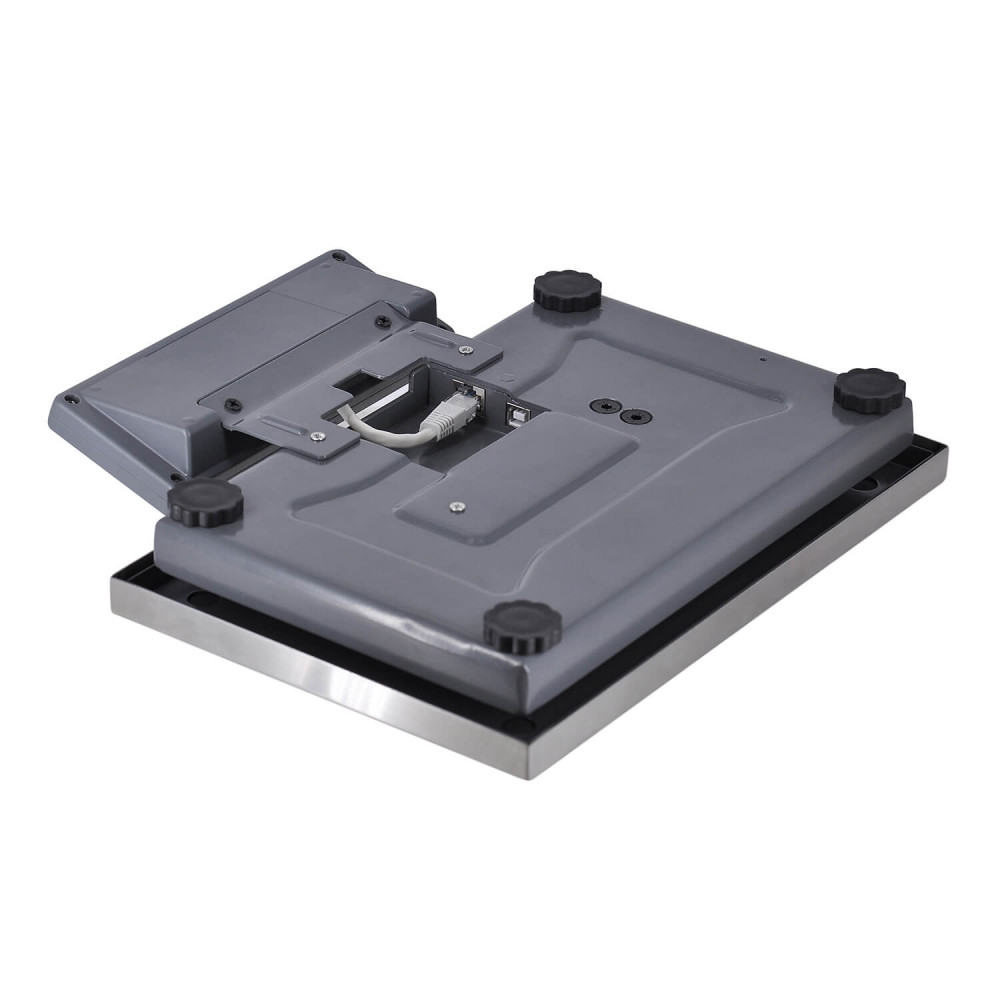

The foundation of the device is a reliable metal frame. The casing is made of metal and plastic. The weighing platform, measuring 300*200 mm, is fully metal. This size allows the device to be placed on a small table. The outer panels withstand strong impacts and protect the electronics from water and dust ingress.

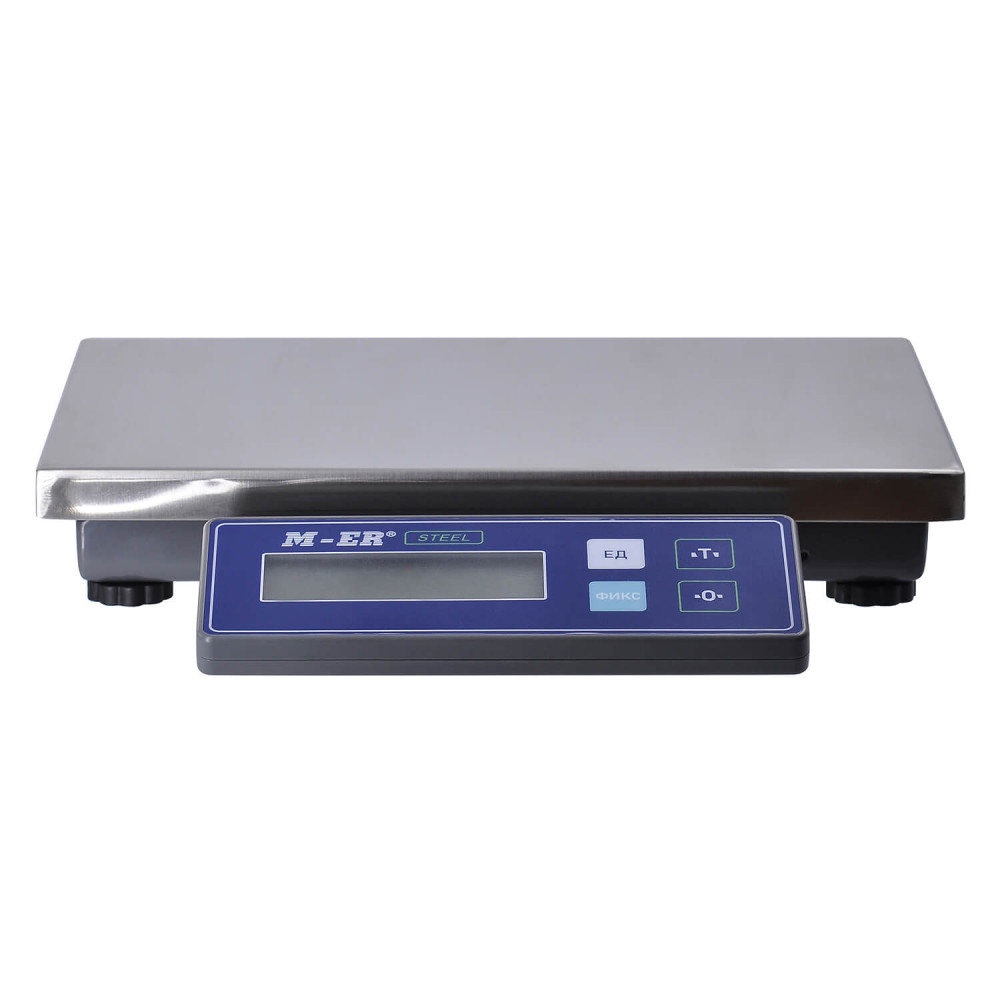

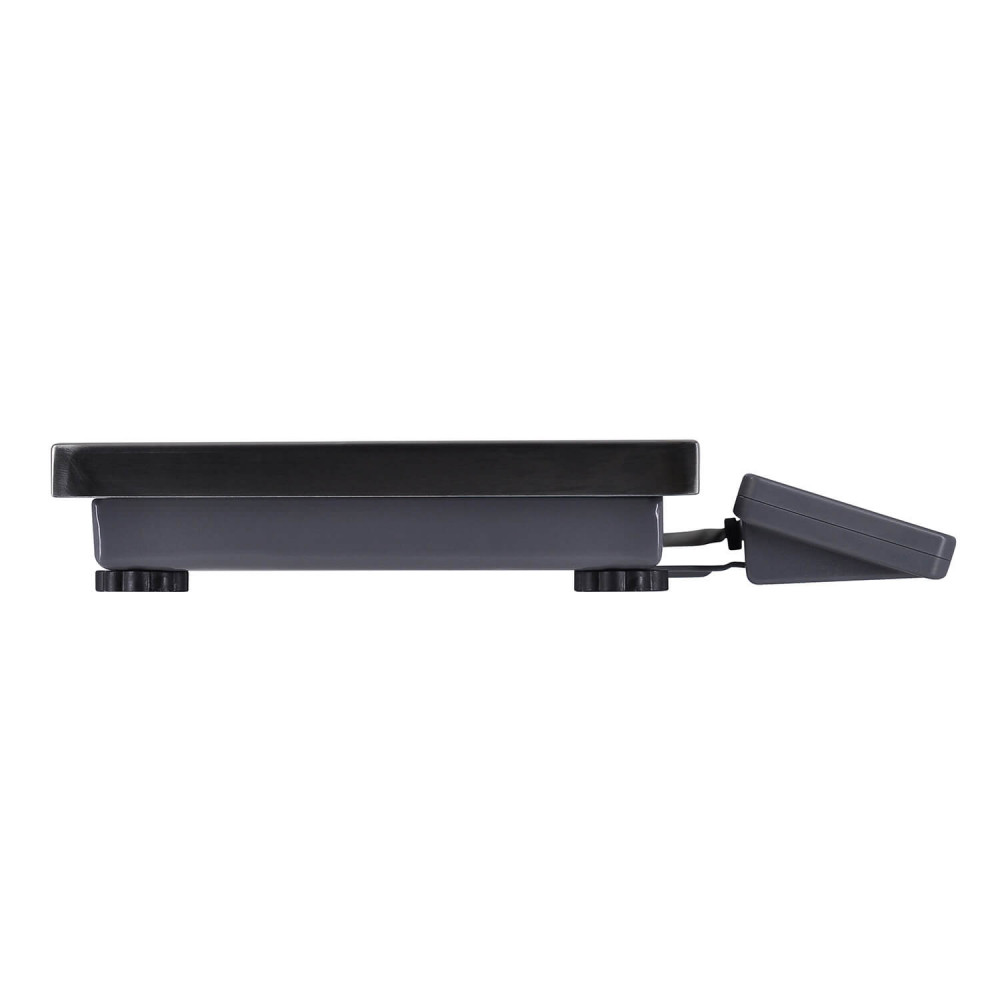

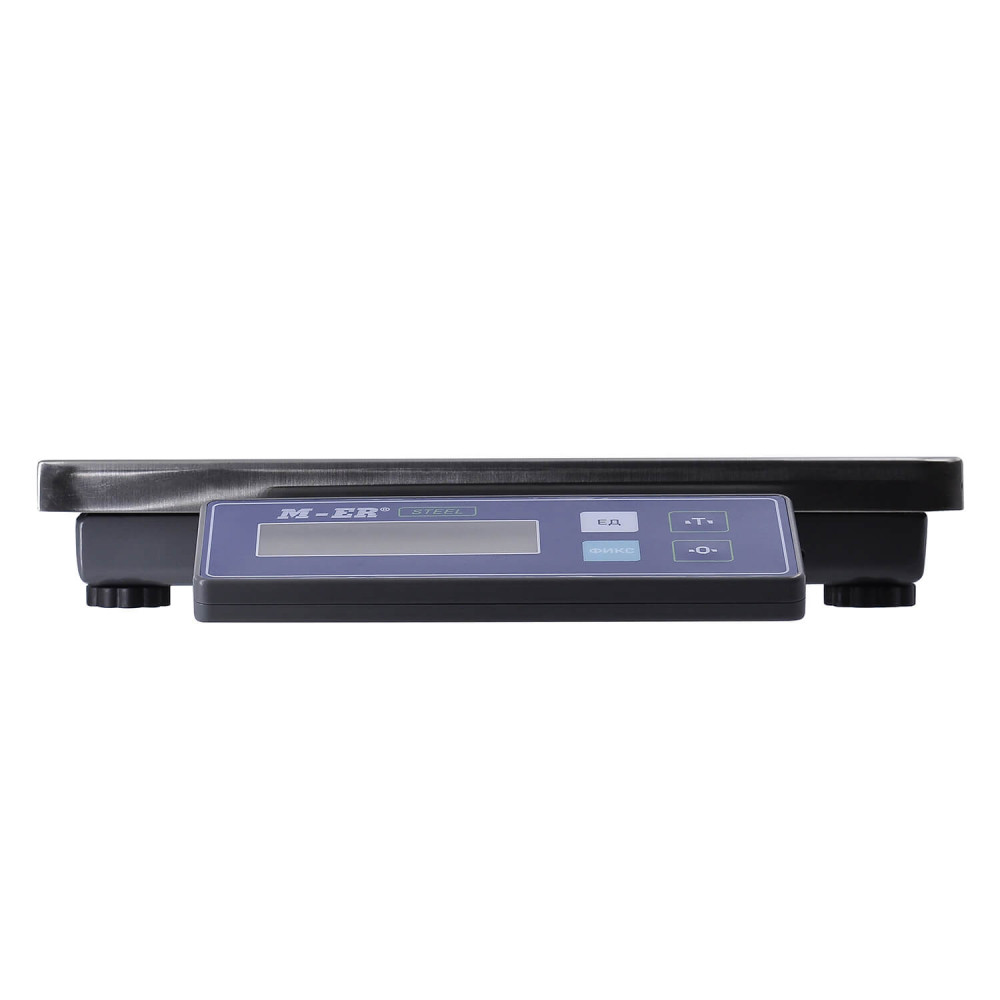

The LCD screen is installed on the control panel, which is adjacent to the casing. The weighing modes can be controlled using just 4 buttons. Training staff on operating procedures does not take much time. The control panel is made waterproof, so buttons can be pressed with wet hands. The weighing results are displayed using a 5-digit indication.
You can purchase tabletop weighing scales on the MERTECH website. The lowest prices apply when placing orders on the site. Equipment delivery is carried out across Azerbaijan.
| Type of scales | Packaging |
|---|---|
| Discreteness | 5 gr |
| Minimum weight | 100 gr |
| Number of keys | 4 |
| Weighing limit | 32 kg |
| Platform size | 300*200 |
| Execution | Tabletop |
| Verification | Yes |
| Accuracy class | Average (III) |
| Load cells, pcs. | 1 |
| Height adjustment, mm | Tabletop |
| Operating modes | Weighing mode; Weight fixing mode; Sound and visual indication; Self-diagnosis mode |
|---|---|
| Tare sampling range | The whole range |
| Units of measurement | Kg, Pound |
| Level | Yes |
| Battery | No |
|---|---|
| Nutrition | from USB 5V, 0.5A |
| Permissible humidity | up to 85% at 40°C, without moisture condensation |
| Atmospheric pressure | 630...800 mm Hg |
| Operating temperature | +5°C ~ +40°C |
| Display type | LCD |
|---|---|
| Number of displays | 1 |
| Number of indication digits | 5 |
| Character size, mm | 8*21 |
| CAS-M (Passive) | Yes |
|---|---|
| POS2-M | Yes |

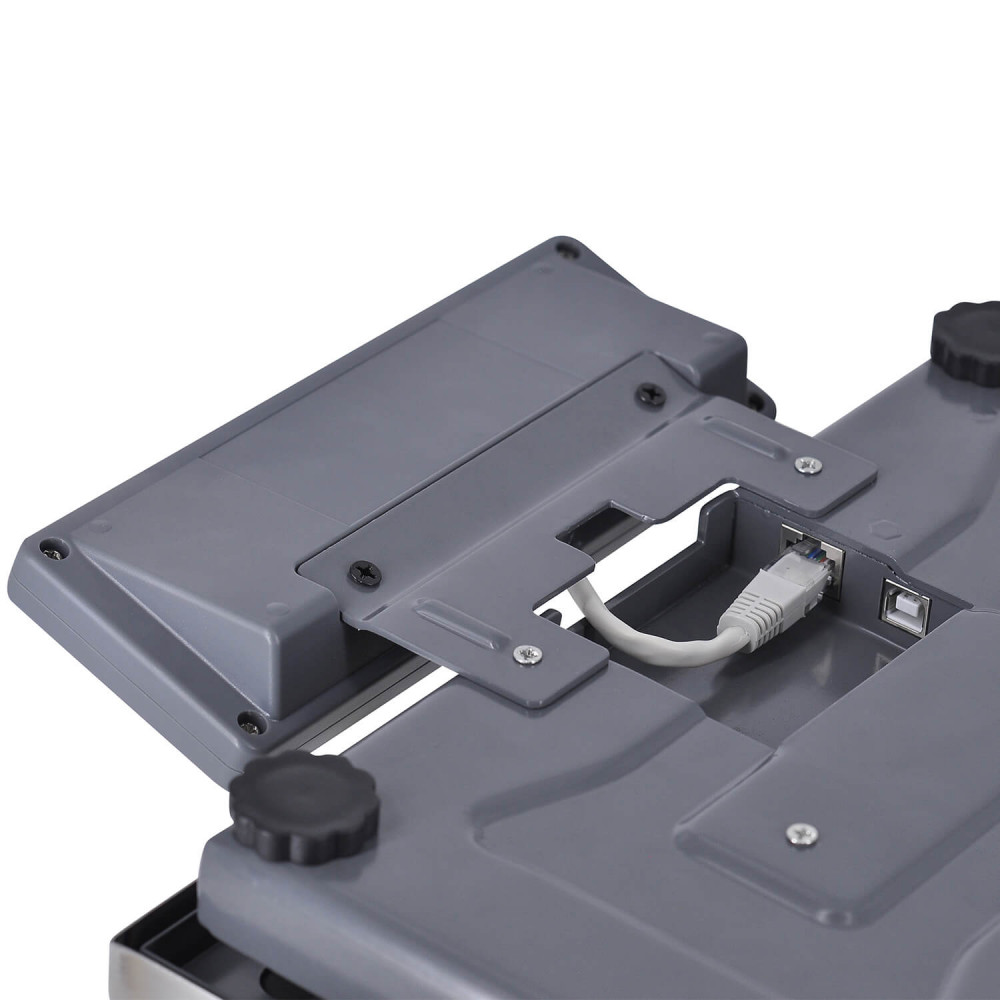

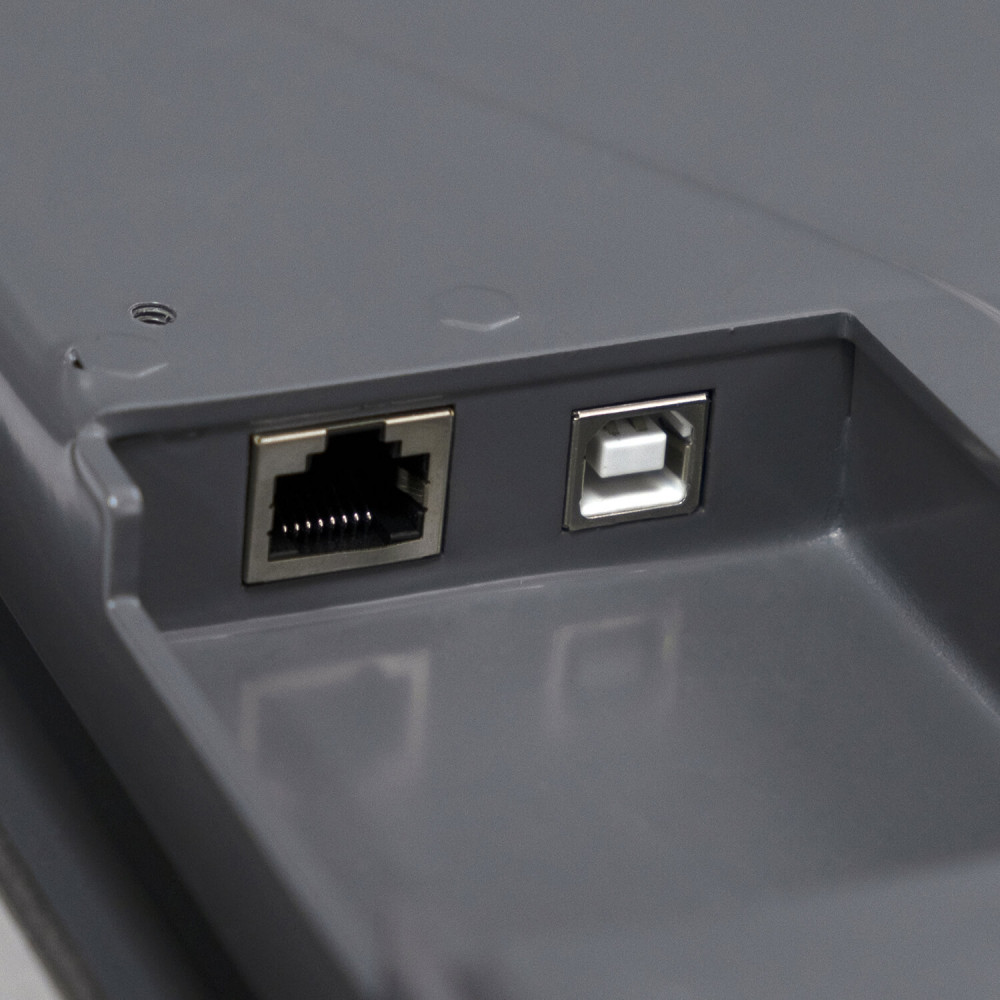

| Interfaces | USB |
|---|
| Color | Black |
|---|---|
| Overall dimensions (WxDxH), mm | 300*280*46 |
| Platform material | Stainless steel |
| Body material | Metal; plastic |
| Weight | 3.15 kg |
| Keyboard type | Push-button |
| Overload protection | Sound and visual notification |
| Moisture protection | Sealing the control panel |
| Equipment | Scales; Warranty card; Operation manual; USB(COM) cable |
|---|
-
