| Type of scalesPackaging | Discreteness2 gr | Minimum weight40 gr |
| Number of keys4 | Weighing limit15 kg | Platform size300*200 |
| ExecutionTabletop | VerificationYes | Accuracy classAverage (III) |

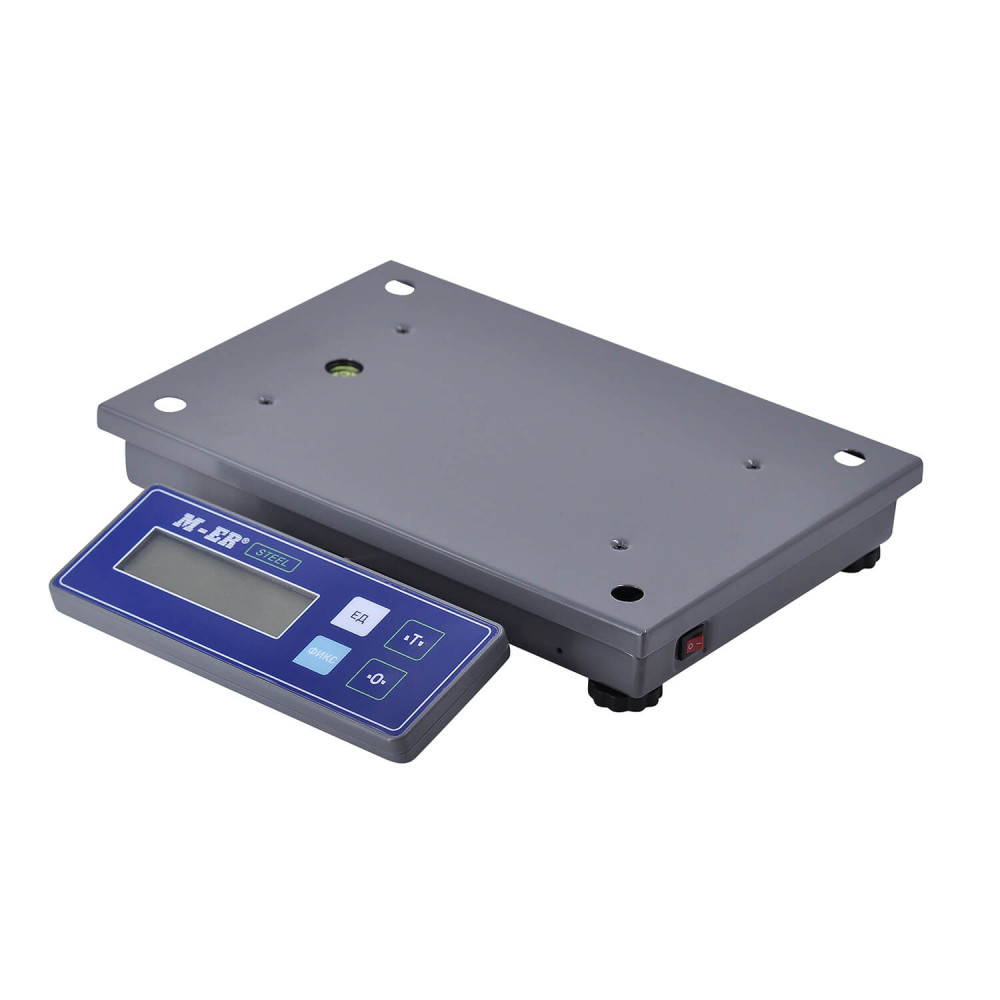

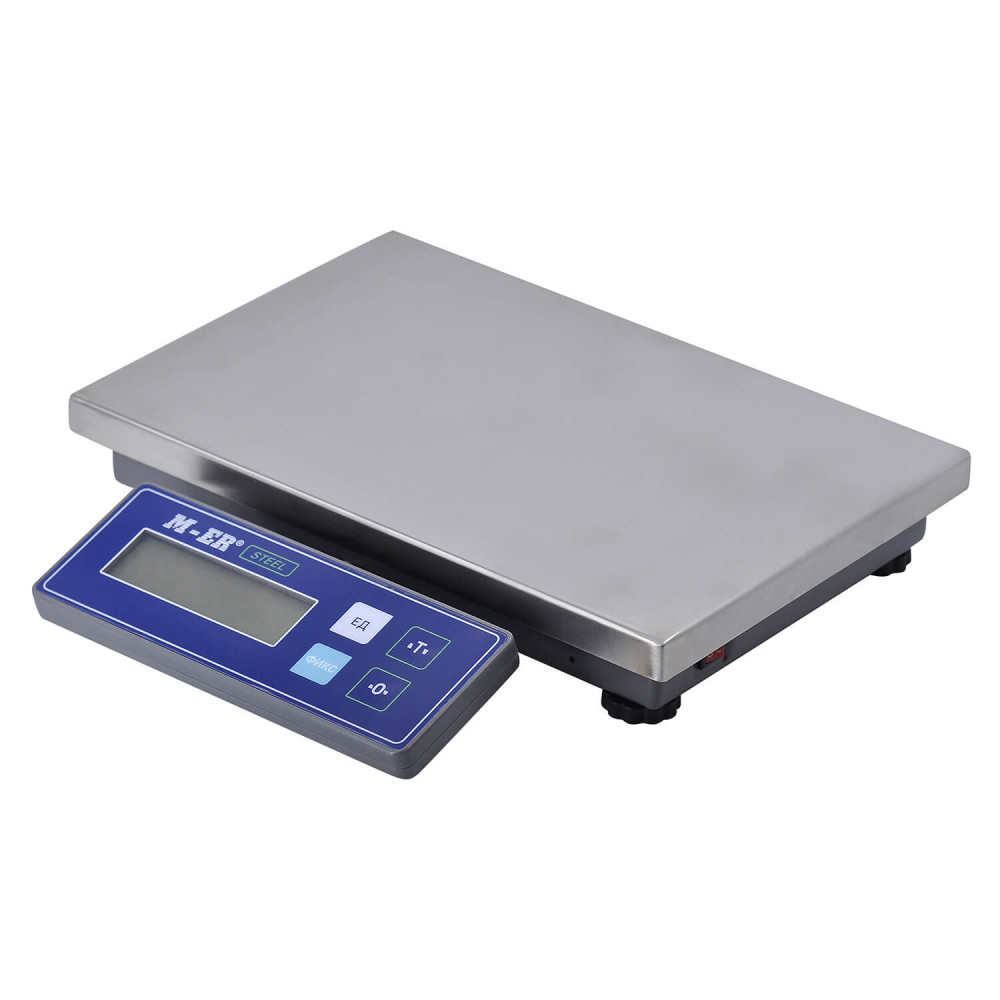

The M-ER 224 FU-15.2 STEEL LCD USB desktop scale without a battery is used for weighing goods. The weighing equipment can only operate from the mains, powered via a USB COM cable. The absence of a battery helps reduce the weight and lower the price of the device.
Advantages of the Model
The weighing equipment is suitable for weighing products with a mass of up to 15 kg. The division price is 2 grams. The packing model meets the III accuracy class according to GOST. Each device undergoes calibration. The package includes a certificate that confirms the stated parameters.
The device is suitable for production, warehouse, or store with a stable connection to the mains. The body features a weighing platform with a reduced area.
Advantages of the packing model:
- CAS-M (Passive) and POS2-M data exchange protocols;
- weighing in kilograms or pounds;
- improved load cell with 7,000 units;
- reliable overload protection system.
The equipment can weigh goods in normal mode or with weight fixation. Visual and audible cues simplify the operator's work. The firmware includes a self-diagnostic algorithm.
Construction Characteristics

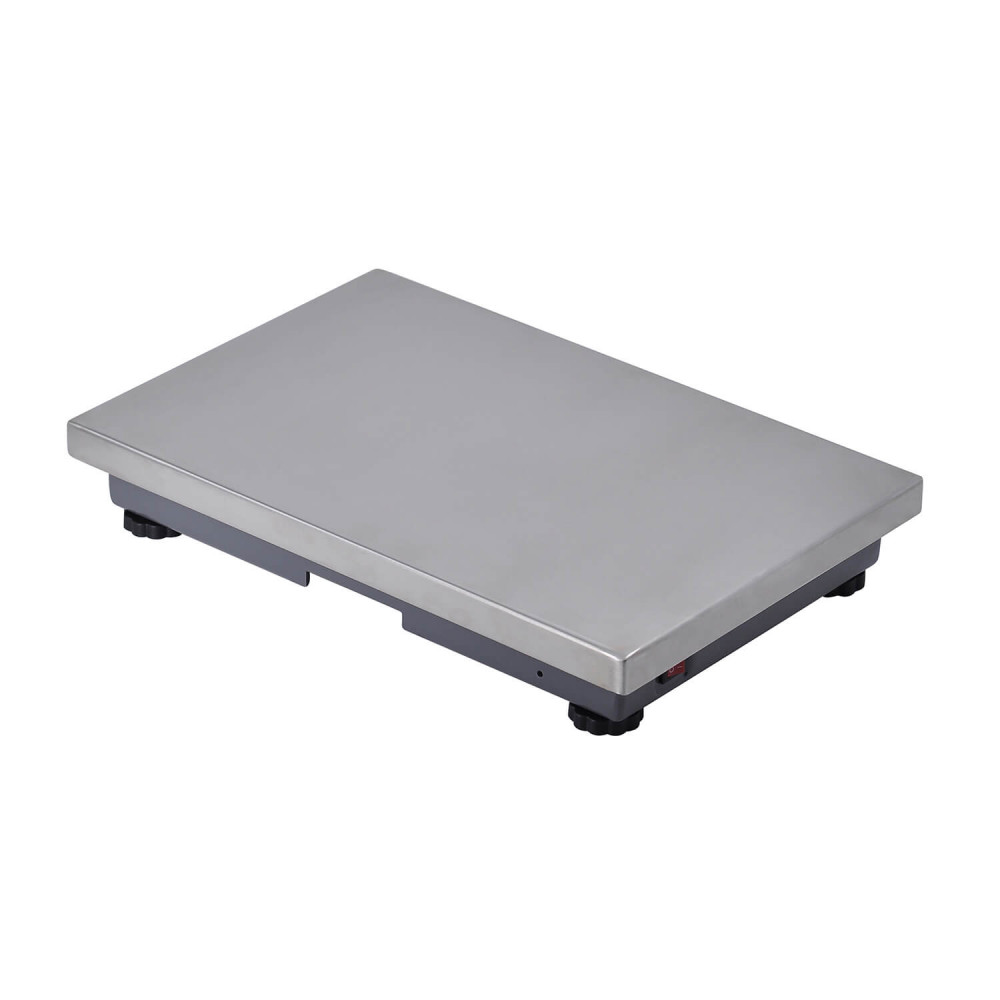

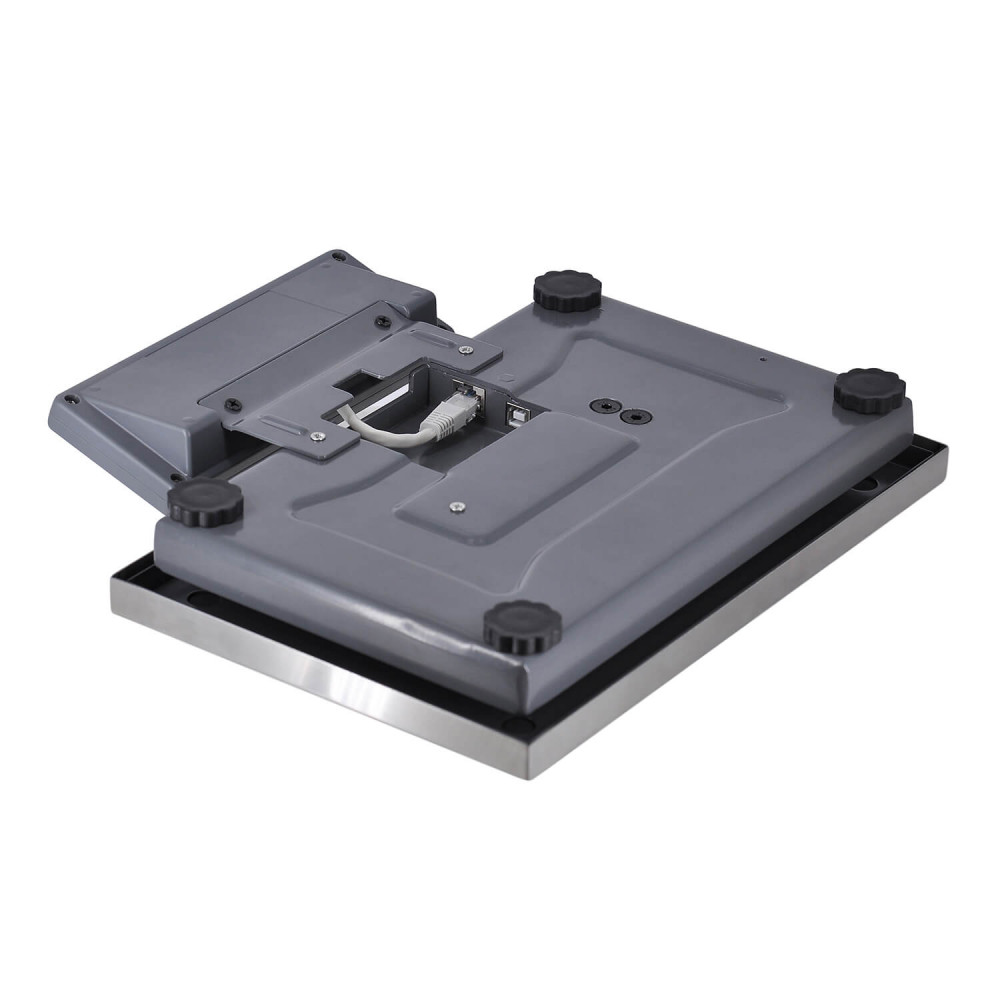

The base of the construction is a sturdy metal frame. The device's body is made of plastic and metal. The weighing platform is made entirely of stainless steel. The scale's design is protected from accidental water and dust ingress, as well as from strong impacts.

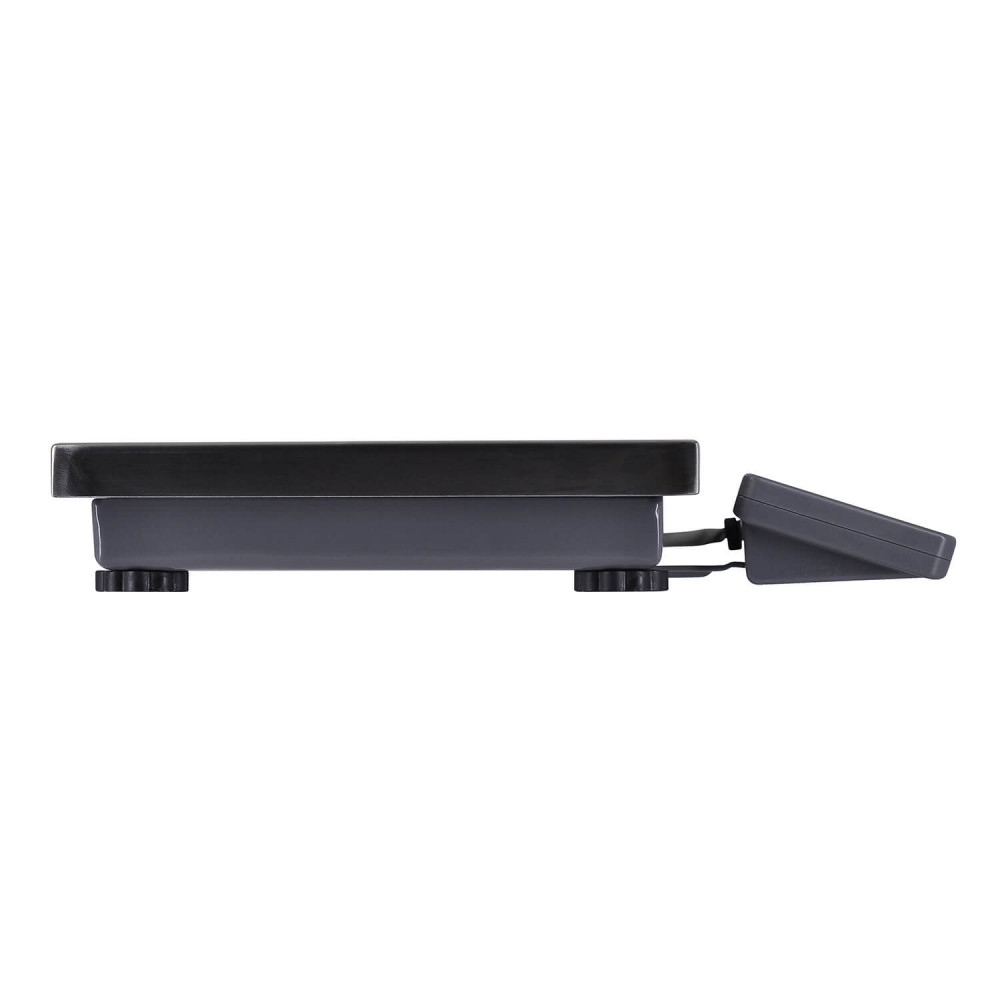

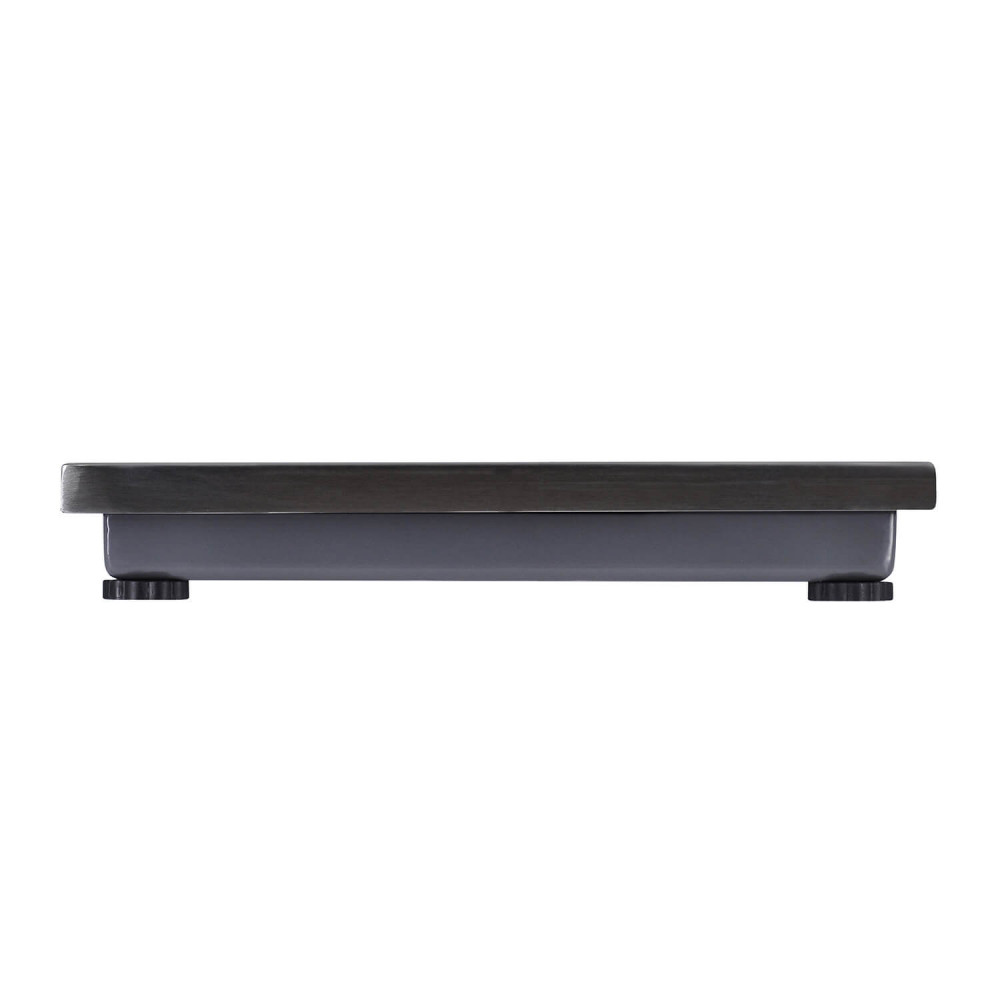

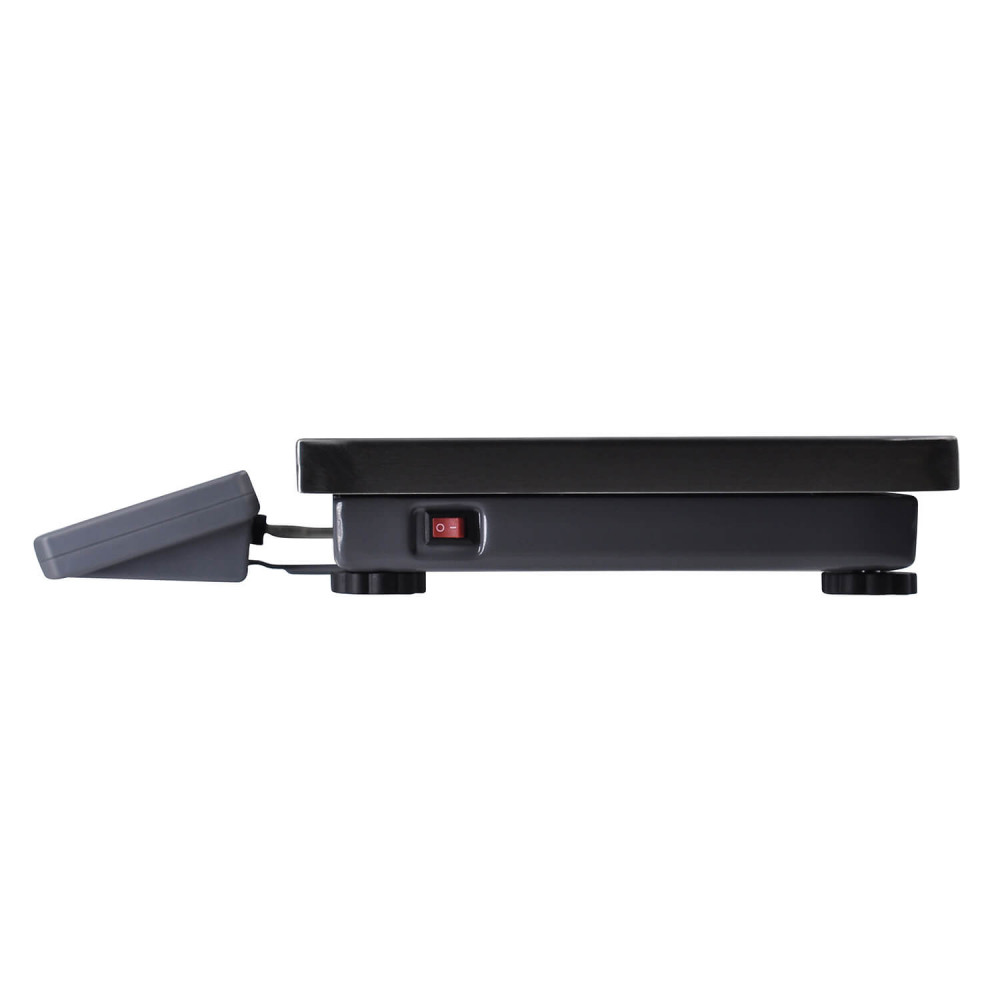

The M-ER 224 FU-15.2 STEEL model has a reduced platform size: 300*200 mm. A large table is not required for installation. The equipment can be placed in a limited space.

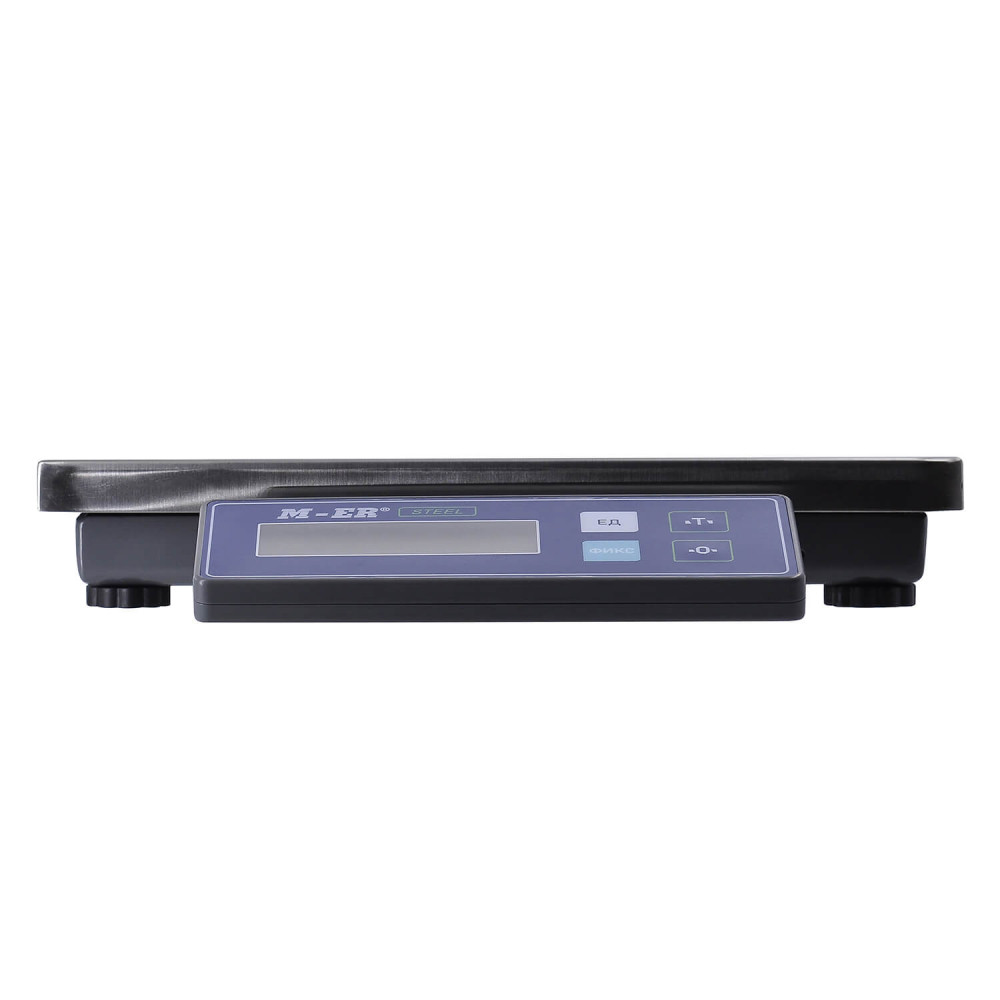

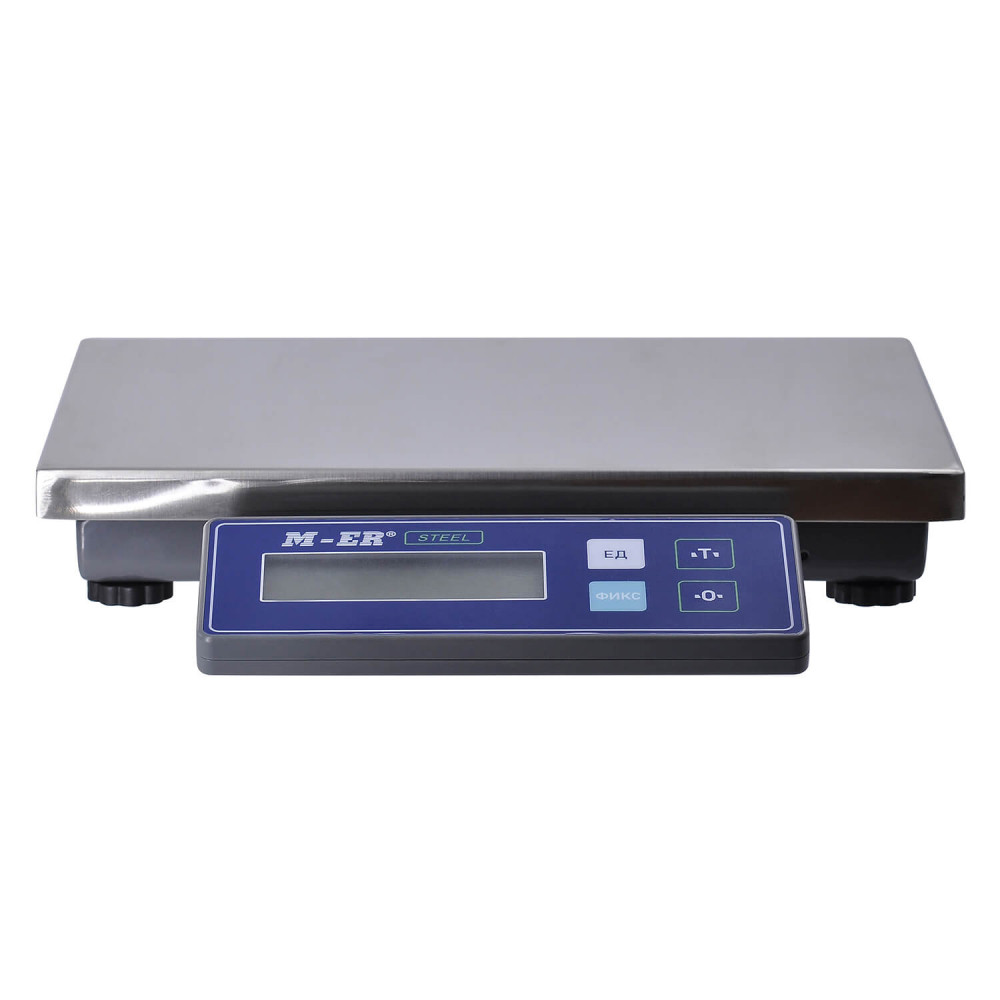

The body features a sealed control panel. The electronic scales can be operated using 4 buttons. The control panel has an LCD screen with 5 digit indicators.
You can purchase the electronic scales on the MERTECH website. The lowest prices from the manufacturer are available when buying on the site. Delivery of the equipment is carried out throughout Azerbaijan.
| Type of scales | Packaging |
|---|---|
| Discreteness | 2 gr |
| Minimum weight | 40 gr |
| Number of keys | 4 |
| Weighing limit | 15 kg |
| Platform size | 300*200 |
| Execution | Tabletop |
| Verification | Yes |
| Accuracy class | Average (III) |
| Load cells, pcs. | 1 |
| Height adjustment, mm | Tabletop |
| Operating modes | Weighing mode; Weight fixing mode; Sound and visual indication; Self-diagnosis mode |
|---|---|
| Tare sampling range | The whole range |
| Units of measurement | Kg, Pound |
| Level | Yes |
| Battery | No |
|---|---|
| Nutrition | from USB 5V, 0.5A |
| Permissible humidity | up to 85% at 40°C, without moisture condensation |
| Atmospheric pressure | 630...800 mm Hg |
| Operating temperature | +5°C ~ +40°C |
| Display type | LCD |
|---|---|
| Number of displays | 1 |
| Number of indication digits | 5 |
| Character size, mm | 8*21 |
| CAS-M (Passive) | Yes |
|---|---|
| POS2-M | Yes |
| Interfaces | USB |
|---|
| Color | Black |
|---|---|
| Overall dimensions (WxDxH), mm | 300*280*46 |
| Platform material | Stainless steel |
| Body material | Metal; plastic |
| Weight | 3.15 kg |
| Keyboard type | Push-button |
| Overload protection | Sound and visual notification |
| Moisture protection | Sealing the control panel |
| Equipment | Scales; Warranty card; Operation manual; USB(COM) cable |
|---|
-
