| Type of scalesPackaging | Discreteness5 gr | Minimum weight100 gr |
| Number of keys4 | Weighing limit32 kg | Platform size325*275 |
| ExecutionTabletop | VerificationYes | Accuracy classAverage (III) |

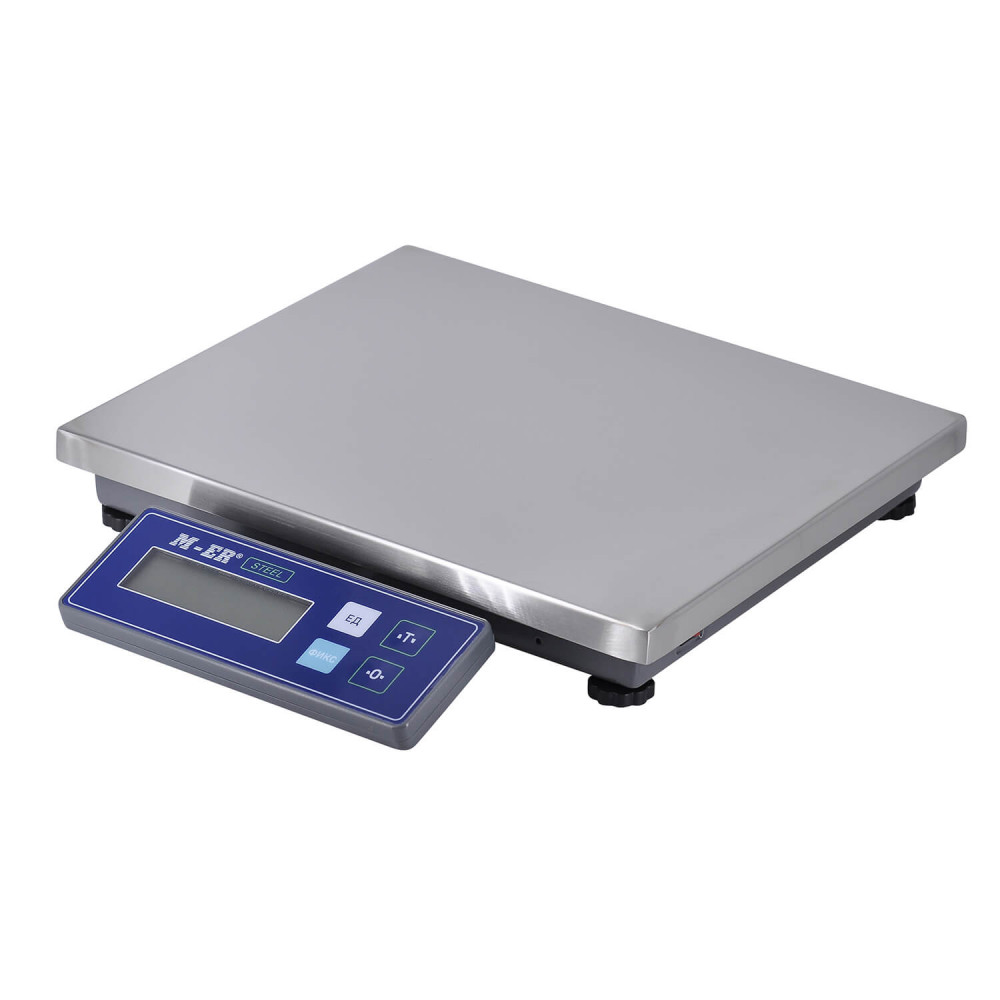

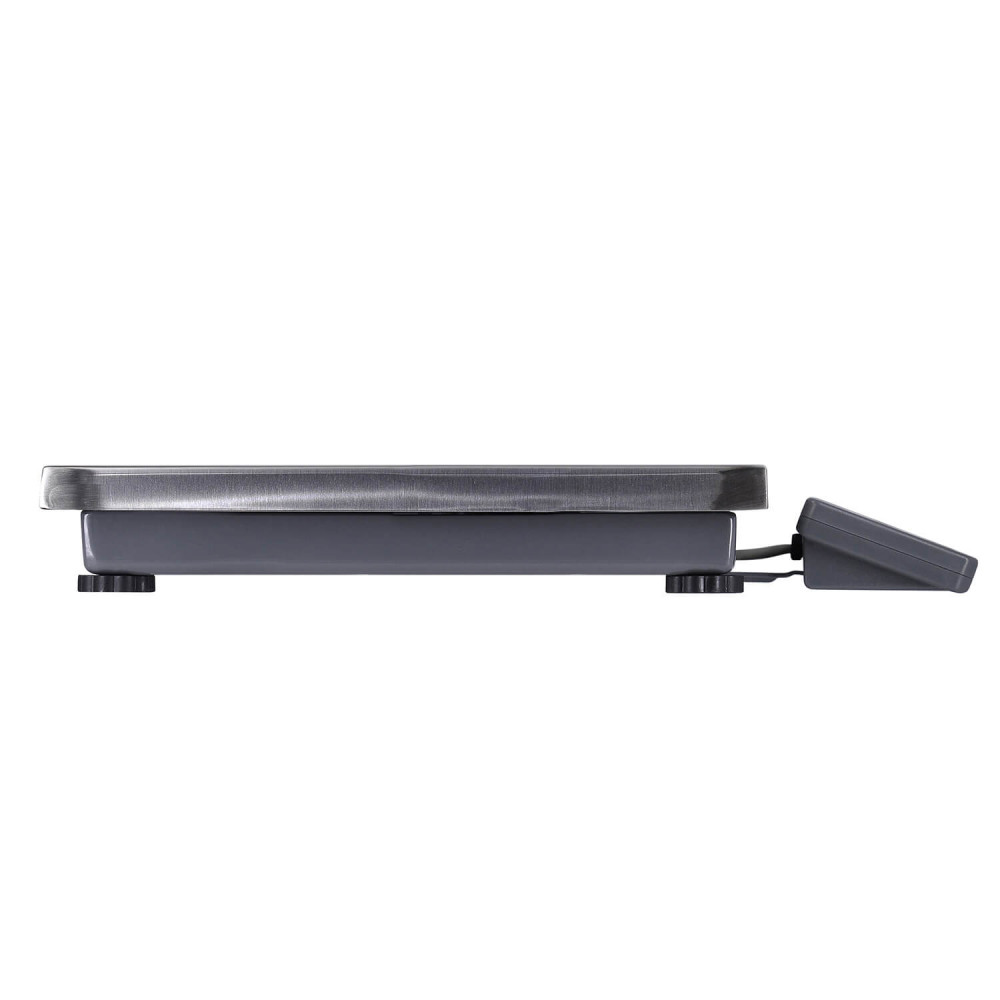

The M-ER 224 F-32.5 STEEL LCD USB bench scales operate only from the mains without a battery. They are suitable for use in environments where there is a stable electricity supply. The refusal to install a battery helps to reduce the weight of the device and lower the price. The scales can be used for weighing goods in a warehouse, factory, or store, as well as for check weighing.
Advantages of the Model
This tabletop model is designed for weighing goods with a mass of up to 32 kg. The price graduation during operation is 5 grams. The model belongs to class III of accuracy according to GOST standards based on declared characteristics. The accuracy of measurements is confirmed by a calibration certificate.
Advantages of the weighing model:
- operation according to CAS-M (Passive) and POS2-M protocols;
- switching between kilograms and pounds;
- sensitive load cell with 7,000 divisions;
- reliable protection against short-term overloads;
- double galvanization of steel parts.
The control menu supports two basic programs: simple weighing and weight fixation. Light and sound signals help monitor the working process. The device features a self-diagnostic system.
Design Characteristics

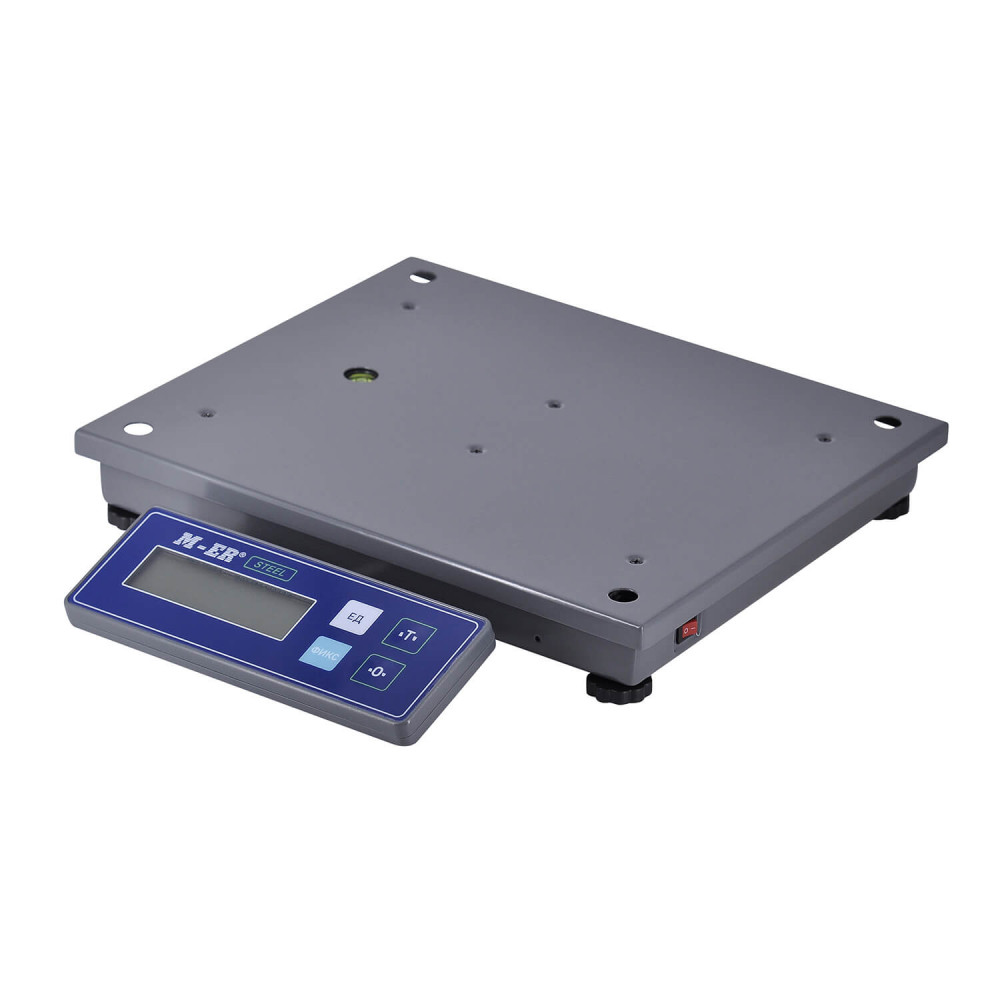

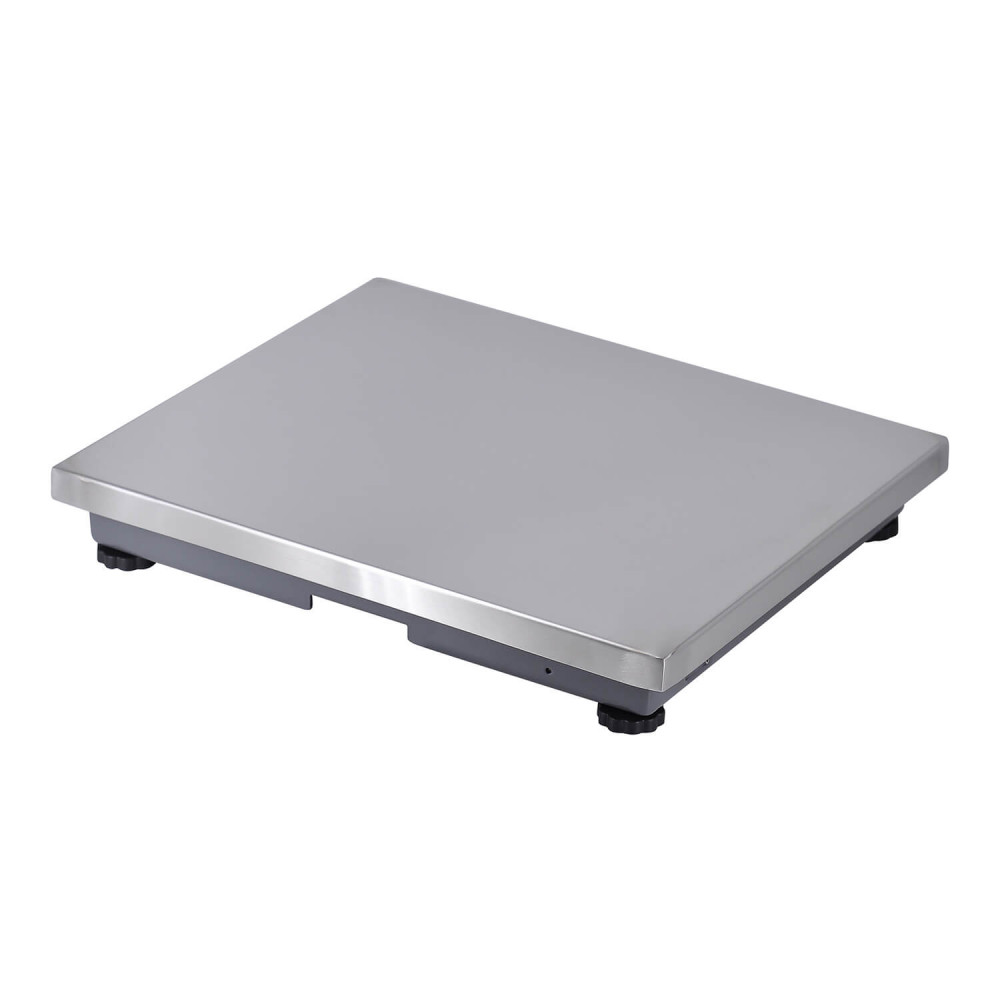

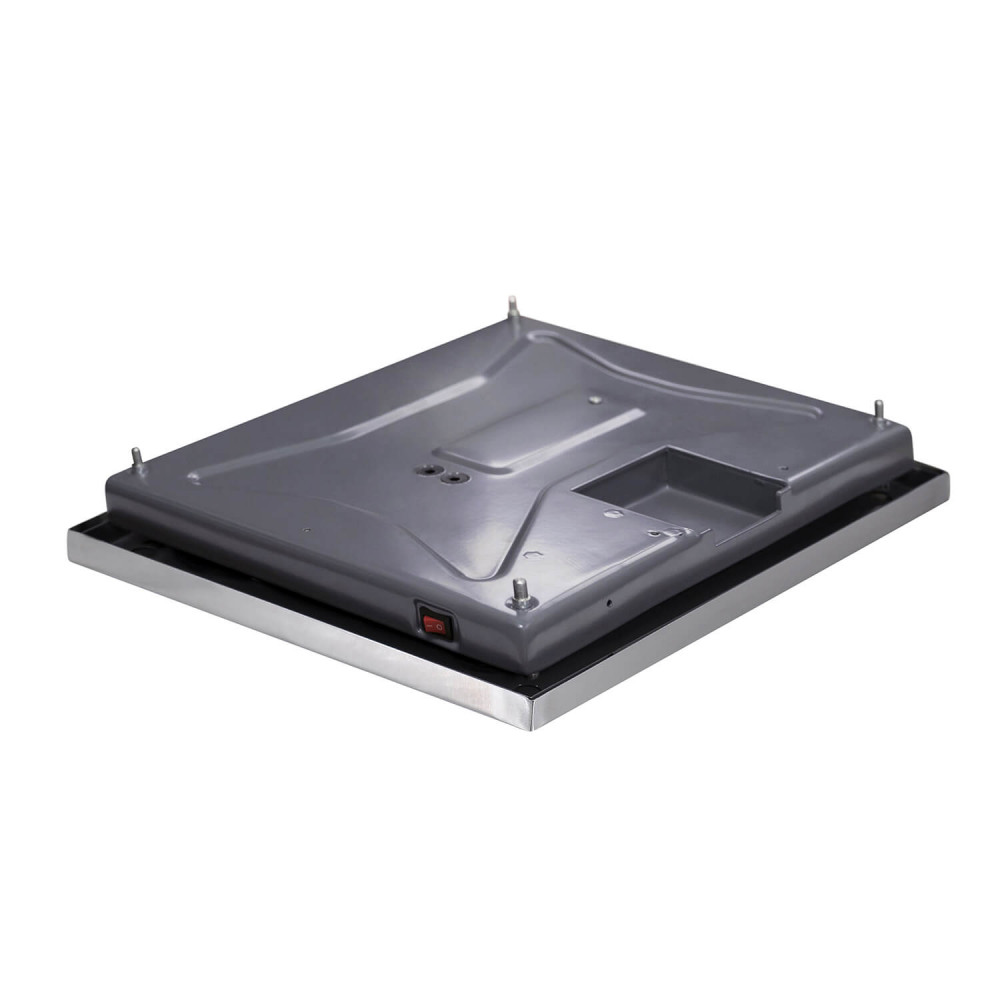

The basis of the device is a strong and stable metal frame. The body is assembled using metal and plastic panels, while the weighing platform is made of stainless steel. The platform, measuring 325*275 mm, allows for weighing large batches of goods. Protection against impacts, water, and dust increases the service life of the device.

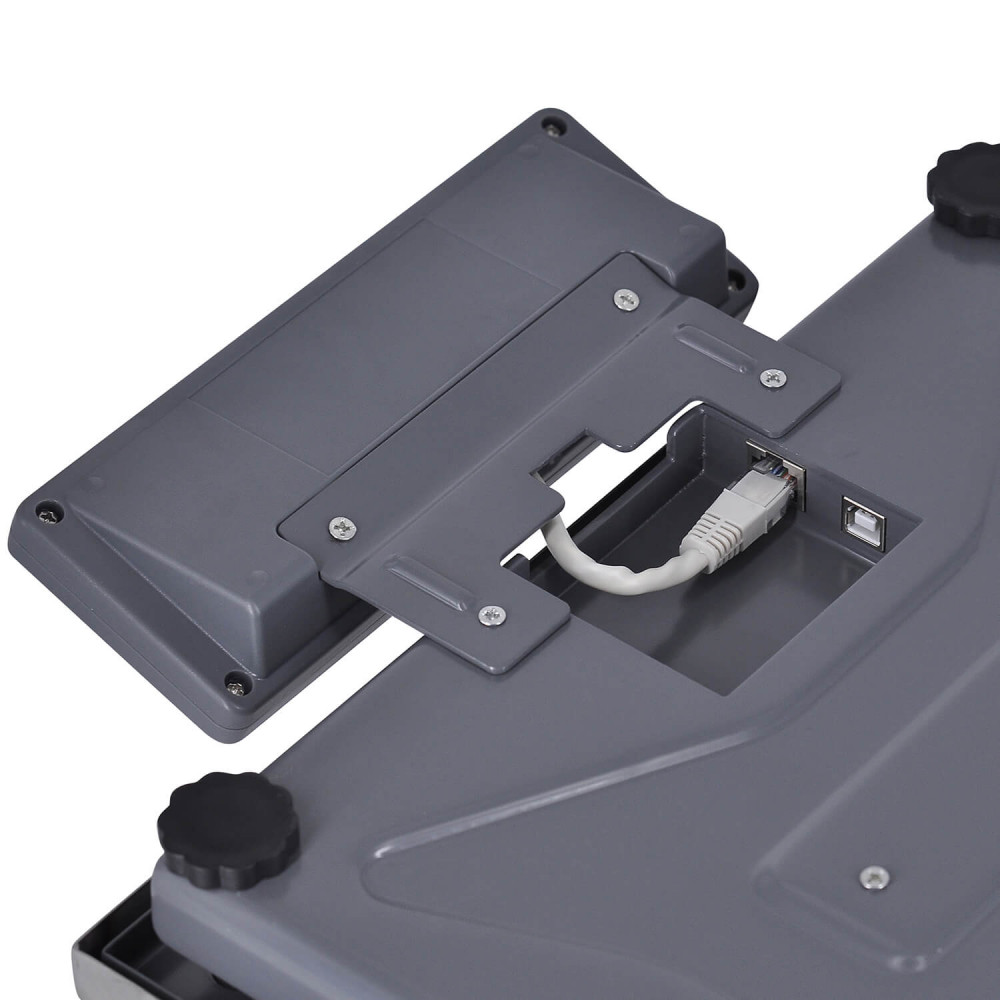

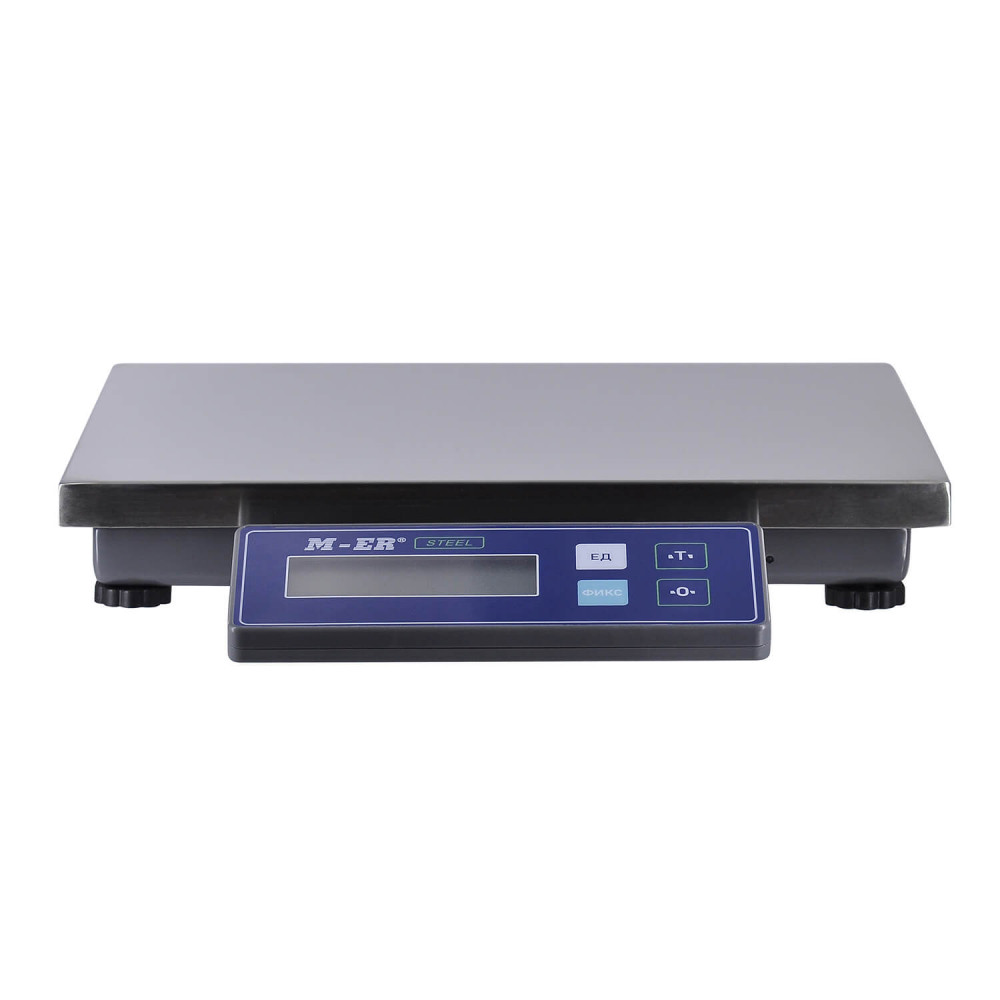

The LCD screen is located on the control panel of the body. The display features 5 digits of 8*21 mm indication. The control button panel is made hermetically so that buttons can be pressed with wet hands. The user interface consists of 4 buttons, making it very easy to master all the functions of the device quickly. The electronic scales are powered using a USB COM cable.
Order the tabletop weighing scales on the MERTECH website. When placing an order through the manufacturer's website, the lowest price applies. Delivery of orders is carried out throughout Azerbaijan.
| Type of scales | Packaging |
|---|---|
| Discreteness | 5 gr |
| Minimum weight | 100 gr |
| Number of keys | 4 |
| Weighing limit | 32 kg |
| Platform size | 325*275 |
| Execution | Tabletop |
| Verification | Yes |
| Accuracy class | Average (III) |
| Load cells, pcs. | 1 |
| Height adjustment, mm | Tabletop |
| Operating modes | Weighing mode; Weight fixing mode; Sound and visual indication; Self-diagnosis mode |
|---|---|
| Tare sampling range | The whole range |
| Units of measurement | Kg, Pound |
| Level | Yes |
| Battery | No |
|---|---|
| Nutrition | from USB 5V, 0.5A |
| Permissible humidity | up to 85% at 40°C, without moisture condensation |
| Atmospheric pressure | 630...800 mm Hg |
| Operating temperature | +5°C ~ +40°C |
| Display type | LCD |
|---|---|
| Number of displays | 1 |
| Number of indication digits | 5 |
| Character size, mm | 8*21 |
| CAS-M (Passive) | Yes |
|---|---|
| POS2-M | Yes |
| Interfaces | USB |
|---|
| Color | Black |
|---|---|
| Overall dimensions (WxDxH), mm | 325*350*46 |
| Platform material | Stainless steel |
| Body material | Metal; plastic |
| Weight | 4.75 kg |
| Keyboard type | Push-button |
| Overload protection | Sound and visual notification |
| Moisture protection | Sealing the control panel |
| Equipment | Scales; Warranty card; Operation manual; USB(COM) cable |
|---|
-
