| Type of scalesPackaging | Discreteness2 gr | Minimum weight40 gr |
| Number of keys4 | Weighing limit15 kg | Platform size325*275 |
| ExecutionTabletop | VerificationYes | Accuracy classAverage (III) |

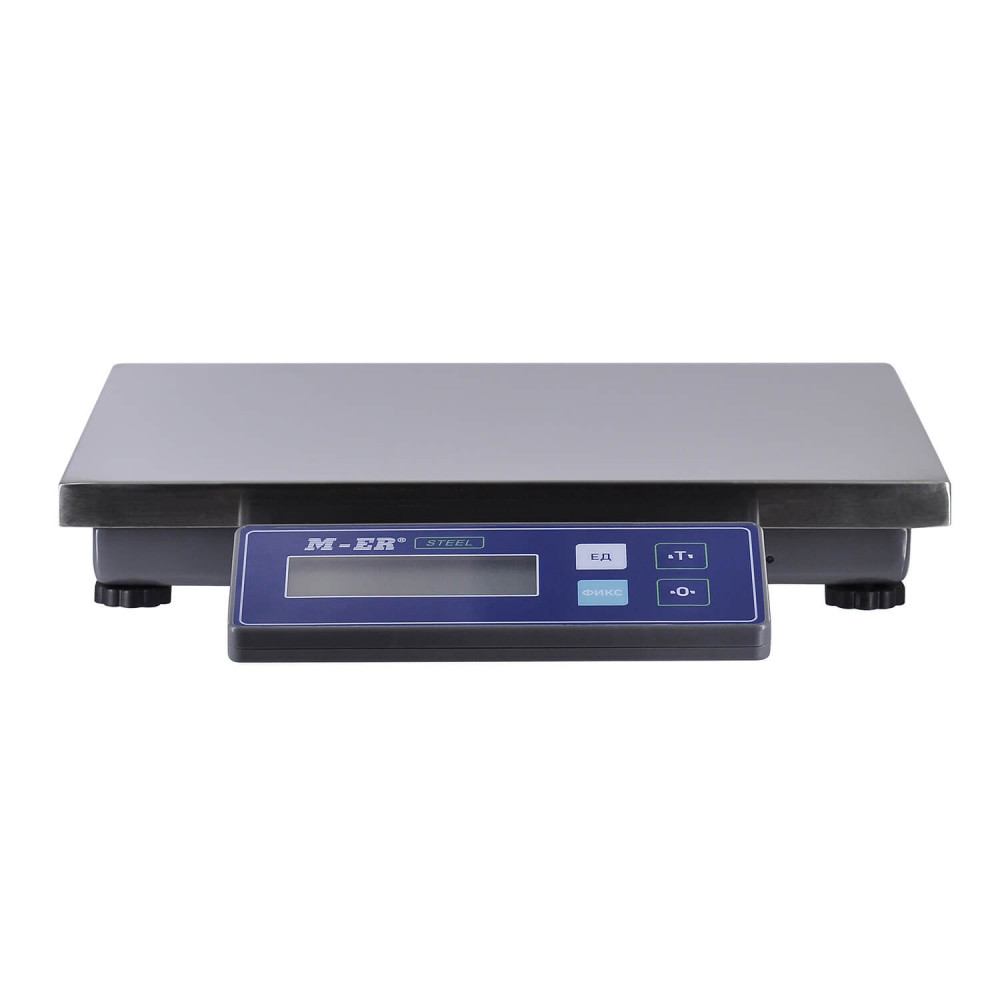

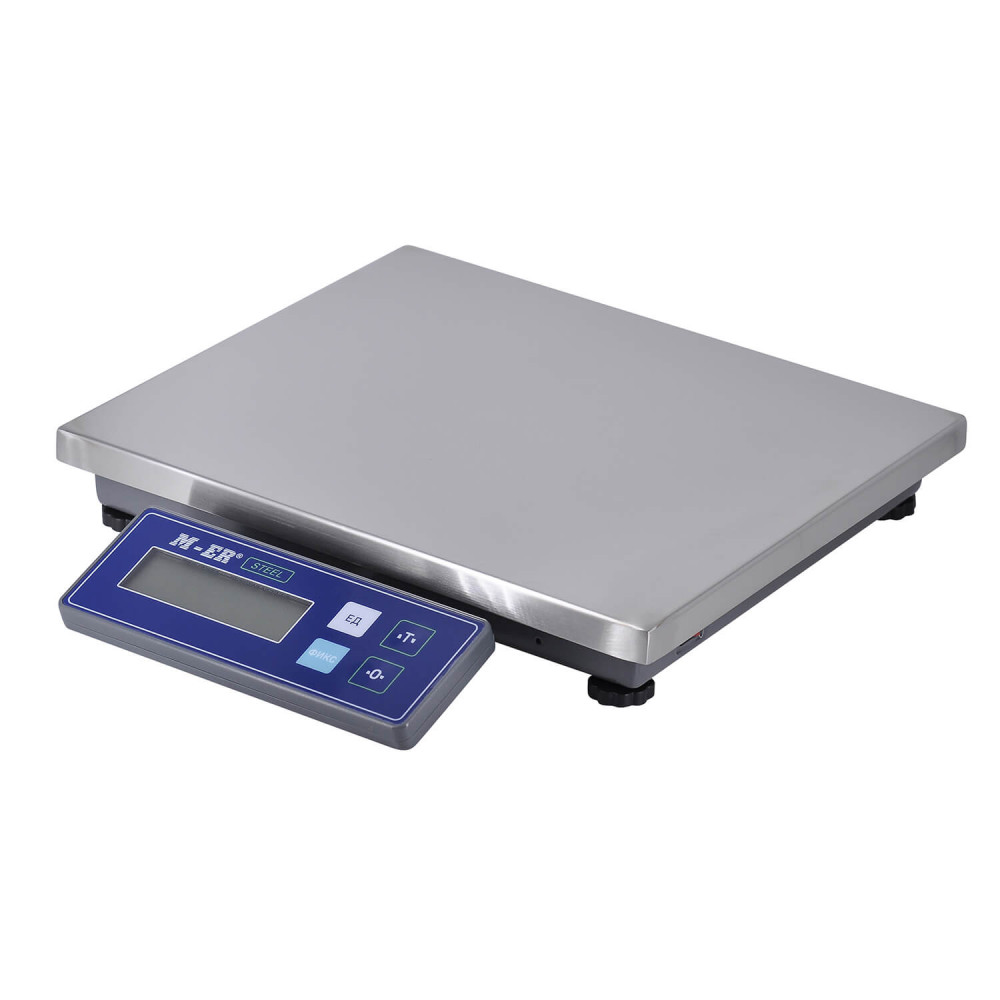

The M-ER 224 F-15.2 STEEL LCD USB bench scale operates without a battery when connected to the mains. The absence of a battery allows for a reduction in the weight of the casing and lowers the cost of the device. The model is suitable for packaging goods at factories, in warehouses, in retail stores, or for selling ready-to-eat meals by weight. It can be installed in a sales area for check weighing.
Advantages of the Model
The weighing scale is designed for weighing batches weighing up to 15 kg. The readability during operation is 2 grams. The metrological characteristics comply with class III accuracy according to GOST. Each device undergoes mandatory calibration, which is confirmed by a certificate.
Advantages of the packaging model:
- option to select kilograms or pounds in the settings;
- support for CAS-M (Passive) and POS2-M protocols;
- enhanced load cell with 7,000 divisions;
- overload protection system;
- double galvanization of metal elements.
The device can operate in either normal weighing mode or weight locking mode. A self-diagnosis system is provided. During weighing, both sound and visual indication are operational. The simple user interface allows for easy interaction.
Construction Characteristics

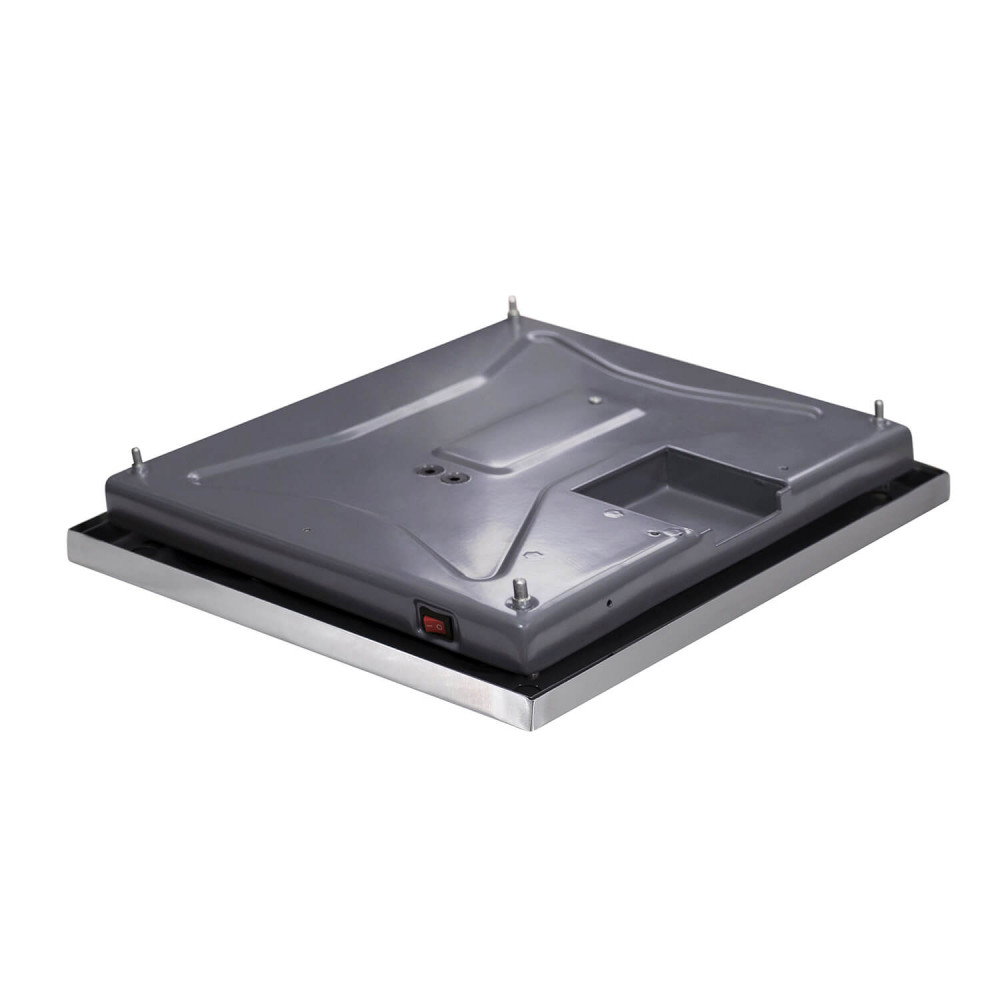

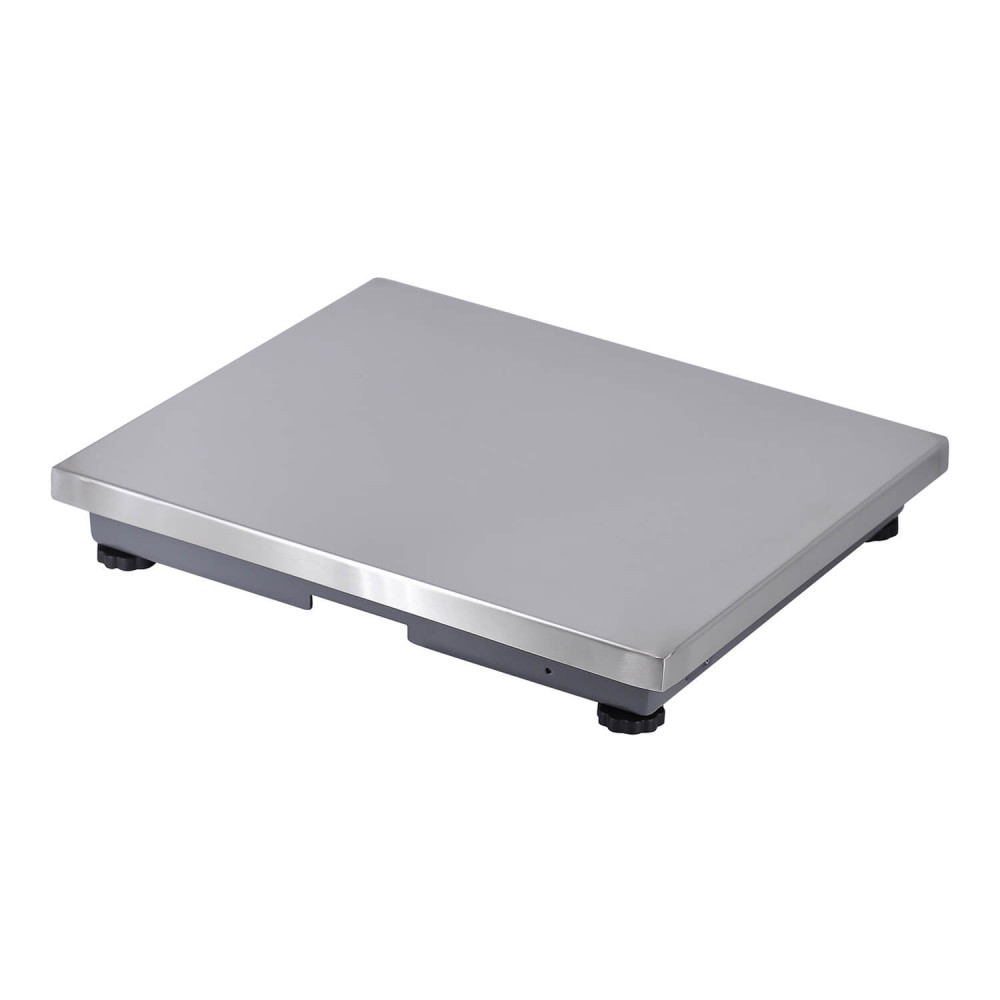

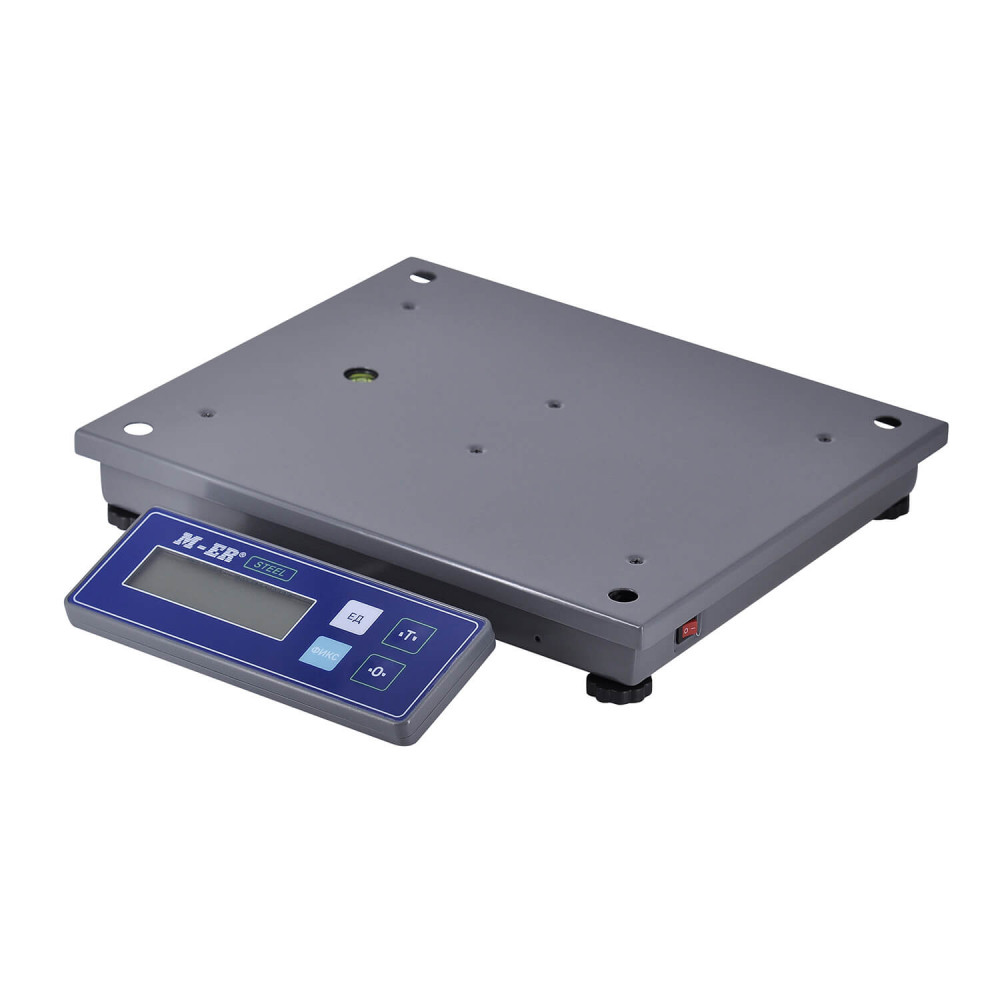

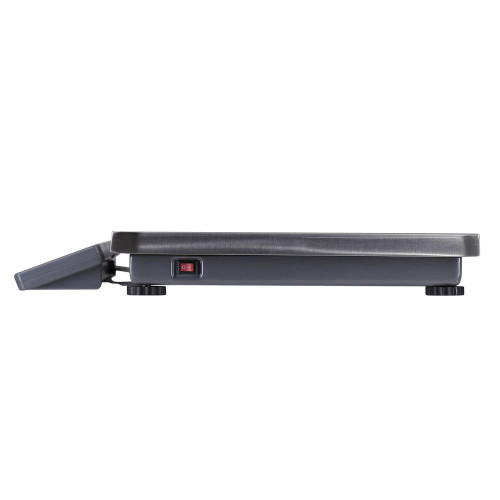

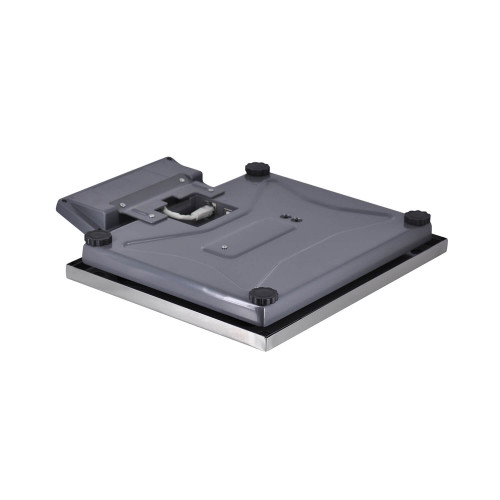

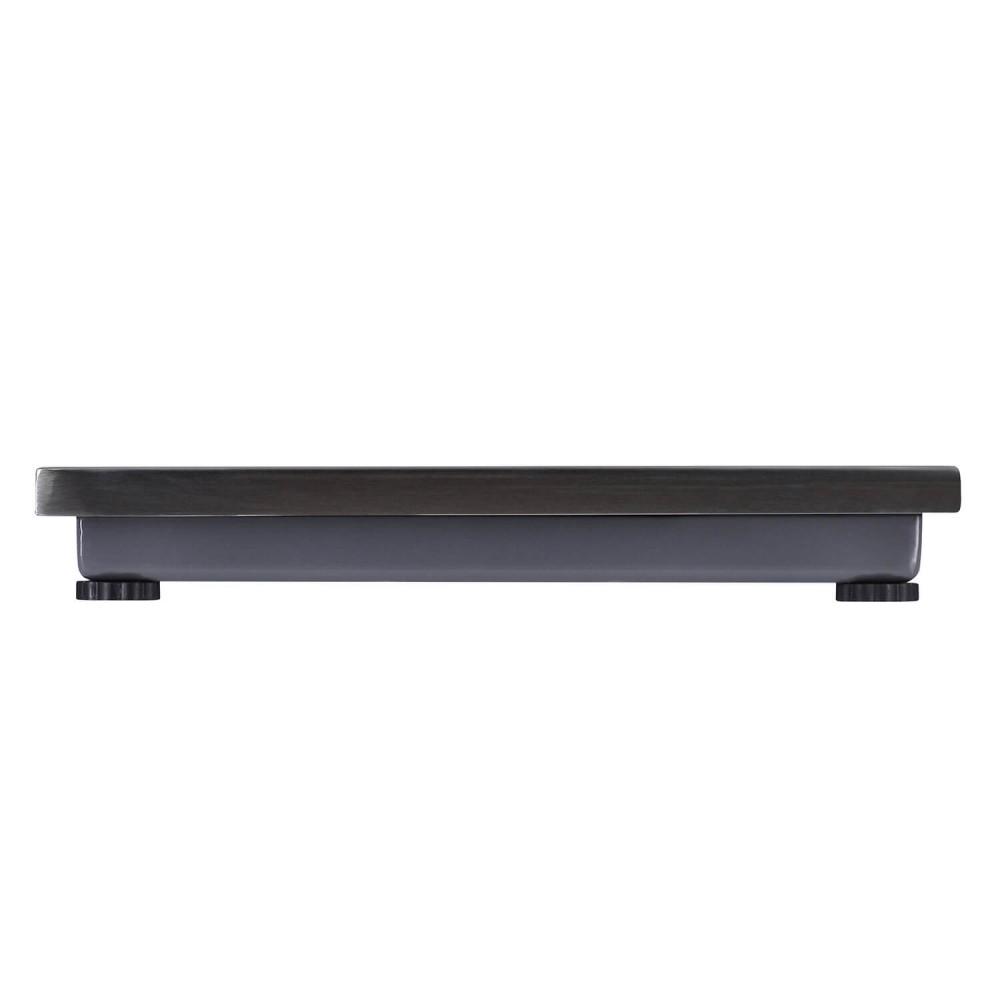

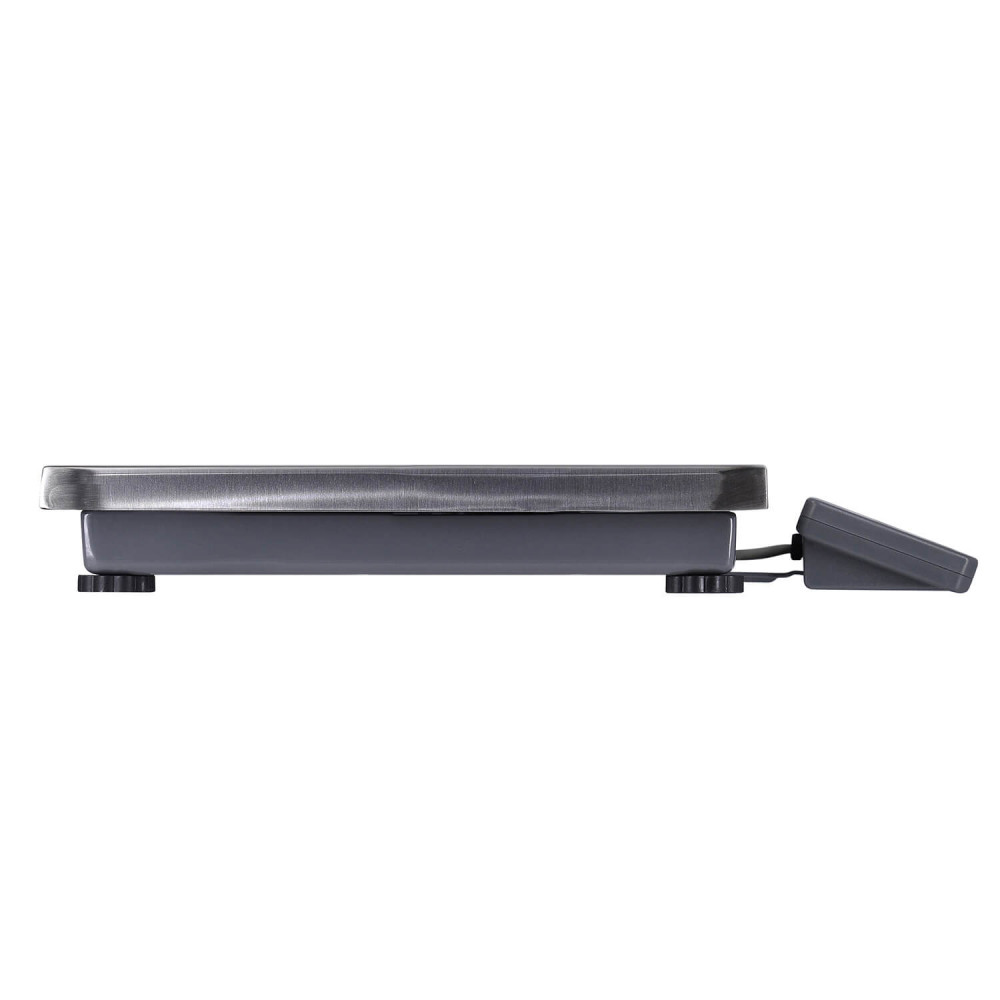

The device's design is based on a sturdy metal frame. The body is made of metal and plastic. The weighing platform measures 325*275 mm and is made of stainless steel. The mechanism is reliably protected from impacts, dust, and water.

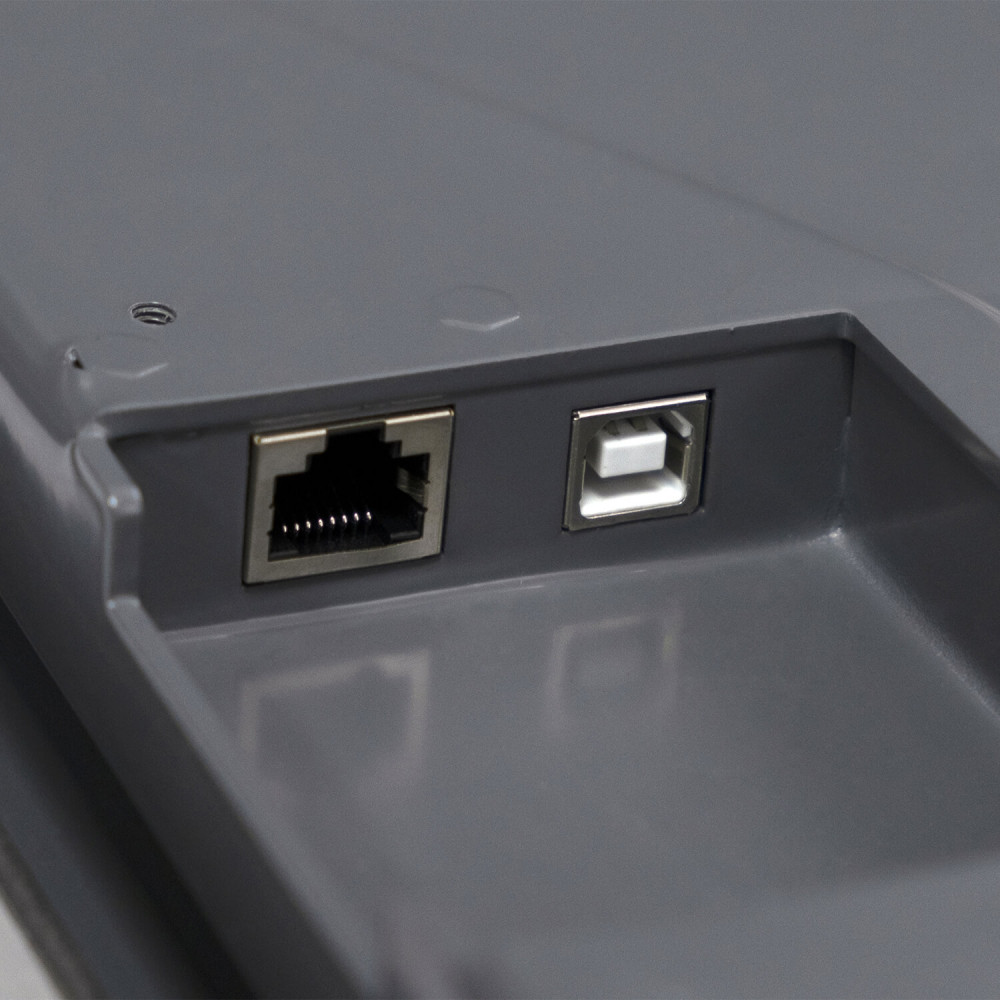

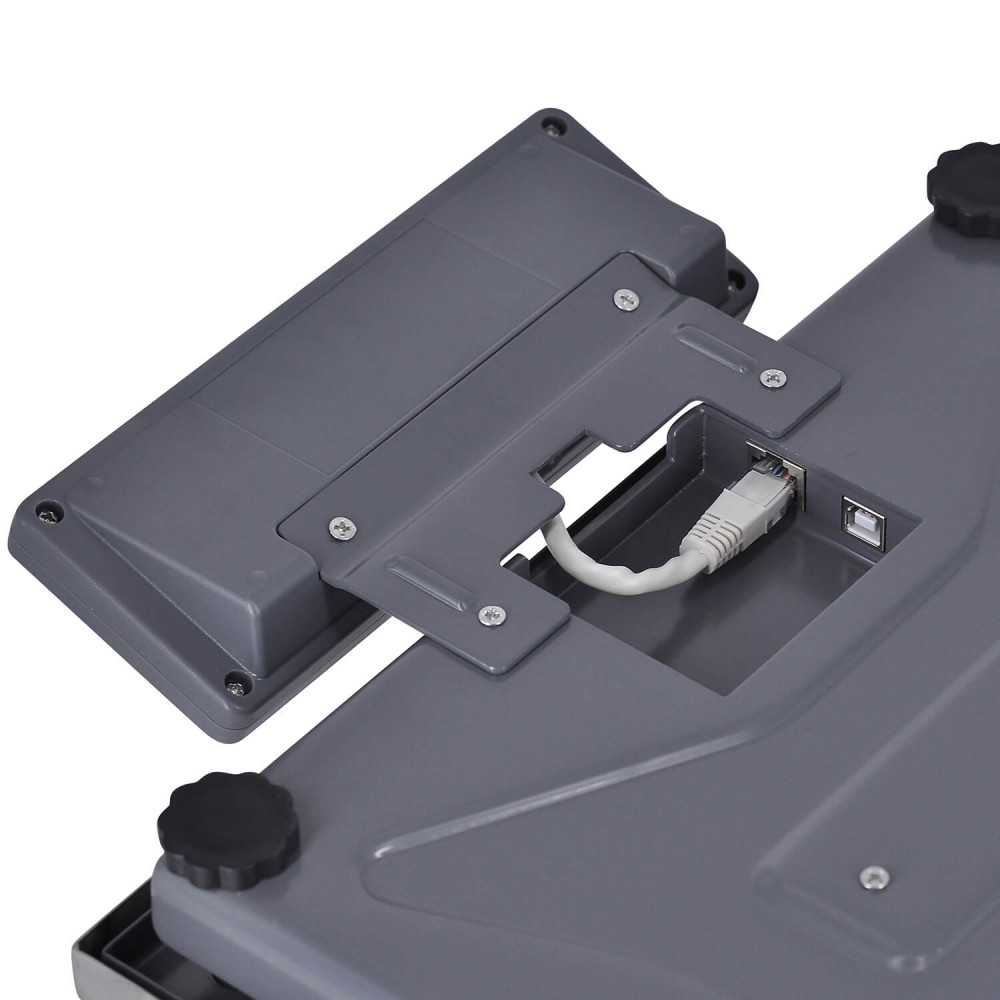

The LCD screen is mounted on the control panel attached to the device's body. The screen consists of 5 digit displays in the 8*21 mm format. The control panel is completely sealed, allowing operation with wet hands. Four buttons are used to activate the modes. The device can be connected to the mains via a USB COM cable.
Autonomous operation is ensured by a high-capacity battery. A USB COM cable for charging the device is included in the set.
You can buy the packaging scales at a low price on the MERTECH company website. The equipment will be delivered to any region of Azerbaijan.
| Type of scales | Packaging |
|---|---|
| Discreteness | 2 gr |
| Minimum weight | 40 gr |
| Number of keys | 4 |
| Weighing limit | 15 kg |
| Platform size | 325*275 |
| Execution | Tabletop |
| Verification | Yes |
| Accuracy class | Average (III) |
| Load cells, pcs. | 1 |
| Height adjustment, mm | Tabletop |
| Operating modes | Weighing mode; Weight fixing mode; Sound and visual indication; Self-diagnosis mode |
|---|---|
| Tare sampling range | The whole range |
| Units of measurement | Kg, Pound |
| Level | Yes |
| Battery | No |
|---|---|
| Nutrition | from USB 5V, 0.5A |
| Permissible humidity | up to 85% at 40°C, without moisture condensation |
| Atmospheric pressure | 630...800 mm Hg |
| Operating temperature | +5°C ~ +40°C |
| Display type | LCD |
|---|---|
| Number of displays | 1 |
| Number of indication digits | 5 |
| Character size, mm | 8*21 |
| CAS-M (Passive) | Yes |
|---|---|
| POS2-M | Yes |
| Interfaces | USB |
|---|
| Color | Black |
|---|---|
| Overall dimensions (WxDxH), mm | 325*350*46 |
| Platform material | Stainless steel |
| Body material | Metal; plastic |
| Weight | 4.75 kg |
| Keyboard type | Push-button |
| Overload protection | Sound and visual notification |
| Moisture protection | Sealing the control panel |
| Equipment | Scales; Warranty card; Operation manual; USB(COM) cable |
|---|
-
