261 ₼
| Type of scalesPacking rooms | Discreteness5 grams | Minimum weight100 g |
| Number of keys4 | Weighing limit32 kg | Platform size300*200 |
| ExecutionDesktop, Embedded | VerificationYes | Accuracy classAverage (III) |

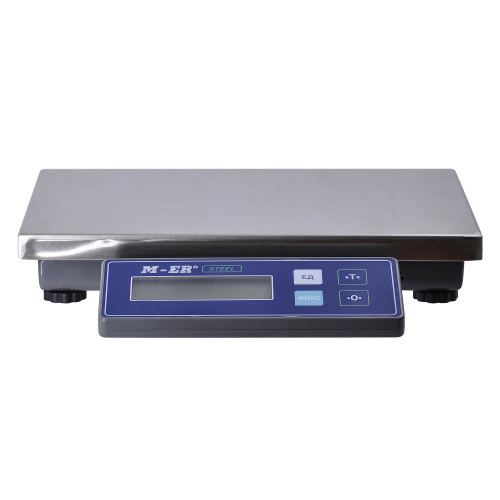

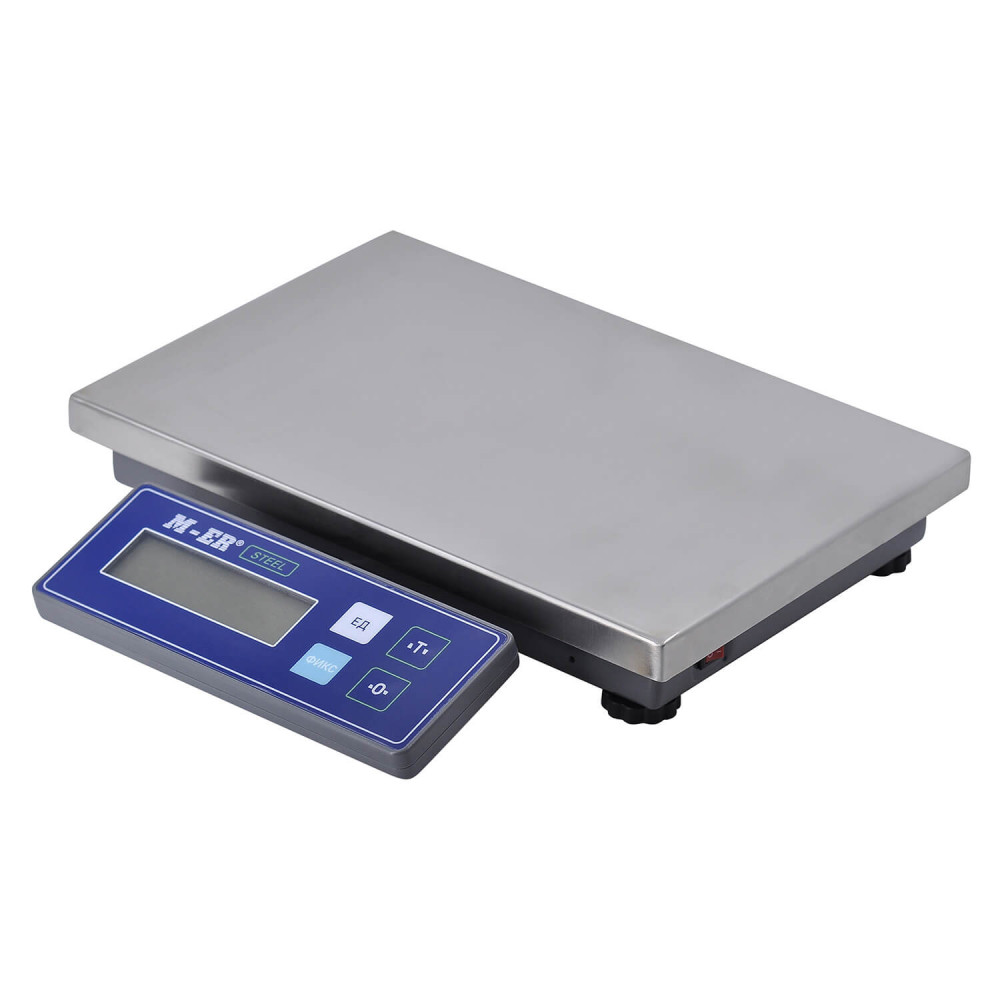

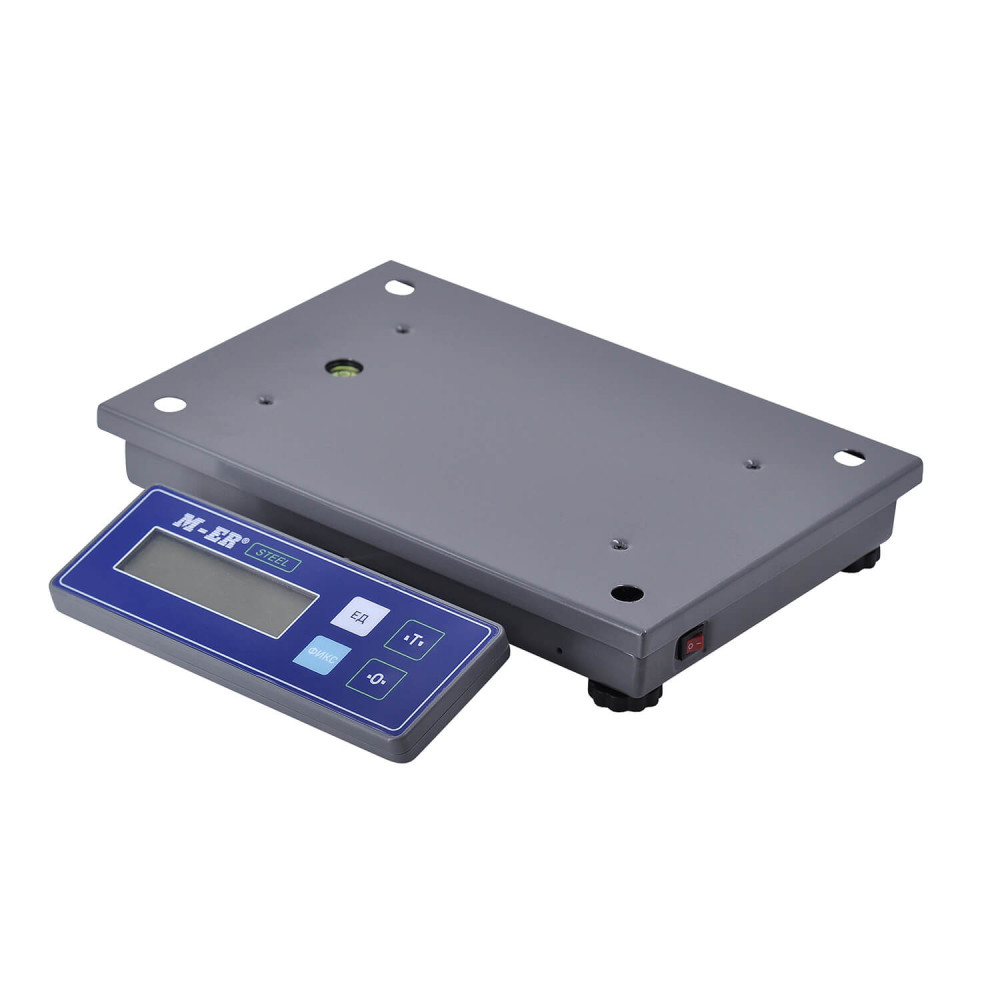

The M-ER 224 AFU-32.5 STEEL LCD USB electronic scale with a weighing platform area of 300*200 mm does not take up much space on the table. They can be used in rooms where there is limited space for installing equipment. The model is suitable for packing any goods, you can use it for control weighing. The case has a battery for autonomous operation. You can charge the battery via the USB connector.
Advantages of the model
Table scales are suitable for weighing retail and small wholesale shipments weighing up to 32 kg. The division price is 5 grams. The model parameters correspond to the III accuracy class according to GOST, which is confirmed by the verification certificate. The device is suitable for use in a warehouse, factory, store sales area, cafe or restaurant.
What advantages does this model have?:
- Choice of units of measurement: kilograms or pounds;
- POS2-M and CAS-M (Passive) data transfer protocols;
- 7,000-division sensitive strain gauge;
- short-term overload protection system;
- double galvanization of steel parts.
The device supports 2 basic modes, simple weighing or mass fixation, as well as a self-diagnosis function. The workflow is accompanied by an audible and visual indication. It does not take much time to train staff to work with scales.
Design Characteristics

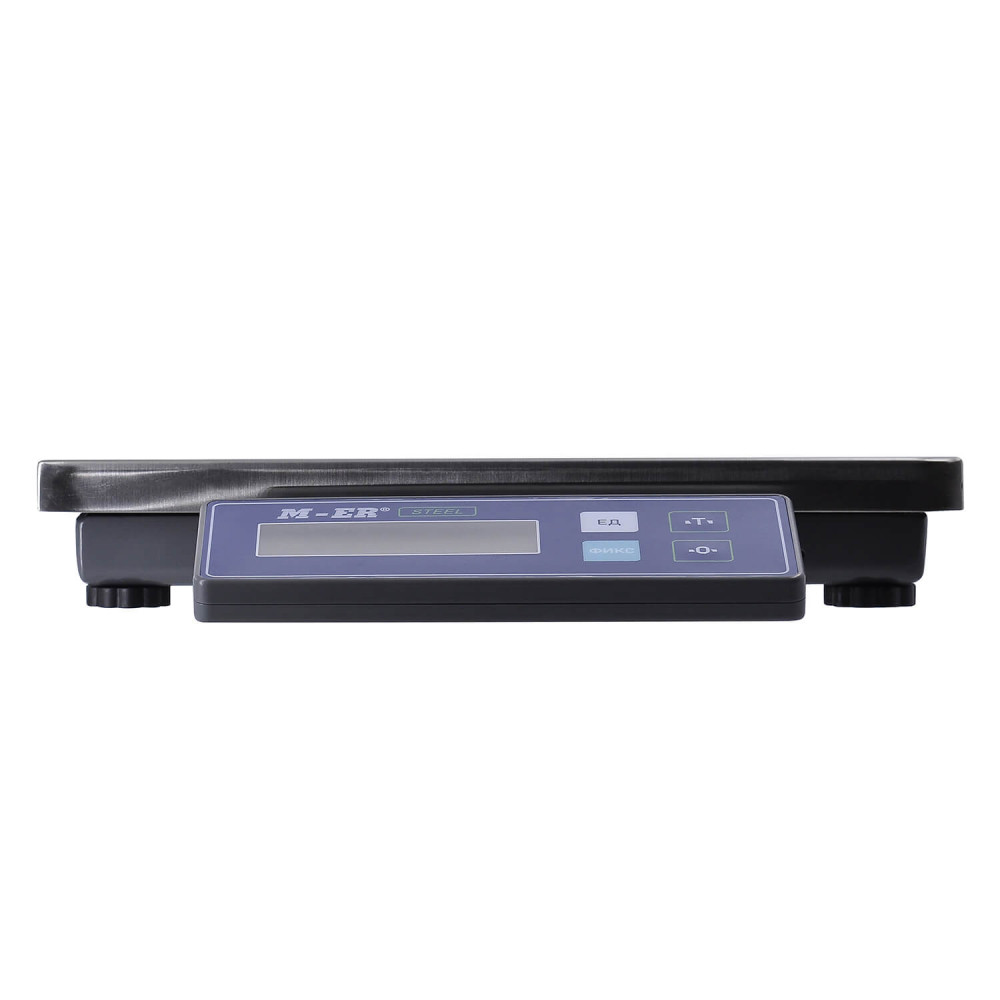

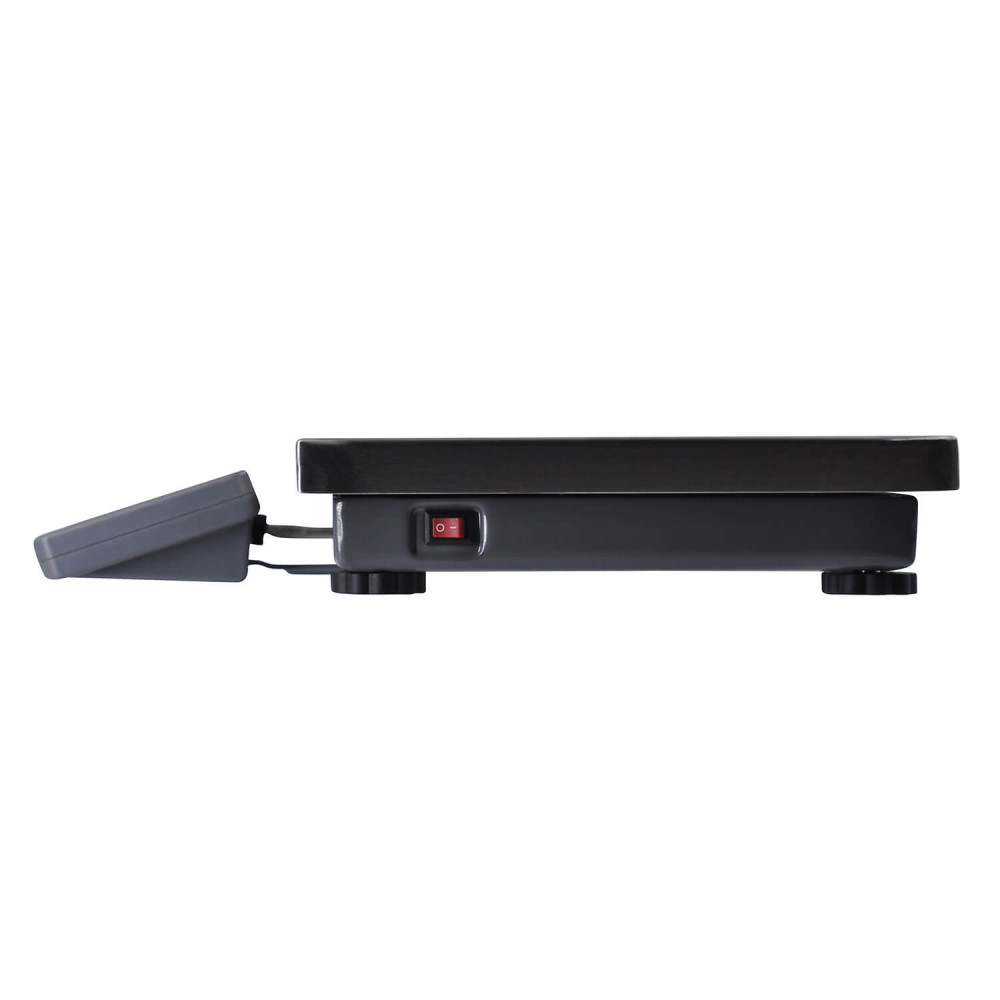

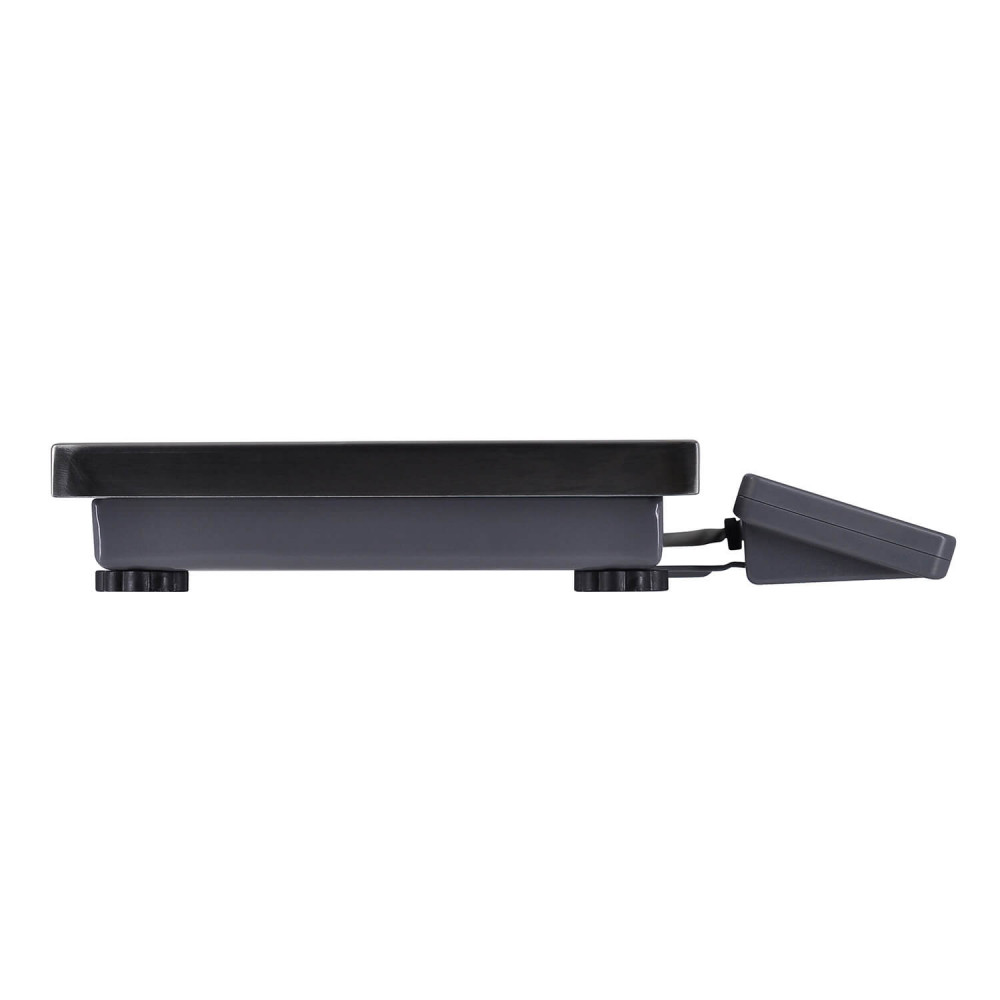

For desktop scales, the display is located on the control panel, which is attached to the platform. The 4-button panel is completely sealed and can be operated with wet hands. The LCD display contains 5 digits of 8*21 mm display.

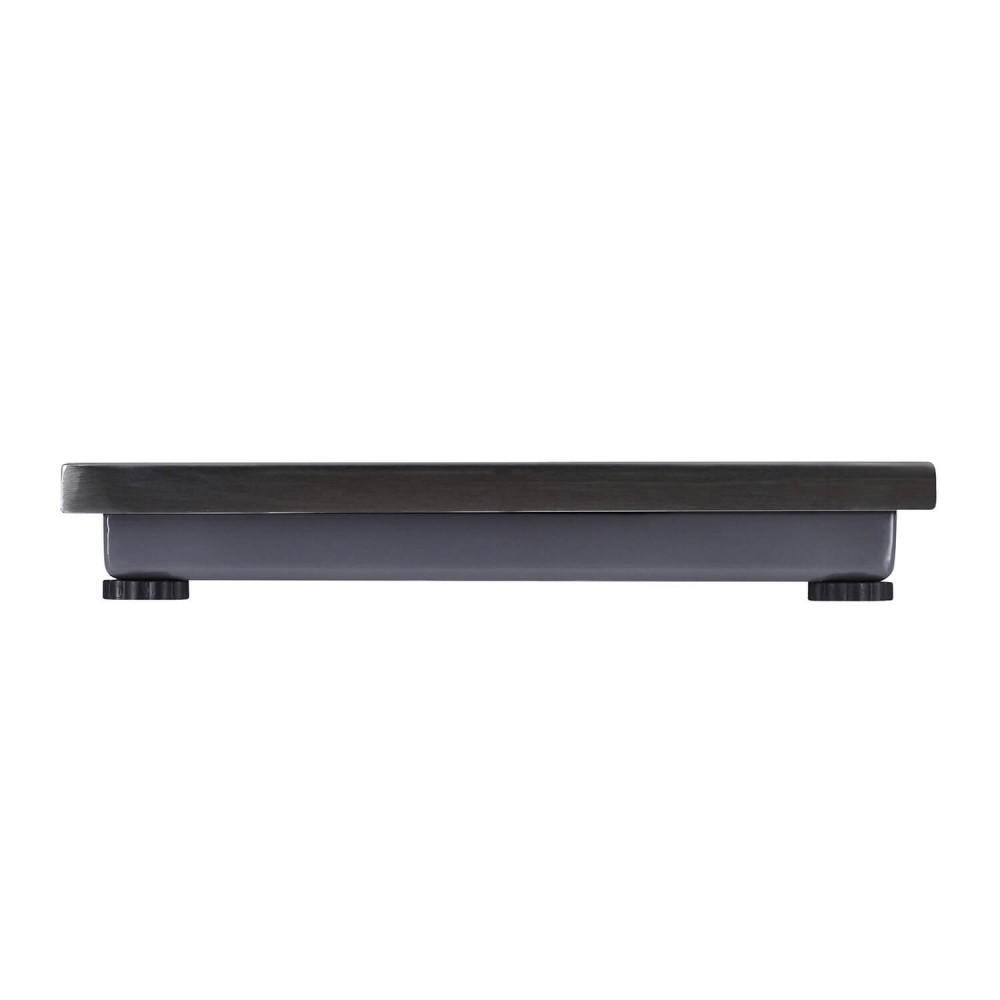

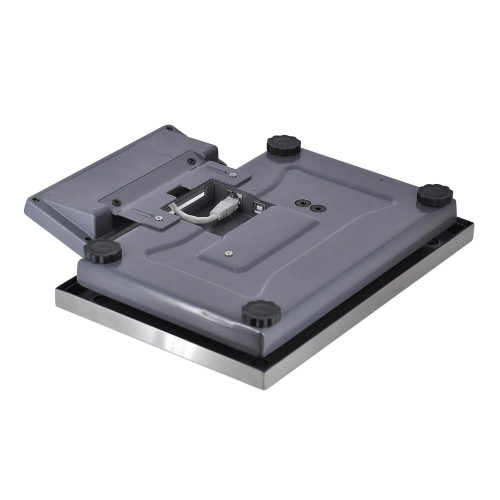

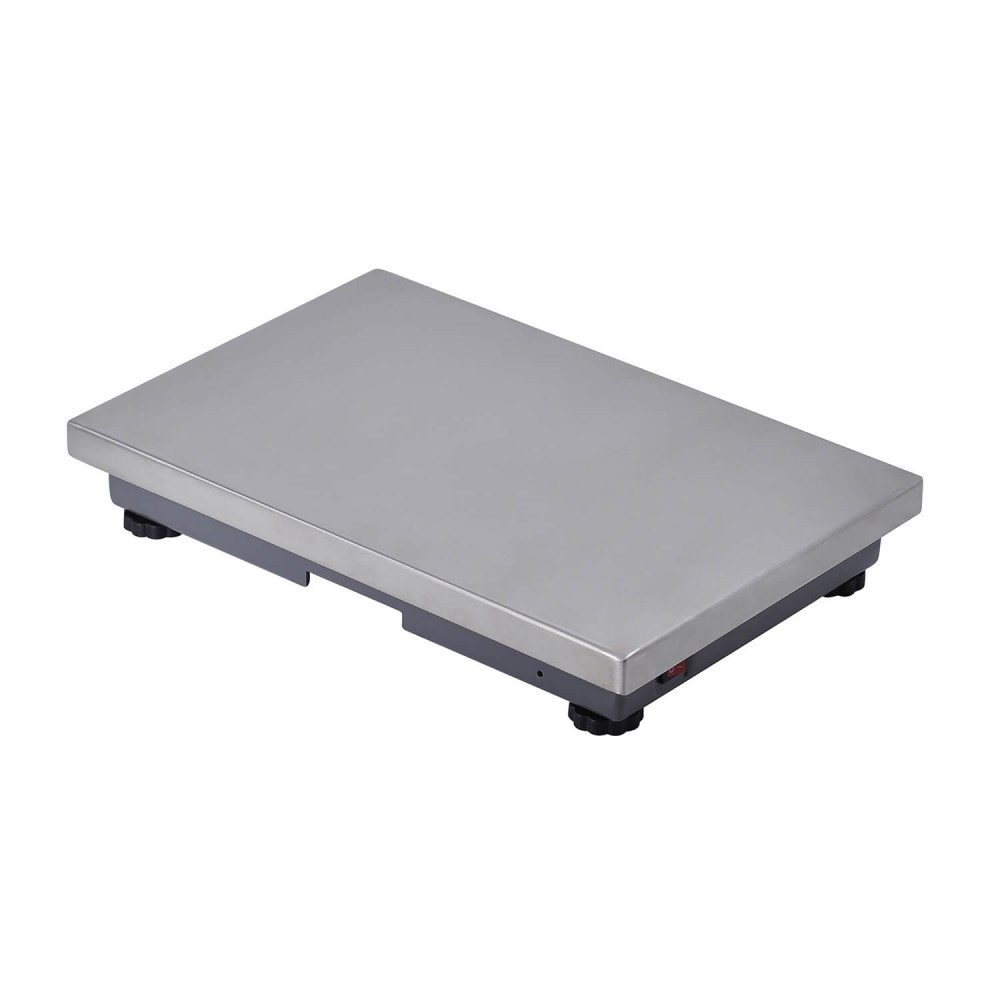

The design is based on a rigid metal frame. The body panels are made of plastic and metal. The weighing platform is made of stainless steel. The case is protected from impacts, water and dust penetration.
Autonomous operation is provided by an energy-intensive battery. The kit includes a USB COM cable for charging the device.
On the MERTECH company's website, you can buy table scales at the lowest price. Delivery is carried out to any point in Russia.
| Type of scales | Packing rooms |
|---|---|
| Discreteness | 5 grams |
| Minimum weight | 100 g |
| Number of keys | 4 |
| Weighing limit | 32 kg |
| Platform size | 300*200 |
| Execution | Desktop, Embedded |
| Verification | Yes |
| Accuracy class | Average (III) |
| Load cells, pcs. | 1 |
| Height adjustment, mm | Desktop |
| Operating modes | Weighing mode; Weight fixation mode; Audio and visual indication; Self-diagnosis mode |
|---|---|
| Tare sampling range | The whole range |
| Units of measurement | Kg, Lb |
| Level | Yes |
| Battery | Optional |
|---|---|
| Nutrition | from USB 5V, 0.5A |
| Permissible humidity | up to 85% at 40 °C, without condensation of moisture |
| Atmospheric pressure | 630...800 mmHg |
| Operating temperature | +5°C ~ +40°C |
| Display type | LCD |
|---|---|
| Number of displays | 1 |
| Number of indication digits | 5 |
| Character size, mm | 8*21 |
| CAS-M (Passive) | Yes |
|---|---|
| POS2-M | Yes |

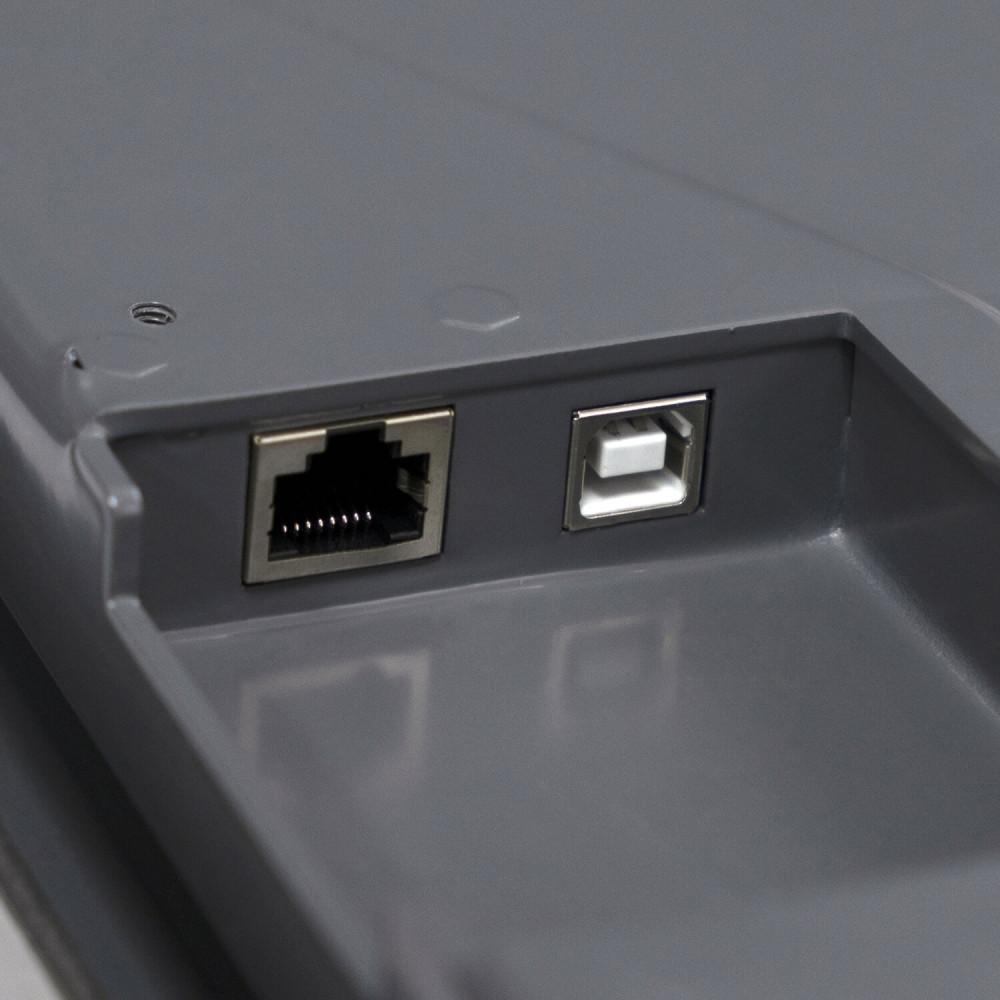

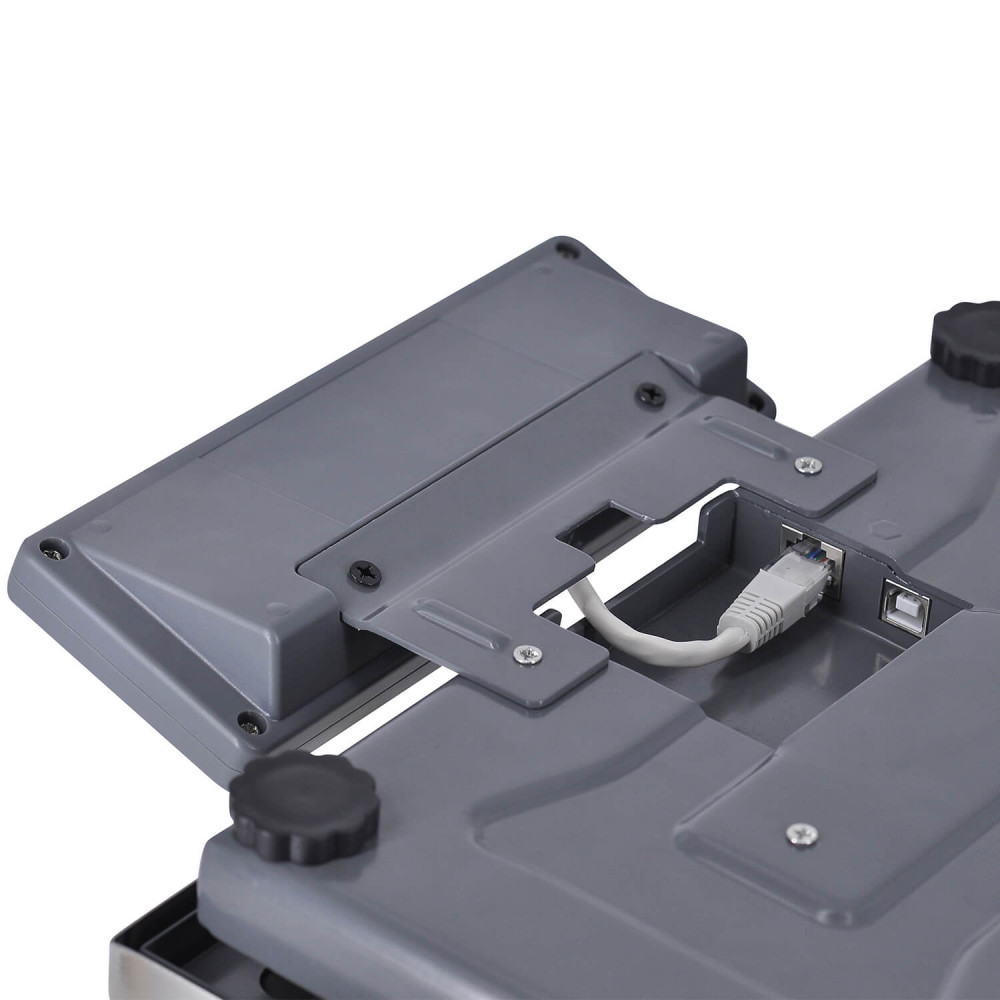

| Interfaces | USB(type-b) |
|---|
| Color | Black |
|---|---|
| Overall dimensions (WxDxH), mm | 300*280*46 |
| Platform material | Metal |
| Body material | Metal; plastic |
| Weight | 3.15 kg |
| Keyboard type | Push button |
| Overload protection | Audio and visual alerts |
| Moisture protection | Sealing the control panel |
| Quantity in masterbox, pcs | 4 pcs |
|---|---|
| Equipment | Scales, Warranty card, User Manual, USB(COM) Type A - Type B cable, length 1.8 m |
-
