| Type of scalesPackaging | Discreteness2 gr | Minimum weight40 gr |
| Number of keys4 | Weighing limit15 kg | Platform size300*200 |
| ExecutionTabletop | VerificationYes | Accuracy classAverage (III) |

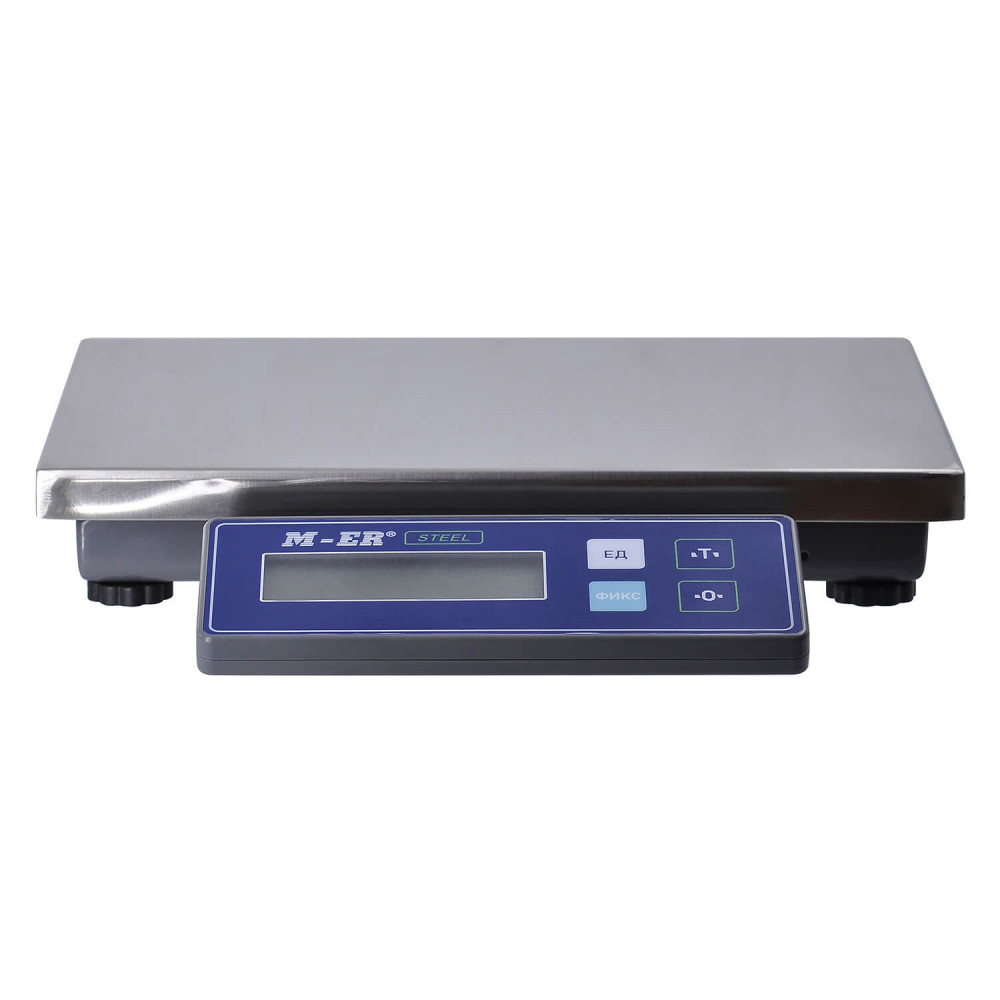

The M-ER 224 AFU-15.2 STEEL LCD USB desktop scale with a reduced platform of 300*200 mm is suitable for locations where space for equipment installation is limited. This model can be used for pre-sale weighing of goods or as a check scale. The device operates on a battery, which can be recharged using a USB cable.
Advantages of the Model
The equipment is suitable for weighing goods in warehouses, manufacturing, and retail store floors. The instrument belongs to class III of accuracy according to GOST. The maximum measurement capacity is 15 kg. The increment between adjacent scale values is 2 grams. Compliance with the stated specifications is confirmed by a calibration certificate.
Model advantages:
- weighing in kilograms or pounds;
- POS2-M and CAS-M (Passive) protocols;
- sensitive load cell with 7,000 divisions;
- protection against short-term overloads;
- double galvanization of steel panels.
The device can operate in normal weighing mode or weight fixation mode, and it can also perform self-diagnostics. The visual and light indication system simplifies the operator's work.
Design Features

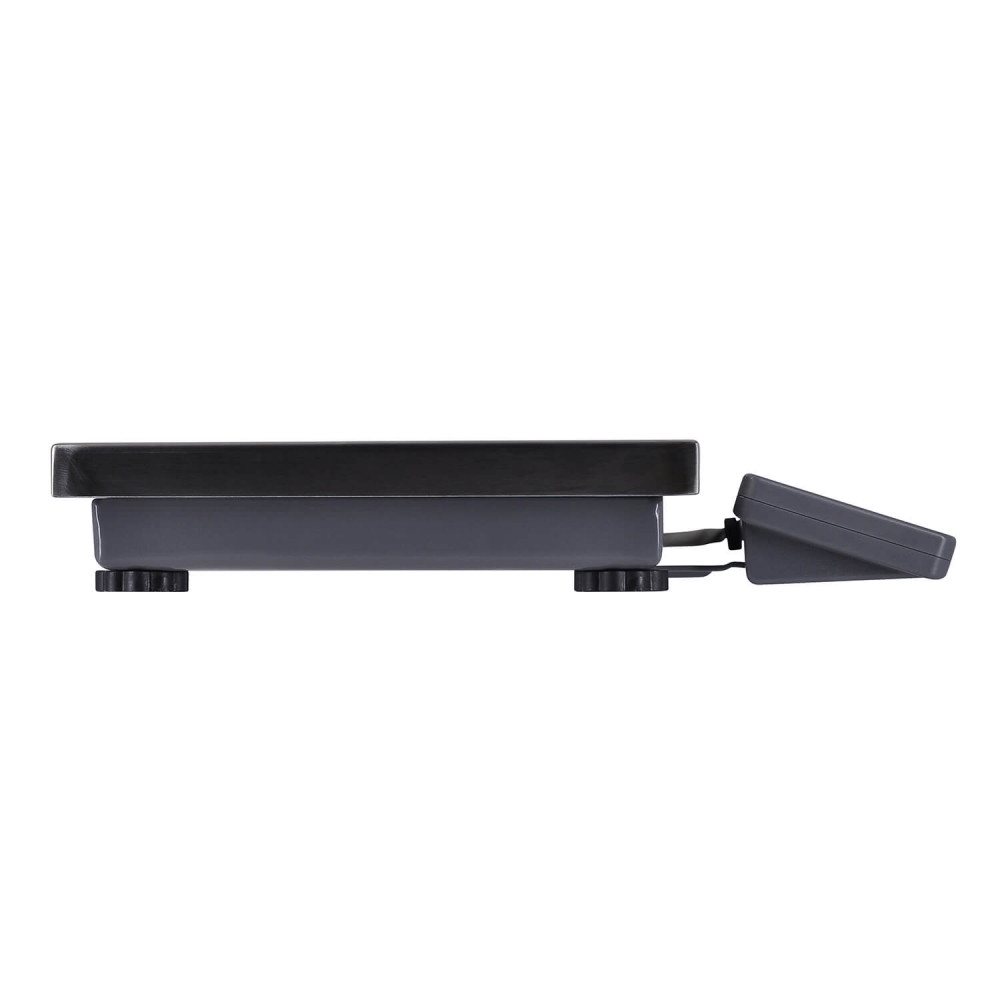

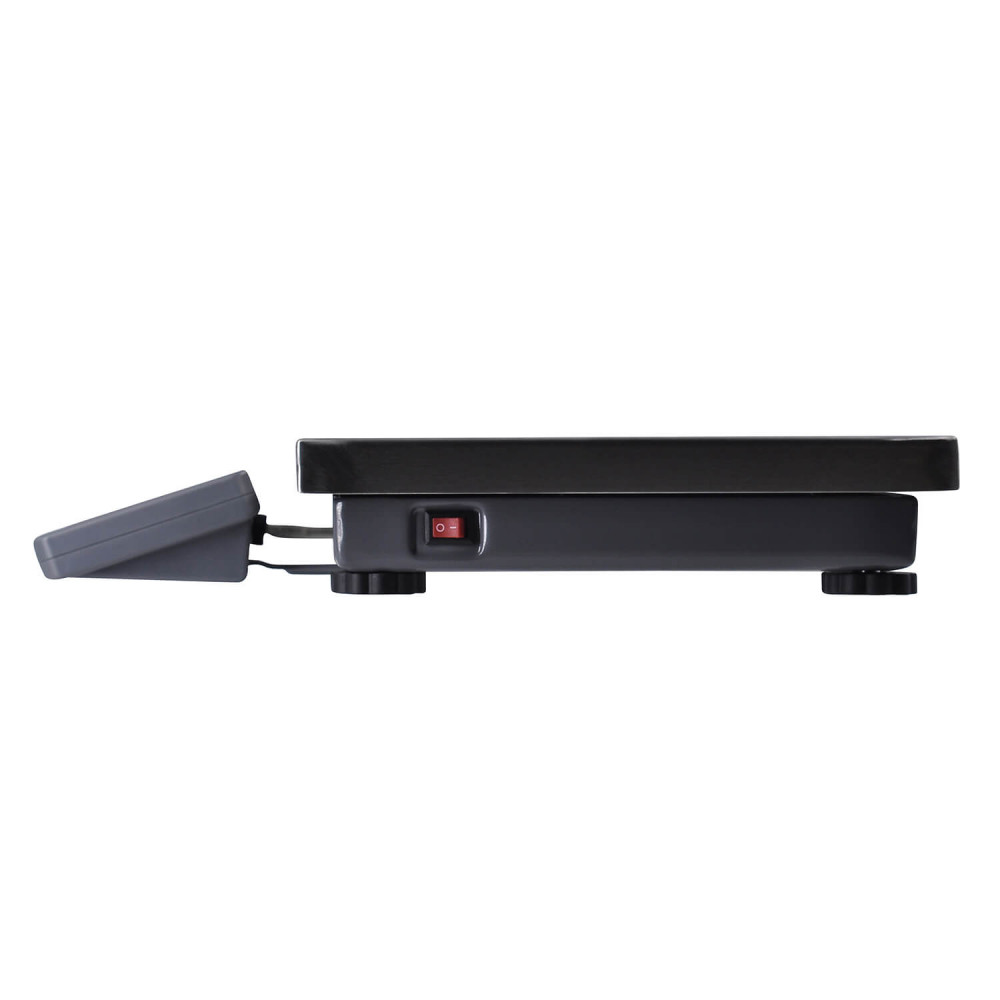

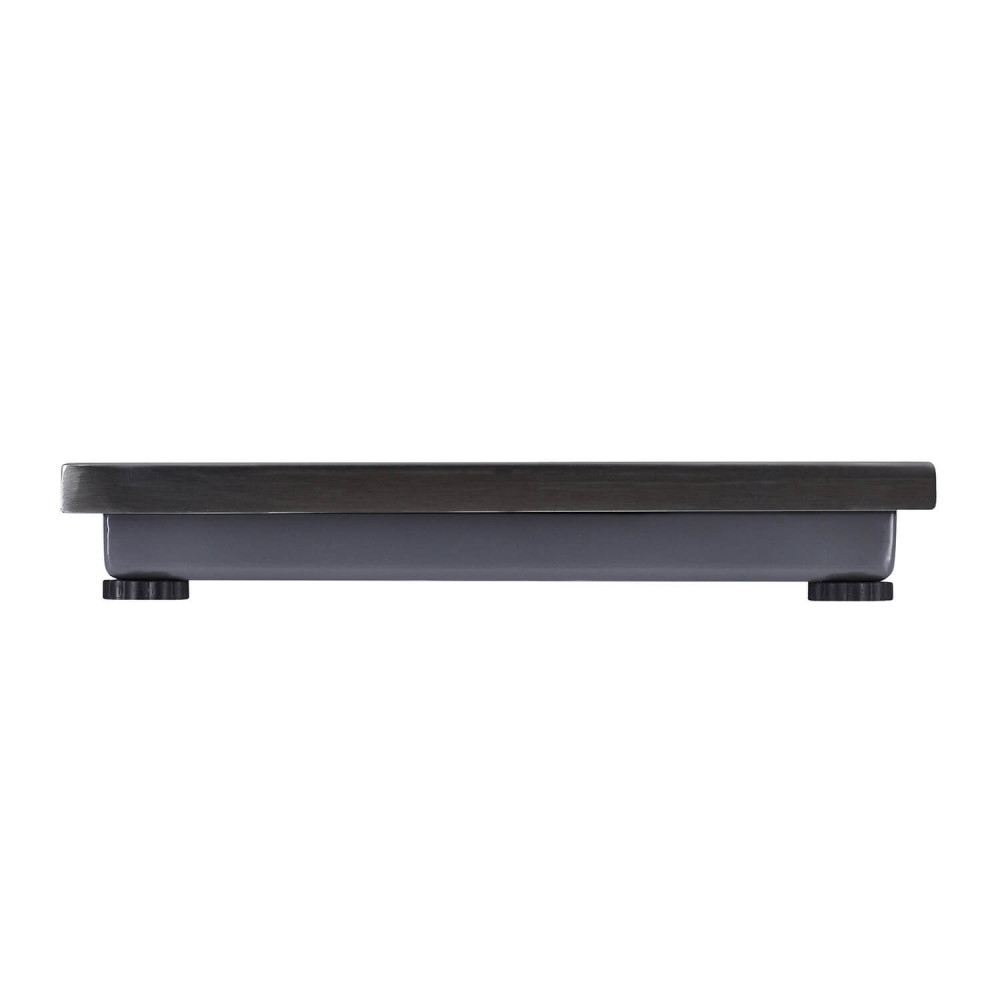

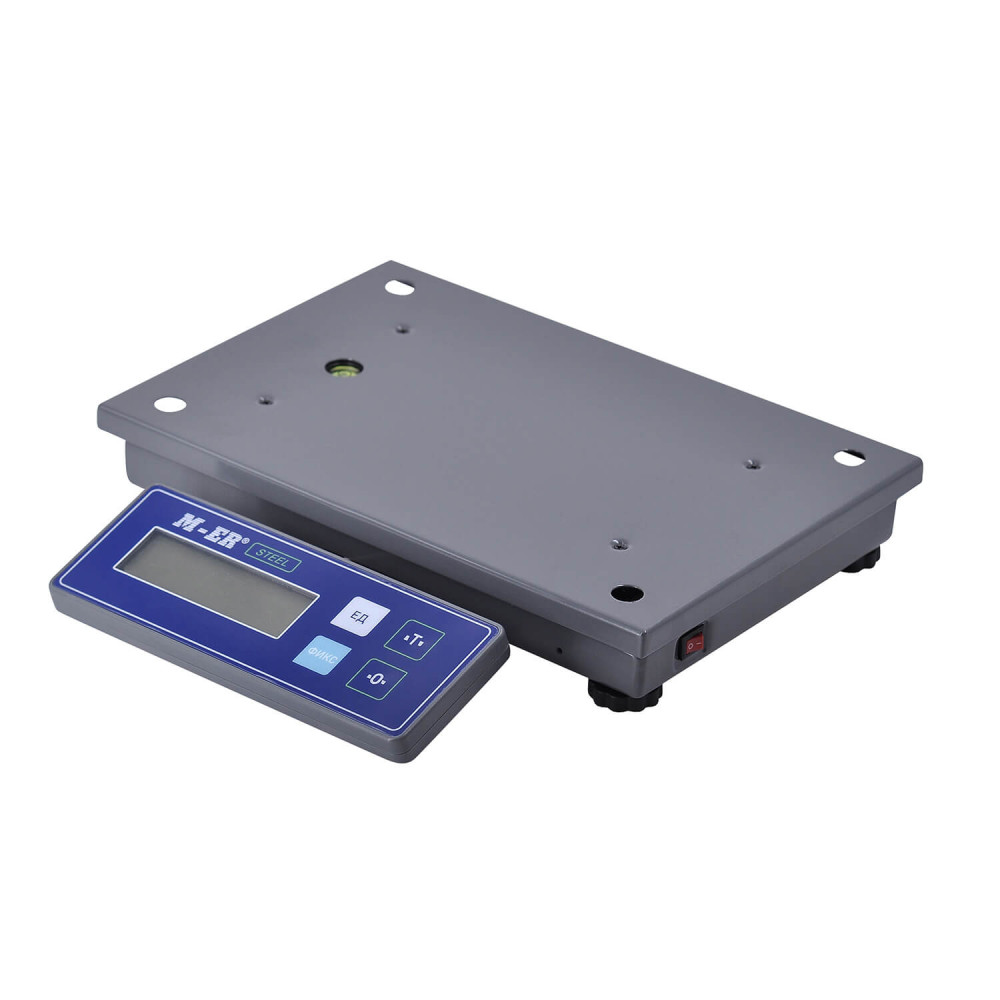

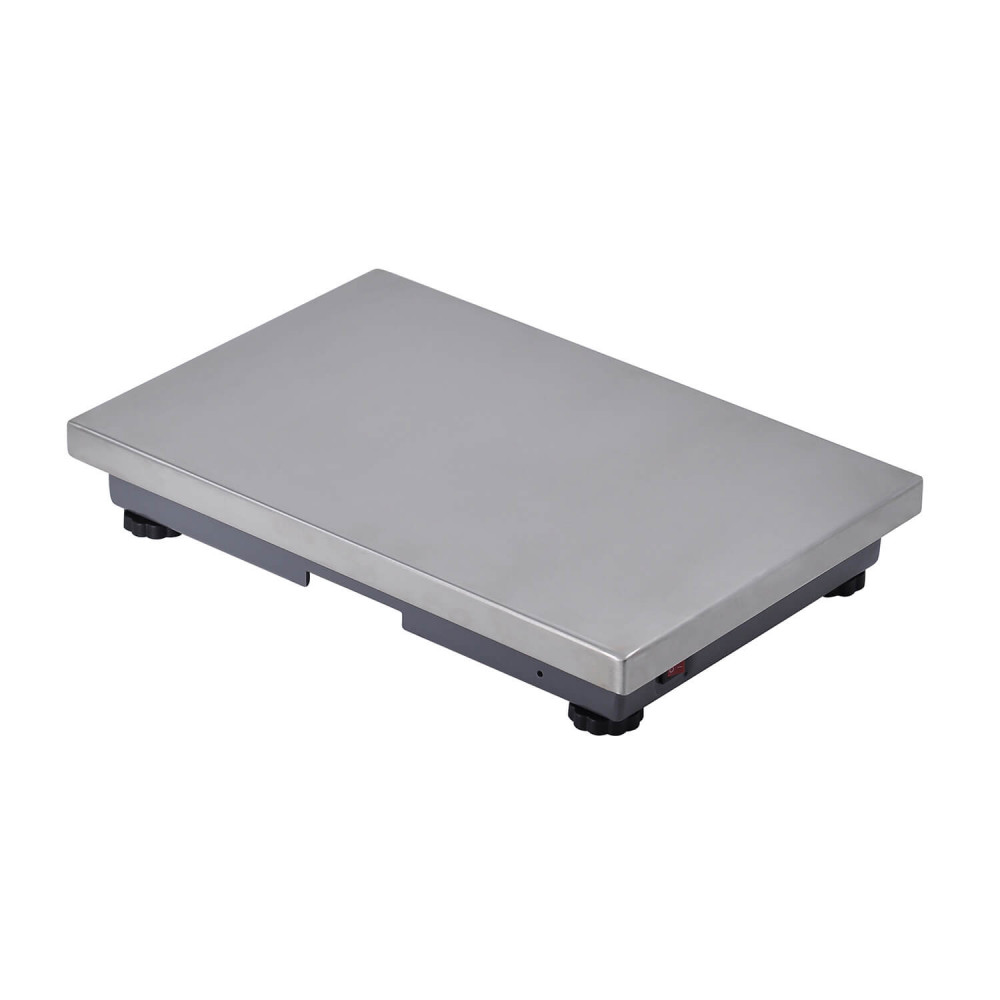

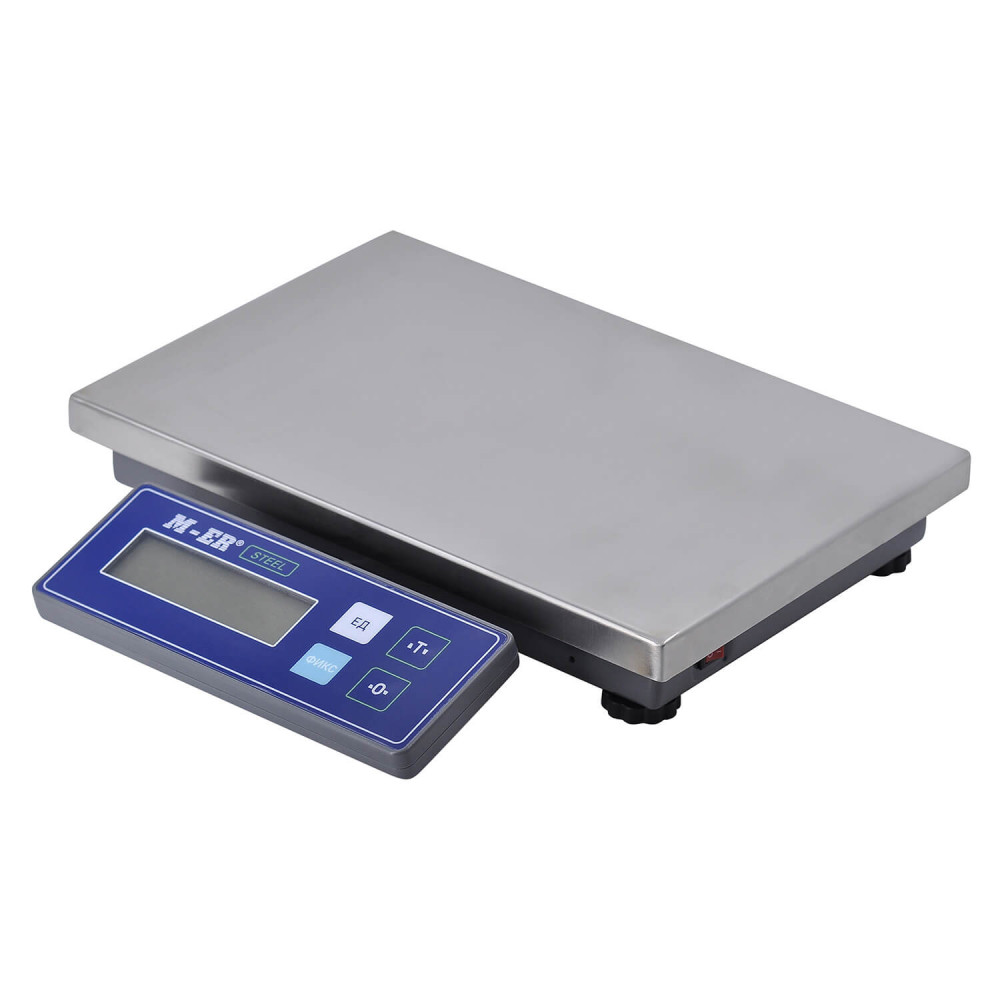

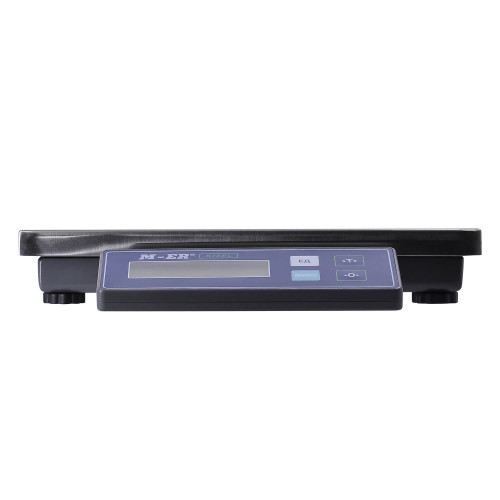

The M-ER 224 AFU-15.2 STEEL features a rectangular body with an LCD screen without a stand. The design is based on a sturdy and stable steel frame. The case is made of metal and plastic, while the weighing platform is made of stainless steel. The construction is reliably protected from external factors.
The control panel is completely airtight. It features 4 buttons for operation. Training on the working process does not take much time. Results are displayed on an LCD screen with 5 digits of 8*21 mm indication. The device operates on a high-capacity battery. A full charge lasts for a long time. A USB (COM) cable is included in the package.
You can purchase electronic scales at the lowest price on the MERTECH website. Deliveries are made throughout Azerbaijan.
| Type of scales | Packaging |
|---|---|
| Discreteness | 2 gr |
| Minimum weight | 40 gr |
| Number of keys | 4 |
| Weighing limit | 15 kg |
| Platform size | 300*200 |
| Execution | Tabletop |
| Verification | Yes |
| Accuracy class | Average (III) |
| Load cells, pcs. | 1 |
| Height adjustment, mm | Tabletop |
| Operating modes | Weighing mode; Weight fixing mode; Sound and visual indication; Self-diagnosis mode |
|---|---|
| Tare sampling range | The whole range |
| Units of measurement | Kg, Pound |
| Level | Yes |
| Battery | Optional |
|---|---|
| Nutrition | from USB 5V, 0.5A |
| Permissible humidity | up to 85% at 40°C, without moisture condensation |
| Atmospheric pressure | 630...800 mm Hg |
| Operating temperature | +5°C ~ +40°C |
| Display type | LCD |
|---|---|
| Number of displays | 1 |
| Number of indication digits | 5 |
| Character size, mm | 8*21 |
| CAS-M (Passive) | Yes |
|---|---|
| POS2-M | Yes |

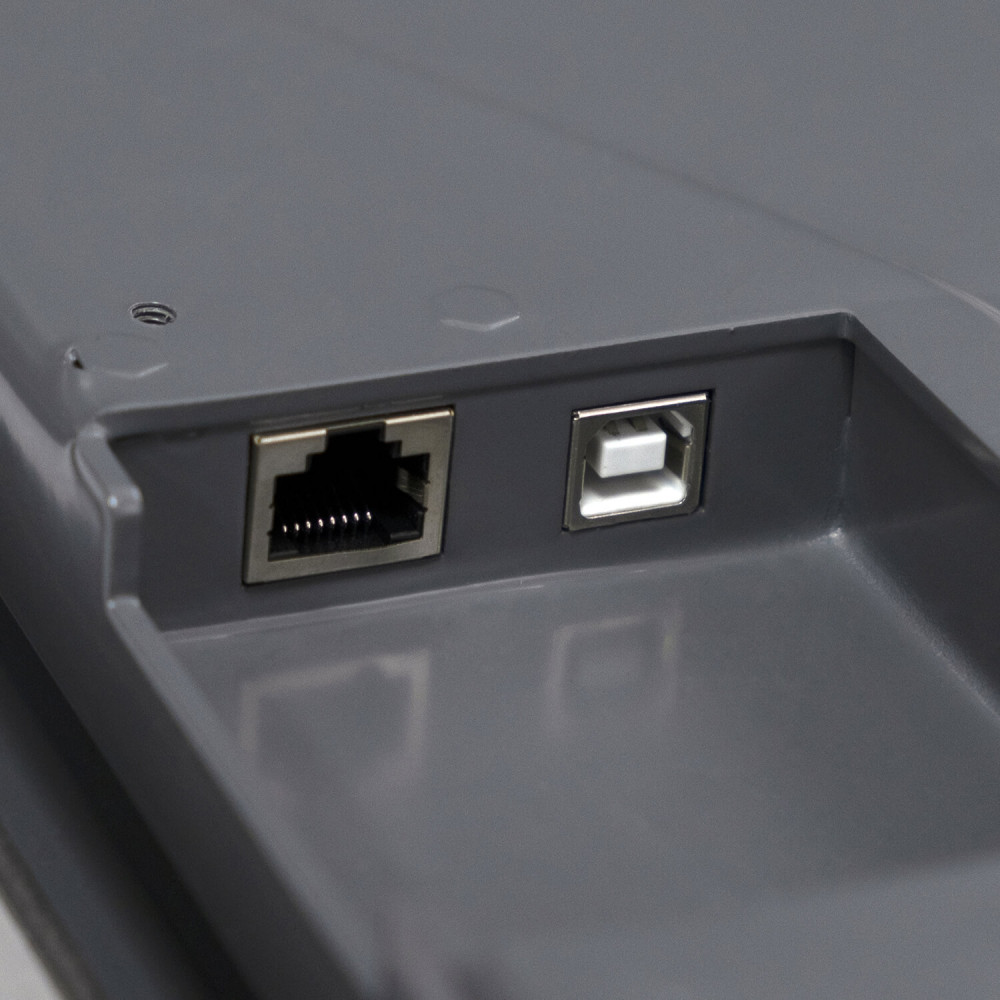

| Interfaces | USB |
|---|
| Color | Black |
|---|---|
| Overall dimensions (WxDxH), mm | 300*280*46 |
| Platform material | Stainless steel |
| Body material | Metal; plastic |
| Weight | 3.15 kg |
| Keyboard type | Push-button |
| Overload protection | Sound and visual notification |
| Moisture protection | Sealing the control panel |
| Equipment | Scales; Warranty card; Operation manual; USB(COM) cable |
|---|
-
