| Type of scalesPackaging | Discreteness5 gr | Minimum weight100 gr |
| Number of keys4 | Weighing limit32 kg | Platform size325*275 |
| ExecutionTabletop | VerificationYes | Accuracy classAverage (III) |

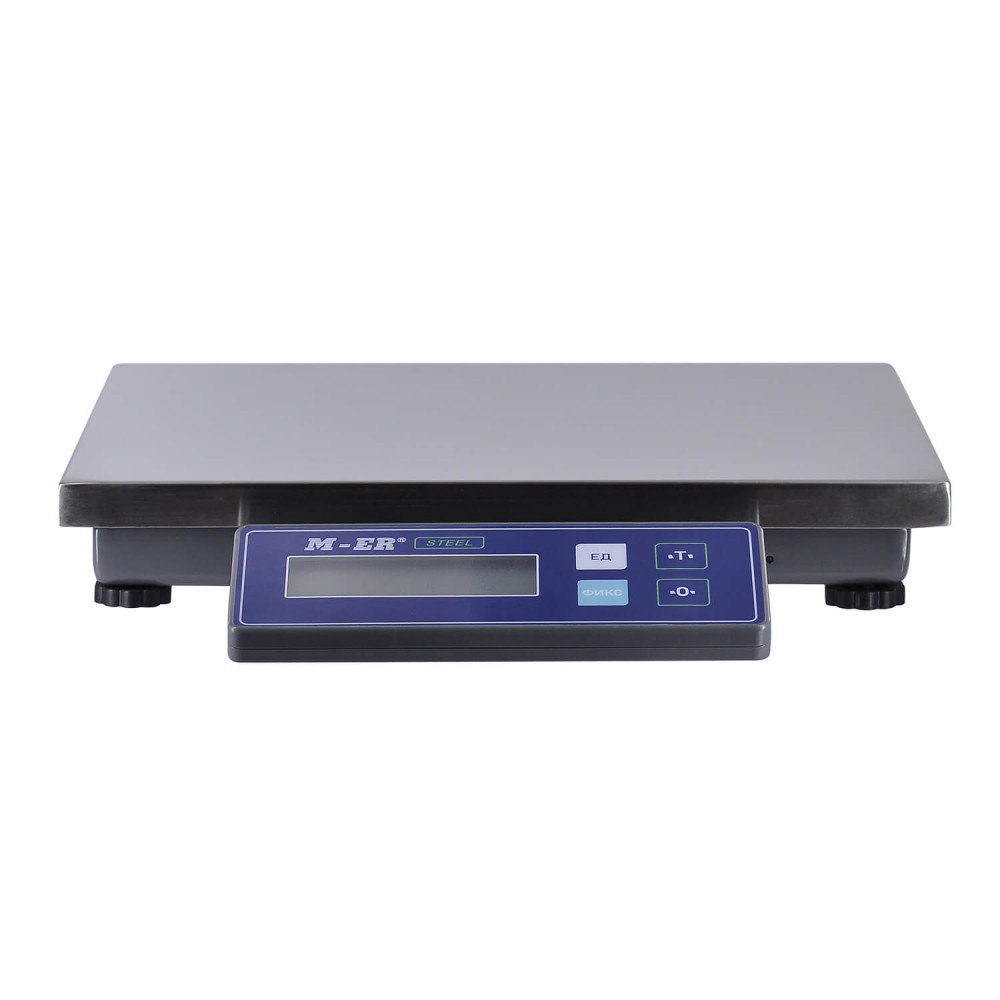

The desktop scale model M-ER 224 AF-32.5 STEEL LCD USB is suitable for weighing products in a store or warehouse. They are designed for weighing small wholesale batches weighing up to 32 kg. The large weighing platform measuring 325*275 mm is convenient to work with. The device can be connected to a cash register and recharged via USB cable.
Advantages of the Model
The weighing equipment meets the criteria of class III accuracy according to GOST. The claimed characteristics are confirmed by a calibration certificate. The device can be used for working with any products. The scale can be installed in the sales area as a control scale.
Advantages of the weighing equipment:
- weighing in kilograms or pounds;
- POS2-M and CAS-M (Passive) protocols;
- sensitive load cell with 7,000 divisions;
- protection against short-term overloads;
- double galvanization of steel panels.
The electronic scales operate in basic weighing or mass recording mode. The minimum measurement increment is 5 grams. Light and sound indication during weighing simplifies the operator's work. The device can perform self-diagnostics.
Design Features

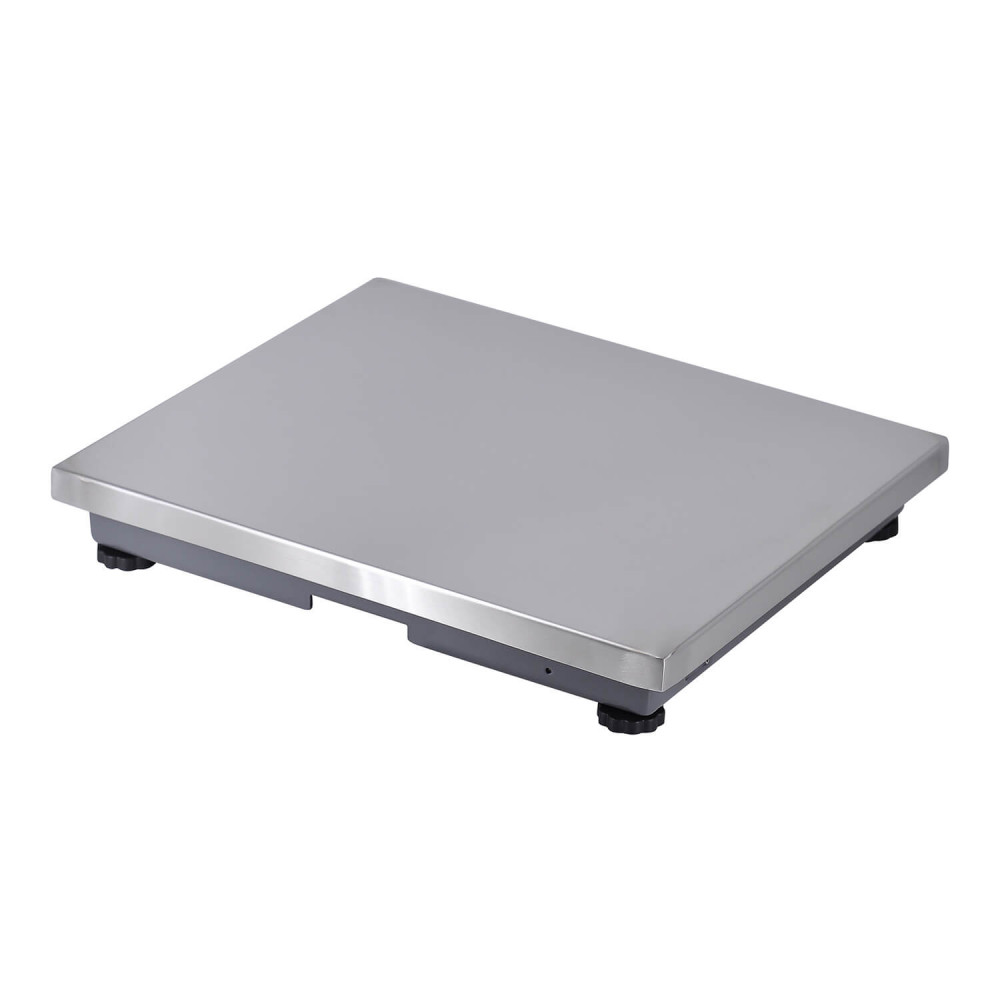

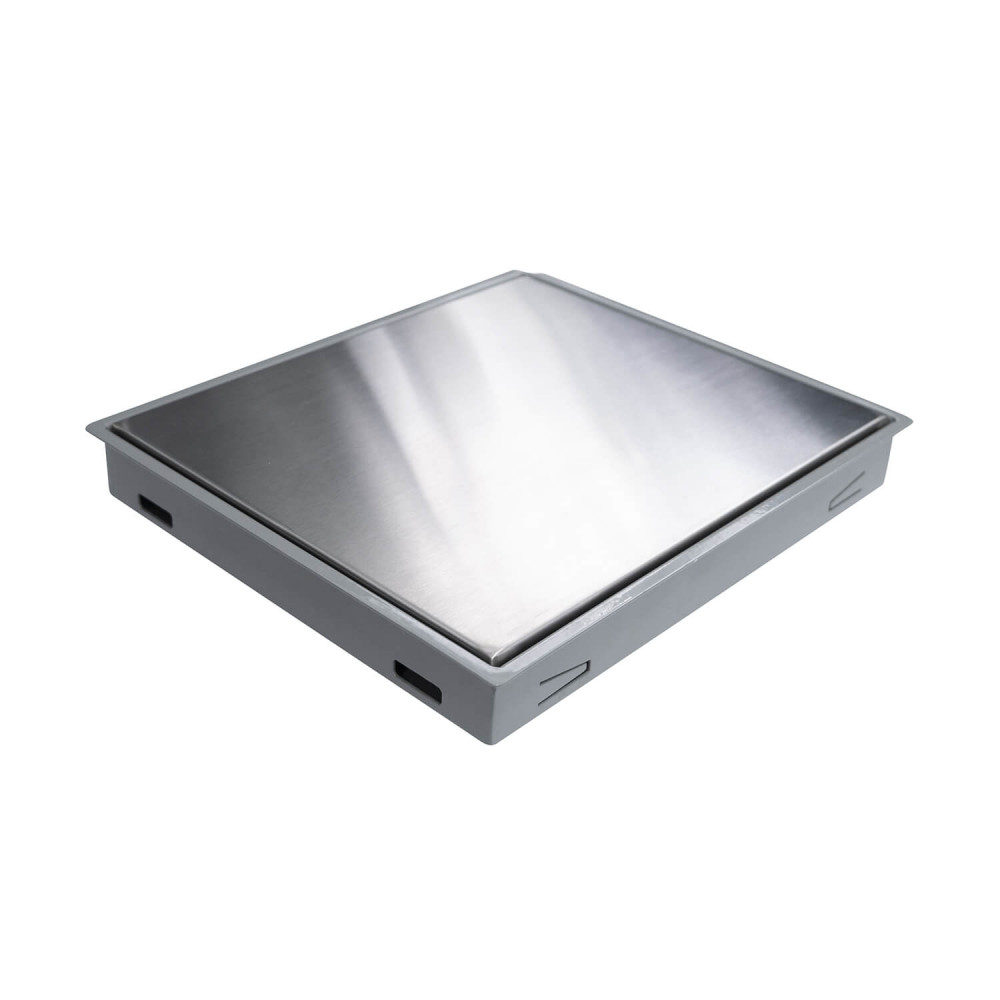

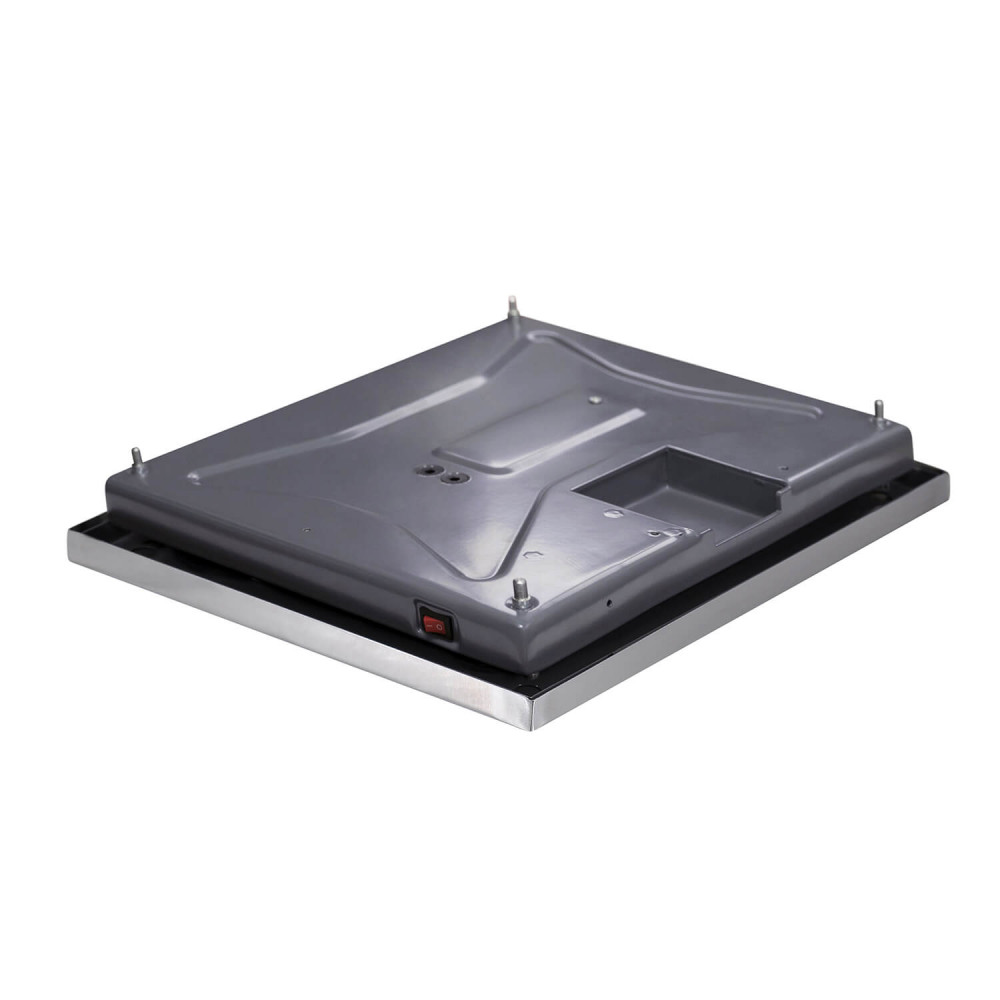

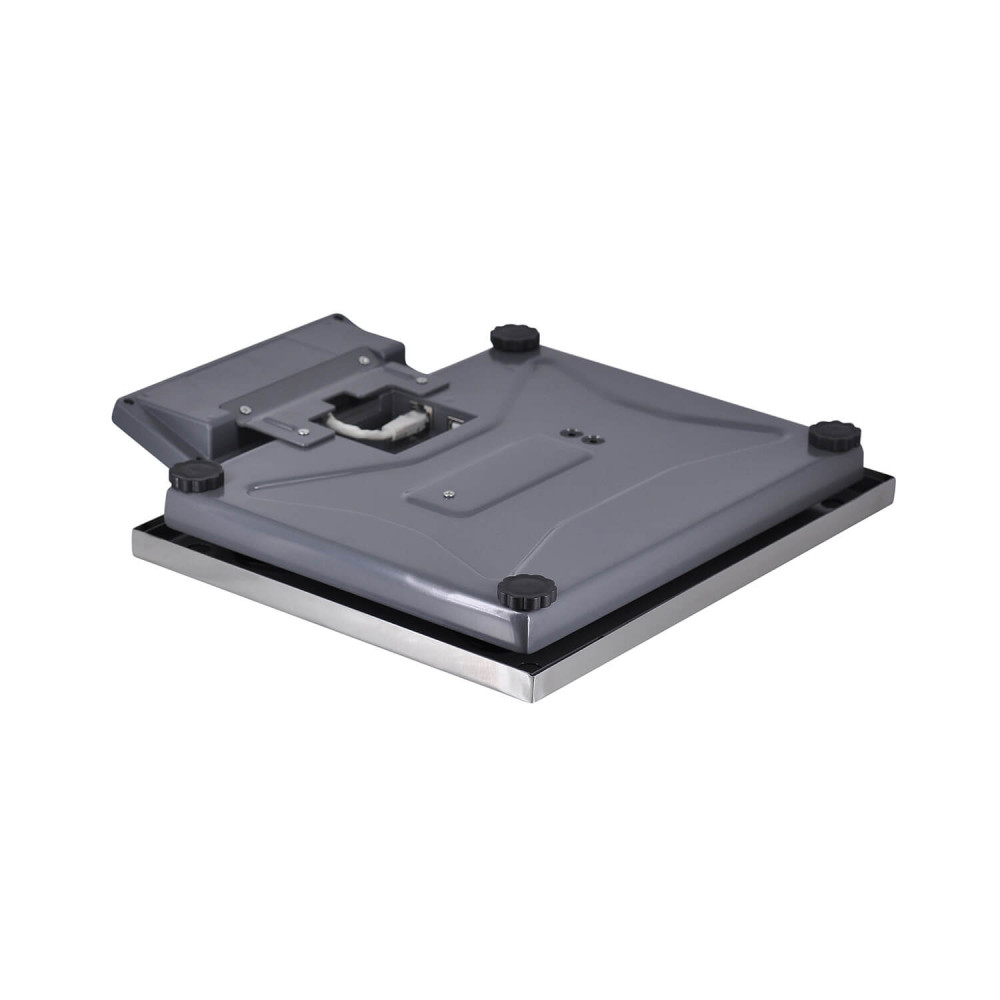

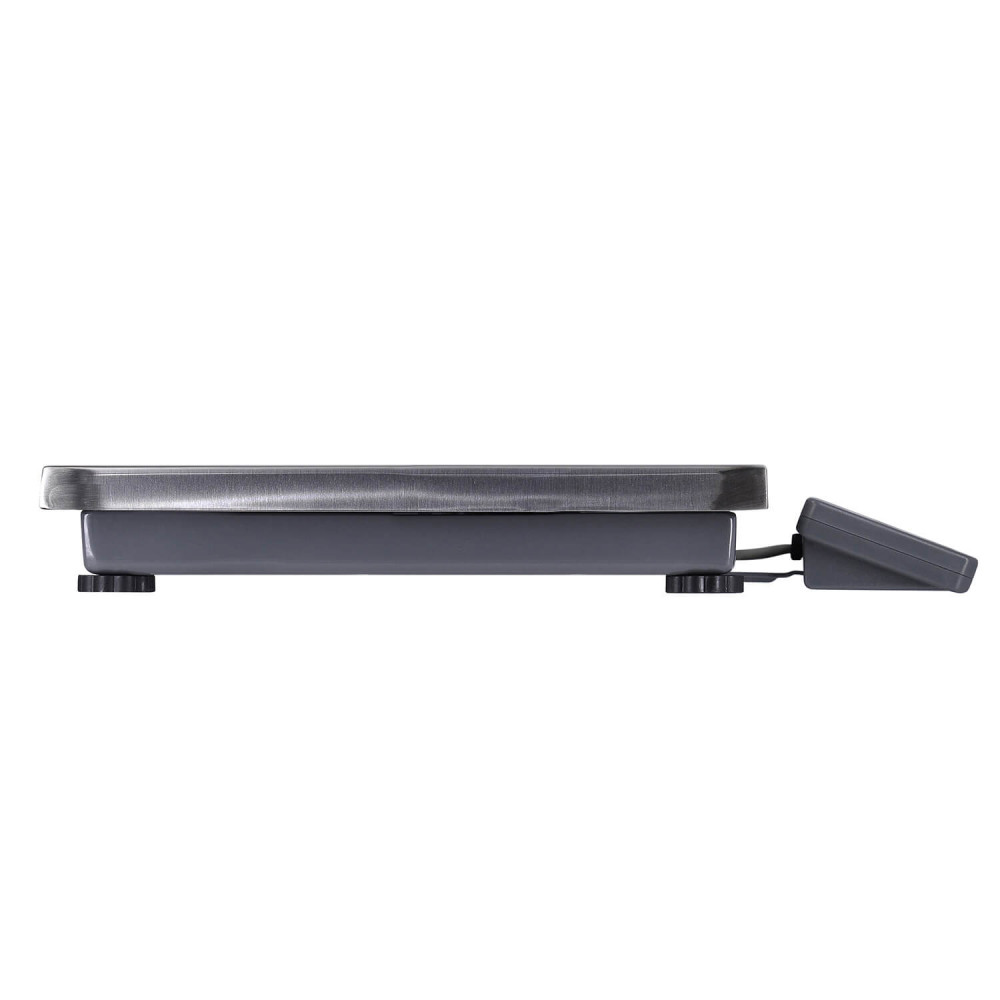

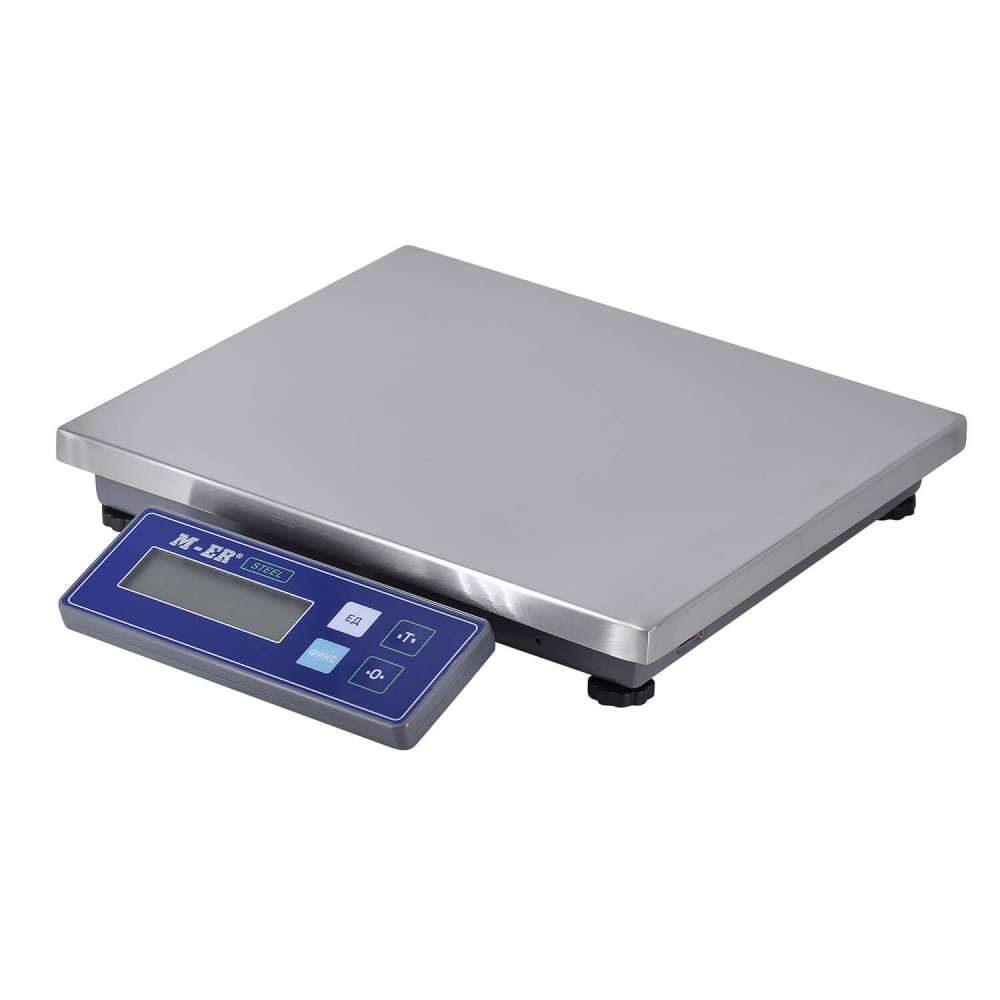

The M-ER 224 AF-32.5 STEEL model has a classic shape for desktop scales. The LCD display is mounted on the case. The design is based on a rigid metal frame, to which external panels made of metal and plastic are attached. The weighing platform is entirely metal. The case design reliably protects the electronics from impacts.

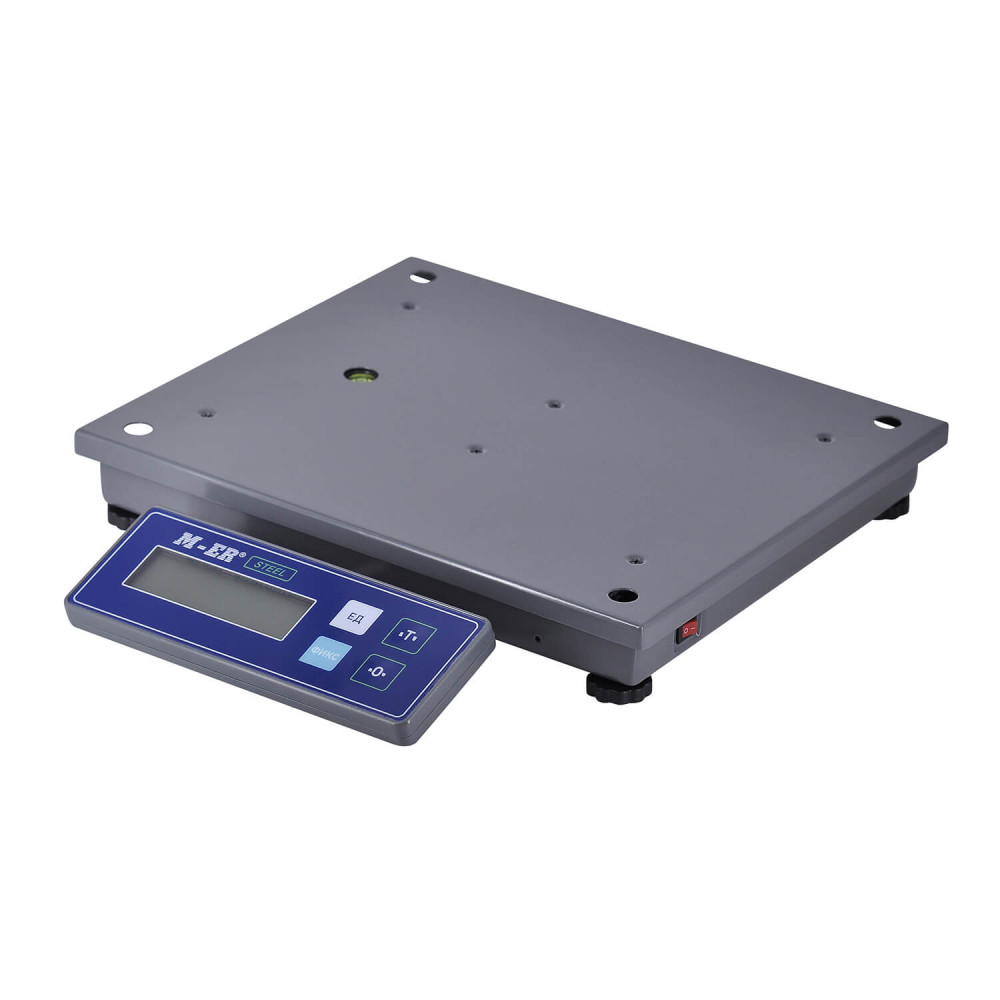

The device is controlled using a sealed keyboard with 4 buttons. The working interface is easy to master, and training new employees will not take much time. Results are displayed on an LCD screen with 5-digit indication (character height 8*21 mm).

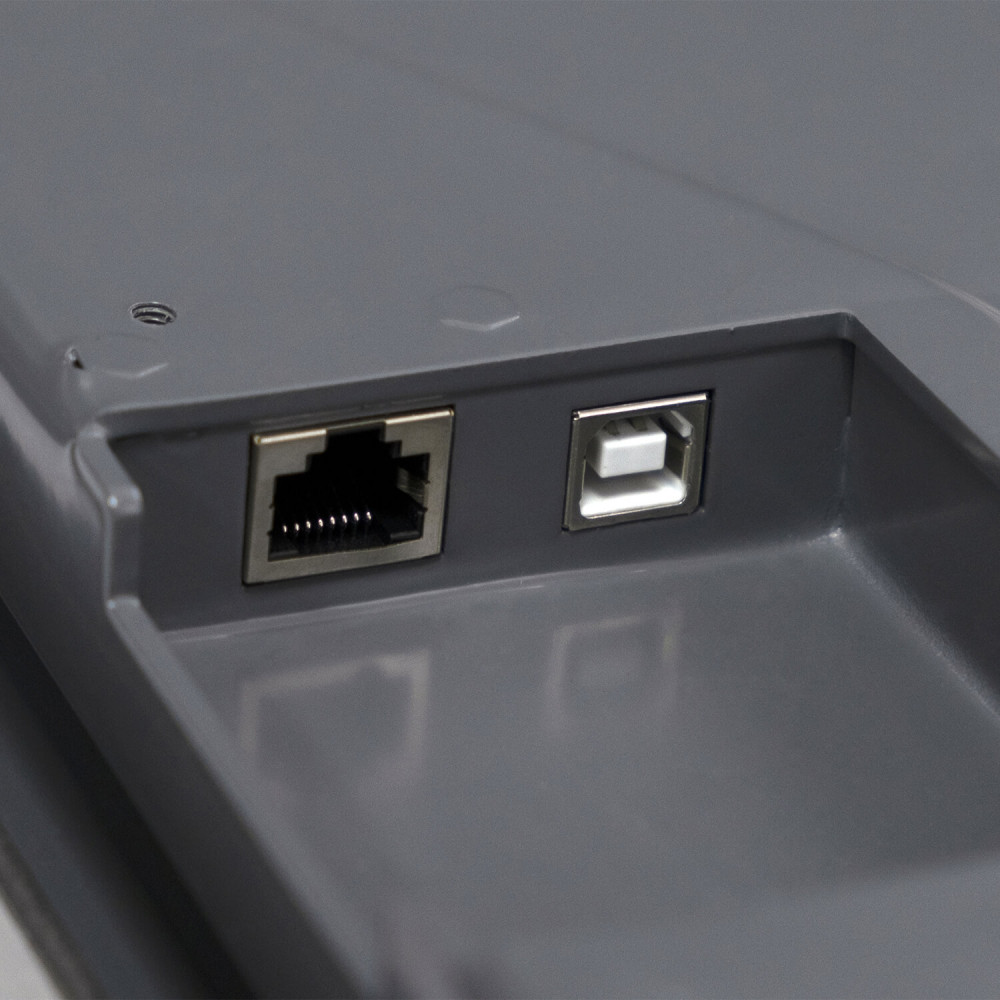

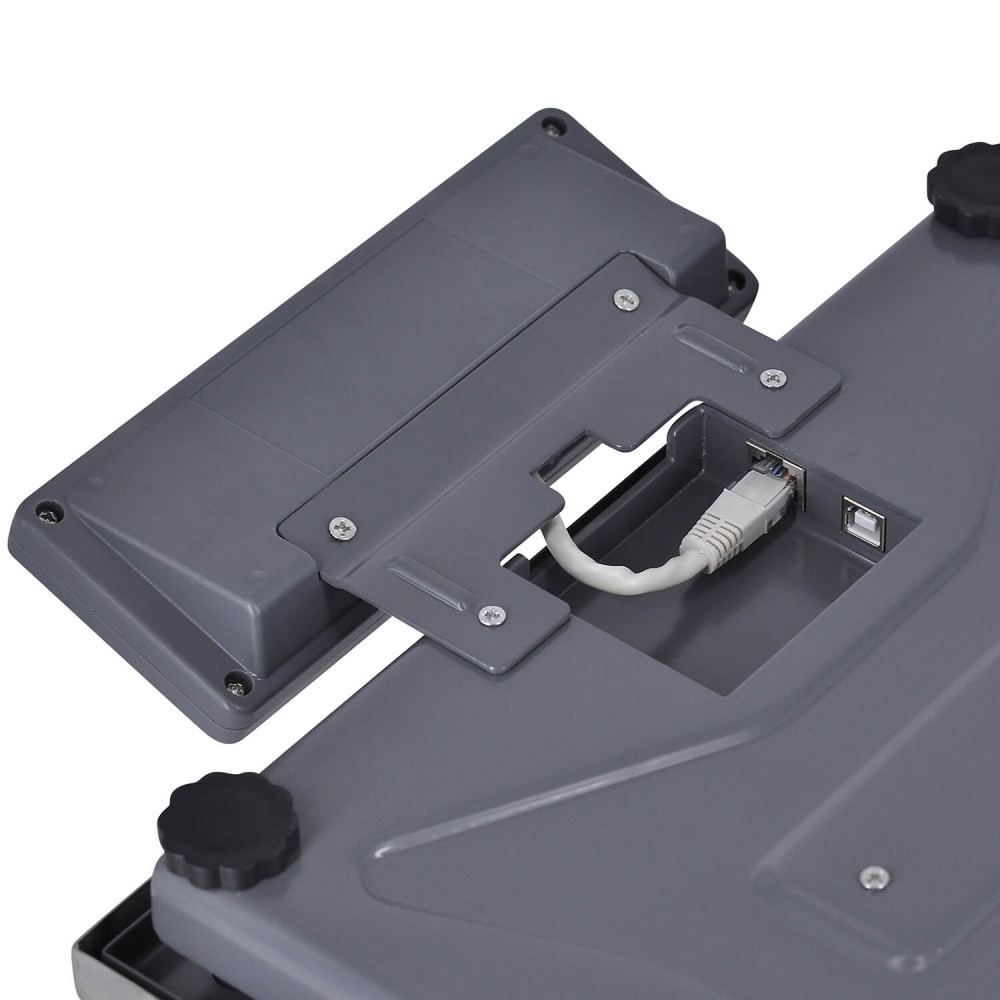

The equipment can operate from the mains or from a battery. The energy-efficient battery ensures long operation on a single charge. A USB (COM) cable is included in the package.
You can purchase electronic scales at a low price from the manufacturer on the MERTECH company website. We will deliver the equipment for business to any point in Azerbaijan.
| Type of scales | Packaging |
|---|---|
| Discreteness | 5 gr |
| Minimum weight | 100 gr |
| Number of keys | 4 |
| Weighing limit | 32 kg |
| Platform size | 325*275 |
| Execution | Tabletop |
| Verification | Yes |
| Accuracy class | Average (III) |
| Load cells, pcs. | 1 |
| Height adjustment, mm | Tabletop |
| Operating modes | Weighing mode; Weight fixing mode; Sound and visual indication; Self-diagnosis mode |
|---|---|
| Tare sampling range | The whole range |
| Units of measurement | Kg, Pound |
| Level | Yes |
| Battery | Optional |
|---|---|
| Nutrition | from USB 5V, 0.5A |
| Permissible humidity | up to 85% at 40°C, without moisture condensation |
| Atmospheric pressure | 630...800 mm Hg |
| Operating temperature | +5°C ~ +40°C |
| Display type | LCD |
|---|---|
| Number of displays | 1 |
| Number of indication digits | 5 |
| Character size, mm | 8*21 |
| CAS-M (Passive) | Yes |
|---|---|
| POS2-M | Yes |
| Interfaces | USB |
|---|
| Color | Black |
|---|---|
| Overall dimensions (WxDxH), mm | 325*350*46 |
| Platform material | Stainless steel |
| Body material | Metal; plastic |
| Weight | 4.75 kg |
| Keyboard type | Push-button |
| Overload protection | Sound and visual notification |
| Moisture protection | Sealing the control panel |
| Equipment | Scales; Warranty card; Operation manual; USB(COM) cable |
|---|
-
