| Type of scalesPackaging | Discreteness5 gr | Minimum weight100 gr |
| Weighing limit32 kg | Platform size330*255 mm | ExecutionTabletop |
| VerificationYes | Accuracy classAverage (III) | Load cells, pcs.1 |

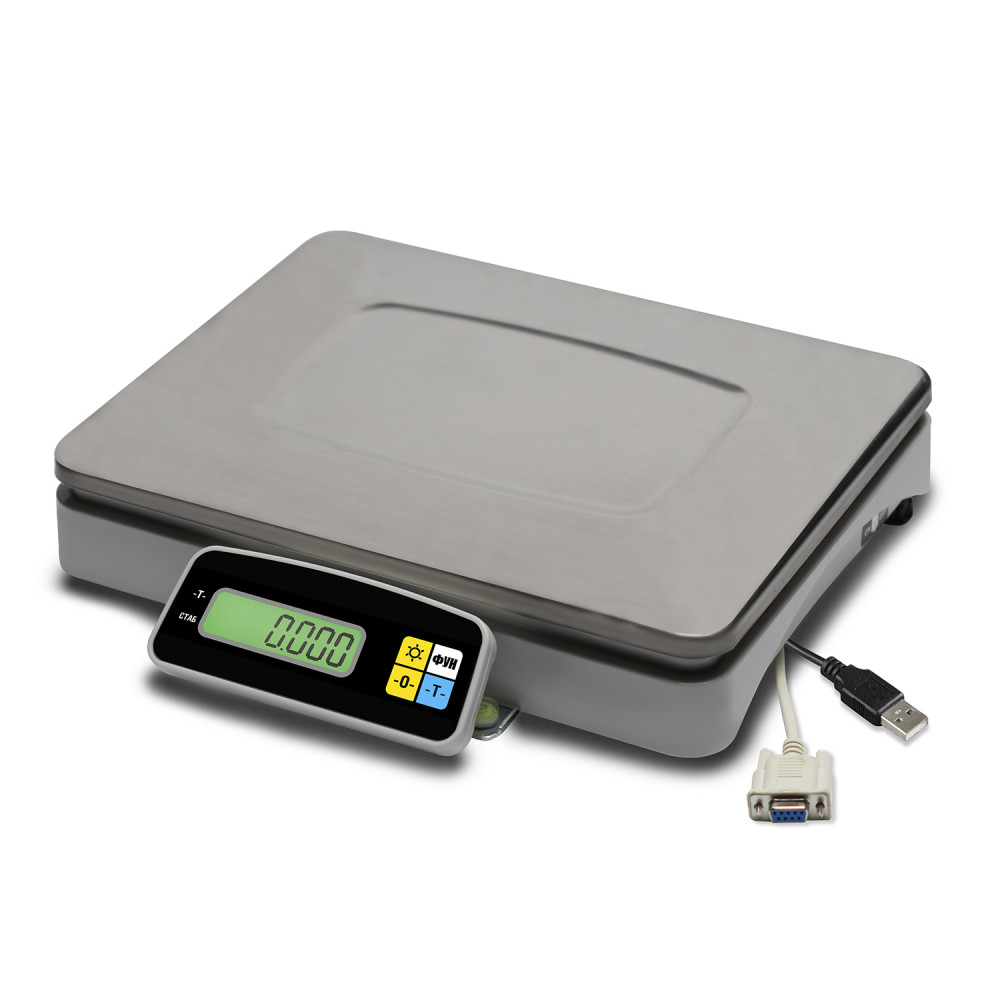

M-ER 222 F-32.5 "Connect" LCD USB and RS-232 scales feature an ultra-slim platform. The model can be used for integration into cash registers or counters by removing the display. The design includes 2 interfaces for connecting to a POS system: RS-232 and USB-COM. The weight results are displayed on an external LCD display (with backlight).
Design Features
The 222 F "Connect" model is distinguished by its compact dimensions. The body size is 330*320*80 mm, while the load platform size is 330*255 mm. This is one of the thinnest models available on the market. The catalog presents 2 variants of the model, which differ in technical specifications:
- M-ER 222 F-15.2. Maximum load – 15 kg. Minimum – 40 g. Division price – 2 g.
- M-ER 222 F-32.5. Maximum load – 32 kg. Minimum – 100 g. Division price – 5 g.
The accuracy class of weighing is III (for trade). The declared characteristics are confirmed by state verification. The model operates according to the CAS-M protocol. In addition to simple weighing, a tare weight subtraction mode is available.
Integrated scales save space on the cashier's desk and speed up customer service. The weighing results are transmitted to the POS computer and added to the cash register receipt. The cashier only needs to specify the type of product. All other operations are performed automatically.
Connection and Setup
A flat, vibration-free surface is suitable for installation. To ensure accurate measurements, the platform should be installed horizontally. The position of the load platform can be adjusted using vertical supports.
Connection to the POS computer is done via RS-232 and USB-COM. Cables are included in the package. Synchronization with most online cash registers and smart terminals occurs using free drivers. We guarantee compatibility with Mercury, Evaton, Atol, MTS, Shtrikh, and other brands' equipment.
The M-ER 222 F-32.5 "Connect" LCD USB and RS-232 operates from the power supply. After installation and connection, the LCD screen will begin a self-test. When the readings equal "0", the device will be ready for operation. The stabilization indicator will turn on automatically.
Place an Order
You can purchase M-ER 222F "Connect" trade scales at the manufacturer's price. We sell weighing equipment without markup. Delivery of orders is carried out throughout Baku and Azerbaijan. Free consultations on installation, connection, and setup of the scales are available for customers. To buy weighing equipment, please leave a request on the website.
| Type of scales | Packaging |
|---|---|
| Discreteness | 5 gr |
| Minimum weight | 100 gr |
| Weighing limit | 32 kg |
| Platform size | 330*255 mm |
| Execution | Tabletop |
| Verification | Yes |
| Accuracy class | Average (III) |
| Load cells, pcs. | 1 |
| Tare sampling range | The whole range |
|---|---|
| Units of measurement | Gr; kg |
| Self-diagnosis mode | Yes |
| Visual indication | Yes |
| Level | Yes |
| Guarantee | 2 years |
|---|---|
| Applications of scales | For connection to 1C, For a store, For connection to a POS computer, For food products |
| Verification | Yes |
| Nutrition | via USB |
| Permissible humidity | 85% |
| Atmospheric pressure | 630...800 mm Hg |
| Operating temperature | -10°C ~ +40°C |
| Display type | LCD |
|---|---|
| Number of indication digits | 5 |
| Character size, mm | 8*21 |
| Interfaces | RS-232; USB |
|---|
| Overall dimensions (WxDxH), mm | 340*240*77 |
|---|---|
| Platform material | Stainless steel |
| Body material | Plastic, metal |
| Weight | 3.75 kg |
| Keyboard type | Industrial sensor |
| Overload protection | Sound and visual notification |
| Corrosion protection | Galvanization |
| Moisture protection | IP 54 |
| Adjustable supports | Yes |
-
