| Type of scalesPackaging | Discreteness2 gr | Minimum weight40 gr |
| Weighing limit15 kg | Platform size330*255 mm | ExecutionTabletop |
| VerificationYes | Accuracy classAverage (III) | Load cells, pcs.1 |

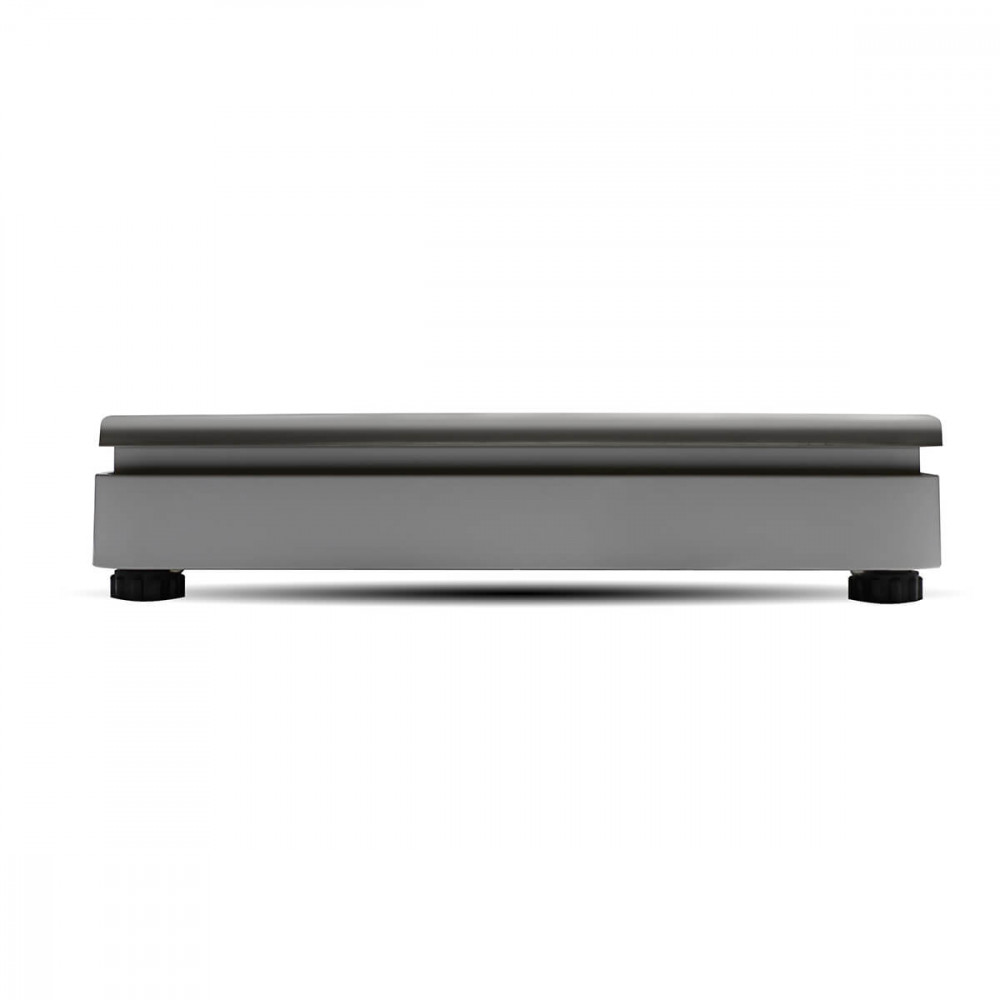

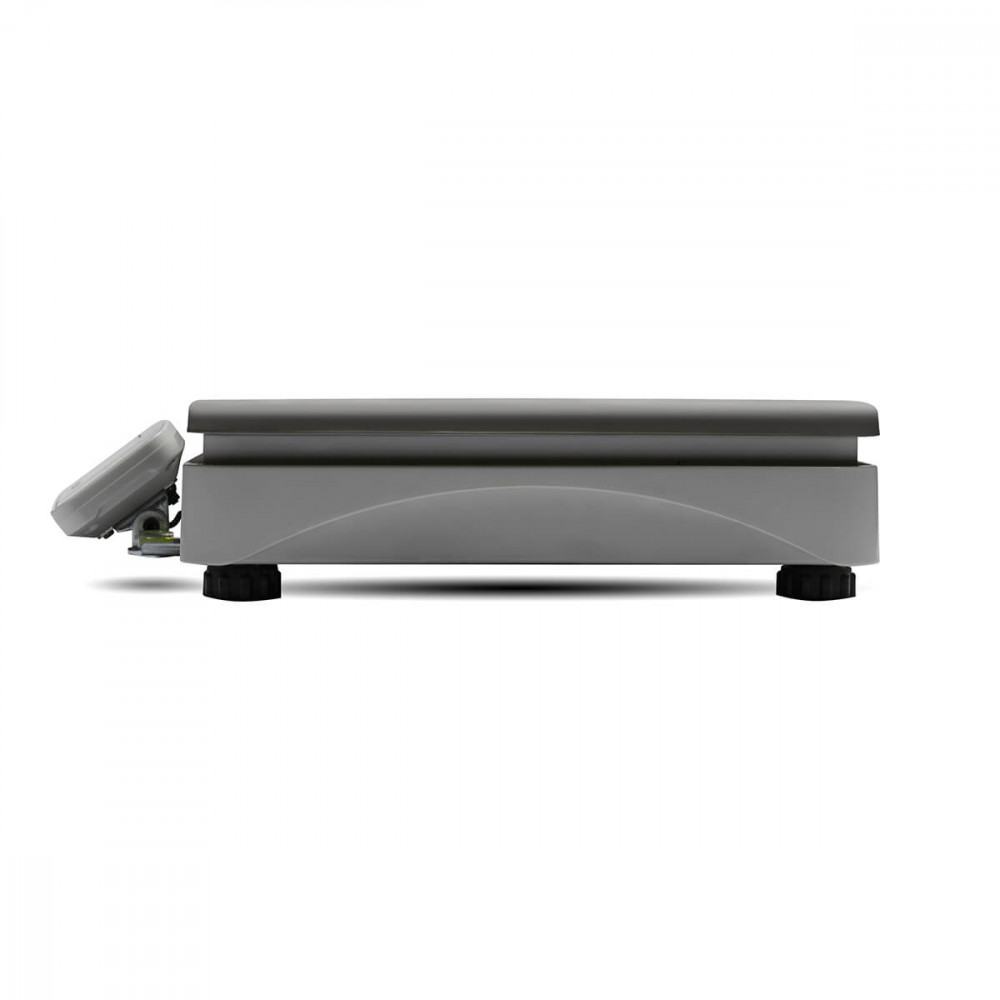

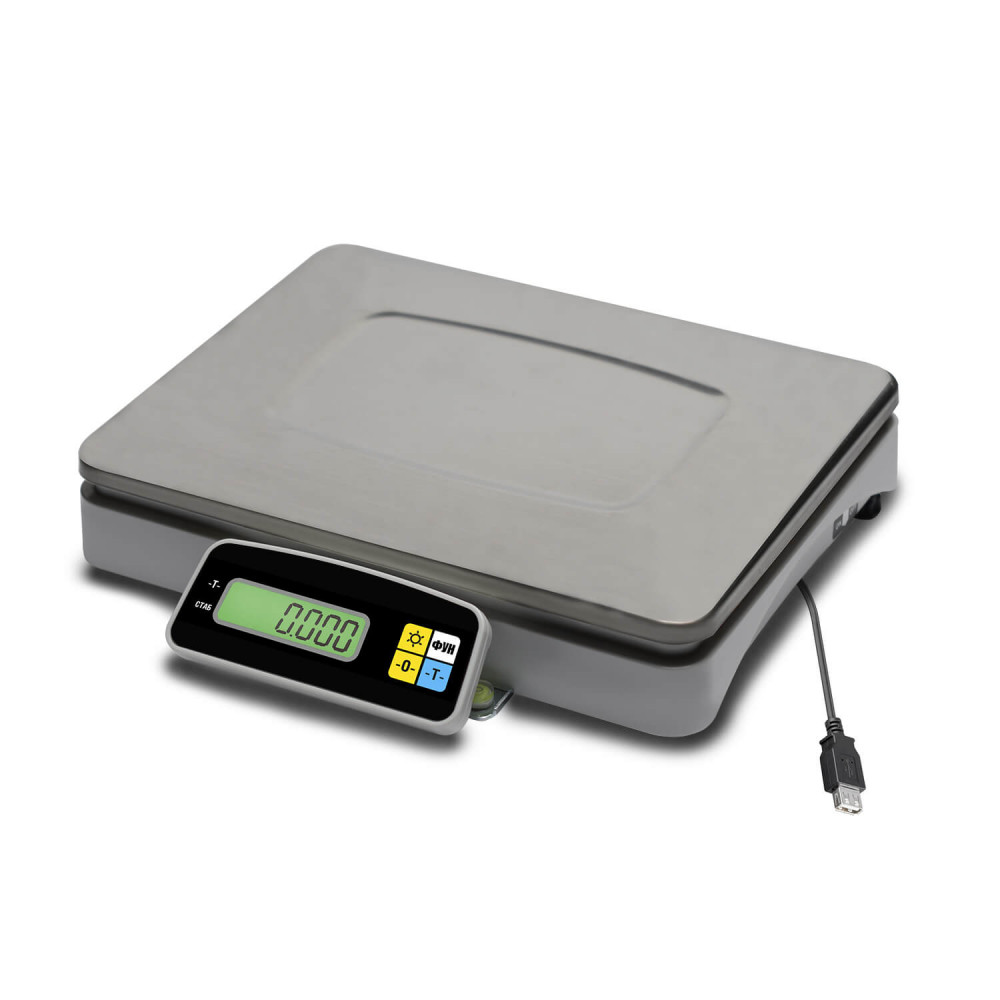

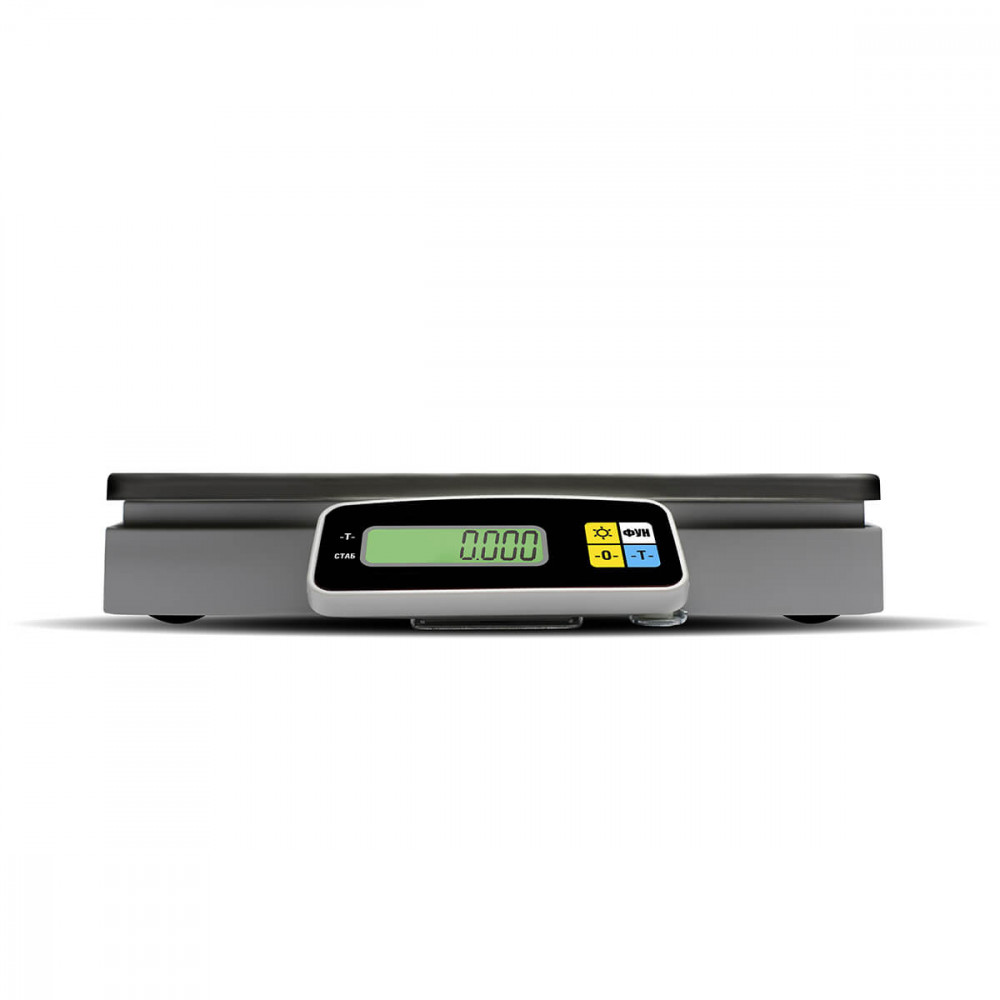

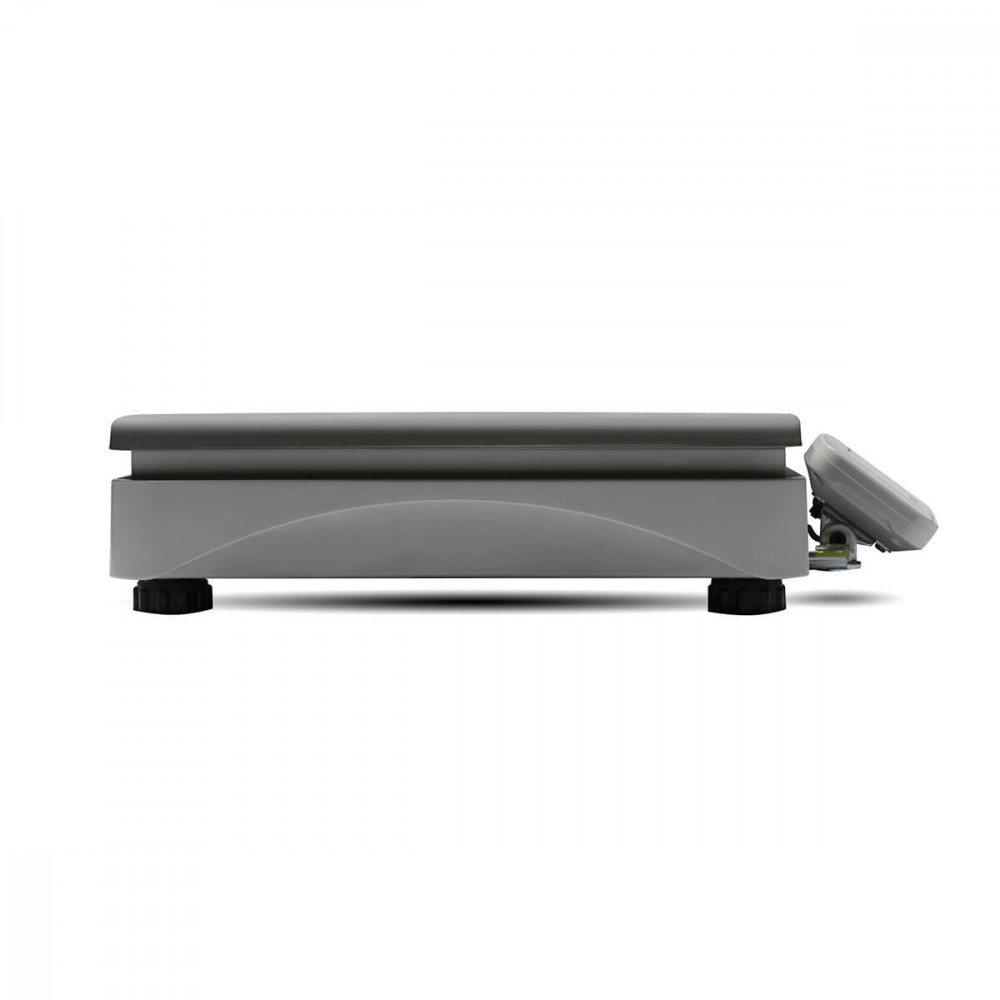

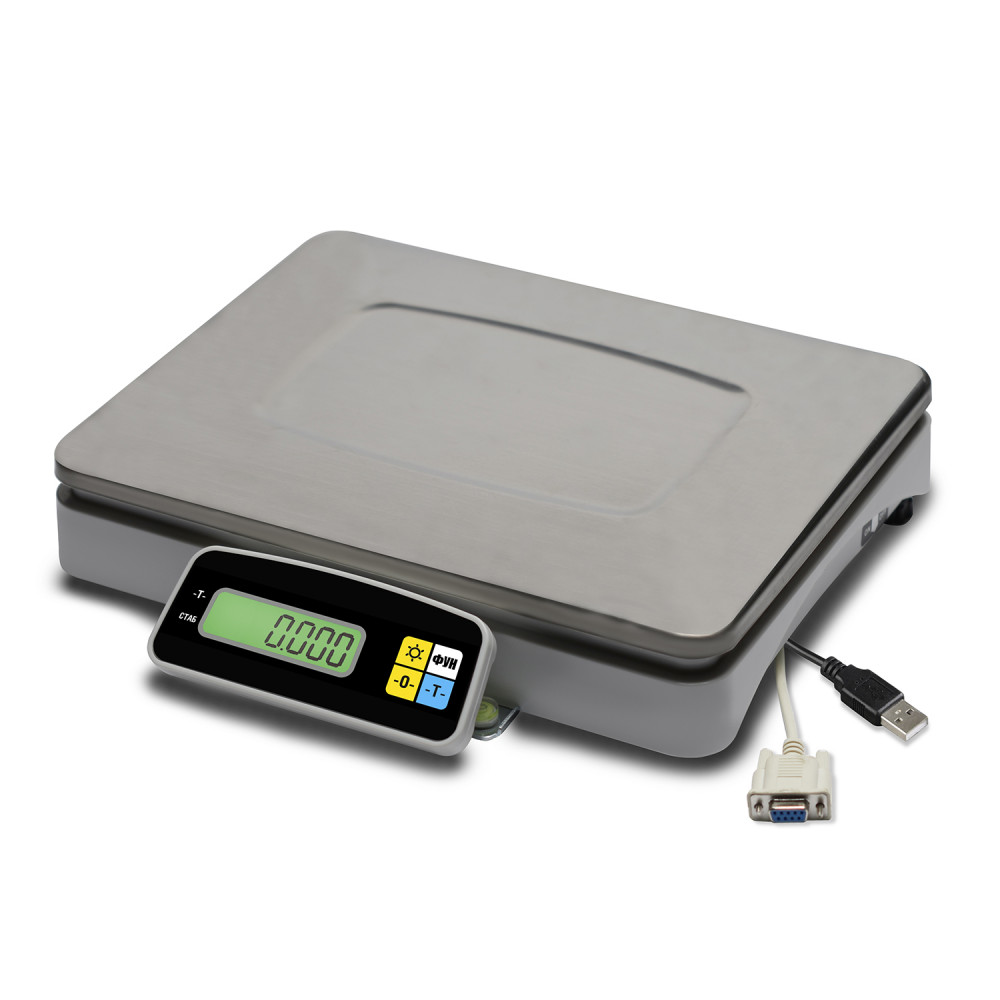

M-ER 222 F-15.2 "Connect" LCD USB (COM) is ultra-thin weighing scales. The model can be used for integration into cashier desks or boxes. The built-in model saves space on the cashier's working desk. A USB (COM) interface is used for connection to the POS system. The weighing results are displayed on an LCD screen (with backlight).
Design Features
The M-ER 222 F model stands out with its compact dimensions. The dimensions of the body are 330*320*80 mm. The platform size is 330*255 mm. These are among the thinnest scales available on the market. The weighing accuracy class is III. The device operates according to the CAS-M protocol.
MERTECH produces two variants of the model. They differ in weighing limits:
- M-ER 222 F-15.2. Maximum load – 15 kg. Minimum load – 40 grams. Division price – 2 grams.
- M-ER 222 F-32.5. Maximum load – 32 kg. Minimum load – 100 grams. Division price – 5 grams.
Operating Rules
The device can be placed on a flat surface that is not prone to vibration. The platform should be positioned horizontally. Its position can be adjusted with supports. After installation, it is necessary to connect to the POS computer via the LCD USB (COM) cable. Synchronization with most online cash registers occurs automatically (drivers are included).
After installation, the device can be turned on. The display will count down to 0. After that, "0" will be displayed on the screen, and the stabilization indicator will turn on. When this happens, the equipment will be ready for operation. You can start weighing goods. The results will be displayed on the screen and transmitted to the POS system.
Do not overload the scales by more than 5 times the maximum weighing limit.
Place an Order
You can buy the M-ER 222AF "Connect" trading scales at a low price. We sell the equipment without a markup, directly from the manufacturer. Delivery of goods is carried out throughout Baku or Azerbaijan. Free consultations on integration, connection, and setup of scales are available. To place an order, please call the phone number or leave a request on the website.
| Type of scales | Packaging |
|---|---|
| Discreteness | 2 gr |
| Minimum weight | 40 gr |
| Weighing limit | 15 kg |
| Platform size | 330*255 mm |
| Execution | Tabletop |
| Verification | Yes |
| Accuracy class | Average (III) |
| Load cells, pcs. | 1 |
| Tare sampling range | The whole range |
|---|---|
| Units of measurement | Gr; kg |
| Self-diagnosis mode | Yes |
| Visual indication | Yes |
| Level | Yes |
| Guarantee | 2 years |
|---|---|
| Verification | Yes |
| Nutrition | via USB |
| Permissible humidity | 85% |
| Atmospheric pressure | 630...800 mm Hg |
| Operating temperature | -10°C ~ +40°C |
| Display type | LCD |
|---|---|
| Number of indication digits | 5 |
| Character size, mm | 8*21 |
| Interface | USB-COM |
|---|
| Overall dimensions (WxDxH), mm | 340*240*77 |
|---|---|
| Platform material | Stainless steel |
| Body material | Plastic, metal |
| Weight | 3.75 kg |
| Keyboard type | Industrial sensor |
| Overload protection | Sound and visual notification |
| Corrosion protection | Galvanization |
| Moisture protection | IP 54 |
| Adjustable supports | Yes |
-
