| Type of scalesPackaging | Discreteness2 gr | Minimum weight40 gr |
| Number of keys4 | Weighing limit15 kg | Platform size325*315 mm |
| ExecutionBuilt-in | VerificationYes | Accuracy classAverage (III) |

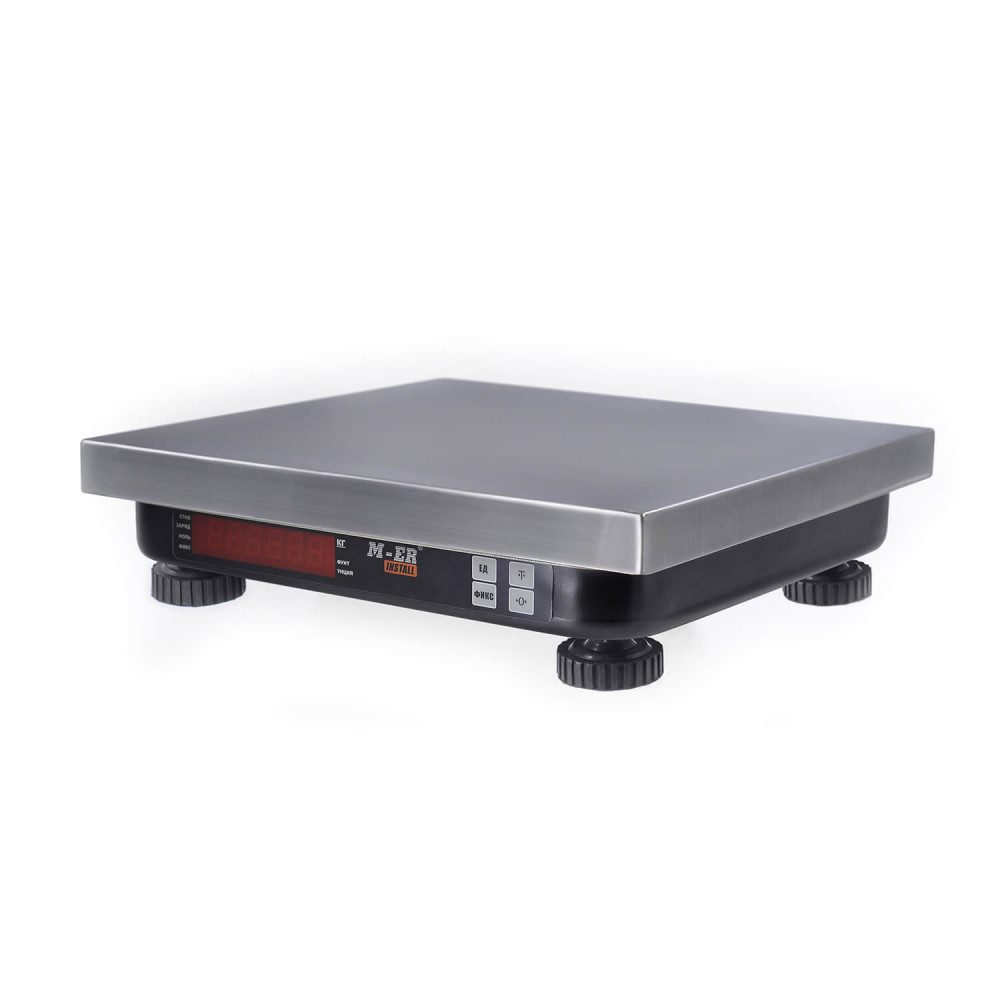

The M-ER 221 F Install model is one of the thinnest built-in electronic scales available on the market. They are integrated into cash boxes or tables. This model can also be used as a standalone device. Weight range: from 40 grams to 15 kilograms.
Design Features

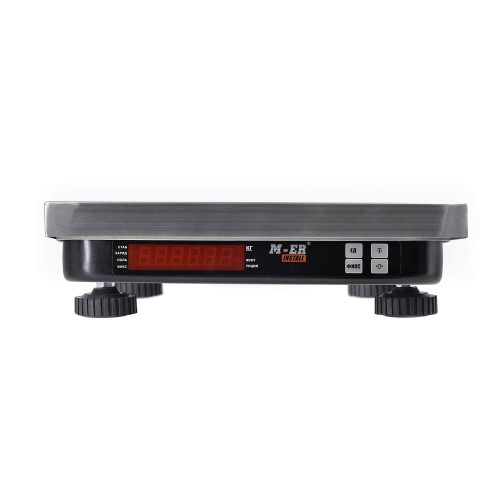

The housing is made of sturdy metal. The platform is made of food-grade stainless steel. Dimensions of the housing: 330*320*80 mm. Platform dimensions: 330*320 mm. The load cell has an OIML certification. The side panel features an LED display, tare, and zeroing buttons. These elements duplicate the software functionality of the scales. As the scales are built-in, the primary functionality is embedded at the software level.

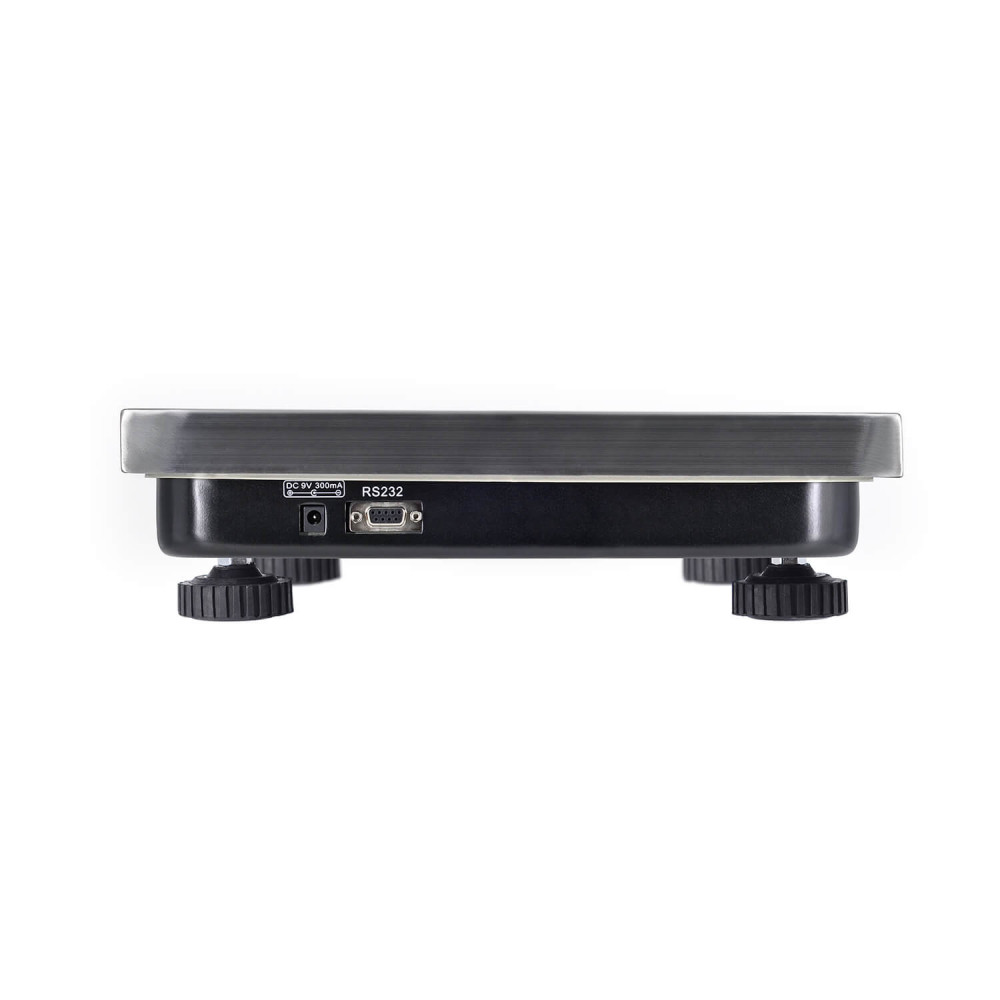

The M-ER 221 F Install scales have several connection interfaces. For connection to a POS system, an RS-232 interface can be used.
Electronics and Software
The scales synchronize with a computer using CAS-M and POS-2M protocols. The device supports integration with the 1C system and most online cash registers. Drivers for synchronization can be downloaded for free from the manufacturer's website.
The device can synchronize with OPOS and JavaPos. The electronics are compatible with Windows and Linux OS. Older versions of Windows are supported: 7, 8, XP. For operation with these OS, a virtual COM port driver is required. It can be found on the manufacturer's website in the "Download" section.
No driver is required for use with Windows 10. Connection to Linux is done via cdc_acm. This is a standard module that automatically loads when the scales are connected to Ubuntu.
Place an Order
You can buy the M-ER 221 F Install scales at a low price in the online store. Before purchasing, you can specify the configuration of the model. We will select the protocol for the POS system, and help you find and install software (if necessary). Delivery of orders is carried out in Baku and throughout Azerbaijan. Please leave a request on the website to start cooperation.
| Type of scales | Packaging |
|---|---|
| Discreteness | 2 gr |
| Minimum weight | 40 gr |
| Number of keys | 4 |
| Weighing limit | 15 kg |
| Platform size | 325*315 mm |
| Execution | Built-in |
| Verification | Yes |
| Accuracy class | Average (III) |
| Load cells, pcs. | 1 |
| Height adjustment, mm | 25 |
| Operating modes | Simple weighing; Weight fixation; Selection of units of measurement; Accounting for tare weight |
|---|---|
| Tare sampling range | The whole range |
| Units of measurement | Kg, Pound, Ounce |
| Self-diagnosis mode | Yes |
| Visual indication | Yes |
| Level | Yes |
| Guarantee | 2 years |
|---|---|
| Applications of scales | For connection to 1C, For a store, For connection to a POS computer, For food production, For food products |
| Battery | No |
| Verification | Yes |
| Nutrition | 9V-100mA (1.9m) |
| Permissible humidity | up to 85% at 40°C, without moisture condensation |
| Atmospheric pressure | 630...800 mm Hg |
| Operating temperature | 5°C ~ +40°C |
| Number of indication digits | 6 |
|---|---|
| Character size, mm | 8x15 |
| CAS-M (Active) | No |
|---|---|
| CAS-M (Passive) | Yes |
| POS2-M | Yes |
| Interfaces | RS-232 |
|---|
| Color | Black |
|---|---|
| Overall dimensions (WxDxH), mm | 325x315x90 |
| Platform material | Stainless steel |
| Body material | Metal |
| Weight | 5.17 kg |
| Keyboard type | Push-button |
| Overload protection | Sound and visual notification |
| Corrosion protection | Metal elements are protected from corrosion by painting with anti-corrosion paint |
| Moisture protection | No |
| Adjustable supports | Yes |
| Equipment | Platform, Warranty card, Operation manual, RS232 cable (DB9f - DB9m - 1.9m) |
|---|
-
