| Scanner typeStationary | Scanning module2D image | Scanning speed100 scans/sec |
| Connection typeWired | Scanner resolution640(H)x480(V)Px | Scanning coverage angle40º(h)x35º(v) |
| Barcode SensitivityTilt ± 65° / 360° Rotation / Deviation ± 60 ° | Minimum barcode contrast20% | Reading barcodes1D, 2D |

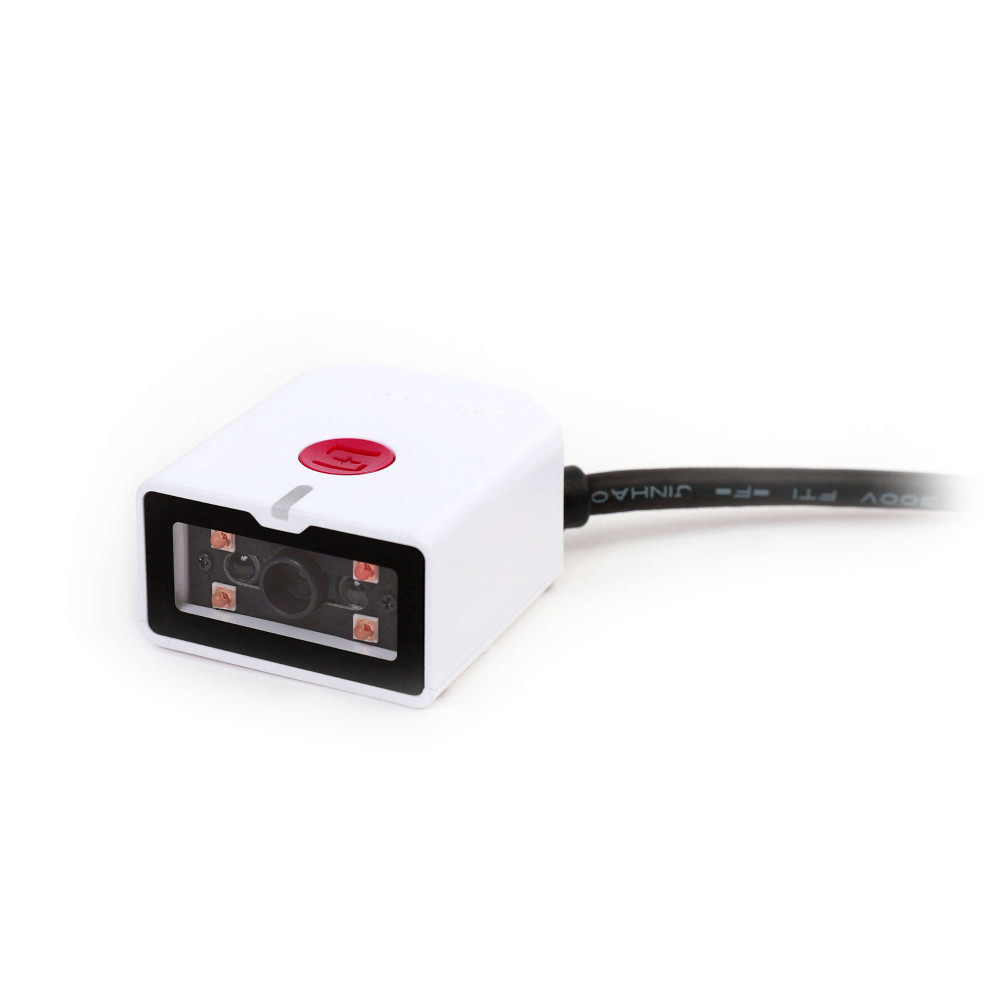

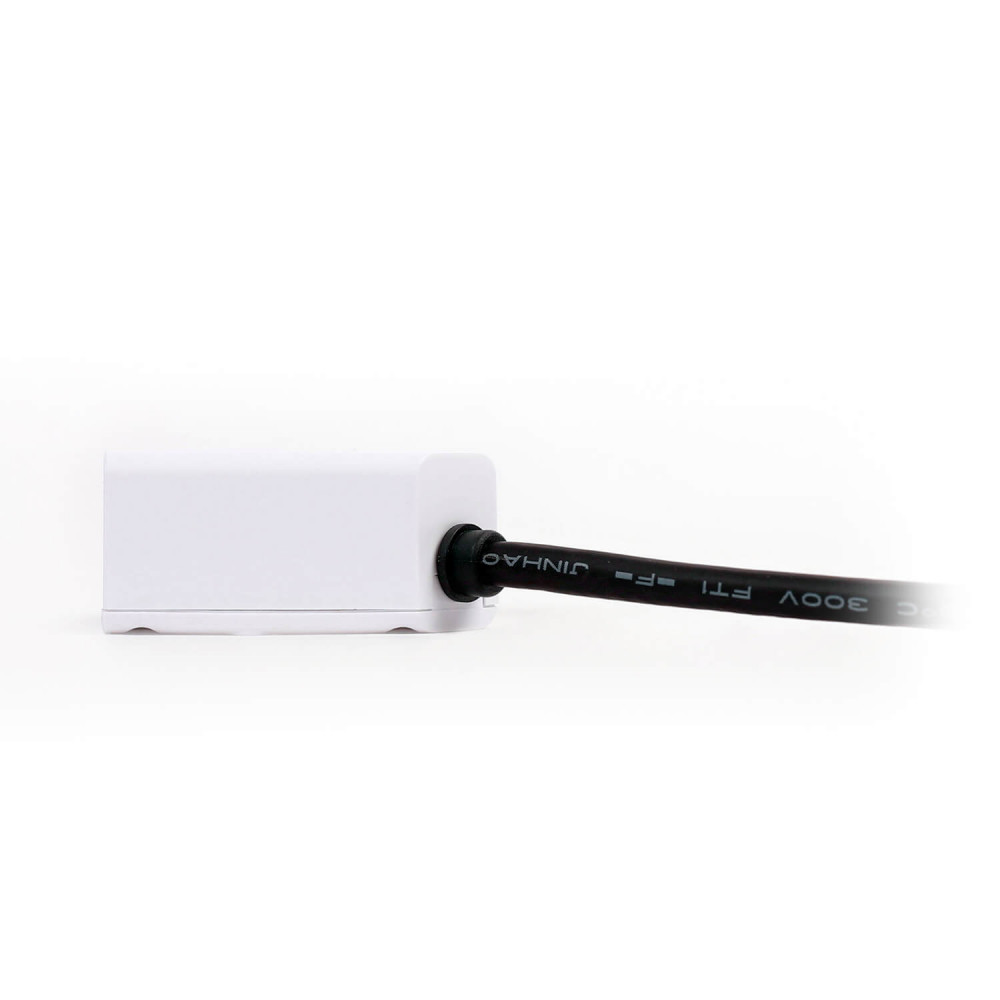

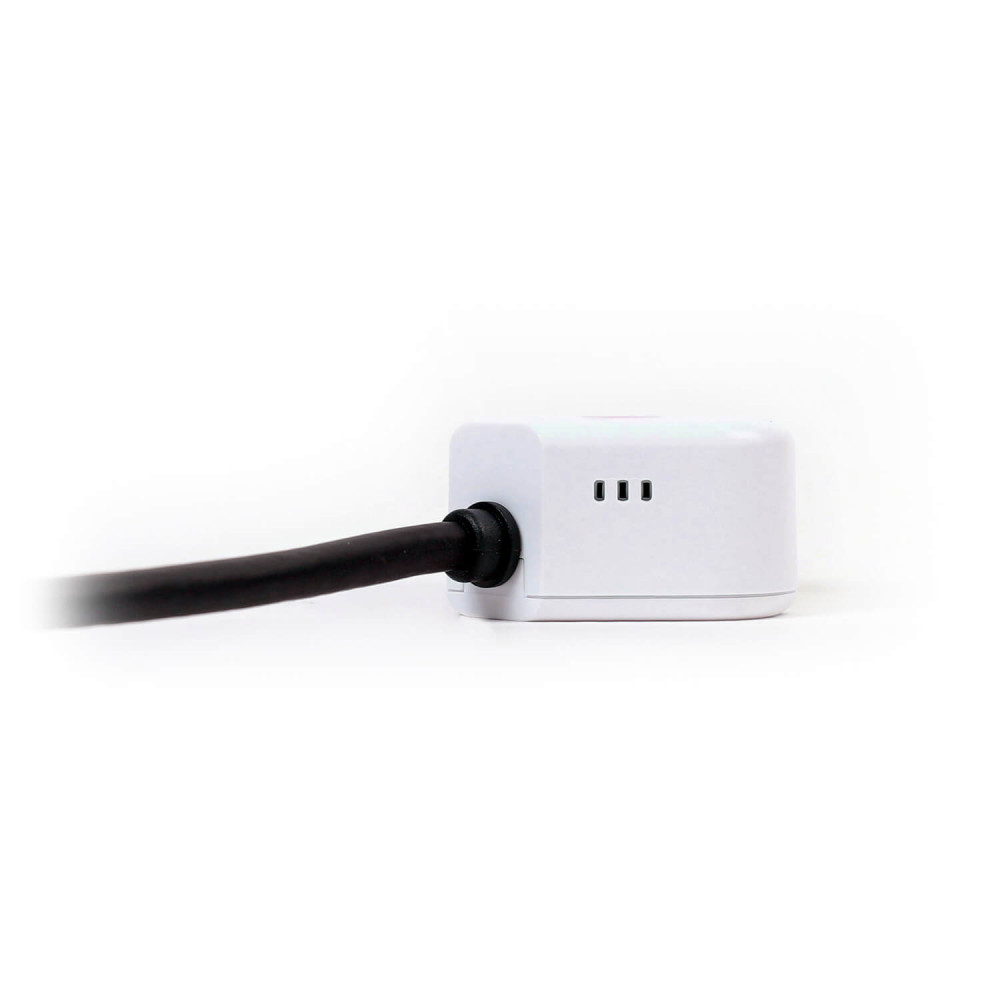

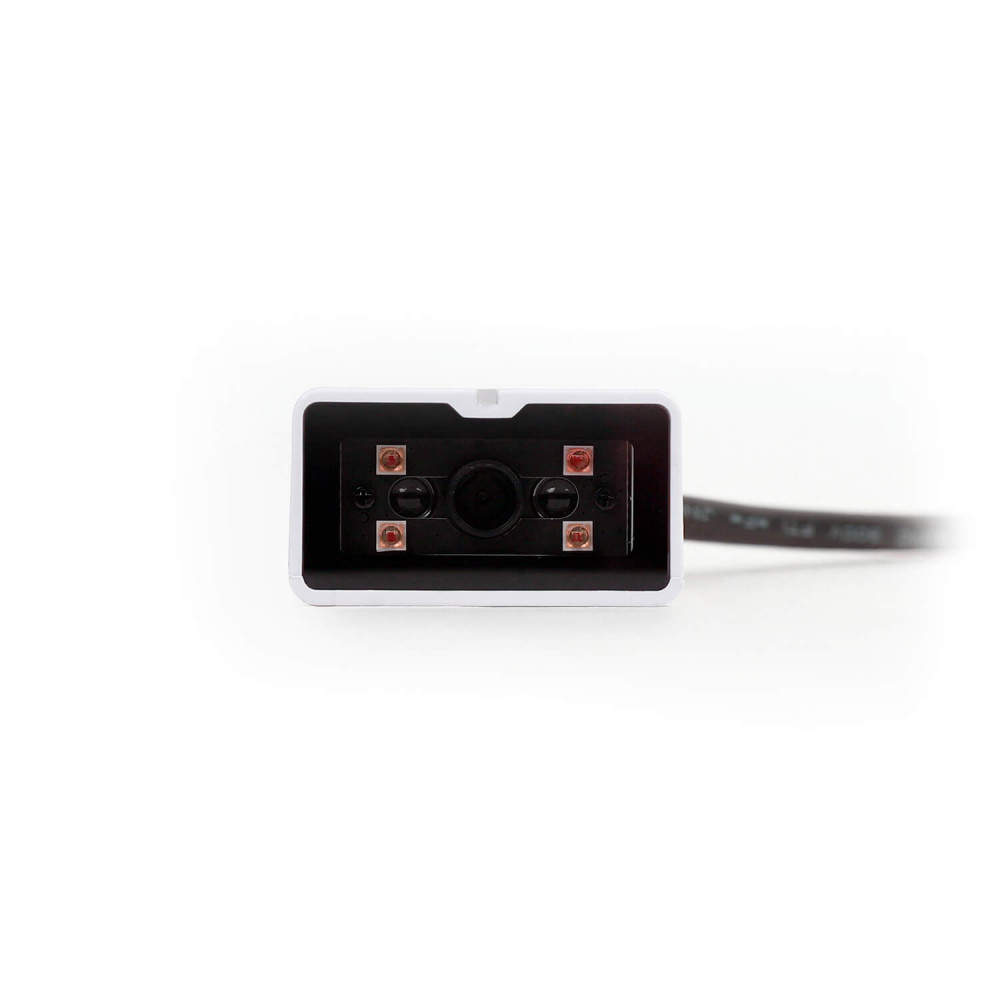

The MERTECH N200 industrial P2D USB is an embedded two-dimensional barcode scanner. The device reads all known 1D and 2D codes. The innovative SuperLead technology is used for reading. This compact model is suitable for use in vending machines.
Technical specifications
The size of the device is only 49mm*40mm*22mm, and the weight is 66 g. The product body is made of primary plastic and polycarbonate (ABC+PC). Due to its small size, this device can be used as a regular mobile scanner.
Main technical characteristics of the model:
- Operation speed: up to 180 scans per second.
- Code recognition range: 370 mm.
- Minimum barcode contrast: 20%.
- Coverage angle: '40°(H)x35 °(V).
- The backlight is 625nm red LED.
- The screen resolution is 640x480 pixels.
- Power supply: 5V/500mA.
The embedded scanner is connected via USB-HID, USB-COM (emulation) and RS-232 (optional). The kit includes a 2.05 m long USB type A cable. Synchronization with the system is performed automatically.
Advantages of the model
The 2D Image scanning module reads markings from any surface. The MERTECH N200 industrial P2D USB reads codes from smartphone screens and mirrored surfaces. It recognizes damaged and poorly printed markings.
Due to the ergonomic design of the case, the device has high impact resistance. It can withstand multiple falls from a height of up to 150 cm. Enclosure dust and moisture protection class: IP 54. This is a fairly high degree of protection that allows the device to be used indoors or outdoors.
Place an order
You can buy an embedded MERTECH N200 industrial P2D USB scanner at a low price from the manufacturer. We will deliver the order to any point in Russia. To make a purchase, leave a request on the website, place an order in the online store, or call us by phone.
| Scanner type | Stationary |
|---|---|
| Scanning module | 2D image |
| Scanning speed | 100 scans/sec |
| Connection type | Wired |
| Scanner resolution | 640(H)x480(V)Px |
| Scanning coverage angle | 40º(h)x35º(v) |
| Barcode Sensitivity | Tilt ± 65° / 360° Rotation / Deviation ± 60 ° |
| Minimum barcode contrast | 20% |
| Reading barcodes | 1D, 2D |
| Scanning range | Up to 370 mm |
| Поддержка СЭУАП | Yes |
|---|---|
| Supported 1D barcodes | UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar,MSI Plessey, GS1 DataBar, China Postal, Korean Postal |
| Supported 2D barcodes | PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin |
| EGAIS support | Yes |
| Automatic scanning | Yes |
| Sound and visual indication during scanning | Yes |
| Recognizing barcodes from complex surfaces | Yes |
| Support Honest SIGN | Yes |
| Backlight | Red 625nm |
|---|
| 5 MIL | 40-90 mm |
|---|---|
| 13 MIL | 60-180 mm |
| Minimum scanning resolution | 4 MIL |
| Guarantee | 3 years old |
|---|---|
| Resistance to external influences | IP54 |
| Storage temperature | -40°C ~ +70°C |
| Nutrition | 5V/400mA |
| Permissible humidity | 0% ~ 95% |
| Application areas | For EVOTOR, For marking shoes, For 1C, For VLSI, For alcohol, For pharmacy, For cigarettes, For perfumes, For EGAIS, For warehouse, For store, For marking, For Honest sign, Medical |
| Operating temperature | 0°C ~ +50°C |
| Drop test | It can withstand a fall from a height of 1.5 m. |
| Interface | USB-HID; USB-COM emulation; RS232 - optional |
|---|
| Color | White |
|---|---|
| Overall dimensions (WxDxH), mm | 49mm*40mm*22mm |
| Body material | ABC + PC (plastic + polycarbonate) |
| Weight | 66 g |
| Quantity in masterbox, pcs | 36 pcs |
|---|---|

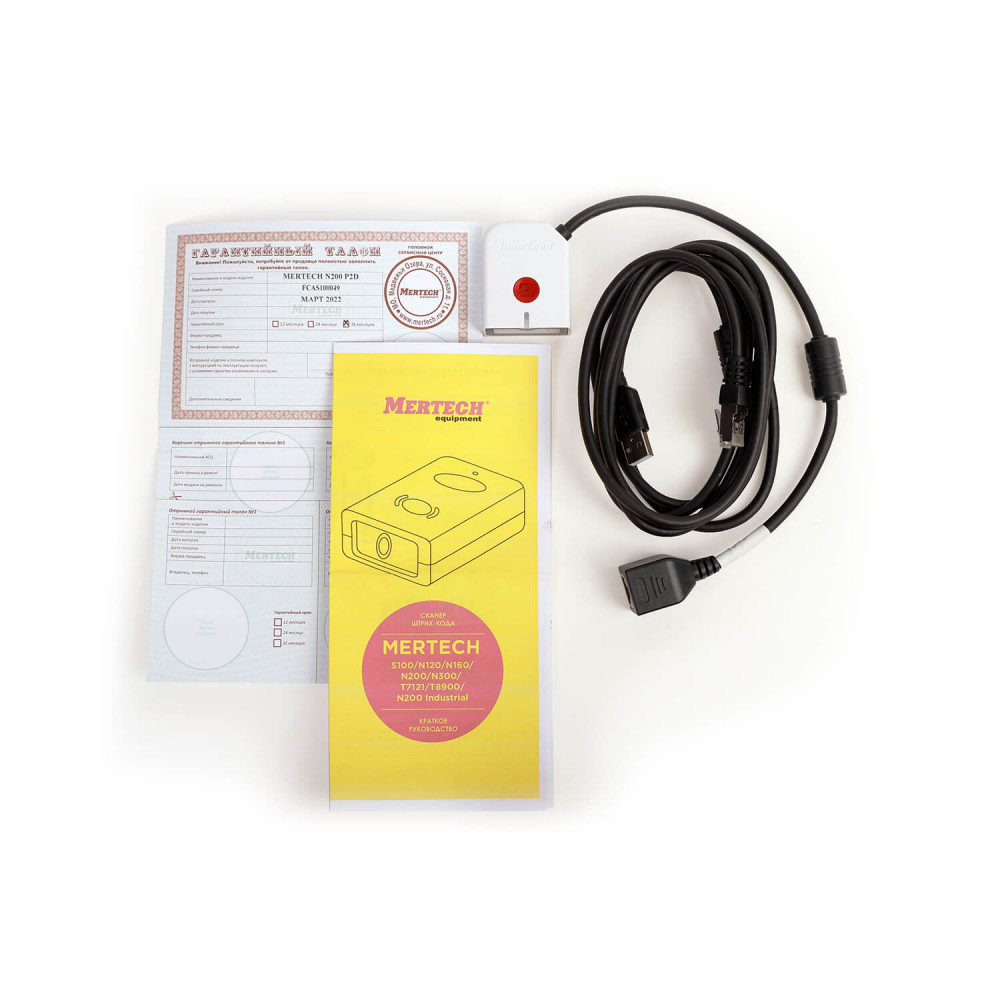

| Equipment | Scanner, USB type A cable (205 cm), Instructions, Warranty card, Packaging |
-
