| Scanner typeStationary | Scanning element2D image | Scanning speed300 scans/sec |
| Opening hours17 hours standby time, 13-14 hours continuous scanning | Connection typeWireless | Scanner resolution640(h)х480(v)Px |
| Scanning coverage angle53º(h)x41º(v) | Barcode SensitivityTilt ±65° / Rotate 360° / Roll ±60° | Minimum barcode contrast25% |

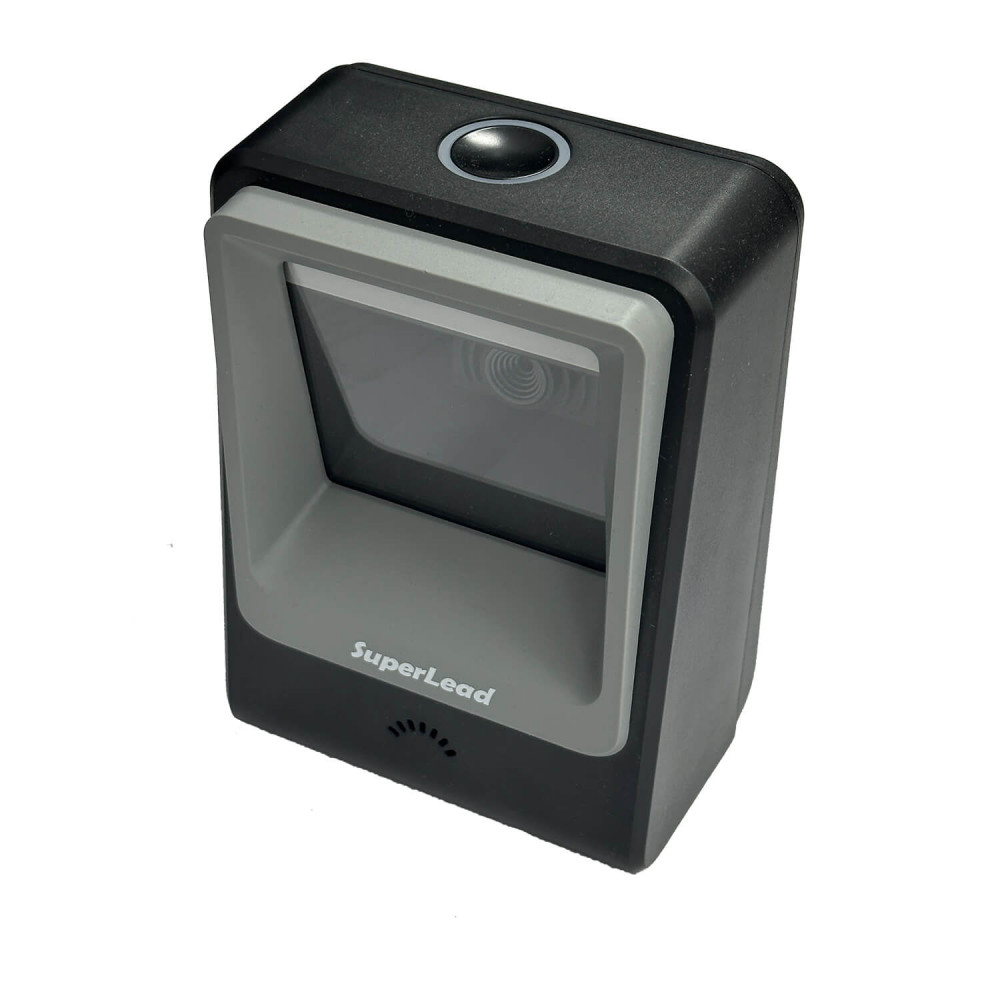

MERTECH CL-8400 P2D Superlead USB combines the form factor of a stationary scanner with the convenience of wireless connectivity. It quickly recognizes all popular barcodes, including PDF417 labels for the EGAIS system and Data Matrix marking codes for the "Honest Sign". This model is suitable for automating work in retail, healthcare, warehousing, and logistics.
Advantages and Features
The MERTECH CL-8400 scanner incorporates the best technological solutions. It has many advantages:
- Wireless form factor. The external device connects via Bluetooth 5.0, freeing the cashier's workspace from wires.
- High performance. The SUPERLEAD technology ensures a high recognition speed (300 scans/sec) and data processing.
- Wide coverage angle. The scanning angle of 53(h) x 41(v) simplifies the operator's job, eliminating the need to turn the packaging to achieve barcode reading.
- Extended functionality. The device recognizes low-contrast barcodes: up to 25%. A resolution of 4 MIL allows it to work even with small labels. Barcode reading is conducted even on complex surfaces.
- Convenient operation. The automatic mode accelerates scanning and reduces customer service time. After a successful barcode scan, both sound and visual indicators are triggered.
- Long-lasting operation. The battery capacity of 5,000 mAh provides up to 14 hours of active use or up to 17 hours in standby mode.
The stationary scanner has a reliable housing made of ABS plastic and polycarbonate. The compact size of the casing, 146x105x70 mm, allows for easy placement of the device in the checkout area. Scanning is conducted at temperatures ranging from 0°C to +50°C. The IP54 protection class ensures resistance to dust and moisture when operating indoors. The warranty from MERTECH is valid for 3 years.
Place an Order
You can purchase the MERTECH CL-8400 P2D Superlead USB stationary scanner on the official MERTECH website. When making purchases on the manufacturer's site, the lowest prices for trading equipment apply. Additional discounts are available for wholesale buyers. Orders are delivered across Azerbaijan through a dealer network in a short time. Leave a request to acquire stationary scanners for your business.
| Scanner type | Stationary |
|---|---|
| Scanning element | 2D image |
| Scanning speed | 300 scans/sec |
| Opening hours | 17 hours standby time, 13-14 hours continuous scanning |
| Connection type | Wireless |
| Scanner resolution | 640(h)х480(v)Px |
| Scanning coverage angle | 53º(h)x41º(v) |
| Barcode Sensitivity | Tilt ±65° / Rotate 360° / Roll ±60° |
| Minimum barcode contrast | 25% |
| Reading barcodes | 1D, 2D |
| Scanning range | Up to 200 mm |
| Поддержка СЭУАП | Yes |
|---|---|
| Sound and visual indication | Yes |
| Supported 1D barcodes | UPC; EAN; Code128; Code 39; Code 93; Code11; Matrix 2 of 5; Interleaved 2 of 5; Codabar;MSI Plessey; GS1 DataBar; China Postal; Korean Postal |
| Supported 2D barcodes | PDF417; MicroPDF417; Data Matrix; Maxicode; QR Code; MicroQR; Aztec; Hanxin |
| Automatic scanning | Yes |
| Recognizing barcodes from complex surfaces | Yes |
| Support Honest SIGN | Yes |
| Backlight | Red, 5000K LED |
|---|
| 5 MIL | 0-30 mm |
|---|---|
| 13 MIL | 0-120 mm |
| Minimum scanning resolution | 4 MIL |
| Guarantee | 3 years |
|---|---|
| Resistance to external influences | IP54 |
| Storage temperature | -40°С ~ +70°С |
| Nutrition | 5V/500mA |
| Permissible humidity | 0% ~ 95% |
| Application areas | For EVOTOR, For shoe marking, For 1C, For SBIS, For alcohol, For pharmacy, For cigarettes, For perfume, For SEUAP, For warehouse, For store, For marking, For Honest Sign, Medical |
| Operating temperature | 0°С ~ +50°С |
| Drop test | Withstands 3 falls from a height of 0.5 m |
| Interface | USB-HID, USB-COM - emulation, Bluetooth 5.0 |
|---|
| Battery capacity | 5000mAh |
|---|
| Color | Black, grey |
|---|---|
| Overall dimensions (WxDxH), mm | 146mm*105mm*70mm |
| Body material | ABC + PC (plastic + polycarbonate) |
| Weight | 420 gr |
| Box dimensions, mm | 195*120*140 |
|---|---|
| Equipment | Scanner, USB type C cable, Manual, Warranty card, Packaging |
-
