| Detector typeAuto | Types of detectionsInfrared; Ultraviolet; Magnetic; Optical density control; Geometric banknote control; Special element "I"; Spectral characteristic; Double check | Verification speed0.5 s/banknote |
| Types of currenciesRUB | Summation modeNo | Determination of the denomination of a banknoteNo |
| Banknote orientation optionsAny side | Saving data on verified banknotesYes | Banknote issuance modeDirect and reverse |

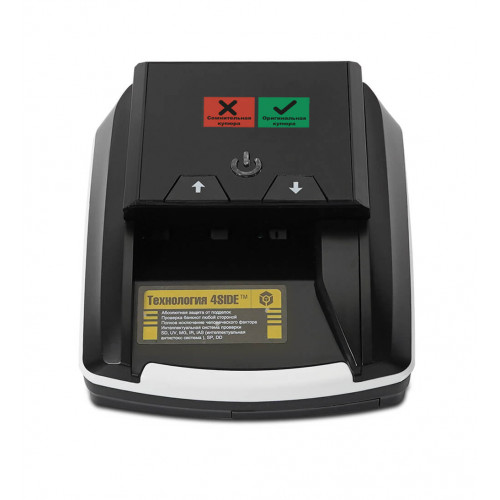

MERTECH D-20A Promatic GREENRED is an automatic banknote detector that operates on a battery. The model features PSD and Anti-Stoks (IAS) detection systems. After verification, a red or green signal lights up on the display.
Advantages of this model
The small device does not take up much space on the desk. There is room for installation in the cash area of a store, pharmacy, cafe, beauty salon, gas station, and other businesses. Banknote analysis is conducted through 8 detections:
- Infrared;
- Ultraviolet;
- Magnetic;
- Optical density control;
- Geometric control of the banknote;
- Special element "I";
- Spectral characteristic;
- Double-checking

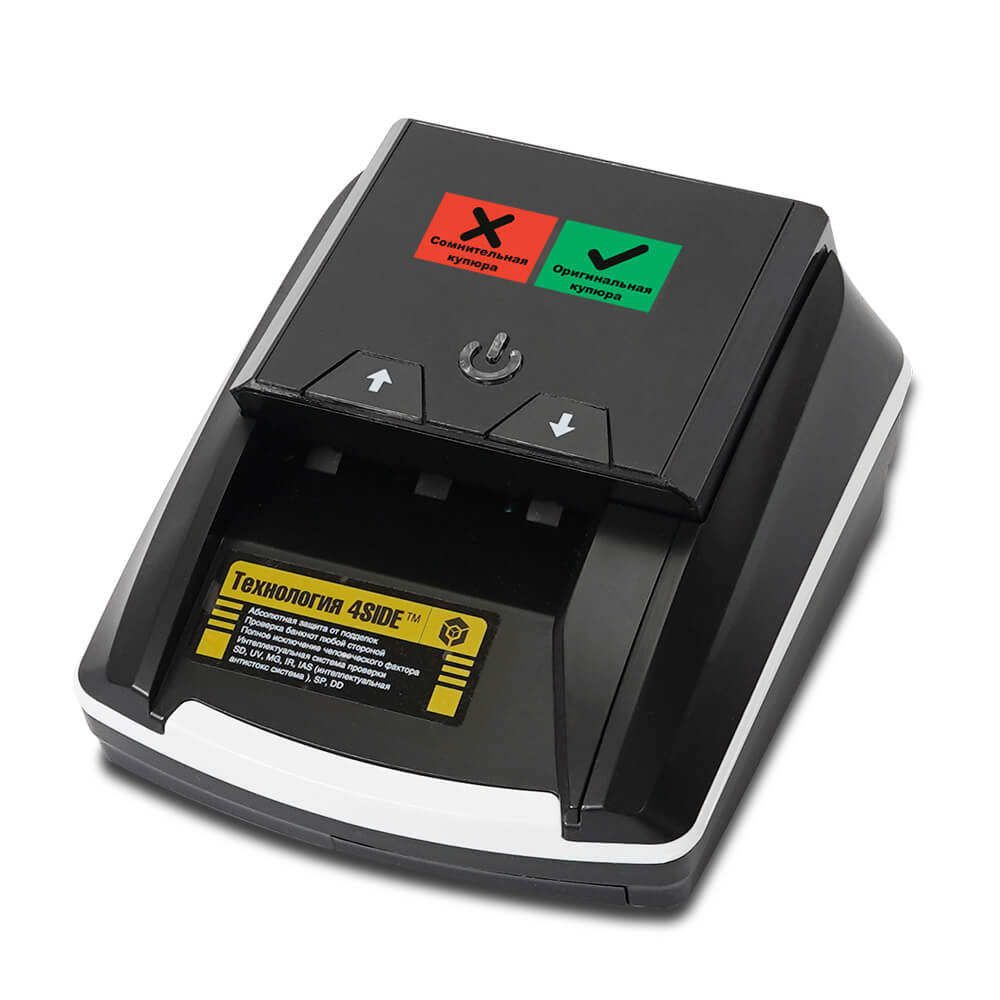

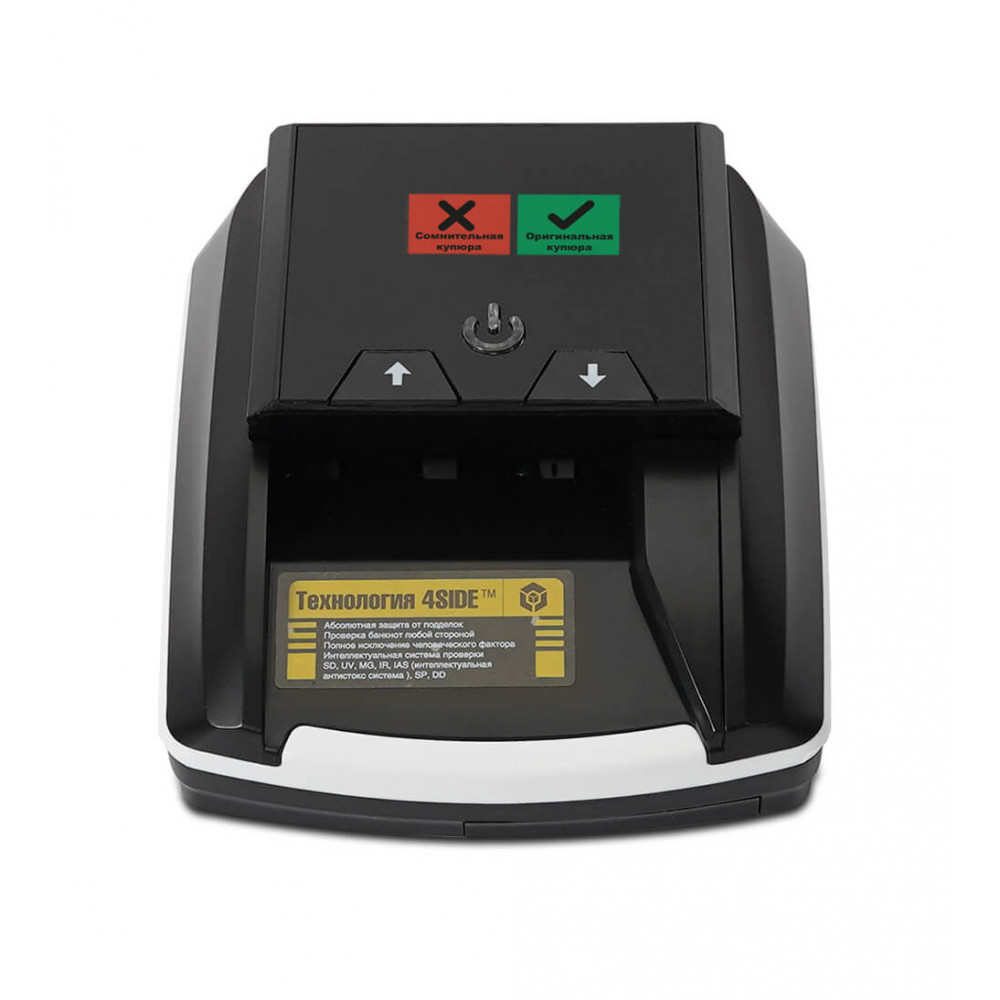

Two LED displays are installed on the front panel: green and red. If the banknote is recognized as genuine, the green display lights up. If the banknote is suspicious, the green display lights up and an audible signal is produced.
The accuracy of automatic verification is high. This is confirmed by testing results from the Ministry of Internal Affairs. The device's design is very simple: employees with low qualifications can verify money for authenticity.
Technical specifications
The device is made of polycarbonate and plastic. The reliable casing protects the electronics from falls from tabletop height. The mechanism accepts banknotes inserted from any side. During the verification, both forward and reverse feeding of the money is performed.
Verification of banknotes is done one by one. Analyzing a banknote takes 0.5 seconds. The detector has a memory that stores the results. The device works only with rubles. The firmware can be updated after the release of new banknotes.
The detector operates on a high-capacity battery. A single charge lasts for 9 hours of continuous operation with banknotes. A power adapter is used for charging the battery. The charged device can be taken for field transactions.
How to place an order
MERTECH offers to purchase detectors at manufacturer prices. Delivery of orders from the online store is carried out throughout Azerbaijan. Leave a request on the website or by phone, and we will prepare a favorable offer for you.
| Detector type | Auto |
|---|---|
| Types of detections | Infrared; Ultraviolet; Magnetic; Optical density control; Geometric banknote control; Special element "I"; Spectral characteristic; Double check |
| Verification speed | 0.5 s/banknote |
| Types of currencies | RUB |
|---|---|
| Summation mode | No |
| Determination of the denomination of a banknote | No |
| Banknote orientation options | Any side |
| Saving data on verified banknotes | Yes |
| Banknote issuance mode | Direct and reverse |
| Possibility of independent software updates | Yes |
| Sound and visual indication | Yes |
| Guarantee | 2 years |
|---|---|
| Battery | Li-On |
| Storage temperature | -20°С ~ +65°С |
| Nutrition | Power adapter DC12V/1.0A |
| Permissible humidity | 80% |
| Operating temperature | 0-40°С |
| Detection indication | Yes |
|---|---|
| Indication of a genuine banknote | Green |
| Indication of a suspicious banknote | Red |
| Number of indication digits | 12 (6+6) |

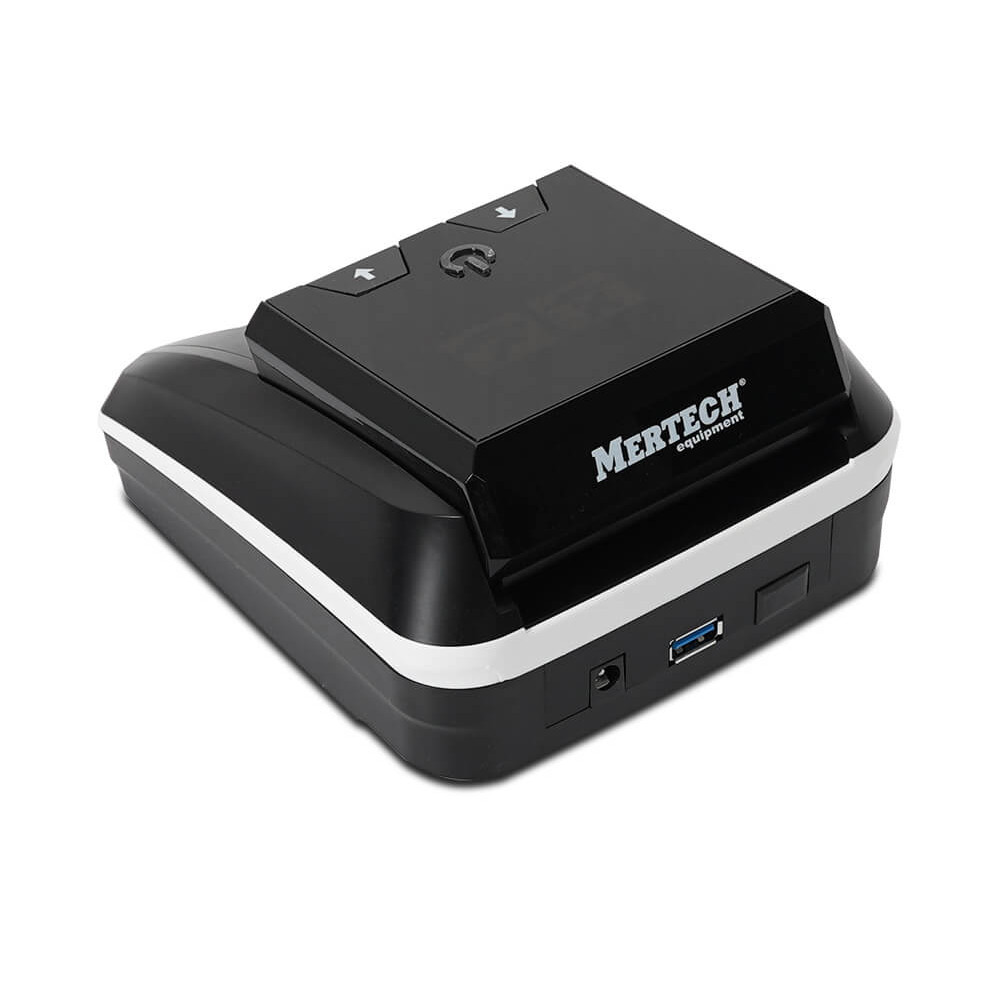

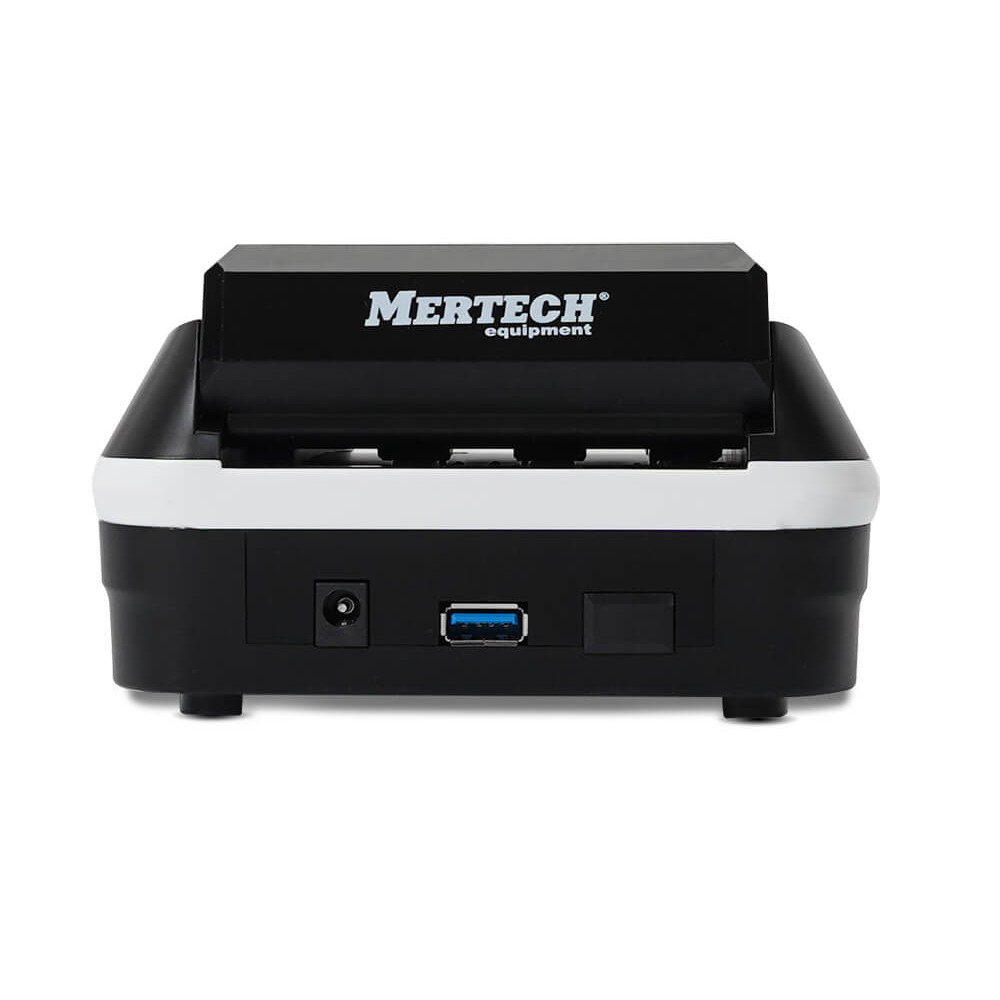

| Interfaces | USB |
|---|
| Battery capacity | 10.8V/600mAh |
|---|
| Color | Black |
|---|---|
| Overall dimensions (WxDxH), mm | 135*155*79 |
| Body material | ABC + PC (plastic + polycarbonate) |
| Weight | 650 |
| Detector | Eat |
|---|---|
| User manual | Eat |
| Power adapter | Eat |
-
