| Detector typeAuto | Types of detectionsInfrared; Ultraviolet; Magnetic; Optical density control; Geometric banknote control; Special element "I"; Spectral characteristic; Double check | Verification speed0.5 s/banknote |
| Types of currenciesRUB | Summation modeYes | Determination of the denomination of a banknoteYes |
| Banknote orientation optionsAny side | Saving data on verified banknotesYes | Banknote issuance modeDirect and reverse |

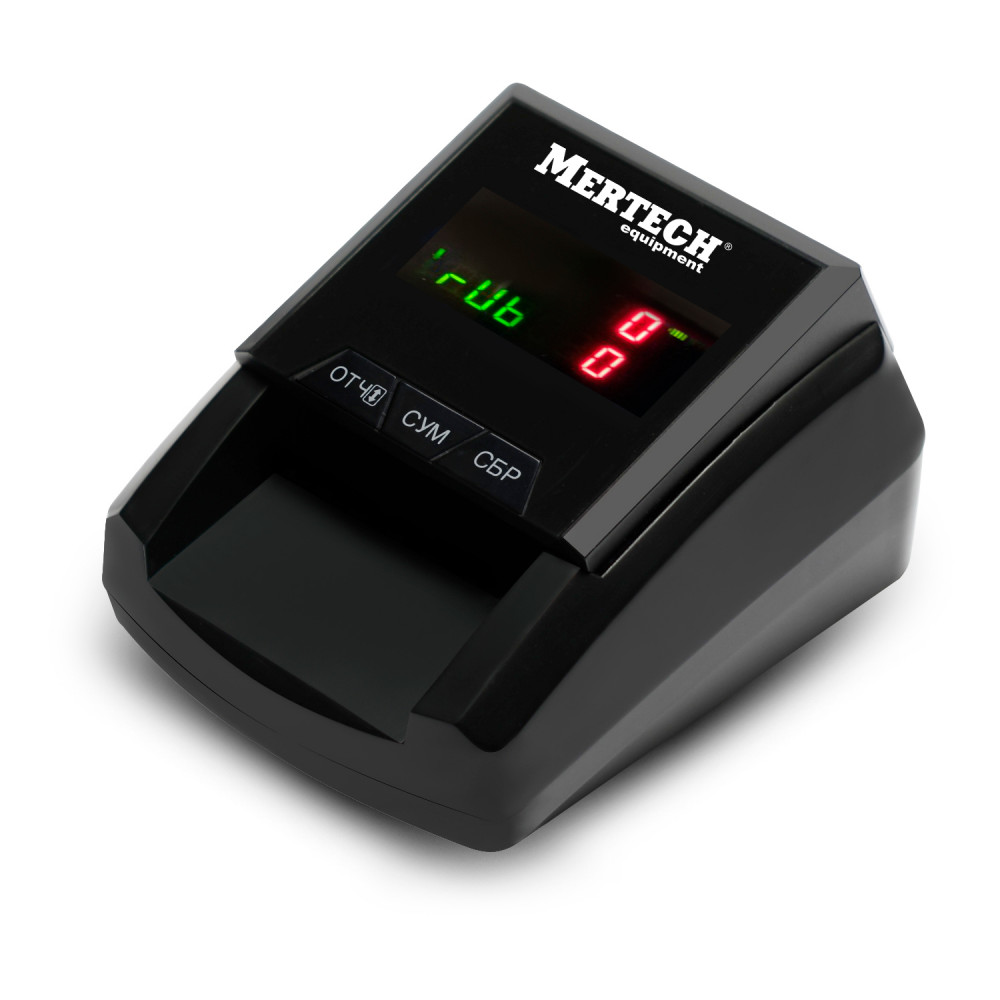

The MERTECH D20A Flash Pro LED banknote detector is designed for cash handling units with high or medium flow. It employs the latest technologies in its development. This is the only device on the market that has successfully passed certification from the Ministry of Internal Affairs. Following certification, the device demonstrated the highest results. The detector quickly and accurately checks large batches of money.
Structure Description
The D20A Flash Pro model is available in 4 variants. It offers 2 types of power supply: from the mains or from a battery. And 2 types of displays: LED and LCD. This page of the catalog features the model with an LED screen.
Several types of detection are used to verify the authenticity of banknotes:
- Infrared;
- Ultraviolet;
- Magnetic;
- Optical density control;
- Geometric control of the banknote;
- Special element “I”;
- Spectral characteristics;
- Double-check

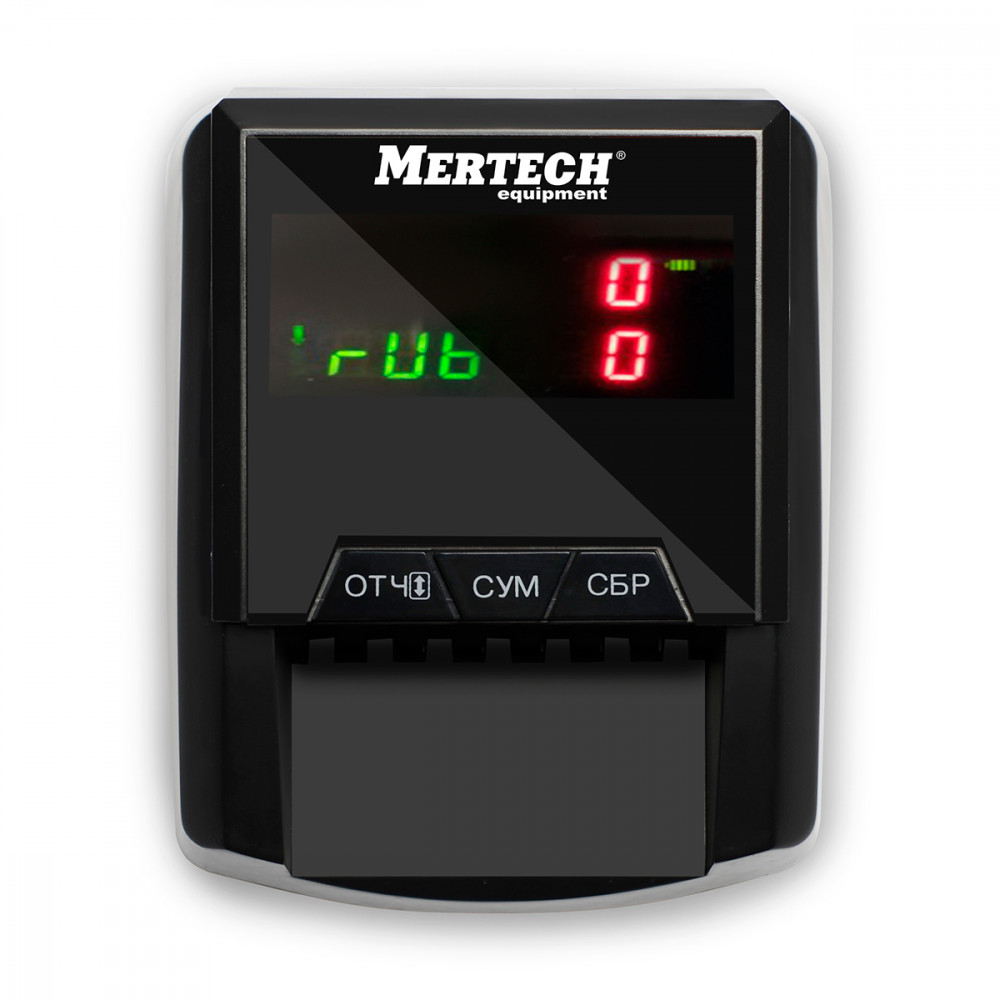

Information about the verification results is displayed on the LED screen. It shows the authenticity and denomination of the checked banknote, the total amount of denominations in the batch, and the direction of money feeding.
Authenticity is determined after a comprehensive analysis. If even one detection fails, the banknote is recognized as counterfeit. The device displays counterfeit information on the screen and provides a light and sound signal that cannot be missed. The signal will be audible even in a loud noise background.
Model Advantages
The main advantage of the D20A Flash Pro is its automatic operating mode. Human factors cannot influence the analysis results. Other features of this model include:
- Any side of the banknotes can be fed into the device.
- Detection speed: up to 100 banknotes per minute.
- The device can be placed in a car glove compartment or bag.
Learning to use the detector can take just a few minutes. The device is suitable for wholesale and retail stores, for office use, and for the service sector. The device can be used at a kiosk, market, or fair. It operates autonomously and does not require trading point automation.
Place an Order
You can purchase the professional MERTECH D20A Flash Pro currency detector at a low price. We offer equipment at manufacturer prices. Deliveries are made directly from the company's warehouse. We deliver equipment across Baku and ship orders to any region of Azerbaijan. Delivery time and price are calculated individually. Leave an application on the website or call us to receive a favorable offer.
| Detector type | Auto |
|---|---|
| Types of detections | Infrared; Ultraviolet; Magnetic; Optical density control; Geometric banknote control; Special element "I"; Spectral characteristic; Double check |
| Verification speed | 0.5 s/banknote |
| Types of currencies | RUB |
|---|---|
| Summation mode | Yes |
| Determination of the denomination of a banknote | Yes |
| Banknote orientation options | Any side |
| Saving data on verified banknotes | Yes |
| Banknote issuance mode | Direct and reverse |
| Possibility of independent software updates | Yes |
| Sound and visual indication | Yes |
| One-time number of banknotes checked | 1 |
| Guarantee | 2 years |
|---|---|
| Battery | Without battery |
| Storage temperature | -20°С ~ +65°С |
| Permissible humidity | 80% |
| Operating temperature | 0-40°С |
| Display type | LED |
|---|---|
| Diagonal | 2.5" |
| Information on the display | Denomination of the checked banknote; Total amount of checked banknotes; Active banknote feed direction; Battery charge level |
| Number of indication digits | 12 (6+6) |
| Character size, mm | 12*11mm |
| Interfaces | USB |
|---|
| Color | Black |
|---|---|
| Overall dimensions (WxDxH), mm | 115*140*85 |
| Body material | ABC + PC (plastic + polycarbonate) |
| Weight | 500 |
| Detector | Eat |
|---|---|
| User manual | Eat |
| Power adapter | Eat |
-
