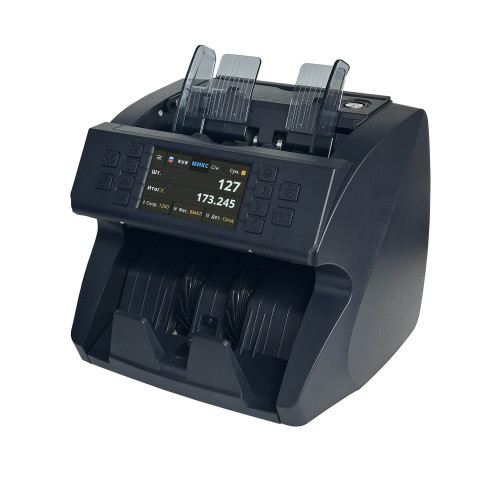

Banknote counter with MERTECH C-100 CIS touch screen authenticity detector
1,266 ₼
Banknote counter with MERTECH C-100 CIS touch screen authenticity detector
Popular
Specification
| Banknote counter classOffice | Types of detectionsCIS image verification; by the size of banknotes; ultraviolet; RGB: scanner; by optical density; spectral analysis of ink; infrared | Loading tray capacity500 |
| Verification speed800; 1000; 1200; 1500 | Capacity of the receiving tray200 | Method of loading banknotesHorizontal |
| Noise levelup to 85dB | Recommended operating time per dayUp to 8 hours | Packing modeYes |
Shipping Information
Enter a delivery address
Description
MERTECH C-100 CIS is an office banknote counter with a color touch screen, high conversion rate and a multi—level detection system. It is designed to work with rubles, euros, US dollars, Belarusian rubles and tenge.
Main advantages
- Maximum accuracy: CIS scanner and multispectral inspection
- 4.3" TFT touch screen (800*480)
- Multi-functionality: summation, packing, sorting, auto-counting
- Compatible with remote display and receipt printer
- Low noise level — up to 85 dB
- Sturdy body and convenient carrying handle
Technical specifications
- Class: Office
- Detections: CIS, Size, UV, RGB, Density, Spectral analysis, IR
- Conversion rate: 800 / 1000 / 1200 / 1500 banknotes per minute
- Tray capacity: loading — 500, receiving - 200 banknotes
- Modes: packing (1-999), summation, sorting, auto-counting
- Power supply: AC 100–240V, 50/60 Hz
- Temperature range: +5...+35 °C, humidity up to 90%
- Warranty: 2 years
- Dimensions: 280×260×270 mm
- Weight: 6.1 kg
- Housing: ABS+PC plastic, IP42, color grey
Where to buy
Place an order on the manufacturer's official website and receive delivery throughout Russia. MERTECH is a guarantee of quality and reliability for your business.
Specifications Banknote counter with MERTECH C-100 CIS touch screen authenticity detector
Technical parameters
| Banknote counter class | Office |
|---|---|
| Types of detections | CIS image verification; by the size of banknotes; ultraviolet; RGB: scanner; by optical density; spectral analysis of ink; infrared |
| Loading tray capacity | 500 |
| Verification speed | 800; 1000; 1200; 1500 |
| Capacity of the receiving tray | 200 |
| Method of loading banknotes | Horizontal |
| Noise level | up to 85dB |
| Recommended operating time per day | Up to 8 hours |
| Packing mode | Yes |
| Remote display | optional |
Functional capabilities
| Types of currencies | Russian Ruble, US Dollar, Euro, Belarusian Ruble, Kazakhstani Tenge, Kyrgyz Som, Ukrainian Hryvnia |
|---|---|
| Summation mode | Yes |
| Determination of the denomination of a banknote | Yes |
| Simple recalculation | Yes |
| Automatic recalculation | Yes |
| Sorting | Yes |
| Sound and visual indication | Yes |
| Saving banknote counting data | Yes |
| Additional tray | No |
| Powered by cigarette lighter | No |
| Connecting additional equipment | receipt printer; remote display |
| Self-diagnosis mode | Yes |
Operating parameters
| Guarantee | 2 years old |
|---|---|
| Battery | Without battery |
| Connector for connecting a remote display | RJ12 |
| Power consumption | <50W |
| Printer connection socket | RS232 |
| Packaging size | 1-999 |
| Protection class | IP42 |
| Nutrition | AC100-240v 50/60Hz |
| Permissible humidity | 90% |
| Operating temperature | +5…+35 |
Display
| Display type | LCD |
|---|---|
| Diagonal | 4,3 |
| Matrix type | TFT |
| Permission | 800*480 |
| Information on the display | Invoice result, error messages, operating mode settings |
Frame
| Color | Gray |
|---|---|
| Overall dimensions (WxDxH), mm | 280*260*270 |
| Body material | Plastic (ABS+PC) |
| Carrying handle | Yes |
| Weight | 6 kg |
| Keyboard type | Clock speed |
| Control | Buttons |
Equipment
| Quantity in masterbox, pcs | 2 pcs |
|---|---|
| Equipment | Meter, Power cable, Calibration template, Instruction manual, Warranty card, Packaging |
