Banknote counter with authenticity detector MERTECH C-200 DOUBLE CIS MG touch screen

MERTECH C-200 DOUBLE CIS MG Touch Screen — This is a professional two-pocket banknote counter with an advanced authentication system and user-friendly touch controls. The model is designed for intensive use in banking organizations, collection offices and large retail chains. The equipment combines an expert level of detection, high-speed cash processing and an intuitive interface thanks to a modern 4.5-inch TFT touchscreen.

Advantages of the model

• Expert authentication
  The counter is equipped with a dual CIS analysis system for the front and back of banknotes, magnetic, infrared and ultraviolet detection, spectral ink analysis, RGB color control and geometric analysis of banknotes.
• High performance
  The cash processing rate reaches 1,500 banknotes per minute in the conversion mode and up to 1,200 banknotes in authentication modes.

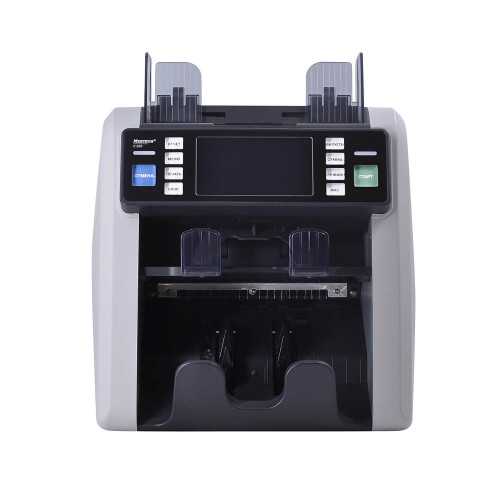

• Modern touch screen control
  The 4.5-inch TFT touchscreen display with a resolution of 854x480 pixels provides convenient operation and information display.
• Wide sorting functionality
  The device supports sorting by denomination, version, orientation, obverse and reverse sides of banknotes, as well as serial number reconciliation mode.
• Working with multiple currencies
  More than 18 currencies are supported, including the ruble, the US dollar, the euro, the Chinese yuan, the Belarusian ruble and others.
• Guaranteed quality
  The meter has been tested by the Central Bank of the Russian Federation and has shown excellent results in verification accuracy and reliability.

Authentication by 10 parameters

• CIS-analysis of the obverse and reverse
• Magnetic detection
• Infrared control
• UV control
• Spectral analysis of paint
• RGB color analysis
• Double check
• Geometric control of banknotes
• Reading serial numbers
• Sorting by dilapidation and orientation

Technical specifications

• Loading tray capacity: 500 banknotes
• Main hopper capacity: 250 banknotes
• Rejection pocket capacity: 100 banknotes
• Counting speed: 800/1000/1200/1500 banknotes per minute
• Check speed in MIX/FACE VALUE/VERSION modes: up to 1200 banknotes per minute
• Noise level: up to 80 dB
• Packing size: from 1 to 1000 banknotes
• Power supply: AC 100-240 V, 50/60 Hz

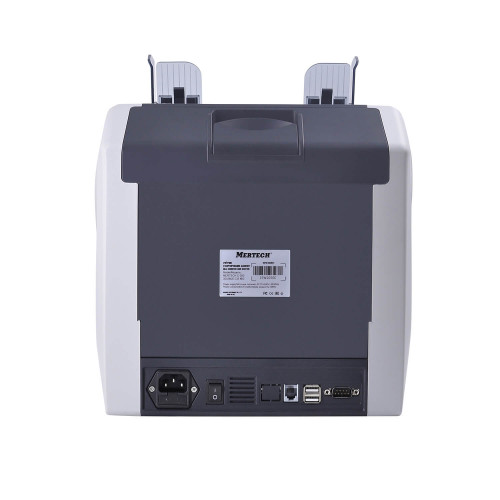

• Connection interfaces: 2 × USB, RS232, RJ12
• Support for connecting a receipt printer and an external display
• Power consumption: less than 80W
• Operating temperature: +5°C ~ +35°C
• Dimensions: 290×285×325 mm
• Weight: 9.3 kg
• Enclosure protection class: IP42

Equipment

• MERTECH C-200 DOUBLE CIS MG Touch Screen Banknote Counter
• Power Cable
• External LED display
• Calibration template
• User Manual
• Warranty card
• Packaging

Conclusion

MERTECH C-200 DOUBLE CIS MG Touch Screen — this is the best solution for organizations where accuracy, speed and convenience of working with cash are critical. The advanced touchpad, expert authentication, and advanced sorting capabilities make this model an ideal choice for professionals.
